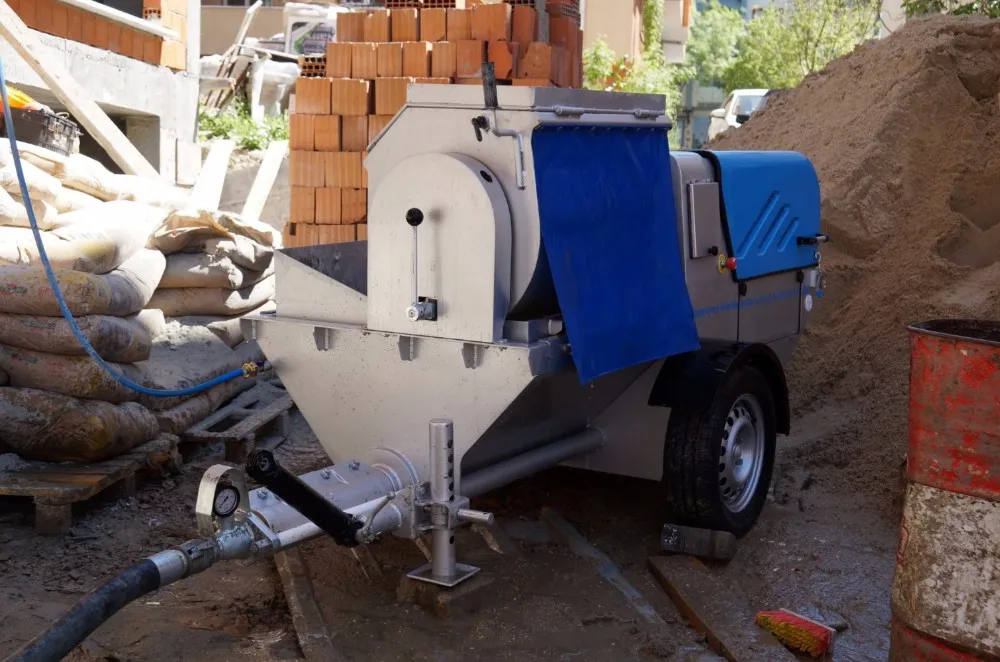

Mortel Meister PPE 80 Mortar Mixing and Transfer Machine Double Piston

Product Overview

Description



APPLICATION



√ Mortar Transfer
√ Stucco Application
√ Self Leveling
√ Colored Plaster
√ Injection Mortar



Easy-to-use and practical control panel designed as close to the vessel and evading from the electronic.

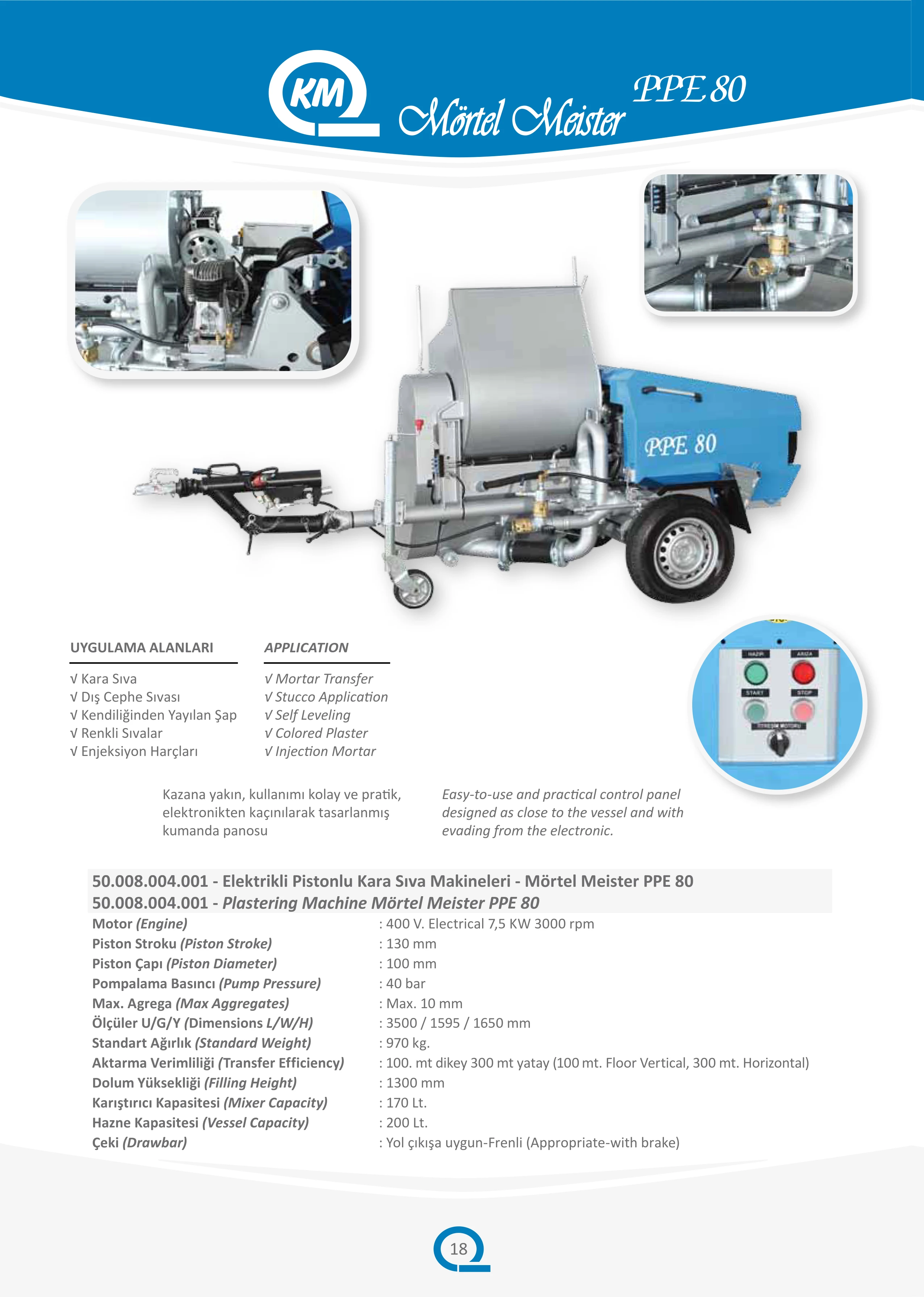

Plastering Machine Mrtel Meister PPE 80
Engine : 400 V. Electrical 7,5 KW 3000 rpm
Piston Stroke) : 130 m
Piston Diameter : 100 mm
Pump Pressure) : 40 bar
Max Aggregates : Max. 10 mm
Dimensions L/W/H : 3500 / 1595 / 1650 mm
Standard Weight : 970 kg.
Transfer Efficiency : 100 mt.  Vertical, 300 mt. Horizontal)
Loading Height : 1300 mm
Mixer Capacity : 170 Lt.
Vessel Capacity : 200 Lt.
Drawbar : Suitable for Road Navigation - with brakes
