ARAME DE SOLDA MIG Сварочная проволока ER70S 6 0,9 мм

Product Overview

Description

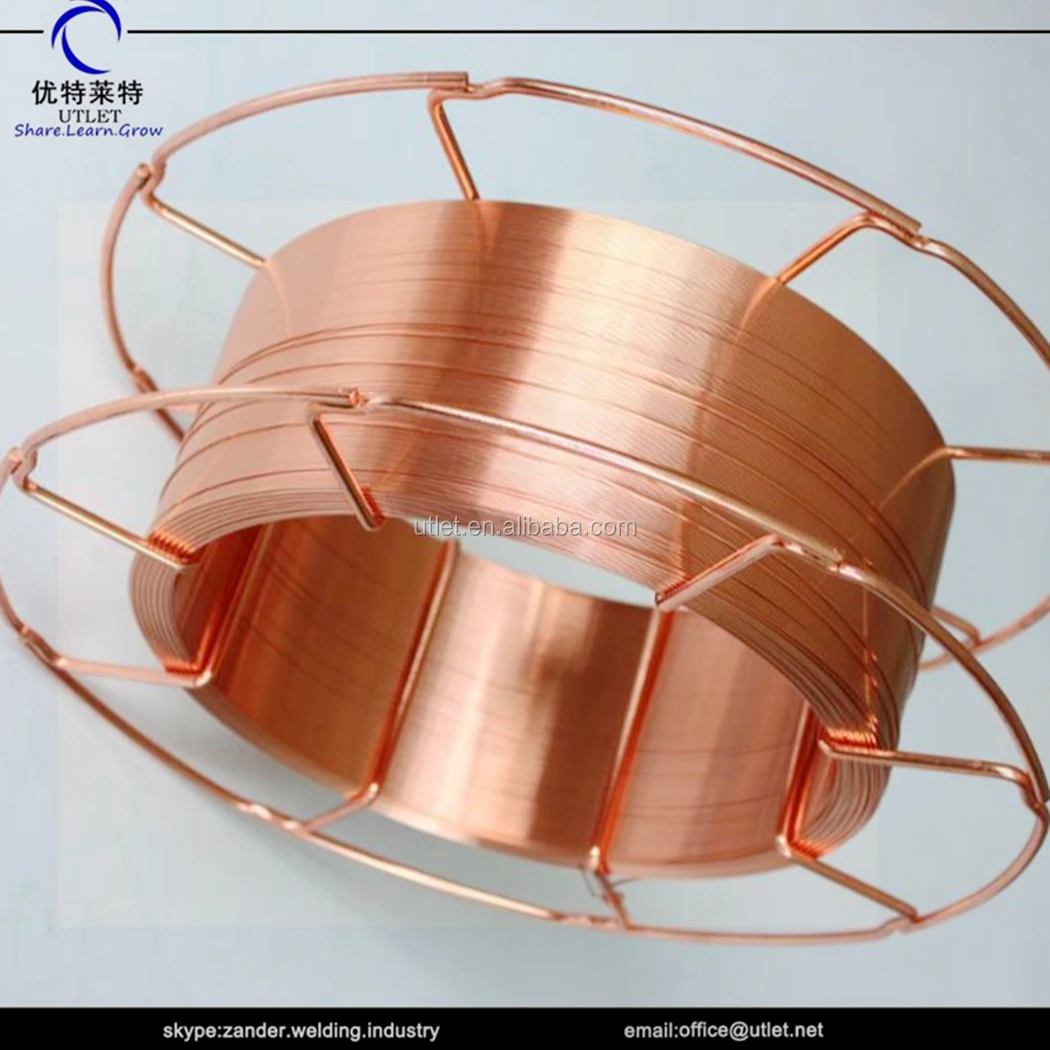

ARAME DE SOLDA MIG WELDING WIRE ER70S-6 0.9mm

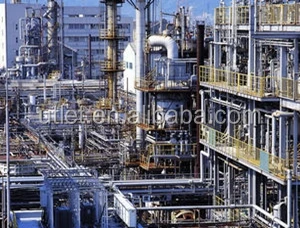

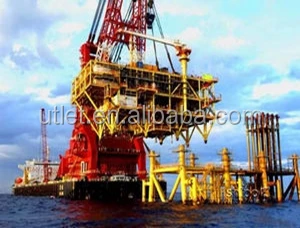

Application:

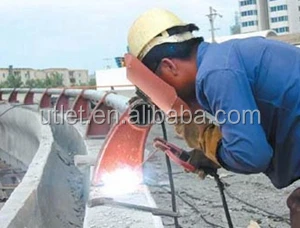

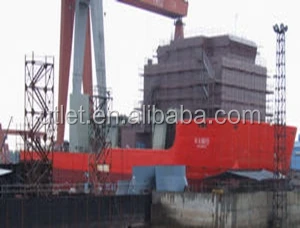

ER70S-6 is used for ship building steel (A, B, D, E, A36, D36, E36) and equivalent mild

steel or 550 MPA grade mild alloy steel, such as container building, bridge building,

construction machine, railway construction, pressure vessels for semi-auto or

automatic gas shielded welding.



ARAME DE SOLDA MIG WELDING WIRE ER70S-6 0.9mm

Specification:
1. gas-shielded welding wire ER70S-6
2. Size: 0.6mm,0.8mm,0.9mm,1.0mm,1.2mm,1.6mm
3.Applicable for weld of low carton steel and low alloy steel structure, such as ships,

vehicles, bridges, engineering machinery, pressure vessel and construction etc.
4. Lead time: 20days after confirming order
5. International standard: AWS ER70S-6
6. China standard: GB ER50-6
7. Surface treatment: copper coated
8. Material: Carbon steel





ARAME DE SOLDA MIG WELDING WIRE ER70S-6 0.9mm
Advantage:
1. Low welding costs.
2 High productivity and low electricity consumption.
3 Easy to operate.
4. All position welding.
5. Very low hydrogen content in the weld and lower nitrogen content.
6. Excellent crack-resistance.
7. Little deformation after welding.
8. Wide applicability. Suitable for welding thin, medium and thick plates.





ARAME DE SOLDA MIG WELDING WIRE ER70S-6 0.9mm

Storage:
Your welding wire storage should be dry and ventilated, avoiding damp, no water, acid or alkali liquid, no volatile corrosive substance.
Welding wire should put on the pallet, please do not put it on the floor directly or close to the wall.
Please keep the packing intact.

Classification	Chemical composition (average)		Mechanical specifications	Diameter		Package (kg/kgs)		Application
						spool	drum
EN 440 G3Si1 AWS A 5.18 ER70S-6 CE EN 13479	C%	0.07	Rm N/mm² 510	0.6mm	0.7mm	1	250	Fe 410, Fe 510, HI, HII, HIII, HIV 17 Mn 4, St 34, St 42, St 45, St 55, X 42, X 52, StE 28, StE 29, StE 36, StE 39, etc
	Mn %	<1.40	Rs N/mm² 430	0.8mm	0.9mm	5	350
	Si%	0.80	A%5d > 24	1.0mm	1.2mm	15	400
	P%	<0.020	kV (J)-20°C >= 70	1.4mm	1.6mm	20	450
	S%	<0.020		1.5mm		50	500
Shielding gas EN 439 C1 (CO2) and mixtures M21 - M33.
Welcome to buy and ship from zander welding industry factory lower price and good quality.







































































ARAME DE SOLDA MIG WELDING WIRE ER70S-6 0.9mm

ARAME DE SOLDA MIG WELDING WIRE ER70S-6 0.9mm





ARAME DE SOLDA MIG WELDING WIRE ER70S-6 0.9mm









ARAME DE SOLDA MIG WELDING WIRE ER70S-6 0.9mm

ARAME DE SOLDA MIG WELDING WIRE ER70S-6 0.9mm

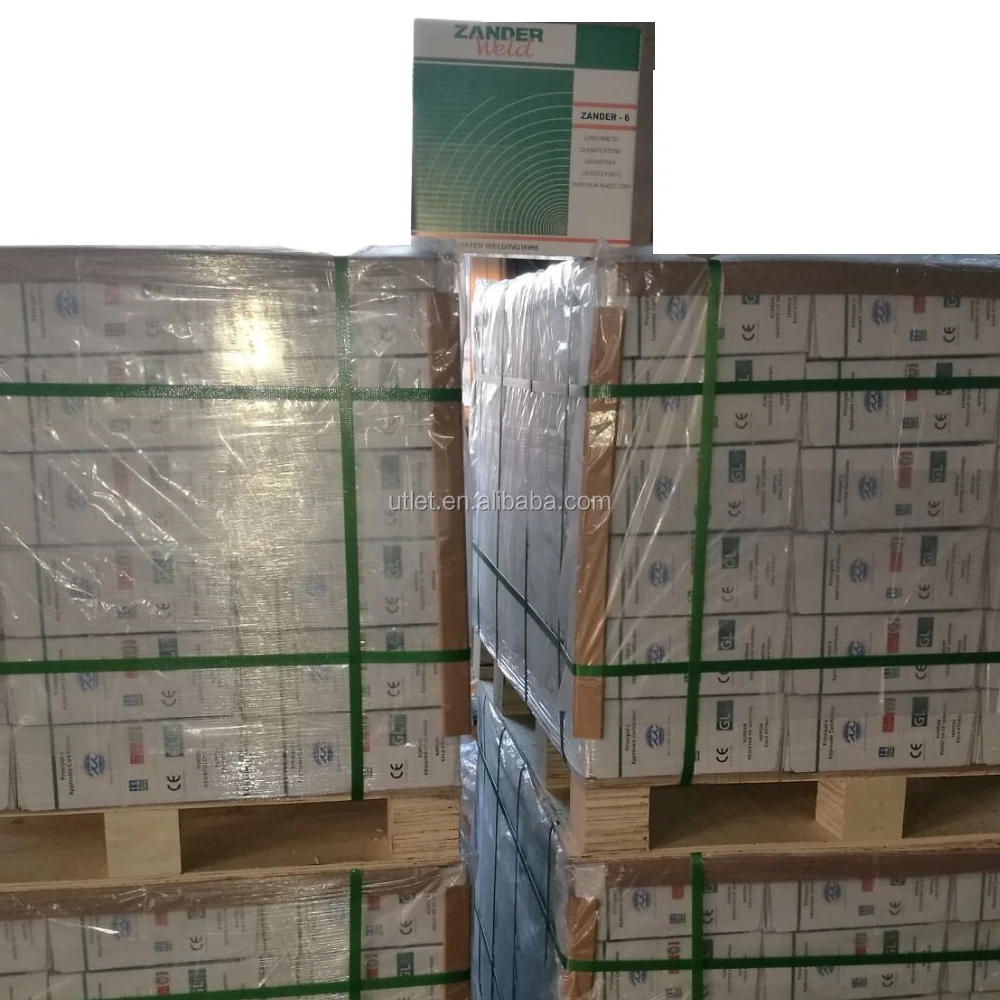

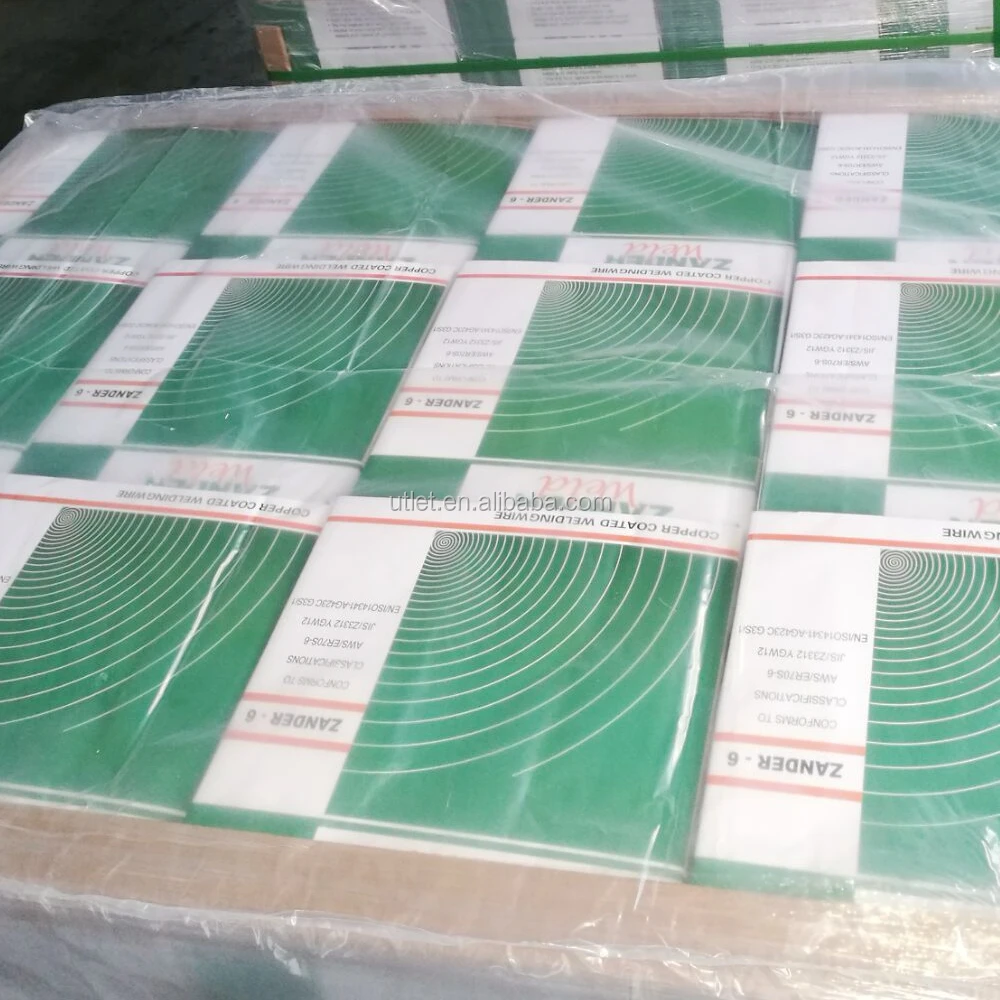

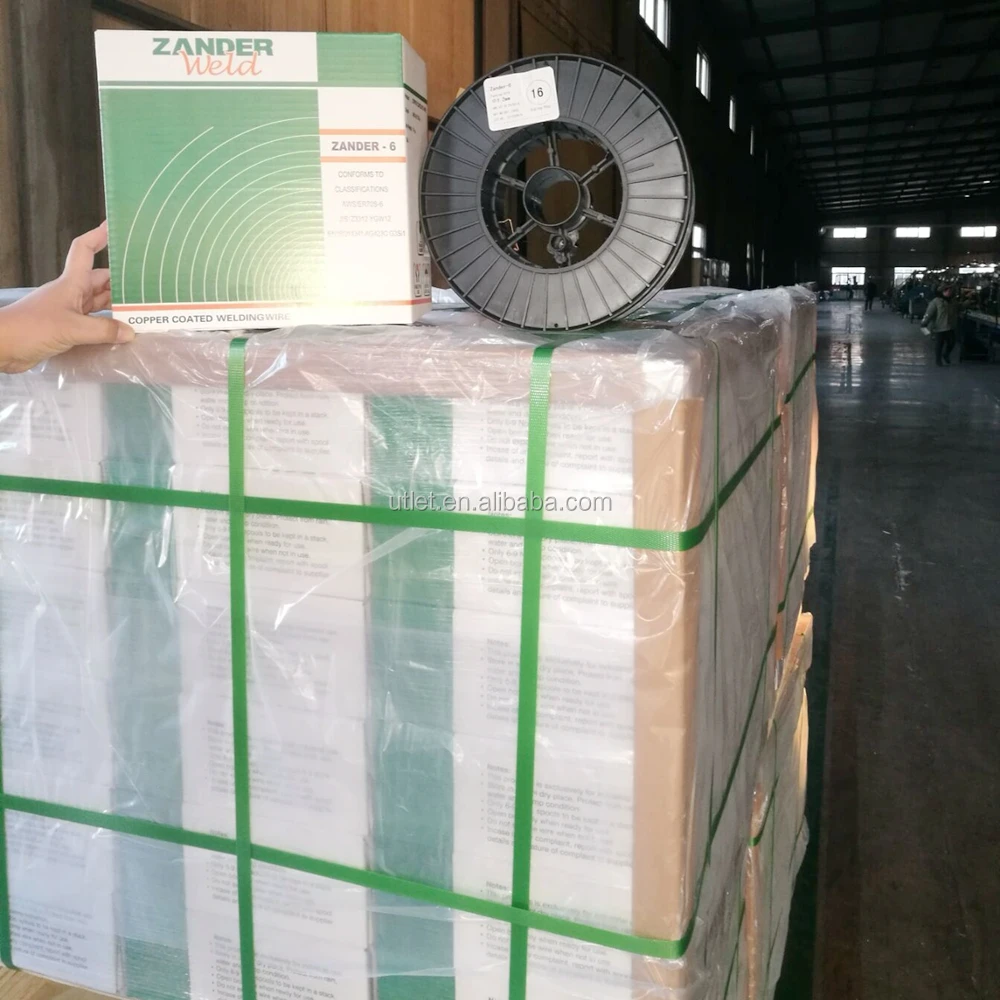

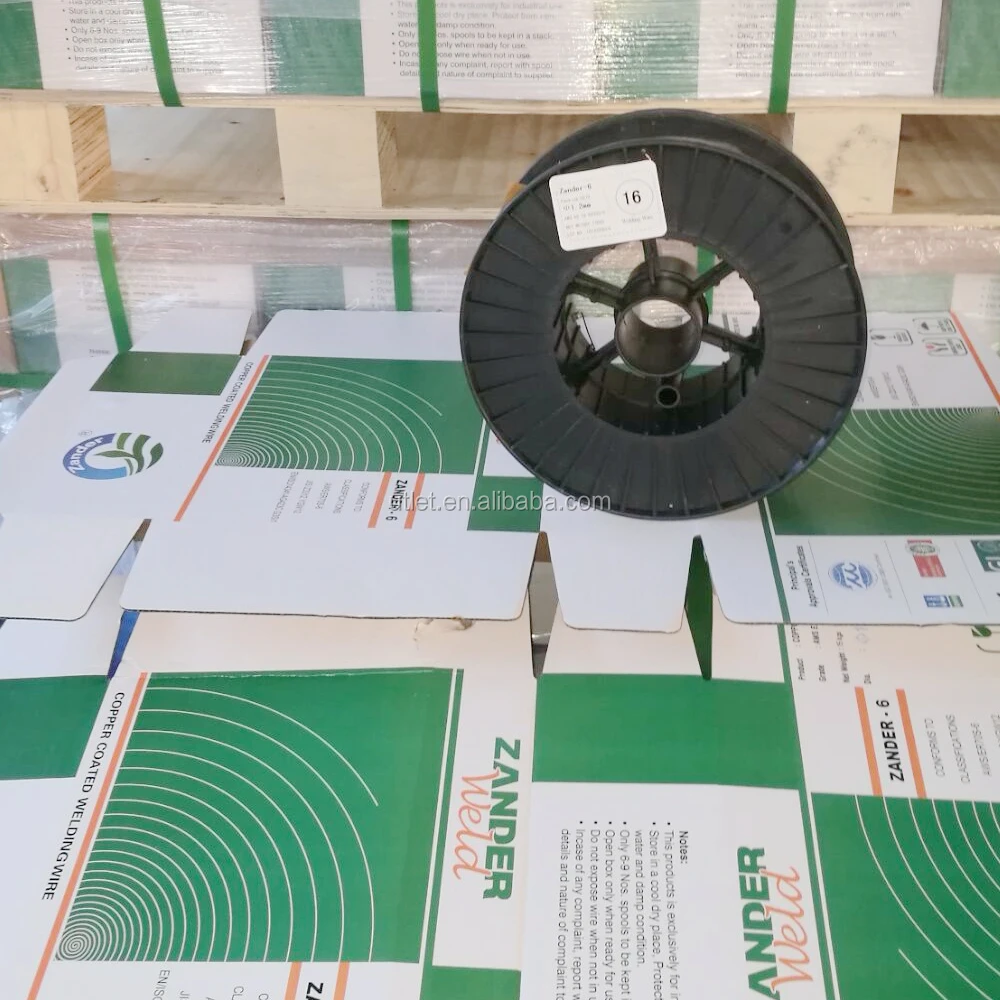

Packing for ER70S-6
MIG
(Dia: 0.6mm 0.8mm 0.9mm 1.0mm 1.2mm)

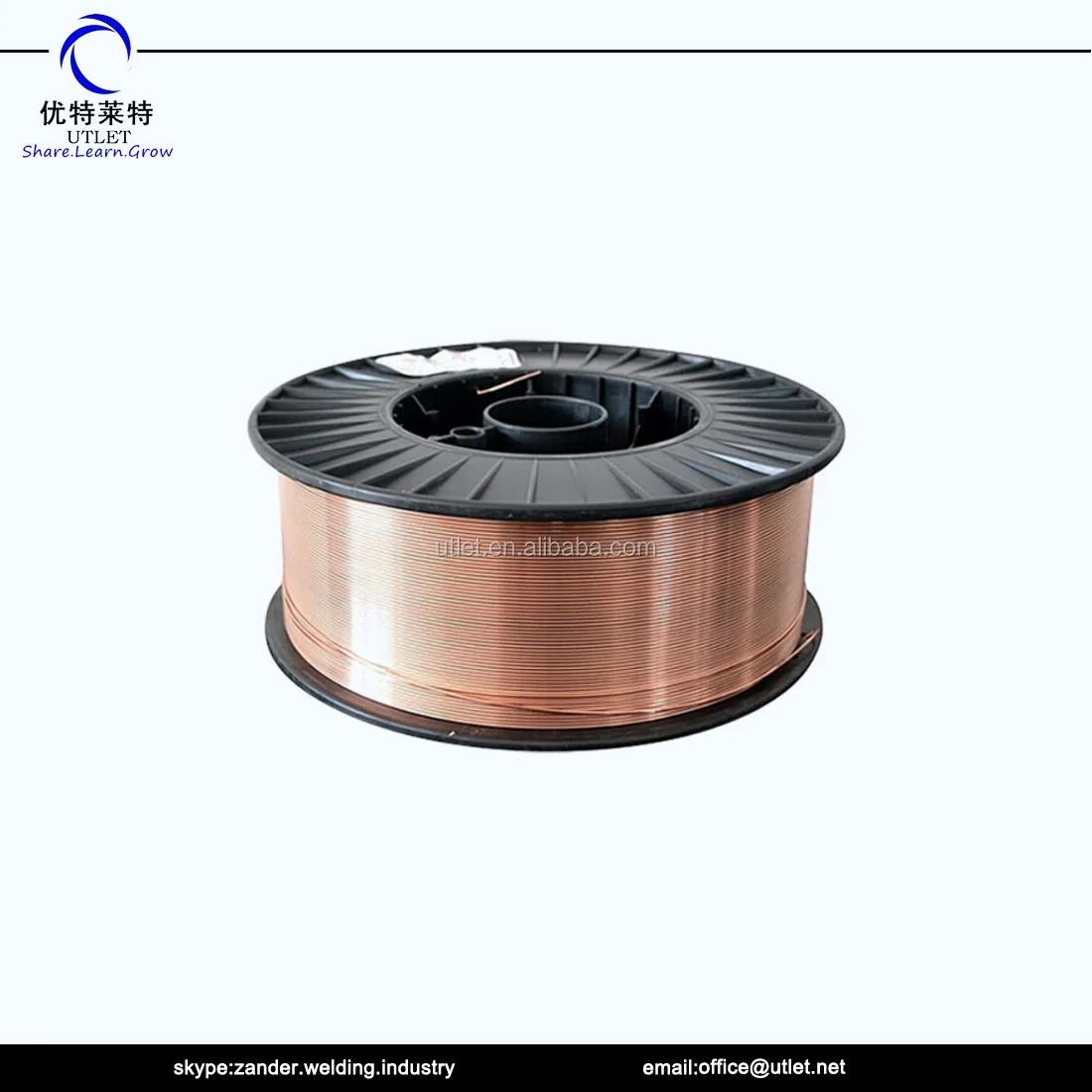

1kgs/D100-spool
5kgs/D200-spool
15kgs/D270-spool
15kgs/D300-spool
15kgs/K300-spool
15kgs/BS300-spool
TIG
(Dia: 1.6mm 2.0mm 2.4mm 3.2mm 4.0mm)
5kgs/tube 10kgs/tube

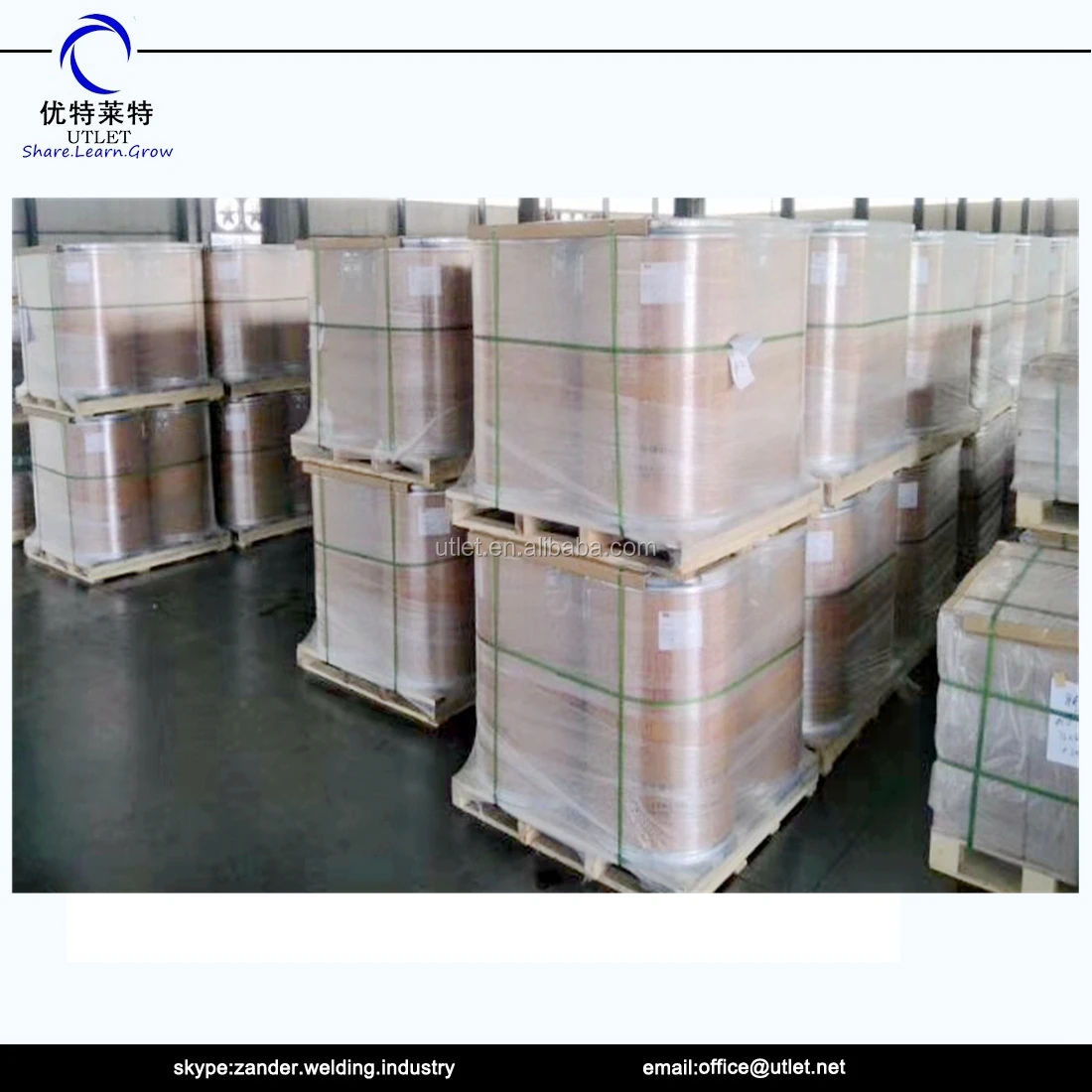

Drum
(Dia: 0.6mm 0.8mm 0.9mm 1.0mm 1.2mm)
100kgs/drum 250kgs/drum 350kgs/drum
Welcome to order!
