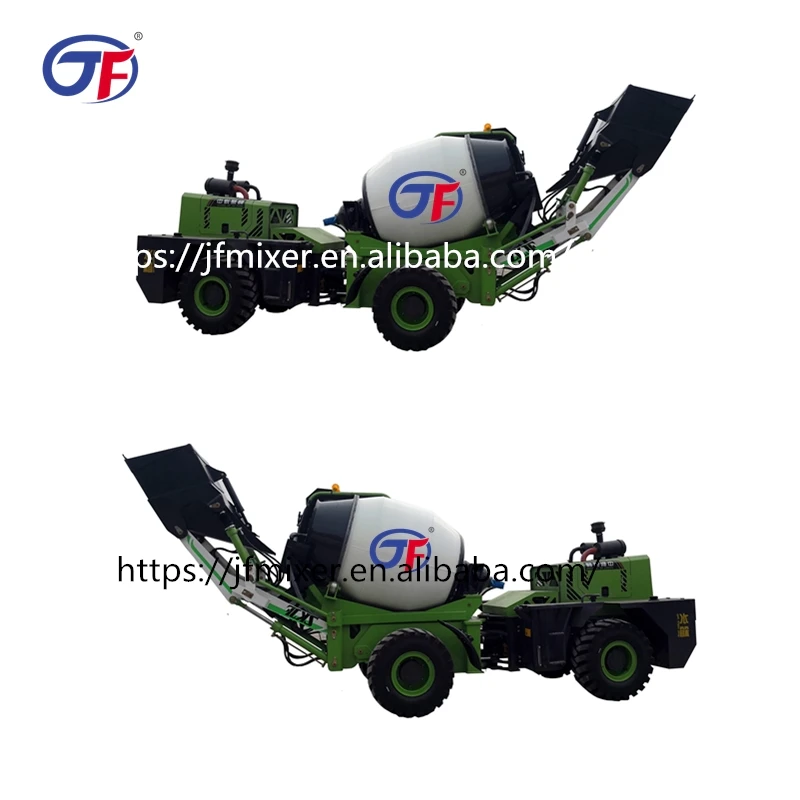

Mixing unit | ||||||
Double-cone drum with double spiral mixing screw, mixing blade and convex bottom | ||||||
Geometrical drum volume | 2.8 M3 | |||||
Concrete output | 2 M3 / batch, 8 M3 / hour | |||||
Drum rotation speed | 13 rpm | |||||

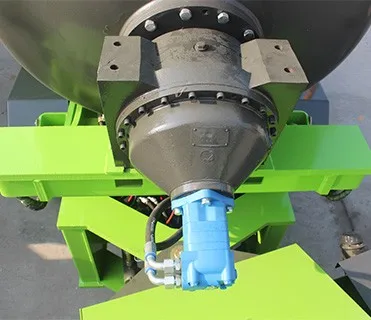

Features | Drum is rotated by means of dual gear pump and hydraulic cycloid motor in open circuit. Mixing and discharging speed is independent from rpm of diesel engine. The discharging process is achieved by reversing operation of drum. The mixing unit is slewed hydraulically through 270 degree for high discharge over 1.8 meters on the four sides of the vehicle. | |||||

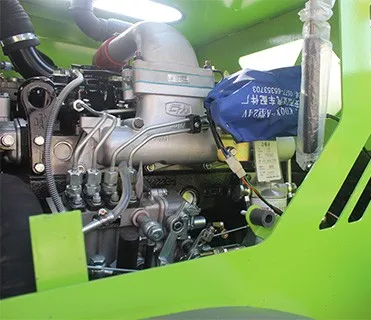

Engine | ||||||
Model | YUCHAI, YCD 4T22T-105, Turbo Charged and Water Cooled (4-Cylinder) | Optional: Dongfeng Cummins (75KW) or USA Cummins (82KW) | ||||
Rated power | 78 KW (106HP) @ 2400 rpm Max Torque: 330 N.M @2000 rpm | |||||
Mounting position | Engine is mounted transversally on the rear | |||||
Transmission | ||||||
Model | Hydrostatic "automotive" transmission with gear pump and hydraulic motor with hydraulic control, and reverse gear control on the steering wheel. It is a kind of 4 wheel drive and 2 wheel steering. (4x4x2) | |||||
Gear | Automatic, 4F+ 4R shift | |||||
Axles | Small size wheel-side reducer driving axle, with oil bath disk brakes and planetary reducers | ||||
Speed | 4F+4R shift | ||||
1st: 0-3.0km/h; 0-3.0km/h | |||||
2nd: 0-7.2km/h; 0-3.0km/h | |||||
3rd: 0-10.0km/h; 0-10.0km/h | |||||
4th: 0-25.0km/h; 0-10.0km/h | |||||

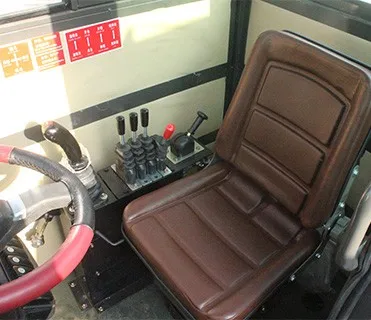

Cabin | The ROPS & FOPS type closed front cab is suited on side of loading shovel. Electric fan, tilting front window and anatomic seat with flexible suspension are available. A/C is optional upon request. | ||||
Joymix | The function of drum mixing and arm lifting are controlled by one hydraulic joystick, and functions of drum revolving and lifting are controlled by another hydraulic joystick. | ||||
Weighing | Chinese brand electronic weighing system is optional upon request. The "loading cells" are acting on the drum, and technical data are displayed on the shovel weigher inside the cabin. | ||||

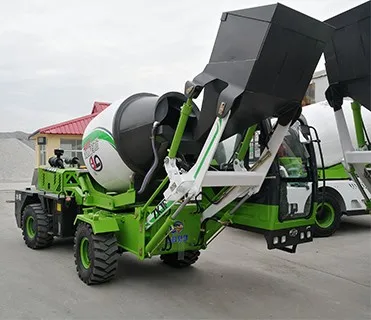

Loading shovel | ||||||
It is fitted with serrated blade in the front and completed with hydraulic opening gate. The lifting arms are controlled by double-acting hydraulic cylinders. | ||||||
Volumetric capacity | 500L | |||||
Number of shovel loading times of full drum | Around 4 times | |||||
Chute | Could be mechanically tilted and slewed at 90 degree by means of one adjustable handle. 2 pcs. of discharging chute extensions are provided as standard accessories. | ||||
Water system | ||||||
Features | Self-priming electric water pump with quick-suction. | |||||
Max. capacity | 250 L/min. | |||||
Water tank | Two connected steel tanks are positioned opposite, with a total capacity of 2 x 200 L. | |||||
Gradient | Fully loaded 40% | ||||
Brakes | Air cap oil service brake. Internal oil-bath disc service acting on the 4 wheels. Negative hydraulic parking brake, with internal wheel hub discs on the front axle. | ||||
Tyres | Off road steel cord type, 20.5/70-16 | ||||
Steering | Hydrostatic front wheels steering | ||||
Mini. Turning radius: 5200mm | |||||
Electric system | ||||||
Alternator | 24V-1500W | |||||
Battery | 2x12V-80AH | |||||
For electric starter and road lighting, safety battery cut-off | ||||||
Service refill capacities | ||||||
Fuel tank | 63L | |||||
Total hydraulic system capacity | 63L | |||||
Engine oil | 16L | |||||
Chassis | Articulated chassis for off-road operation | ||||
Whole truck parameters | ||||||

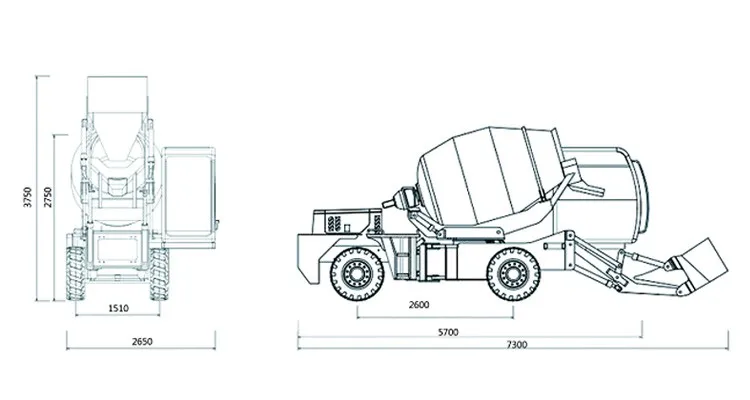

Overall dimensions (L×W×H) | 7300 mm × 2650 mm × 2750 mm (3750 mm full height) | |||||
Wheelbase | 2600 mm | |||||
Tread | 1510 mm | |||||
Whole truck no-load weight | 5,600 Kg | |||||
Load-carrying capacity | 4,800 Kg | |||||
Max. gross weight | 10,400 Kg | |||||
Drive type | Torque converter | |||||
Top speed | 25 km/h | |||||
Max. climbing degree | 40° | |||||
Min. turning radius | 5200 mm | |||||
Hydraulic system | ||||||
Dual gear pump for drum mixing and arm lifting | Flow rate: 50/32 ml/r | |||||
Walking gear pump for driving | Flow rate 20 ml/r | |||||
Hydraulic cycloid motor | Flow rate 125 ml/r | |||||
Characters: | ||||||
Save five labors everyday Save electricity 100 KWH without using agitator. Save concrete transportation truck Save wheel loader to fill in material 4 sides high resolution camera without blind area, ensure the steering safety. | ||||||
Optional accessories | ||||||
Dongfeng Cummins engine USA Cummins engine Electronic Weighing device Centralized greasing system Hydraulic water pump Air conditioner in cabin Note: The above parameters are possible to change due to design improvement, so the parameters of your ordered machine may be different with the above information. Please accept it without advance notification for the parameters improvement. | ||||||




Our advantages:
Our self-loading concrete mixer truck works through a brutal test of Chinese construction sites, and we have full confidence in our machines to be with best quality and high efficiency. We believe that our mixer truck could produce more and better concrete for you.






Q1.: Are you trading Company or Factory?
A: We are factory. We have been engaged in the production of evself- loading concrete mixer for more than 27 years.
Q 2: How about the quality of your products?
A: We are factory with more than 27 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q3: How about the price?
A: We are factory, not dealer, so we can give you a lower price than those trade companies can.
Q 4: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q5 : Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q6.: How long is your delivery time
A: Generally, it is around 7 days if the goods in stock. If there is no goods in stock,
it will be about 20 days, subject to the quantity you ordered.
Q7.: What are your acceptable payment terms.
A: By T/T. 30% deposit in advance, balance to be paid before delivery.
or by irrevocable LC at Sight.
