Photocell Receptacle Socket 7 Pin
- Category: >>>
- Supplier: Shanghai Chiswear Industry Co. Ltd.
Share on (62011428607):
Product Overview
Description

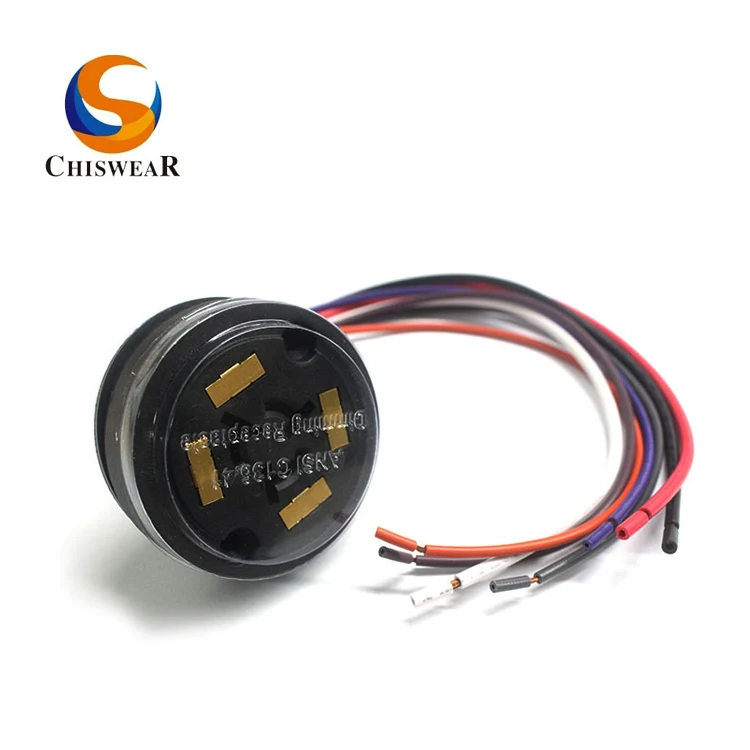

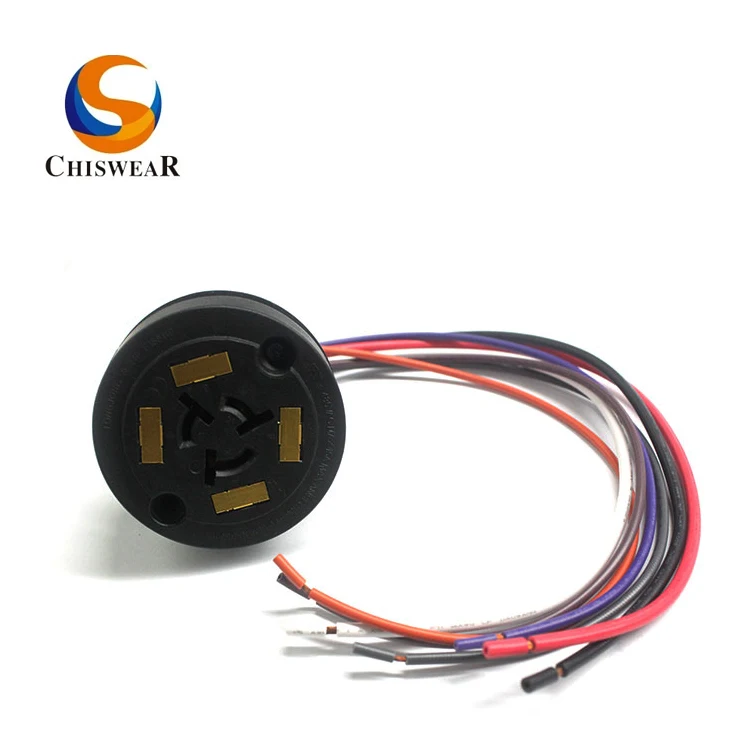

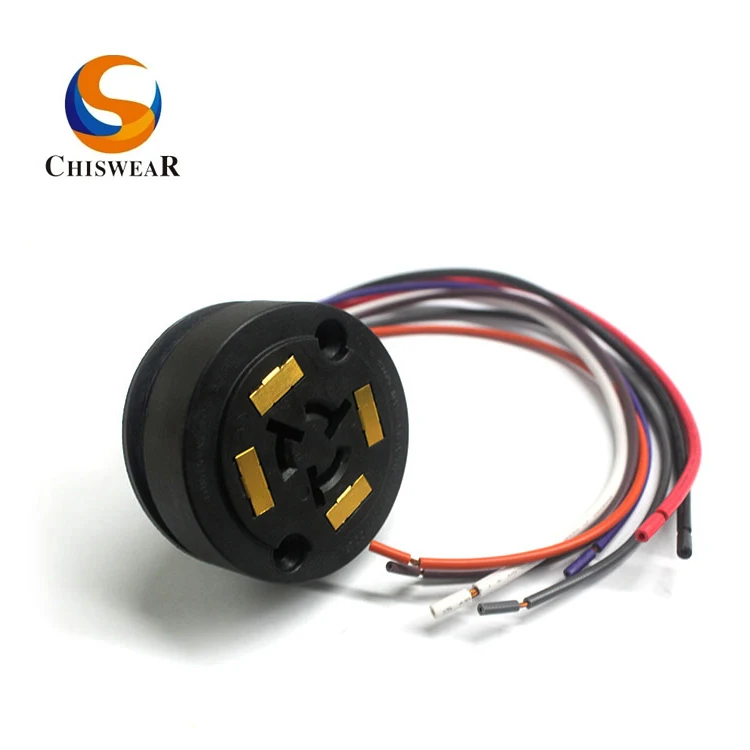

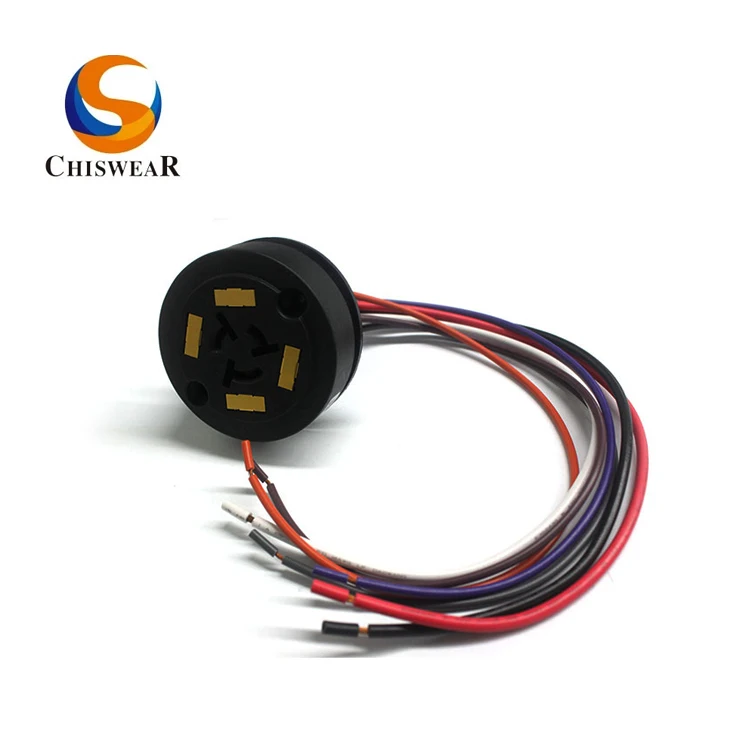

Photocell Receptacle Socket 7 Pin
Professional Photocell Manufacturer here now.
OEM and ODM One-stop service Customized, happy send sample to you confirm quality.
Product Description

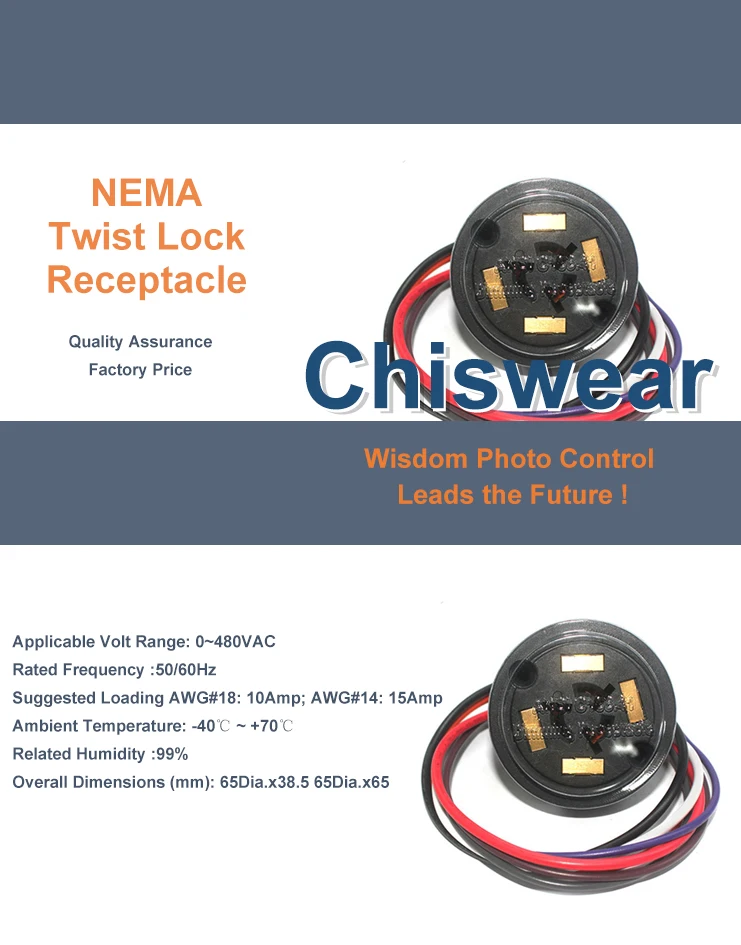

Twist Lock Photocell Receptacle JL-240 Specifications
| Model No. | JL-240X | JL-240Y | JL-240Z14 | |
| Applicable Volt Range | 0-480VAC | |||
| Rated Frequency | 50-60HZ | |||
| Suggested Loading | AWG#14: 15Amp; AWG#16: 10Amp | |||
| Ambient Temperature | -40℃ ~ +70℃ | |||
| Related Humidity | 99% | |||

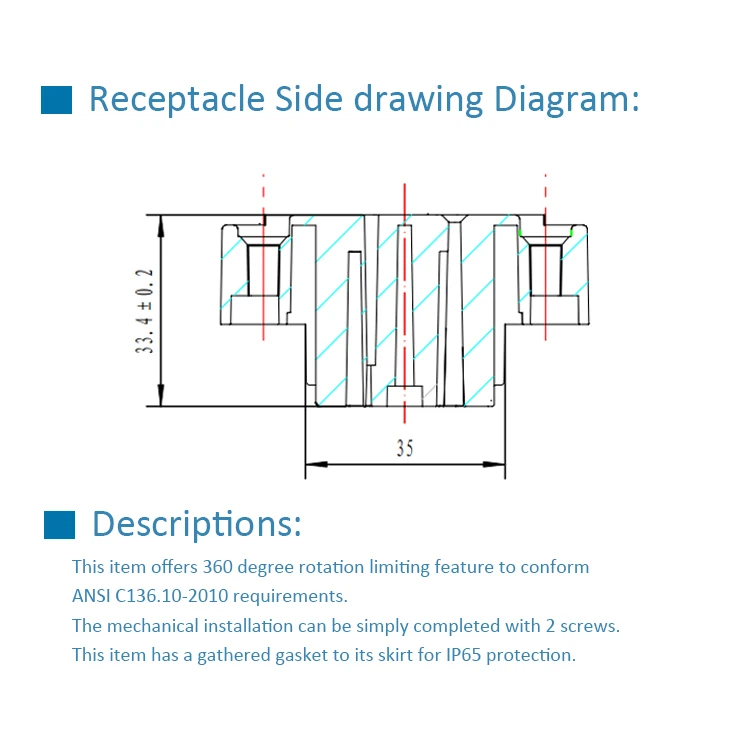

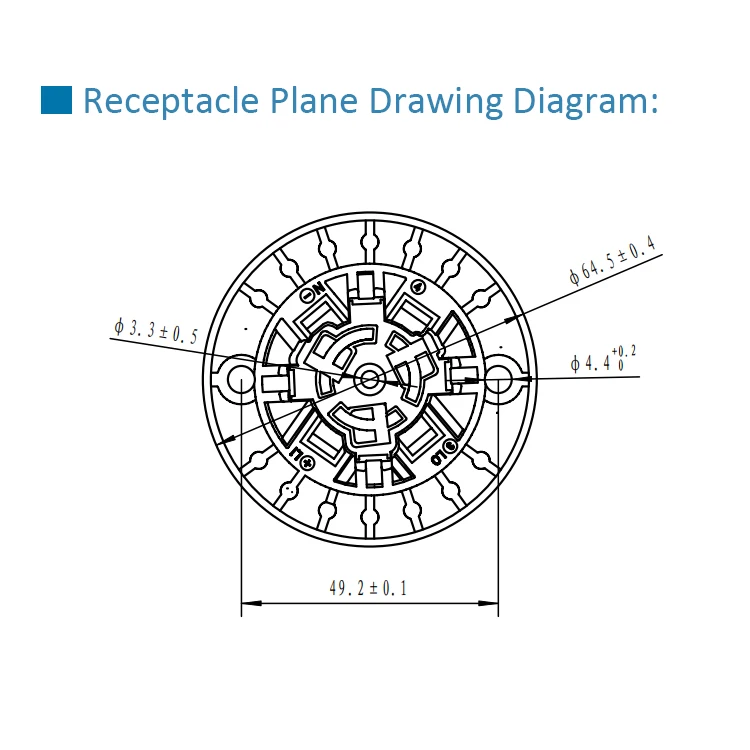

| Overall Dimensions (mm) | 65Dia.x40 | 65Dia.x67 | ||
| Accessory | Rear Cover | O R option | O | O R option |
| Spring Holder | - | O | - | |
| Wall mount Back Cover | - | - | O | |
| Look Nut | - | - | O | |
Wall Mount Bracket | - | - | O [30x(70+130)] | |
| Leads | 6” Min.(See Ordering Information) | |||

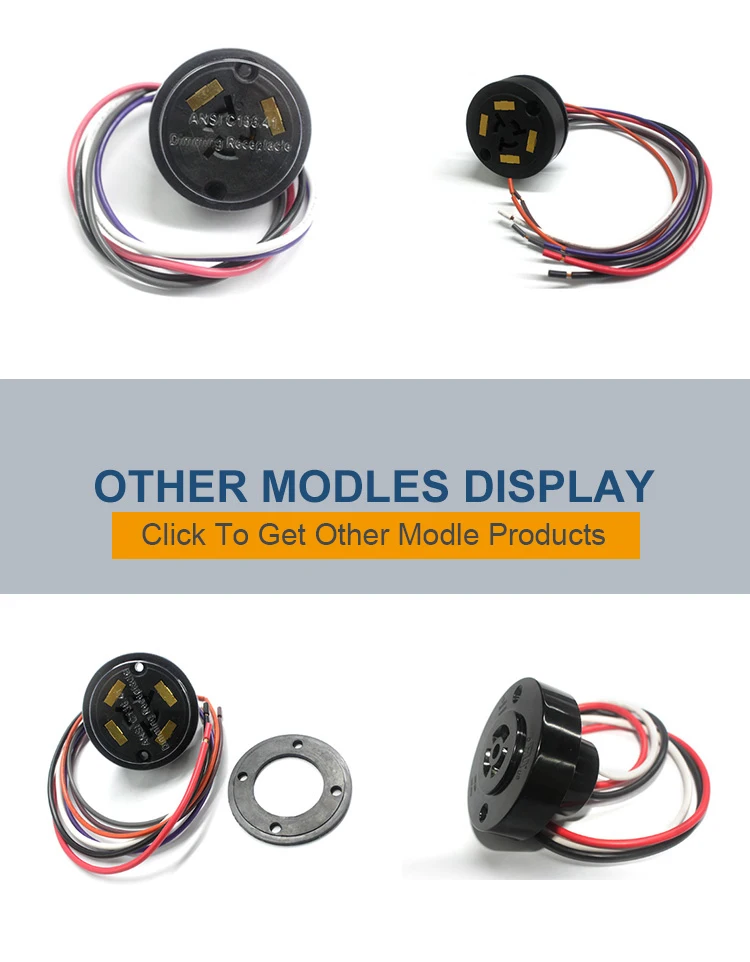

Other Modles

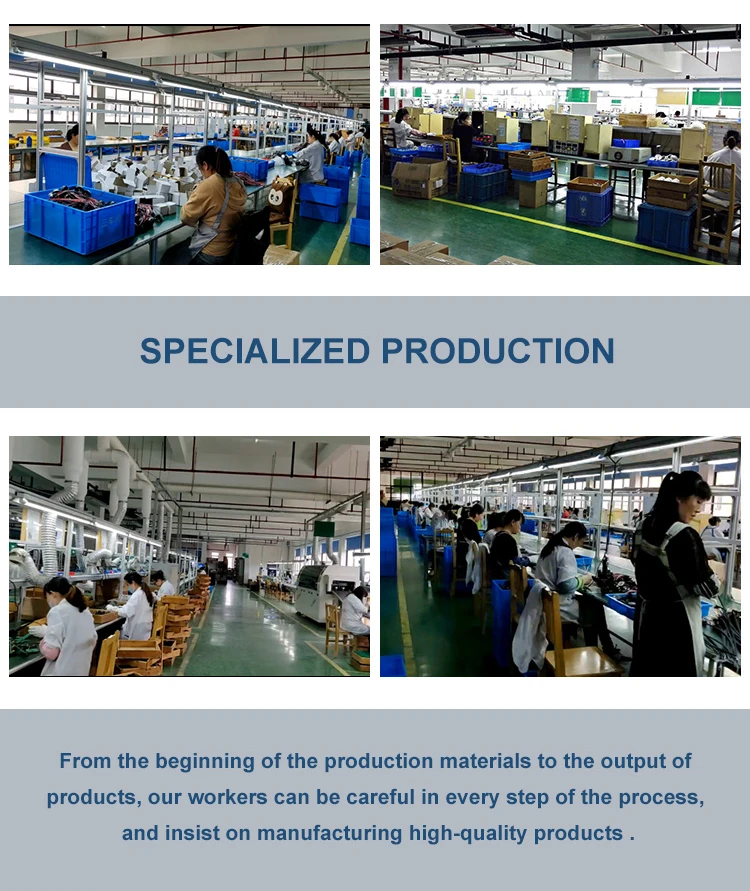

Our Production
Our Company

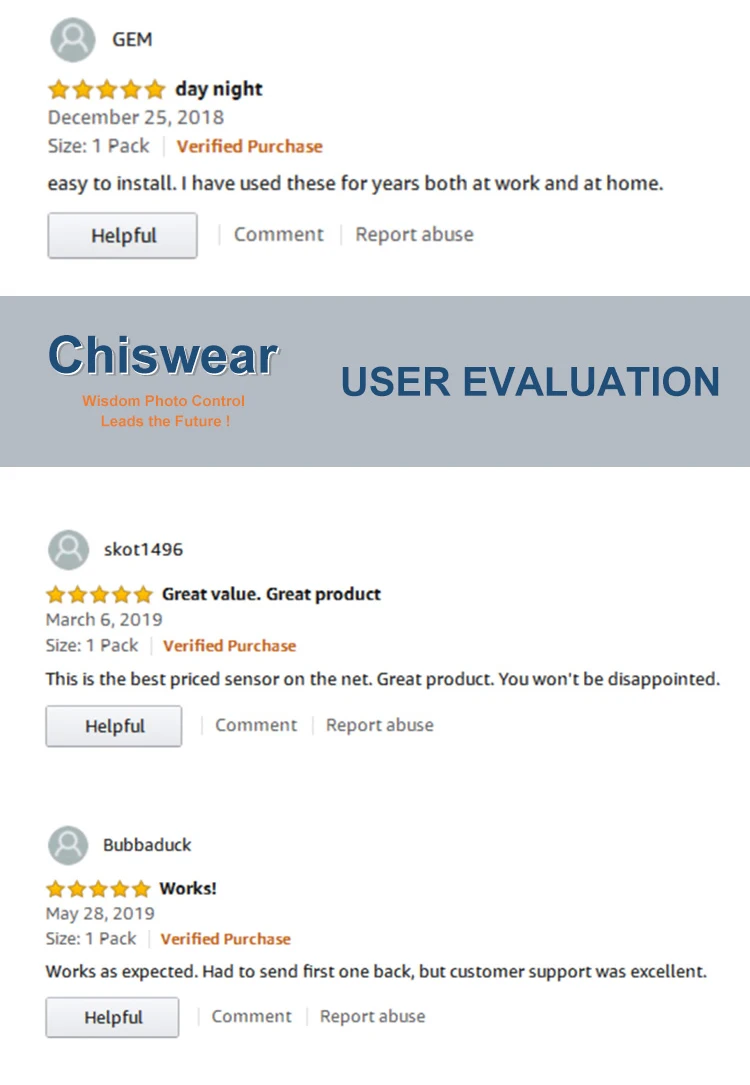

Evaluation & FAQ
