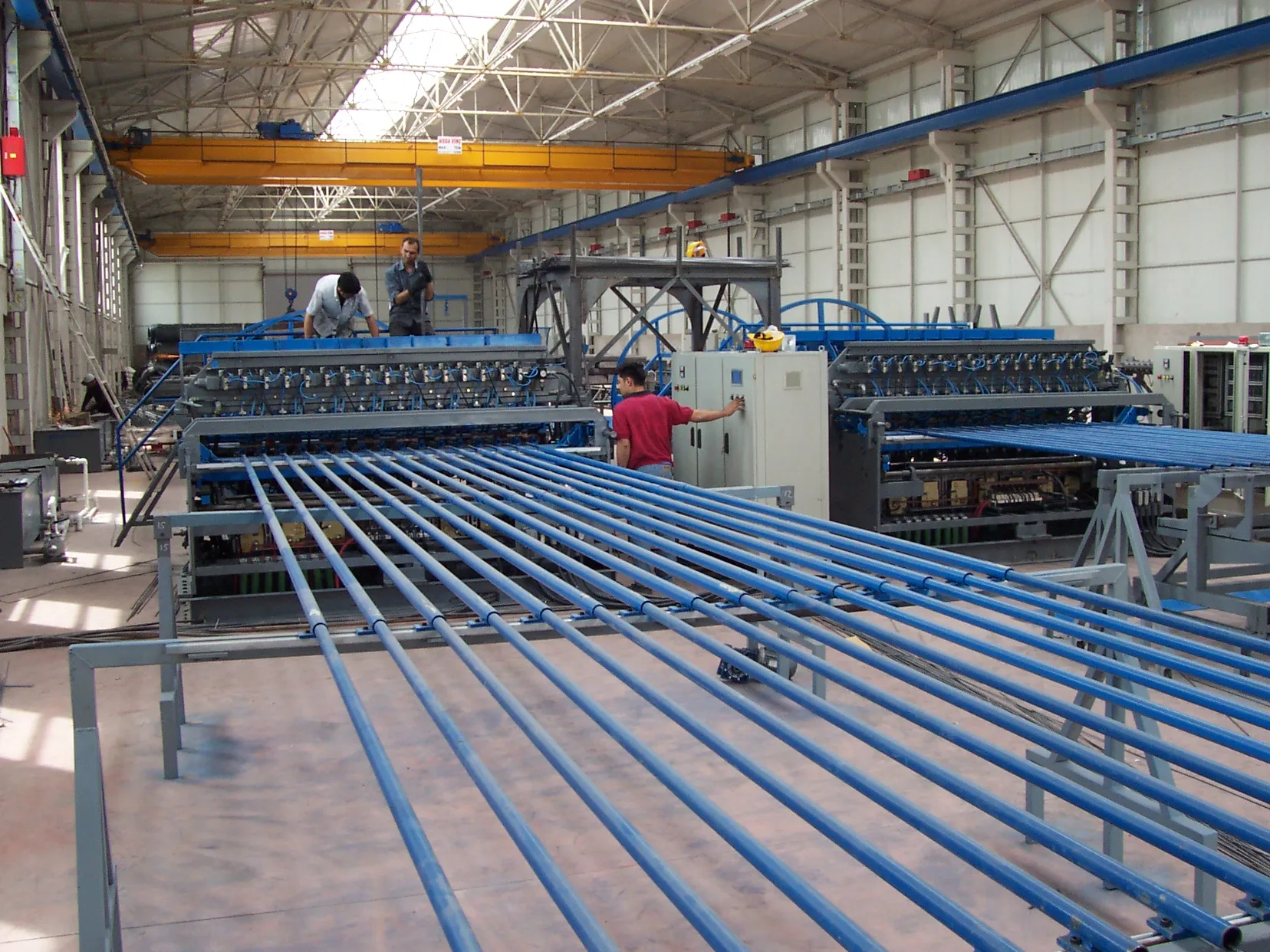

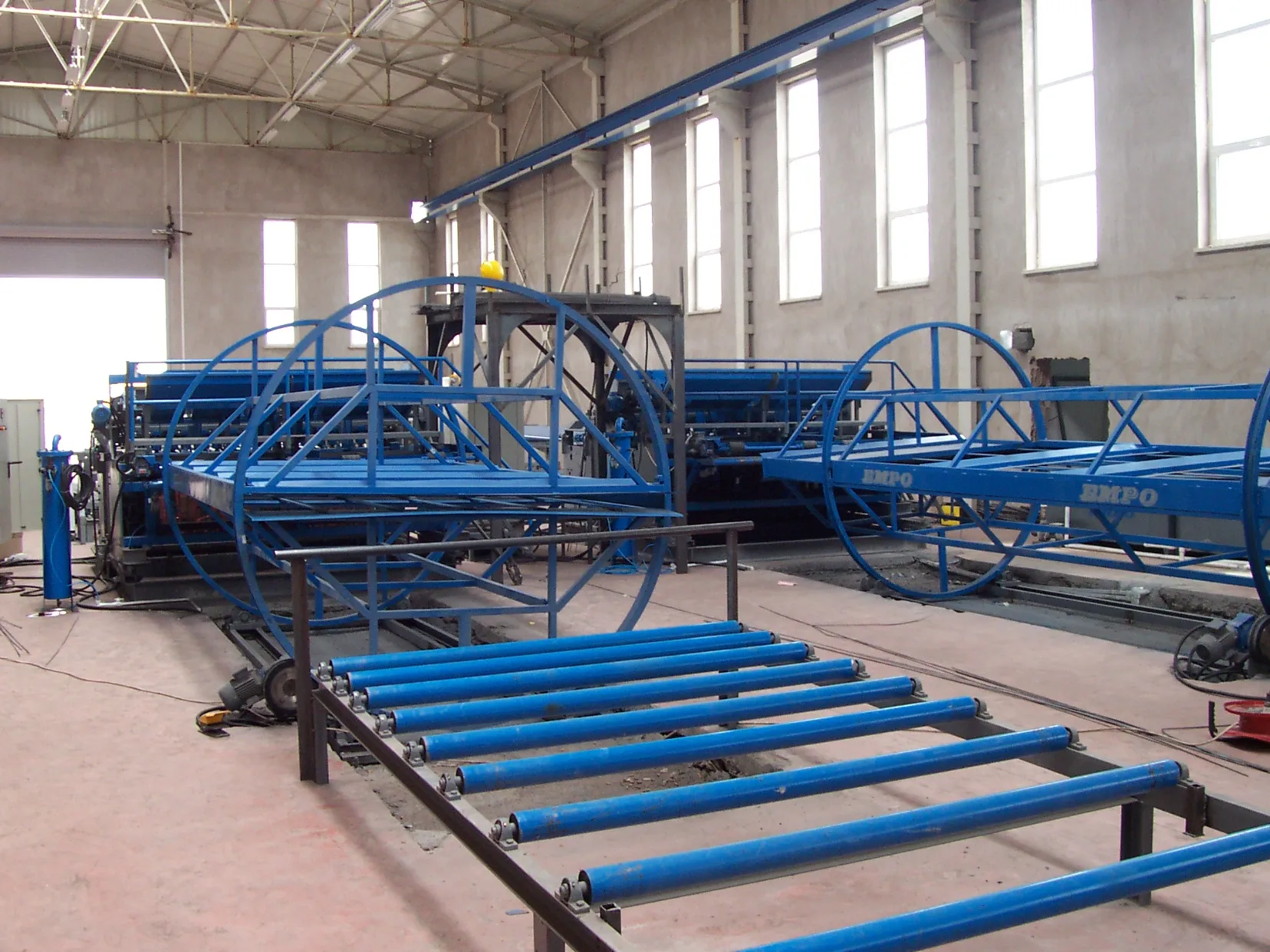

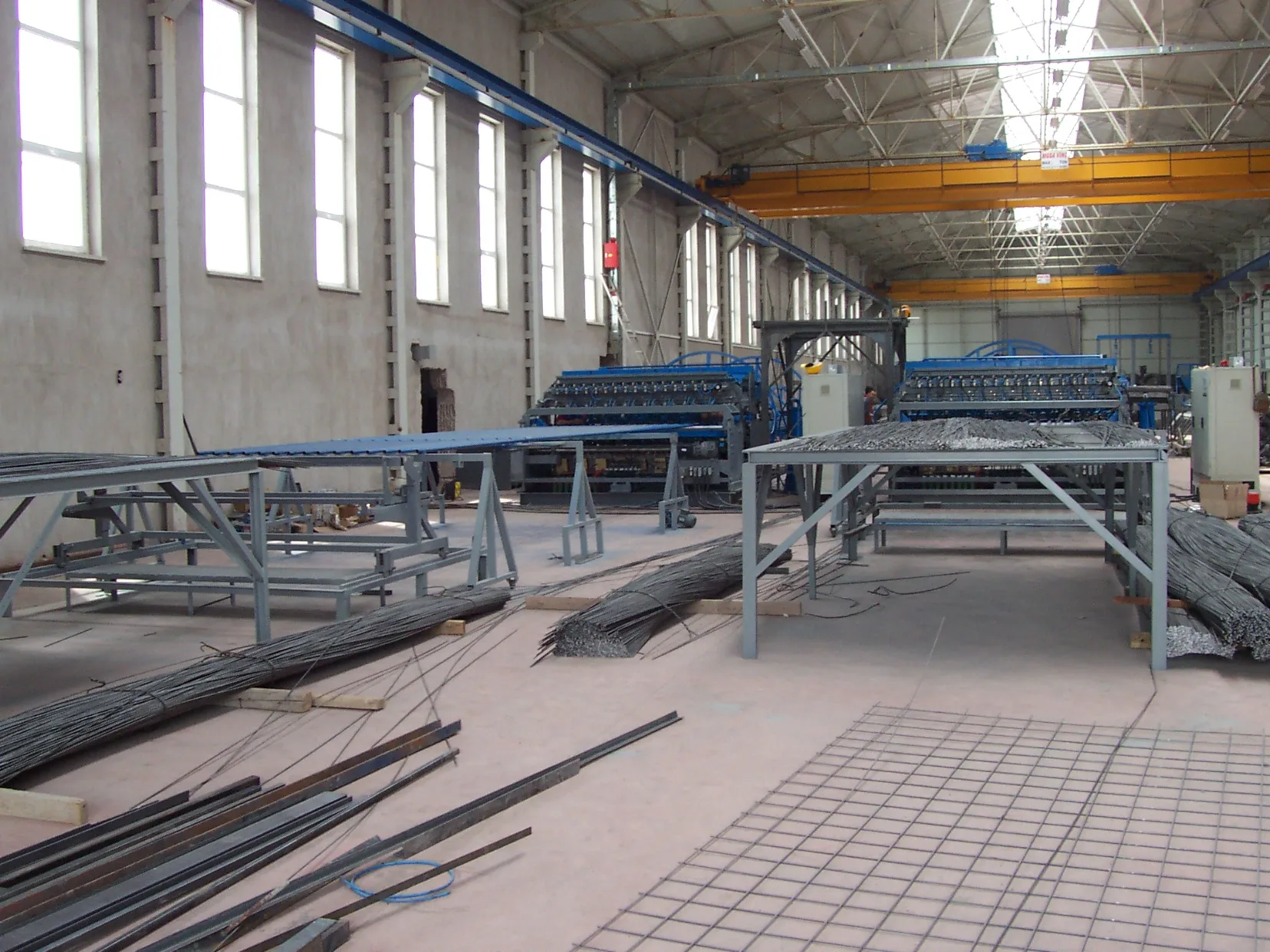

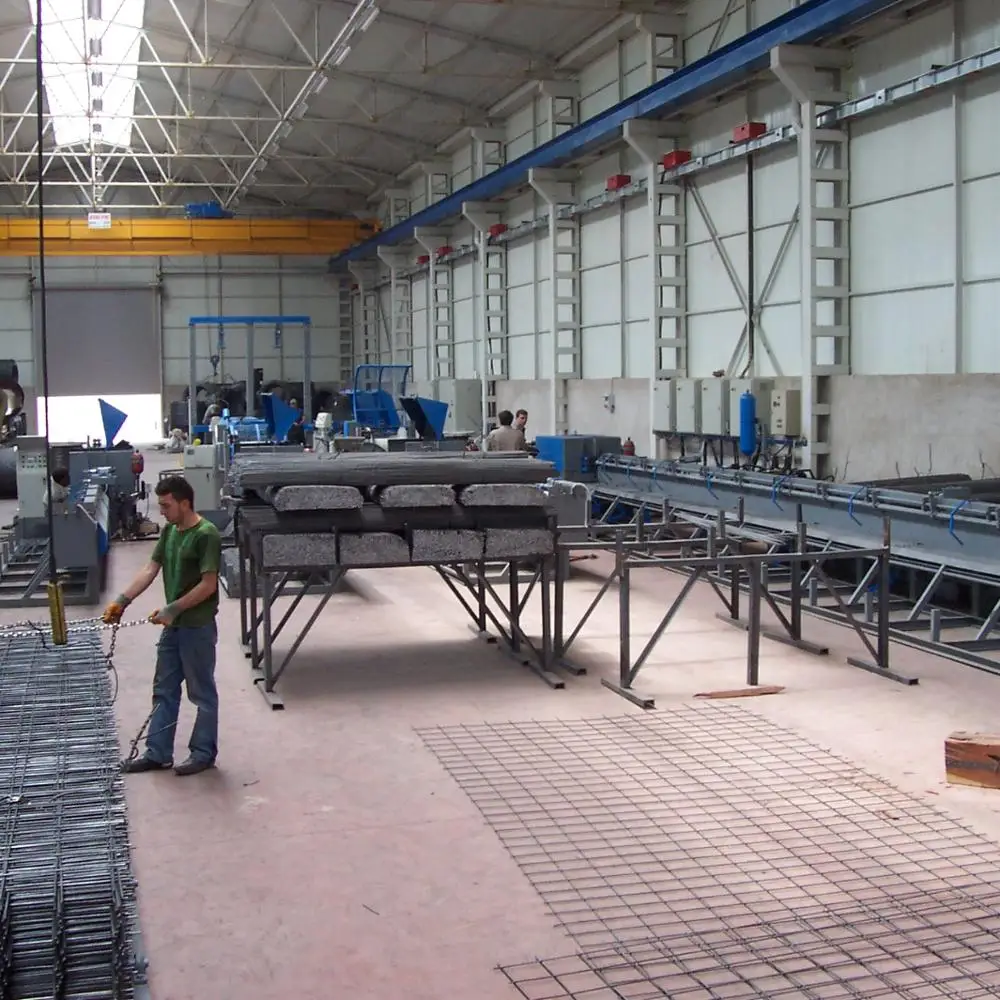

Full automatic wire mesh welding machine for panel

1.Technical DETAILS
Model HK-2000
Works with Raw Metarial Pre-Cut Bar
Type of Wire for end Product Hot Rolled Smooth Wire Cold Drawn Wire
Production Capacity Φ4mm-Φ8mm
Machine Speed Min. &Max. 40-70 Stroke /min For Φ4mm-Φ8mm
Rated power 4Kw+2Kw
Transformers -KVA 120KVA
Transformers Units 8units 960KVA
Wire mesh width 2150mm
Wire mesh length 5000mm
Cross Wire Straightening Tolerance
Longitudinal Wire Straightening Tolerance +/-0.5mm should be
Distance between cross wiresΦ4mm-Φ8mm 100mm (min.)-250mm (adjustable)
Distance between cross wiresΦ4mm-Φ8mm 100mm (min.)-250mm (adjustable)
Overlab Min. 50mm

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certification CE ISO

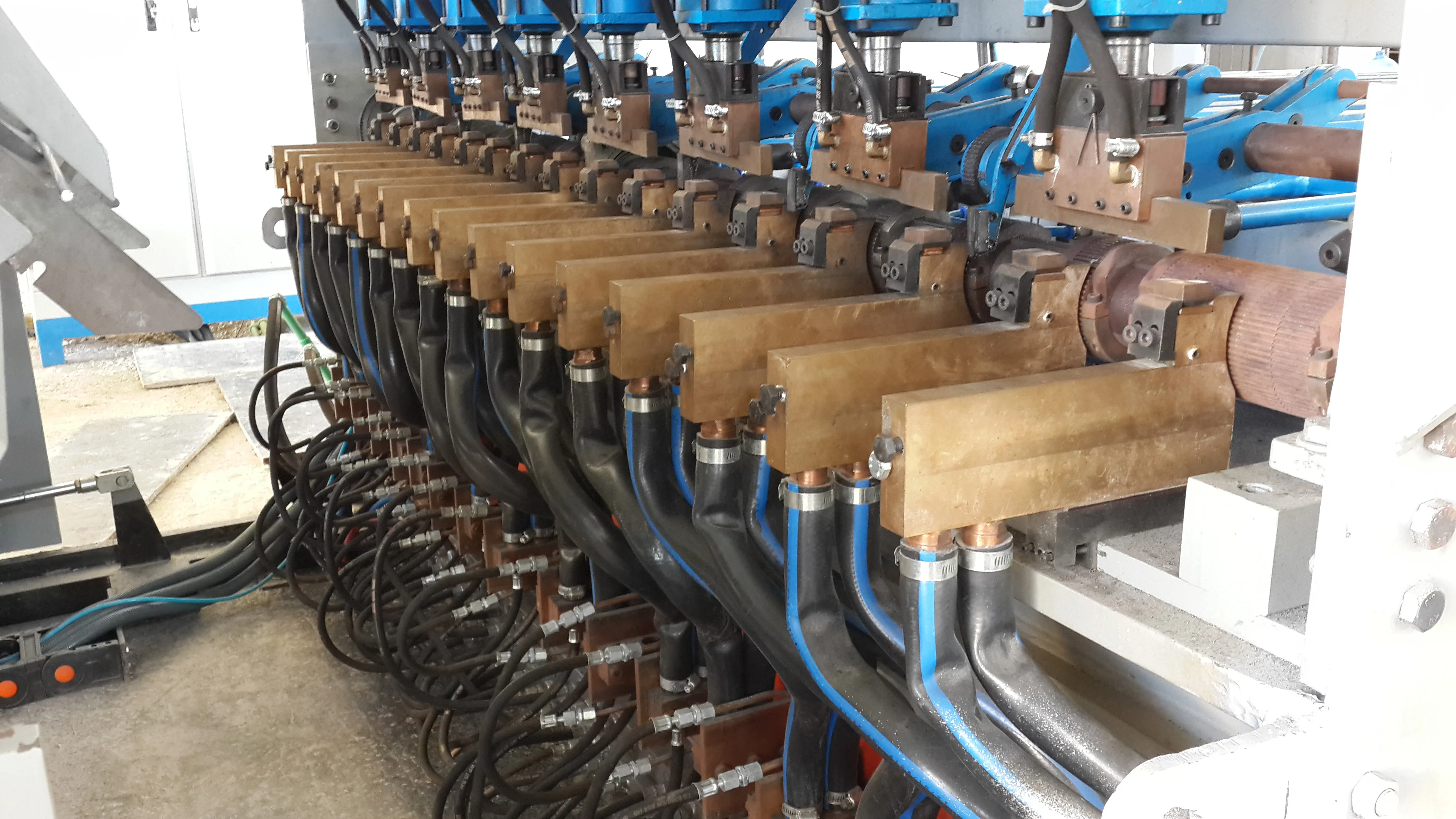

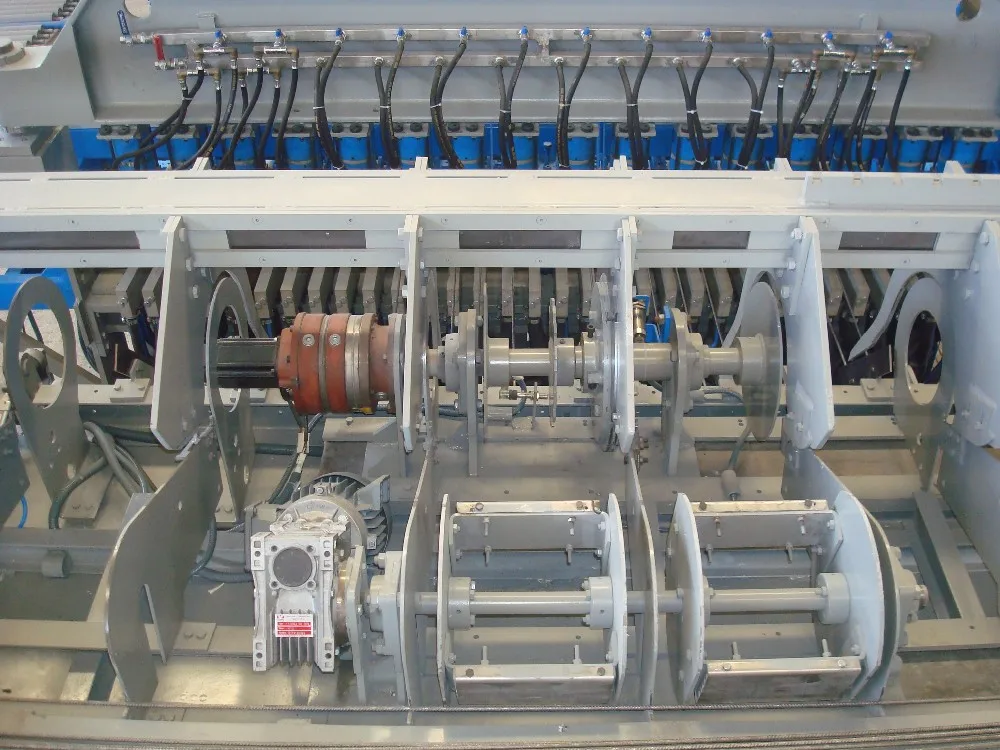

Detailed Images

Machine Parts

Name: Bliwing Cylinder

Brand: FESTO

Original: Germany

Main Features

Name: SERVO MOTORS
Brand: SEW EURODRIVE
Original: Germany

Machine Parts

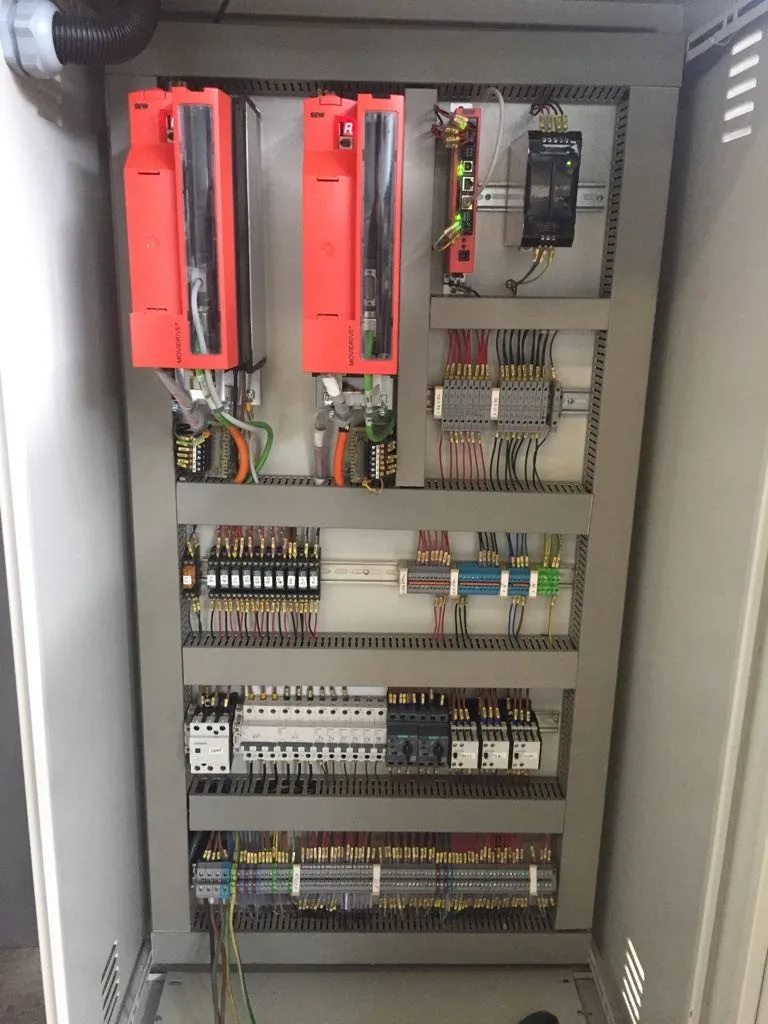

Name: DRIVERS
Brand: SEW EURODRIVE
Original: Germany

Main Features

Name: CROSS
Brand: SEW
Original: Germany

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	7.2 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	7.2 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
