OK1052-C is a development board designed based on Cortex-M7 crossover MCU i.MX RT1052. It operates at speeds up to 528MHz to provide high CPU performance and best
real-time response. The i.MX RT1052 processor has 512 KB on-chip RAM,which can be flexibly configured as TCM or general-purpose on-chip RAM. 16MB/ 32MB SDRAM, 4MB/ 16MB QSPI-NorFlash are optional on SoM FET1052-C.

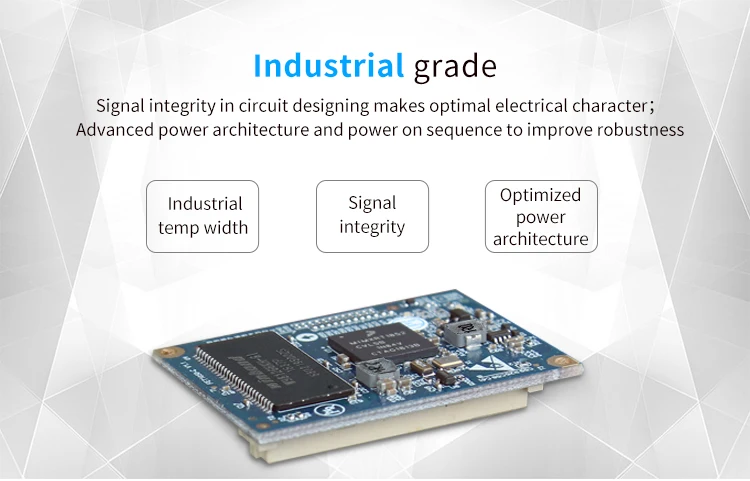

The SoM FET1052-C is an industrial grade item with working temperature ranges from -40℃ to +85℃ and it has a compact appearance that dimensions only 31mm * 43mm, the SoM is designed with a couple of 80-pin connectors with pitch of 0.8mm, all 160pins of the processor are drawn out with GPIO up to 124 pins. Other peripheral pins such as UART, Ethernet, USB, CAN, PWM, ADC, LCD and CAMERA are all available. What's more, OS uClinux is supported very well.

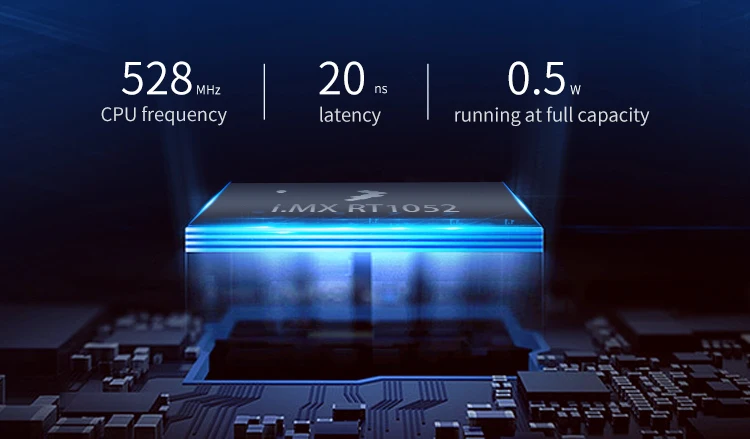

High-performance, fast real-time response, low-power
SoM deliveries 3020 CoreMark/1284 DMIPS @ 528 MHz
512 KB on-chip RAM, fastest real-time response with latency as low as 20ns
Powerful scalability
All functional pins are available on the SoM with GPIO up to 124 pins;
LCD, camera, USB, UART, CAN, Ethernet and PWM are all native interfaces supported by this SoM
Multimedia performance
LCD interface with RGB888 is supported to 1366* 768 resolution and 2D GPU;
emWin, parallel camera interface and three IIS are all supported in MCU mode
Native data encryption
Various functional communication interfaces
Eight UART up to 5Mbps;
One 10/100M Ethernet controller with support for 1wip;
Two CAN 2.0 modules, Twenty 12-bit ADC;
Thirty two PWMs support for quadrature decoder and motor control
Easy-to-go
MCU system is supported with Keil IAR and ARM-GCC tools, meanwhile, Amazon FreeRTOS, SDK, ARM mbed, online development tools and other related global ARM system are supported for development.
Ubuntu and GCC are supported for development work on MPU
Compact size
The SoM dimensions are only 31mm* 43mm with designing of anti reverse board to board connectors, which is not only convenient for users to do testing and mass production but also easy for assembling
Com
Industry/ Application

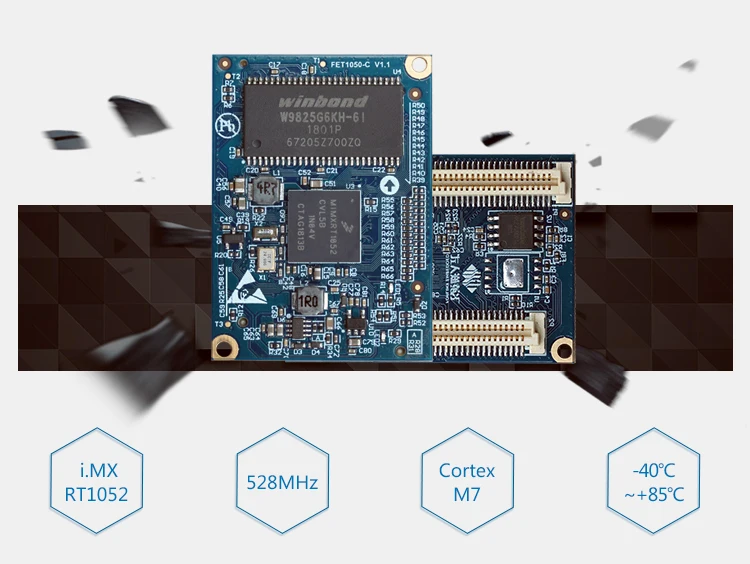

SoM FET1052-C Basic Information
CPU
i.MX RT1052
Power Input
5V
Architecture
Cortex-M7
Dimensions
31mm* 43mm
Frequency
528MHz
Craftwork
thickness 1.6mm, 4-layer EING PCB
RAM
SRAM: 512KB, SDRAM: 16MB/ 32MB
Connector
2* 80-pin, pitch of 0.8mm
Flash
QSPI NorFlash: 4MB/ 16MB
Working Temp
-40℃ to +85℃
SoM FET1052-C Hardware Features
Interface
QTY
Spec.
LCD
1
upto RGB888, resolution up to 1366* 768*(WXGA), 480*x 272 and 800* 480 are available
Camera
1
8-bit DVP, up to 5.0Mp
SD/ MMC/ SDIO
≤2
SD card or SDIO card with 1-bit or 4-bit mode
USB
2
1x USB2.0 OTG(up to 480Mbps), 1x USB2.0 host, integrated with HS USB Phy
SAI
≤3
up to 3x IIS audio
SPDIF
1
Sony/ Philips digital audio interface
UART
≤8
each up to 5.0Mbps
SPI
≤4
full duplex enhanced sync. serial interface, up to 52Mbit/s, it could be configured to host/ device mode, four chip selections are available
IIC
≤4
Ethernet
≤1
10M/ 100Mbps
PWM
≤32
SWD
supported
Keypad
supported
8* 8
QSPI
2
CAN
≤2
CAN2.0B
ADC
≤20
2x 12-bit ADC, up to 20 input channels
ISO7816-3
≤2
SEMC BUS
1
16-bit parallel bus
OK1052-C Carrier Board Features
Interface
QTY
Spec.
LCD
1
RGB565, resolution up to 1366* 768*(WXGA)
Camera
1
8-bit DVP, up to 5.0Mp
Audio
1
1x MIC, 1x Phone
USB Host
1
USB2.0(up to 480Mbps)
USB OTG
1
standard micro USB connector, USB2.0 OTG(up to 480Mbps)
Ethernet
1
10M/ 100Mbps, RJ-45
RTC
1
RX8010SJ chip, CR1220
EEPROM
1
24C02 chip with capability of 256 bytes
TF card
1
compatible of MICRO SD, SDHC
LED
1
users indicator
POR_BUTTON
1
reset key
WakeUp
1
ON/ OFF
1
keep pressing it to power on or power off the board
BOOT
1
DIP switch for booting mode selection, presently, only TF card mode and QSPI NOR Flash mode are supported
PWM
1
for LCD backlight adjusting
ADC
5
4x ADC for resistive touching panel, and 1x ADC for adjustable resistor
IIC
1
for mounting of touching, camera, WM8960, EEPROM, RTC, IIC converted to 4-wired touching chip
CAN
1
CAN2.0
SPI
1
pin connectors (10-pin) with pitch of 2.0mm
UART
1
3 wired UART, 3.3V, up to 5.0Mbps, 10-pin header with pitch of 2.54mm
IIS
1
for WM8960
Debug
1
RS232, DB9 connector
SWD
1
debug port, 8-pin hearder with pitch of 2.54mm
Resistive touching
1
the carrier board compative the original touch and TSC2007 touching chip, TSC2007 is the default configuration
Keypad
1
4* 4 metrix keypad port by 8-pin header with pitch of 2.54mm
