Mindray BC10 CBC 3 DIFF Blood Cell Counter 3 part Automatic Hematology Analyzer Mindray BC20S BC10

Share on (62011442544):


Price:

Quantity:


Product Overview

Description



Product Description










BC-10

*CBC+3-DIFF,20 parameters+3Histograms
*Throughput :up to 30 samples per hour
*8.4 inch TFT touch screen
*Only three reagents needed
*Detailed fag information
*Large storage capacity: up to 50,000 samples
*Sample volume is only 9μL which is ideal for pediatrics

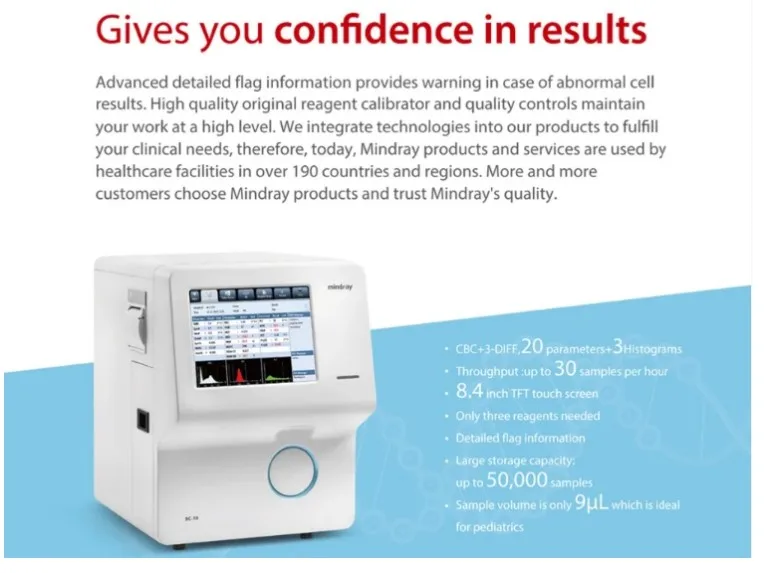

Gives you confdence in results
Advanced detailed flag information provides warning in case of abnormal cell results. HJ gh quality original reagent calibrator and quality controls maintain your work at a high level. We integrate technologies into our products to fulfll
your clinical needs, therefore, today, Mindray products and services are used by healthcare facilities in over 190 countries and regions. More and more customers choose Mindray products and trust Mindray's quality.











Gives you more time to work
Smart and intuitive software bring your productivity to a new level. The 10.4 inch TFT touch screen makes operations easy and fexible, maximizing your productivity. The incredible 400,000 storage capacity gives you a worry-free solution to managing previous patients' data. The smart software can detect and remove operational errors, as well as run automatic maintenance with a single click.











Gives you less downtime
Quality and user experience are top priorities for Mindray. We design and manage our manufacturing processes in compliance with ISO and CE. Complete quality control systems in Mindray's manufacturing centers ensure we exceed the most stringent criteria and traceability throughout the entire process. Our professional and responsive support team makes sure your systems are kept at full capability.



Technical Specifications




































































































parameters


 WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR 3
histograms for WBC, RBC and PLT


Sample Volume


Prediluted mode :≤20μL
Whole blood mode :≤9 μL



Throughput


30 samples per hour


Parameter


Linearity Range


 Precision (CV %)


Carryover


WBC(109/L)


 0-100


≤3.5% (4.0-6.9)≤2.0% (7.0-15.0)


≤0.5%


RBC(1012/L)


0-8.00


 ≤2.0% (3.50-6.5)


≤0.5%


 HGB(g/L)


0-280


 ≤2.0% (100-180) ≤0.5%


≤0.5%


MCV(fL)


≤ 1.0% (70.0-110.0)


 ≤0.5%


PLT(109/L)


 0-1000


 ≤5.0% (100-500)


≤1.0%


Display


8.4 inch TFT Touch Screen


Multi-language


Chinese, English, Spanish


Data Storage Capacity


Up to 50,000 results including numeric and graphical information


Communication


LAN Port supports HL7 protocol
Support bi-directional LIS



Interface


4 USB ports (for external printer, software upgrade, barcode reader,external WIFI, keyboard and mouse), LAN port (1)


Printout


Thermal recorder, 50 mm wide paper, various printouts formats


Power Requirement


Temperature: 15°C~30°C
Humidity: 10%~90%

Air pressure: 70kPa~106kPa

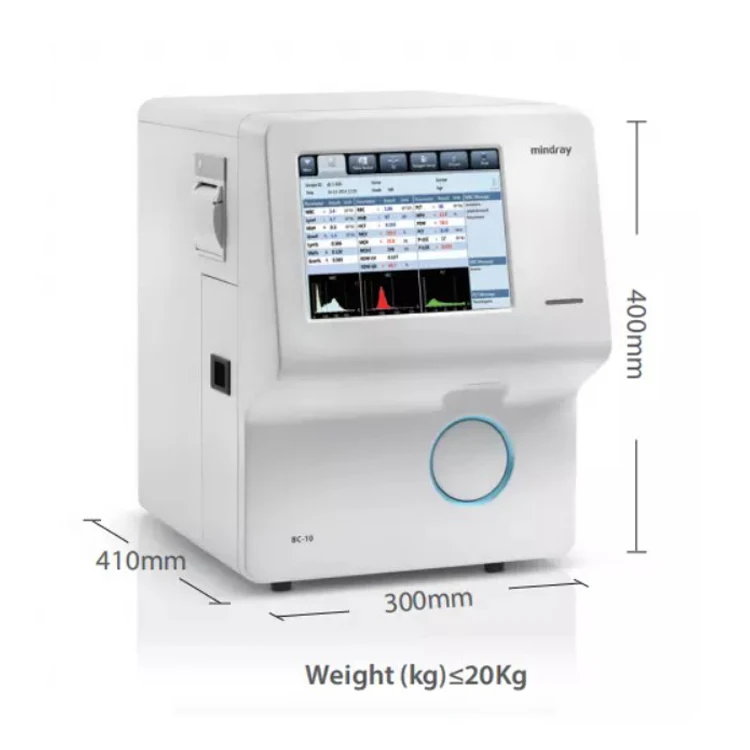

Dimension and Weight


Dimension: Depth (410 mm) x width (300 mm) x height (400 mm) Weight: ≤20Kg
