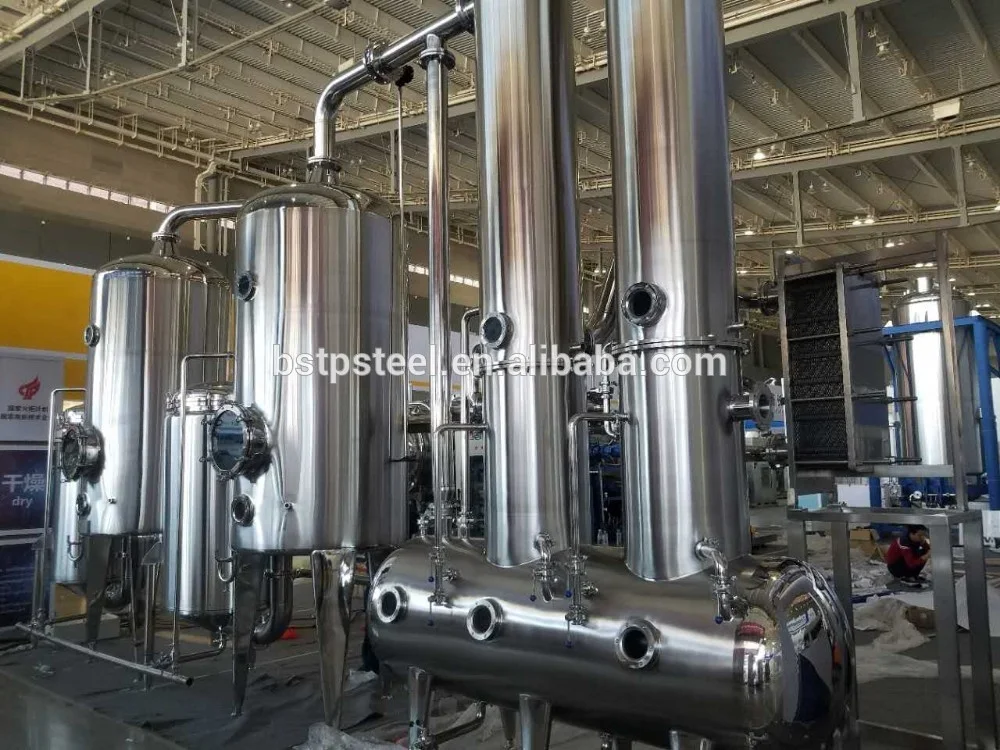

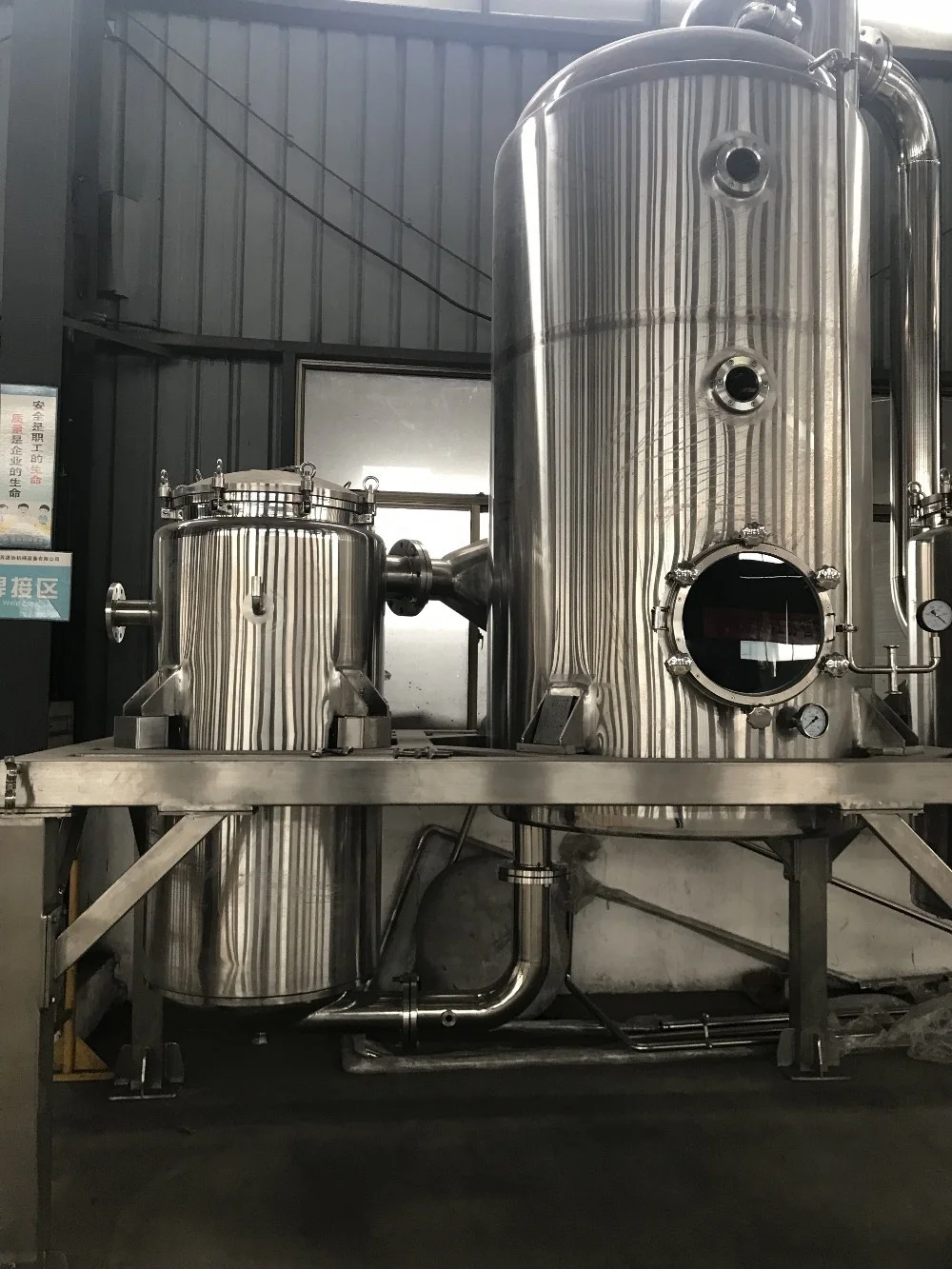

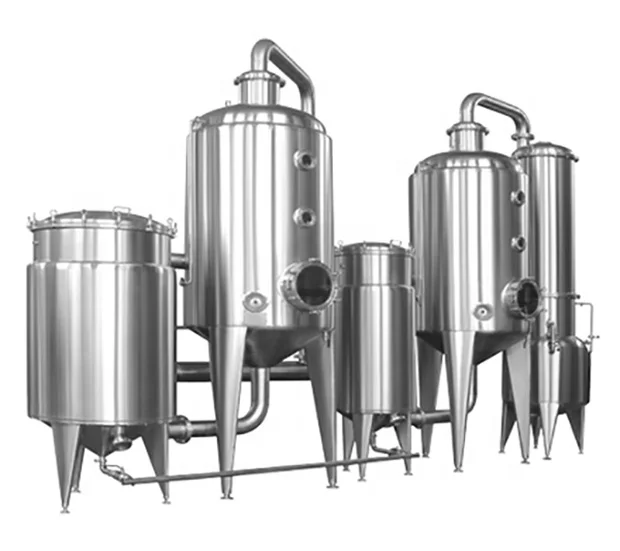

Stainless steel industrial single effect vacuum evaporator machine
- Category: >>>
- Supplier: Wenzhou Bestop Steel Co. Ltd.
Share on (62011529462):
Product Overview
Description
Product Description

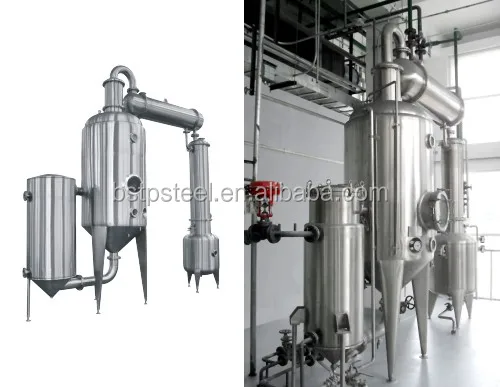

The single-effect external circulation vacuum concentrator is composed of heater, evaporator, defoamer, condenser, cooler and liquid receiving tank. The parts that contact materials are all made of stainless steel. The equipment is applicable to evaporation and concentration of liquid materials in pharmacy, food, chemical industry and light industry etc. industries. The concentrating time is short and the evaporating s peed is high, which can better protect the heat sensitive materials from being damaged.
The series of single-effect evaporators have three forms
WZ single-effect external circulation vacuum concentrator is the ordinary type, which is used for evaporation of water solution.WZS single-effect external circulation vacuum ointment collection concentrator is used for single-effect evaporation and thick ointment collection. After the normal single-effect evaporation, the valves connecting the spraying tube and circulating tube in the heating chamber and evaporating chamber will be closed. The liquid materials will fully enter the evaporating chamber and through the jacket heating in the evaporating chamber, normal pressure type or pressure relief type concentration will be carried out. The concentration specific gravity of materials will be increased to 1.35-1.45.
Technology parameter
Model and specification | WZ-500 | WZ-1000 | WZ-1500 | WZ-2000 | |||
Evaporating capacity(kg/h) | 500 | 1000 | 1500 | 2000 | |||
Recycled alcohol density(%) | 80-85 | ||||||
Steam pressure(MPa) | 0.03-0.09 | ||||||
Vacuum degree(MPa) | -0.05~-0.08 | ||||||
Evaporating room area(m3) | 1 | 1.5 | 2 | 2.5 | |||
Liquid receiving volume(m3) | 0.3 | 0.5 | 0.8 | 1 | |||
Steam cost(Kg/h) | 520 | 1050 | 1550 | 2100 | |||
RWate cost(T/h) | 7 | 10 | 15 | 20 | |||
Heating steam inlet(mm) | 40 | 50 | 80 | 100 | |||
Cooling water inlet and outlet(mm) | 40 | 50 | 65 | 80 | |||
Our Company
JIANGSU TONX MACHINERY EQUIPMENT CO., LTD
Wenzhou Bestop Steel Co., Ltd (International Business Dept.)
Mainly produce complete set of equipments for extraction, concentration, evaporation, crystallization, fermentation, filter, transportation, mixing, dissolution, Dispensing system , CIP on line cleaning system, national high-tech enterprises.
The main production of extraction, concentration, evaporation, crystallization, fermentation, filtering, mixing, dissolution, CIP online cleaning and sanitary fluid valve pipe fittings and other complete sets of equipment, products are widely used in pharmaceutical, biological, chemical, food, dairy and other engineering fields.
Certifications
Exhibition
Packing & Delivery
Contact Us

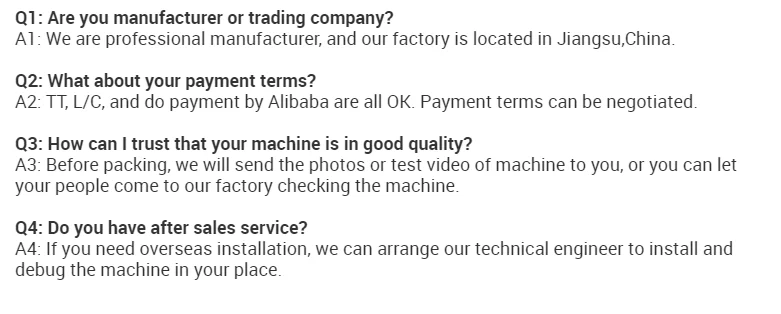

FAQ
