FTTH GPFD GPON PON BOARD with 16 c modules for MA5608T/MA5683T OLT
- Category: >>>
- Supplier: Shenzhen Yulitong Communication Equipment Co. Ltd.
Share on (62011598797):
Product Overview
Description
Product Description
Product Name | GPFD |
interface | 16 ports |
Module | c++ |
Applicable OLT | MA5680T MA5683T MA5608T |
Details Images

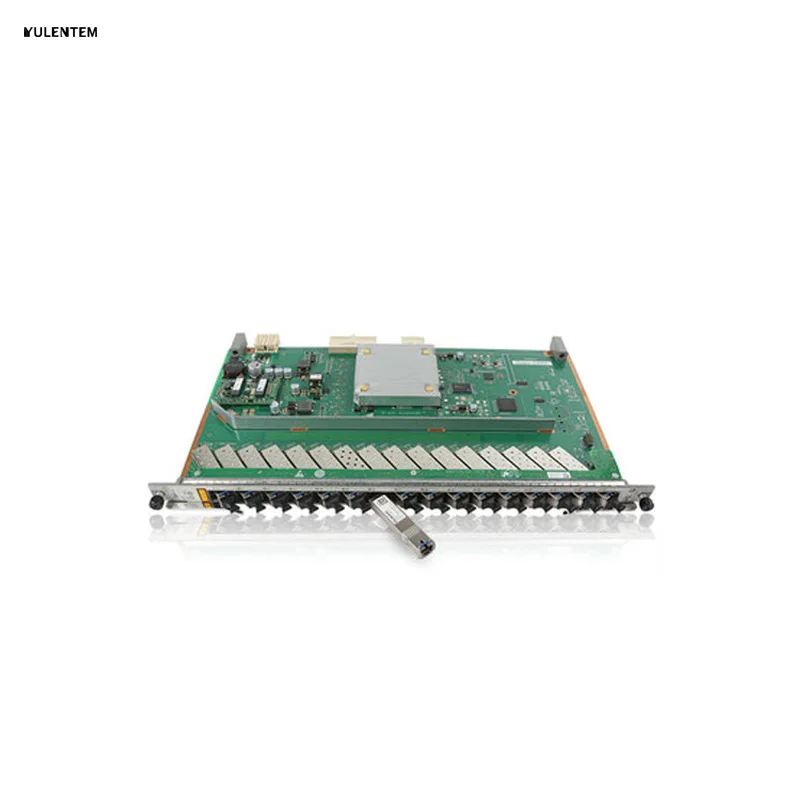

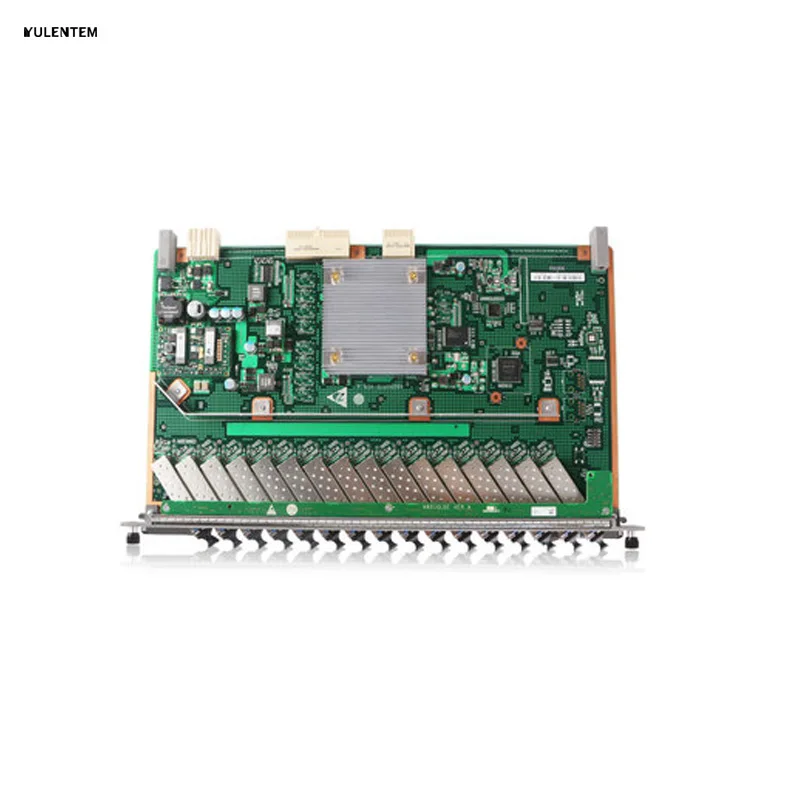

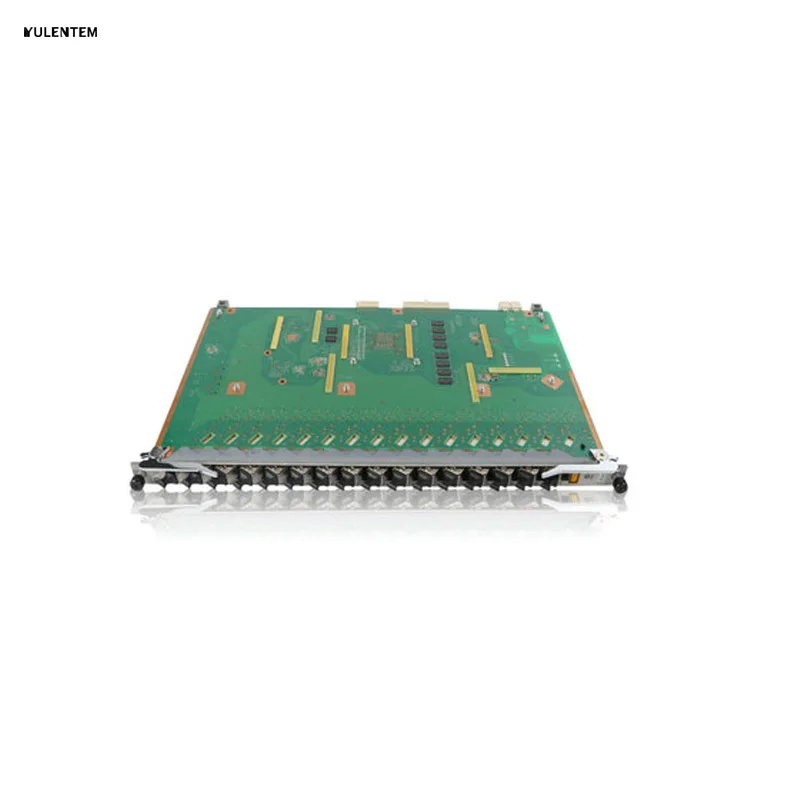

Brand new original board
Fully equipped with 16 c + modules

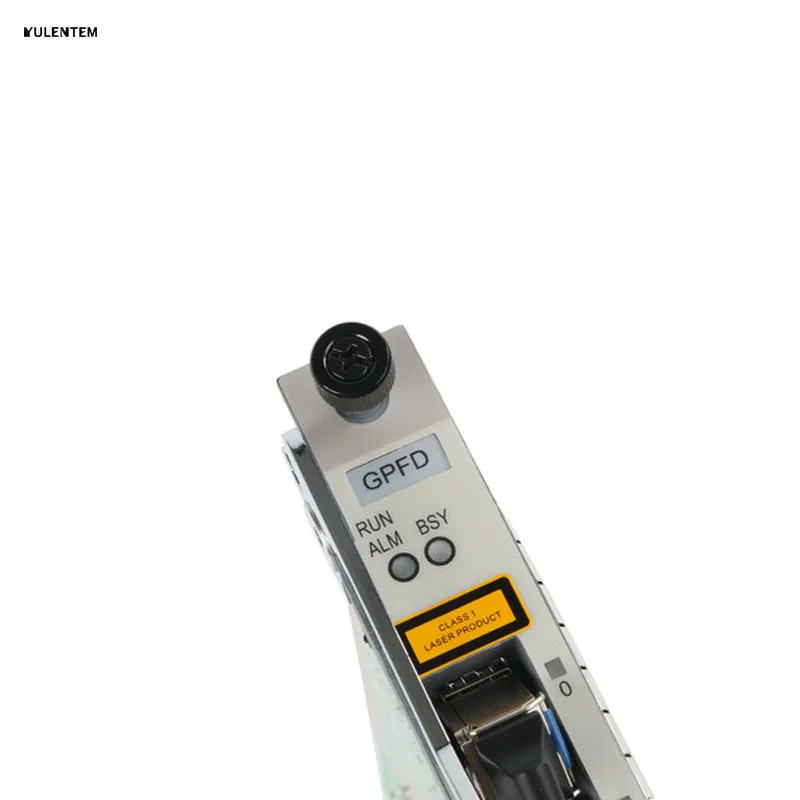

GPFD
Product Usage
Product usage introduction
Product Description
GPFD full equipped with 16 C+ module, is the 16 port OLT GPON interface board, and the terminal ONT device to achieve the GPON service access.
Control module to complete the single board software loading, operation control, management and other functions.Exchange module to achieve the convergence of 16 GPON port signals.Interface module to realize the mutual conversion between GPON optical signal and Ethernet message.The power supply module provides a working power supply for each function module in a single board.The clock module provides a working clock for each function module in a single board.
GPFD Optical Module Introduction:
Form:SFP/ESFP
Rate:1.25Gb/s
Optical connector type:SC/PC
Fiber type: single mode
Maximum light splitting ratio: 1:128
GPFD full equipped with 16 C+ module, is the 16 port OLT GPON interface board, and the terminal ONT device to achieve the GPON service access.
Control module to complete the single board software loading, operation control, management and other functions.Exchange module to achieve the convergence of 16 GPON port signals.Interface module to realize the mutual conversion between GPON optical signal and Ethernet message.The power supply module provides a working power supply for each function module in a single board.The clock module provides a working clock for each function module in a single board.
GPFD Optical Module Introduction:
Form:SFP/ESFP
Rate:1.25Gb/s
Optical connector type:SC/PC
Fiber type: single mode
Maximum light splitting ratio: 1:128
Description of product use effect
Apply to MA5680T/MA5683T/MA5608T
The GPFD basic principles are described below
The GPFD basic principles are described below
1, the control module to complete the board of software loading, operation control, management and other functions.
2, the exchange module to achieve 16 GPON port signal aggregation.
3, the interface module to achieve GPON optical signals and Ethernet packets of mutual conversion.
4, the power module for the board of the various functional modules to provide power supply.
5, the clock module for the various modules within the board to provide working clock.
Related Products
Packing&Shipping
We support DHL ,FedEx,UPS,EMS ,air freight,sea etc.
.
Packaging:
Carton dimension:40*30*10, 3.5KG per carton
Delivery Detail:
1-3 working days in stock ,5-7 working days for more then 20 pcs.
Carton dimension:40*30*10, 3.5KG per carton
Delivery Detail:
1-3 working days in stock ,5-7 working days for more then 20 pcs.
