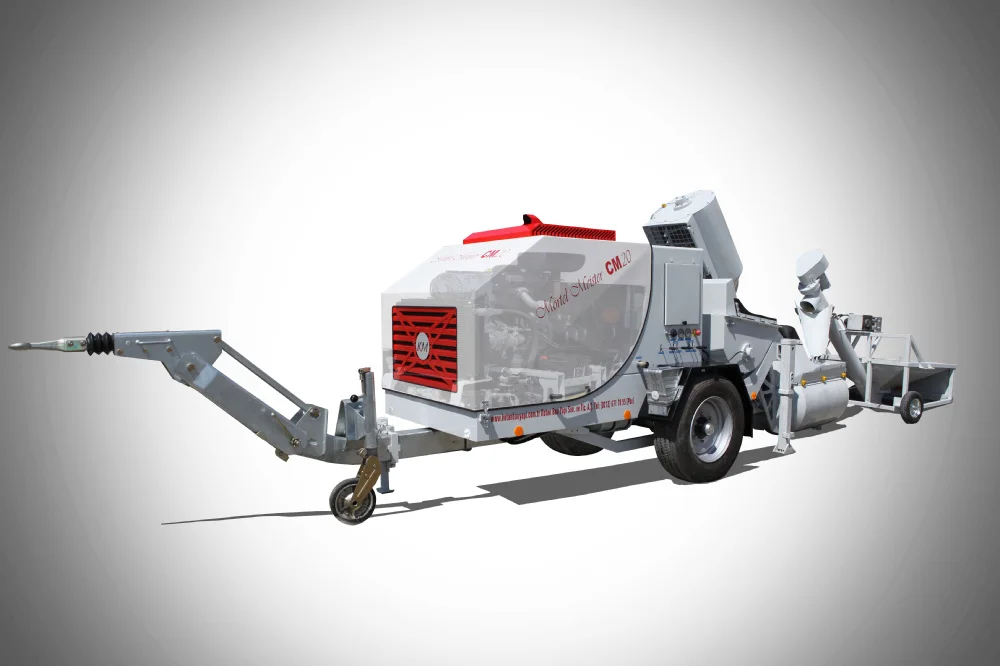

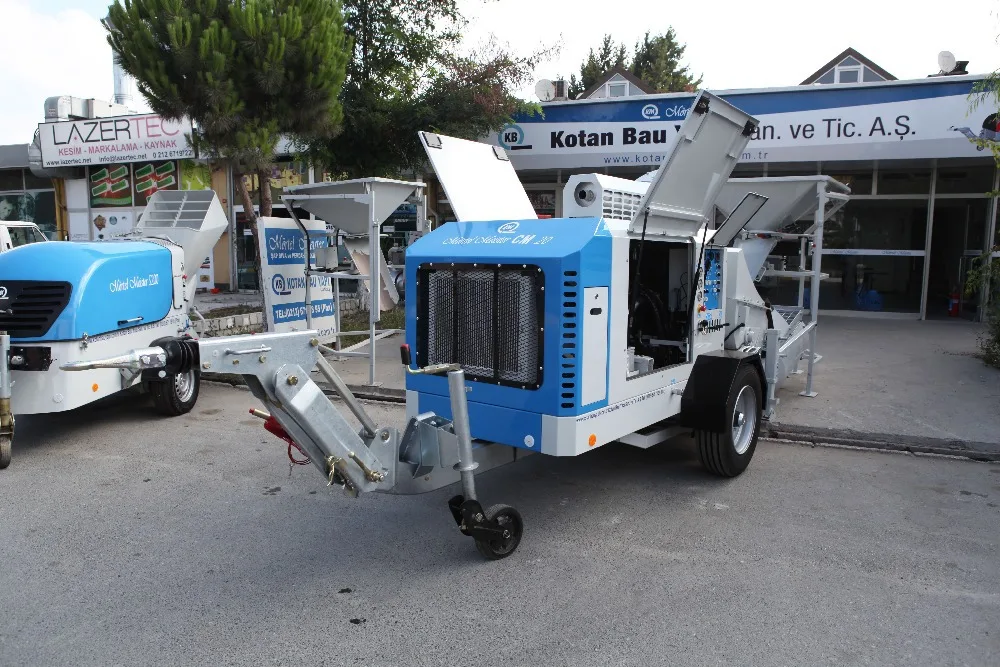

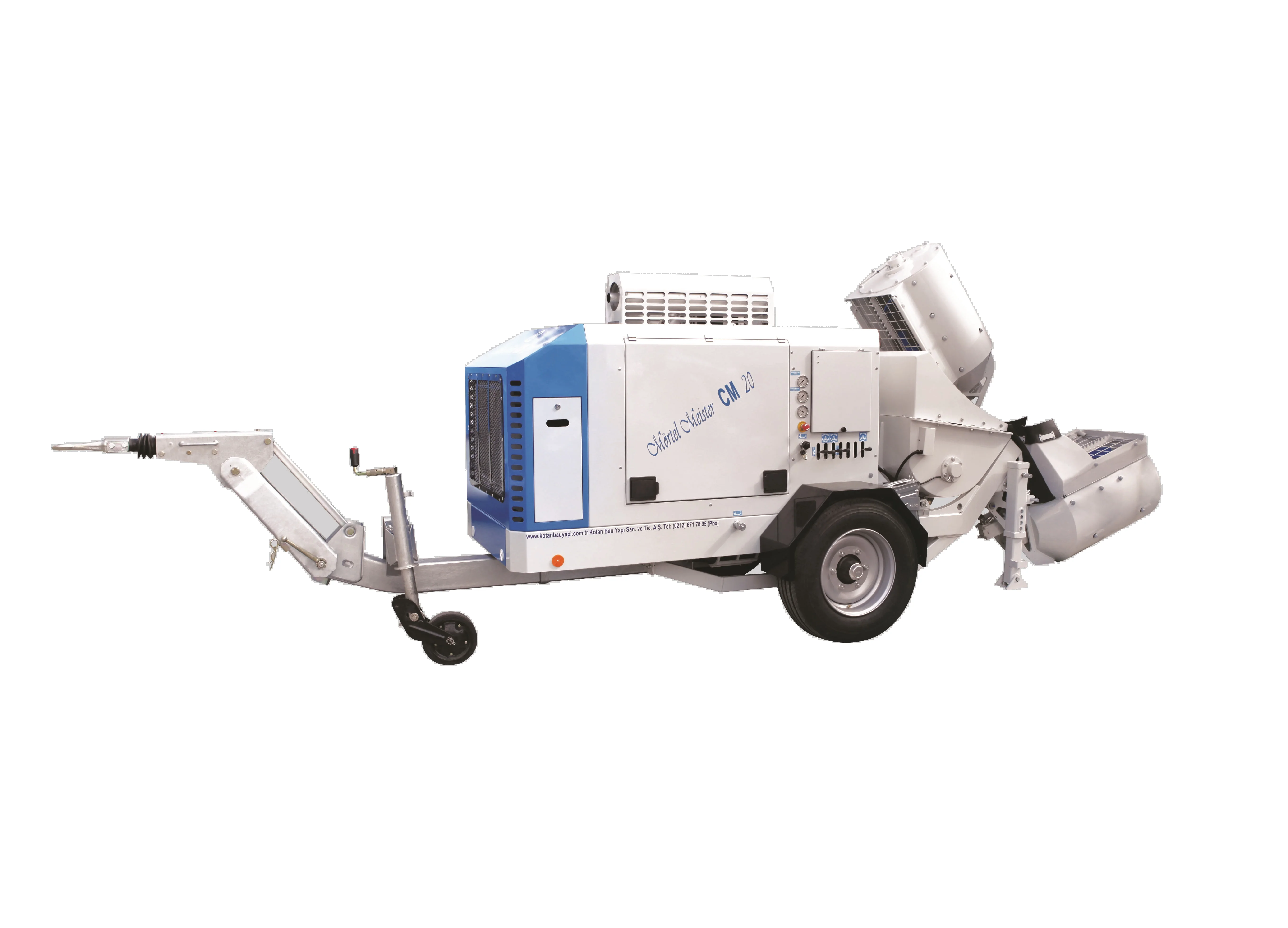

Mortel Meister Concrete Mixer & Pump Unit

Product Overview

Description

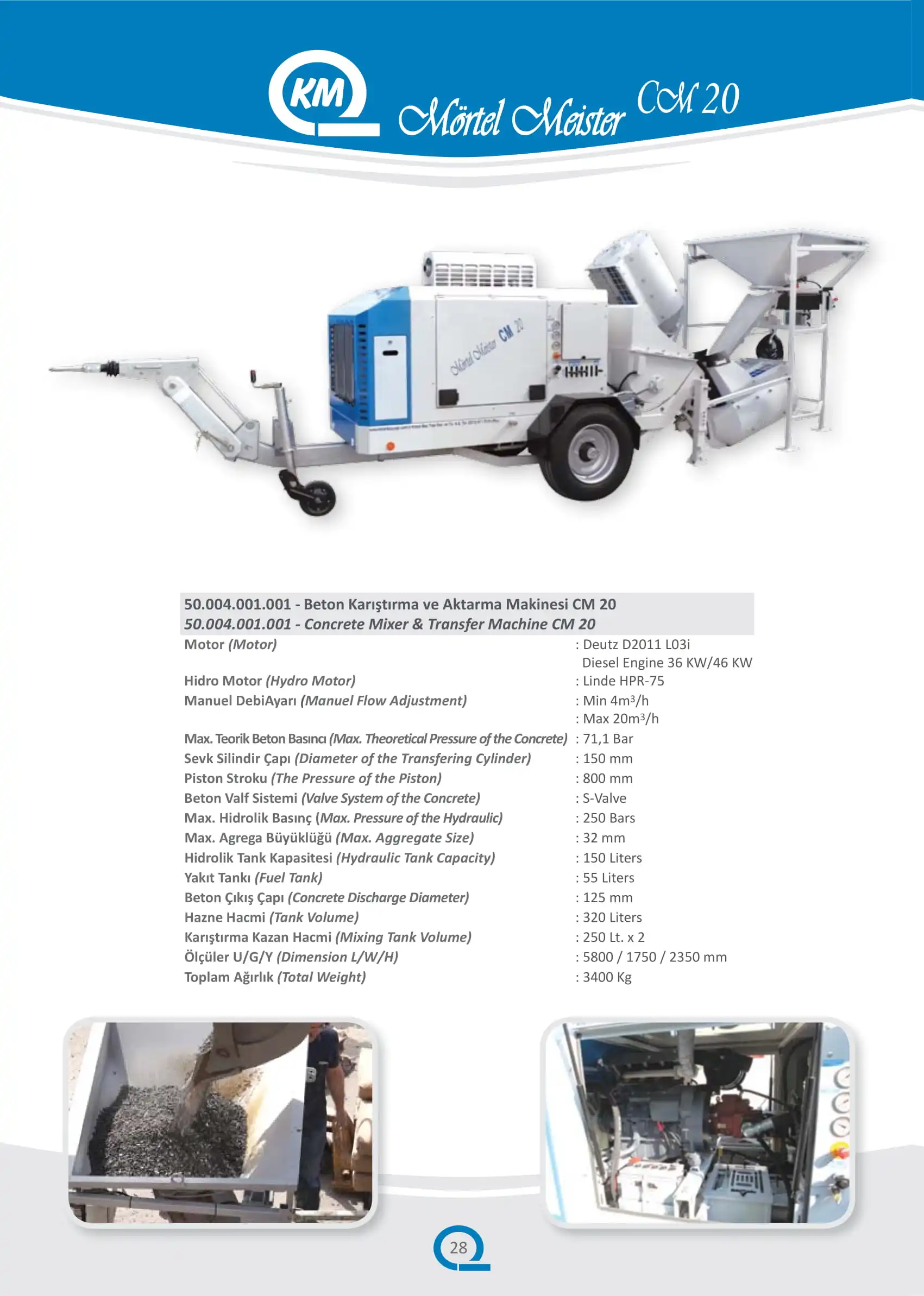

Concrete Mixer & Transfer Machine CM 20



Motor : Deutz D2011 L03i Diesel Engine 36 KW/46 KW
Hydro Motor :  Linde HPR-75
Manuel Flow Adjustment : Min 4m3/h Max 20m3/h
Max. Theoretical Pressure of the Concrete : 71,1 Bar
Diameter of the Discharge Cylinder : 150 mm
Piston Stroke : 800 mm
Concrete Valve System  : S-Valve
Max. Hydraulic Pressure  : 250 Bars
Max. Aggregate Size : 32 mm
Hydraulic Tank Capacity : 150 Liters
Fuel Tank : 55 Liters
Concrete Discharge Diameter : 125 mm
Concrete Tub Volume : 320 Liters
Mixing Tank Volume : 250 Lt. x 2
Dimension L/W/H : 5800 / 1750 / 2350 mm
Total Weight : 3400 Kg
Drawbar : Suitable for Road Navigation - with brakes
