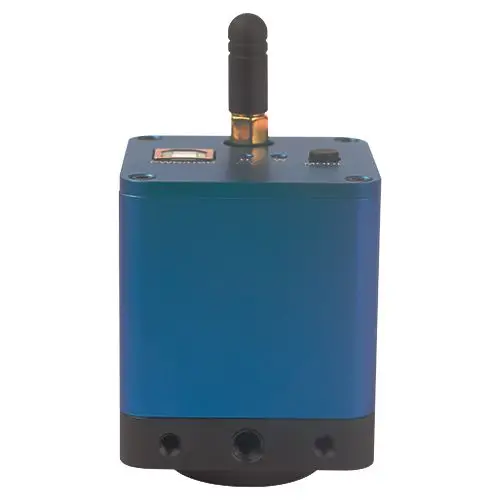

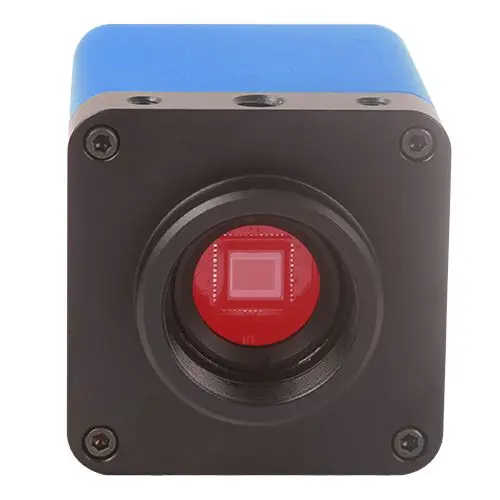

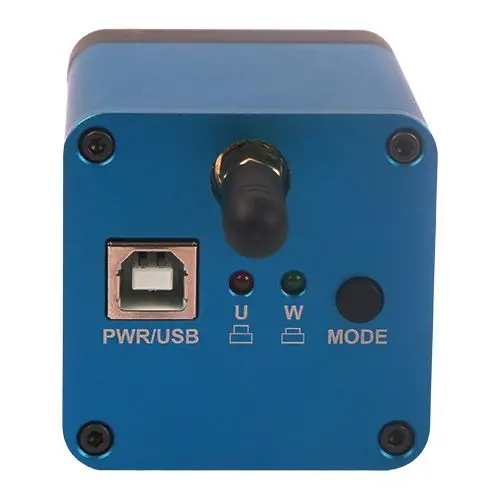

C Mount Wifi HDMI Camera For Trinoculor Microscope

C-Mount Wifi HDMI Camera adopts ultra-high performance CMOS sensor as the image-picking device. WIFI is used as the data transfer interface. When the camera is attached to the eyepiece of a microscope and started, it will generate a WiFi signal for sending high-resolution images from the microscope to WiFi-enabled devices such as smartphones, tablets, and computers with iOS, Android, OS X, Linux and Windows operating systems, streaming images to up to six devices simultaneously. The camera includes ToupView images software for quantifying, measuring, and annotating images and for using with an interactive whiteboard. It also works with the free, downloadable Toupviewt app for viewing, capturing, and editing images.

Configuration:
Sensor & Size(mm) : 720P/MT9P001(C) 1/2.5"(5.63x3.17)
Pixel(μm): 2.2x2.2
G Sensitivity Dynamic Range SN Ratio: 1.0 V/lux-sec 61dB 43dB
FPS/Resolution: 10@1280x720
Binning: 2x2
Exposure: Auto
Other Hardware Configuration:
Spectral Range: 380-650nm (with IR-filter)
White Balance: ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique: Ultra Fine Color Engine
Capture/Control API: Native C/C++, C#, Directshow, Twain, Labview
Recording System: Still Picture and Movie
Maximum Connected Devices: <=6

Software Environment:
Operating System: Supports Microsoft Windows XP / Vista / 7 / 8 / 10 (32 & 64 bit), iOS, Android
PC Requirements:
CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More WIFI Adapter with DHCP Enabled
Display: 9" or Larger
CD-ROM
