Product Overview
Description
Product Description

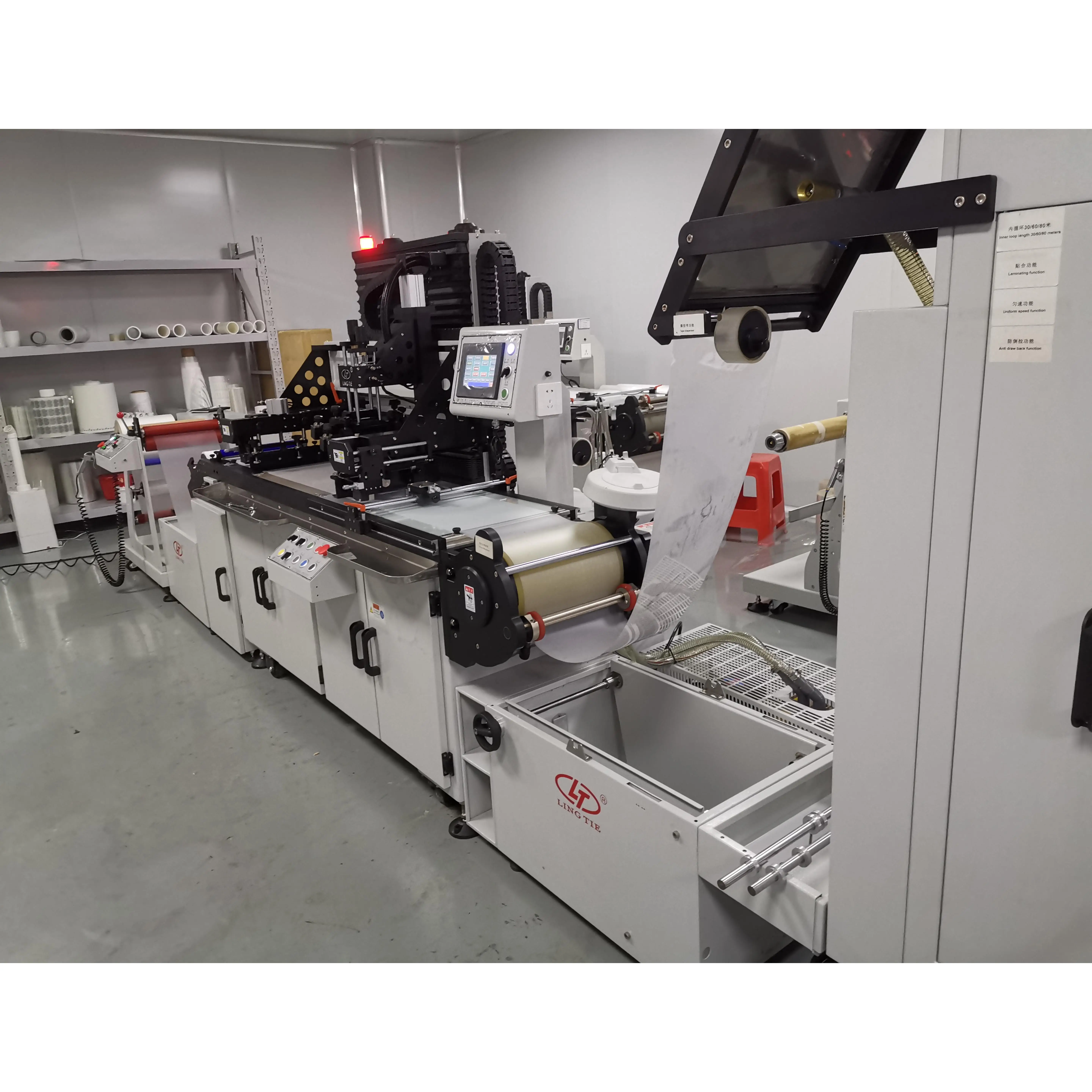

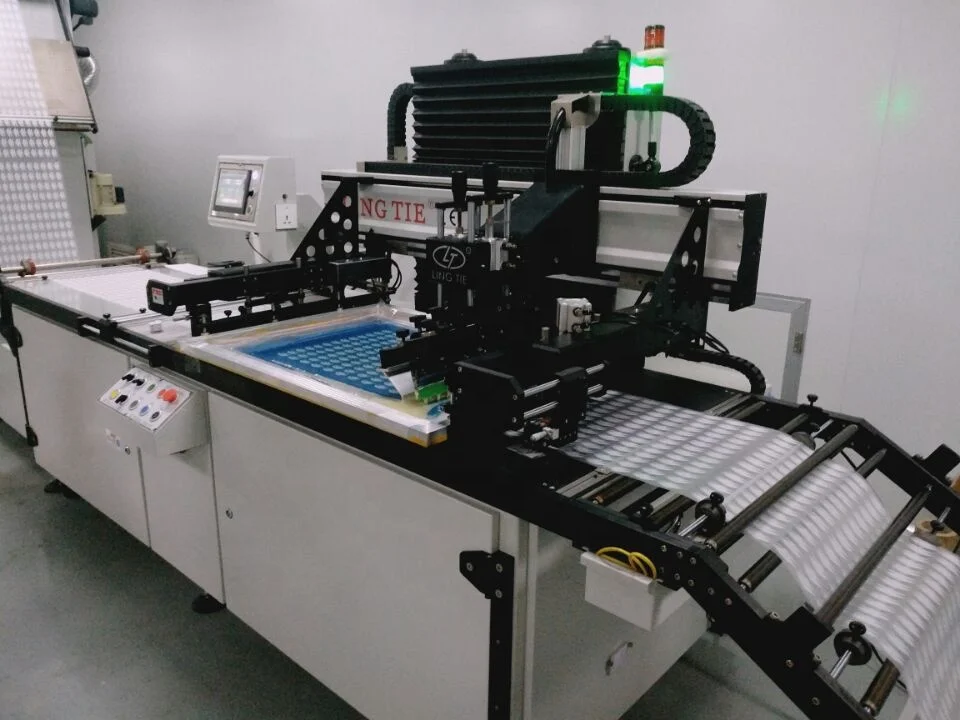

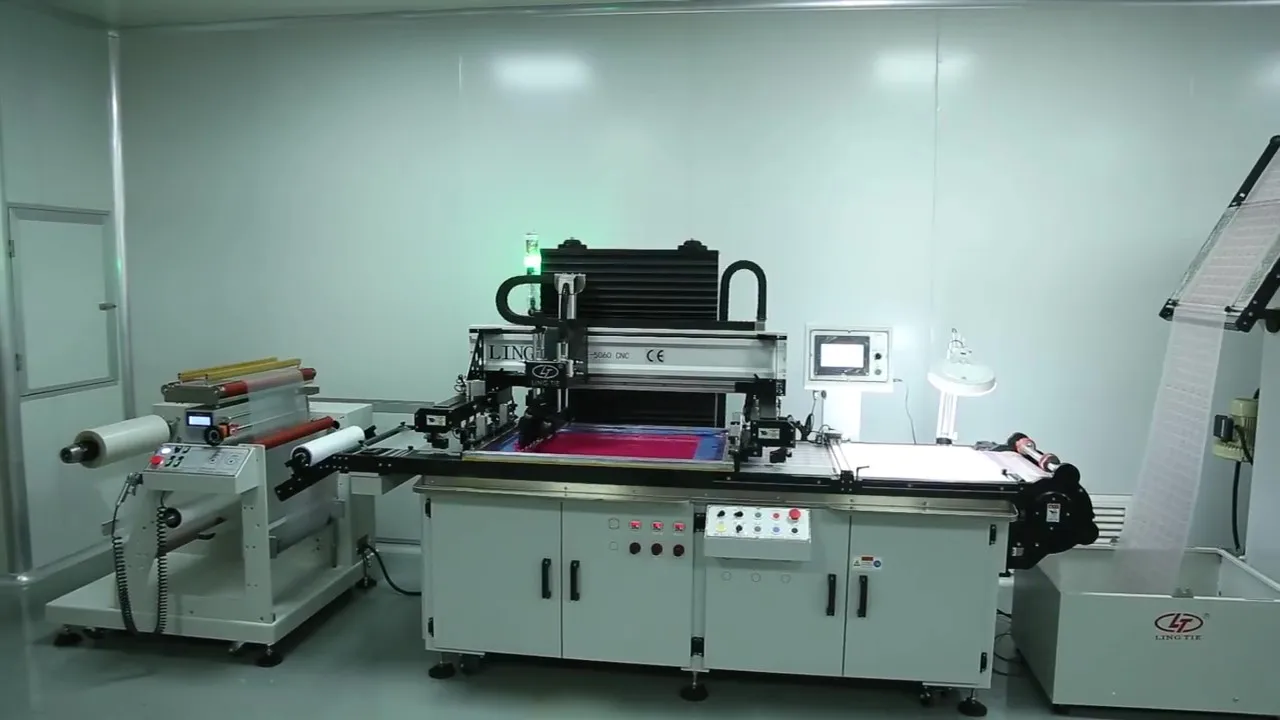

LTA-5060 automatic screen printing machine roll film is manufactured for printing of roll film. It is mainly composed of a feeder, a printer and a hot air dryer.
Its max. printing area is 500x700mm, max. printing width 500mm, max. printing length 700mm.
The hot air dryer inside loop 30m length. The UV dryer can be added to the line.
The LTA-5060 has an automatic register system with 3 sensors to ensure high printing accuracy in multi-pass printing.
Its max. printing area is 500x700mm, max. printing width 500mm, max. printing length 700mm.
The hot air dryer inside loop 30m length. The UV dryer can be added to the line.
The LTA-5060 has an automatic register system with 3 sensors to ensure high printing accuracy in multi-pass printing.
Specification | ||||
Feeding Machine | power | 0.3kw | ||
Eletricity voltage | 220V/50Hz | |||
Dimensions | L1100*W1000*H1200mm | |||
Printing Machine | Max. web width | 520mm | ||
Max. printing size | 500*700mm | |||
Printing speed range | 0-2500 pcs/h | |||
Overprint tolerance | ±0.01mm | |||
Substrate thickness | 0.02-0.5mm | |||
Screen Frame Area | 800*1100mm | |||
Air source | 0.4-0.6mpa | |||
Power | 3KW | |||
Electricity voltage | 220V/50Hz | |||
Dimensions | L2850*W1160*H1650mm | |||
Hot Air Dryer | Power | 14kw | ||
Electricity voltage | 380V/50Hz | |||
Temperature | room tenp.---140 ℃ | |||
Chamber pass length | 30m | |||
Heater | 2pcs | |||
Dimensions | L1970*W780*H1810mm | |||

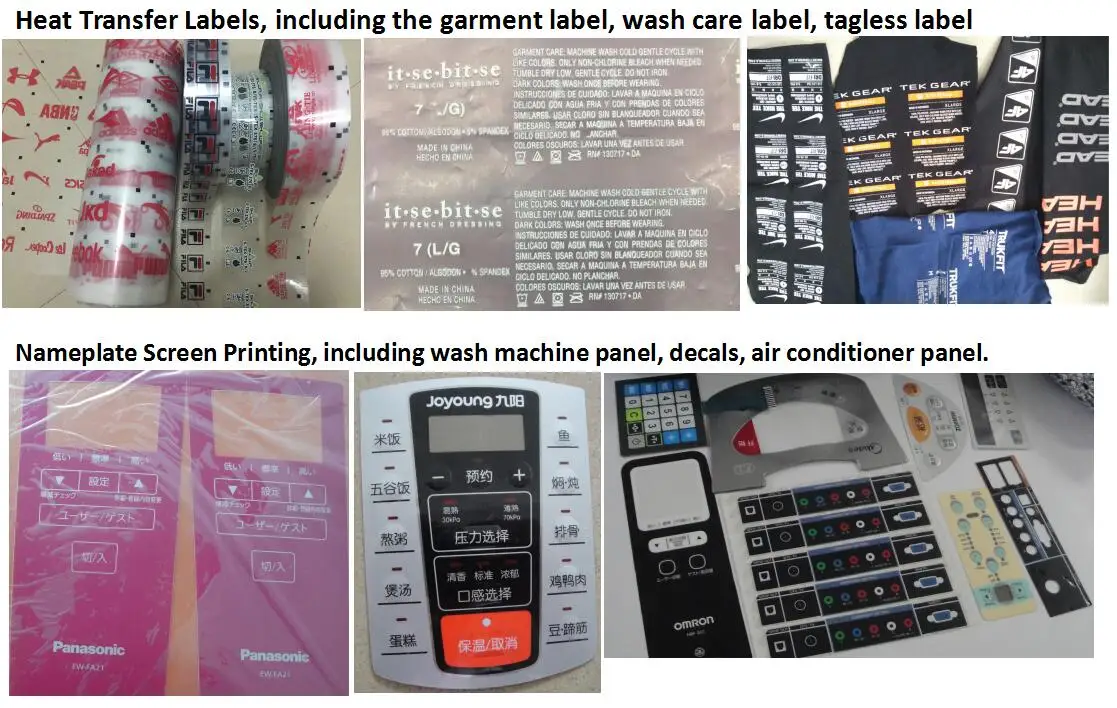

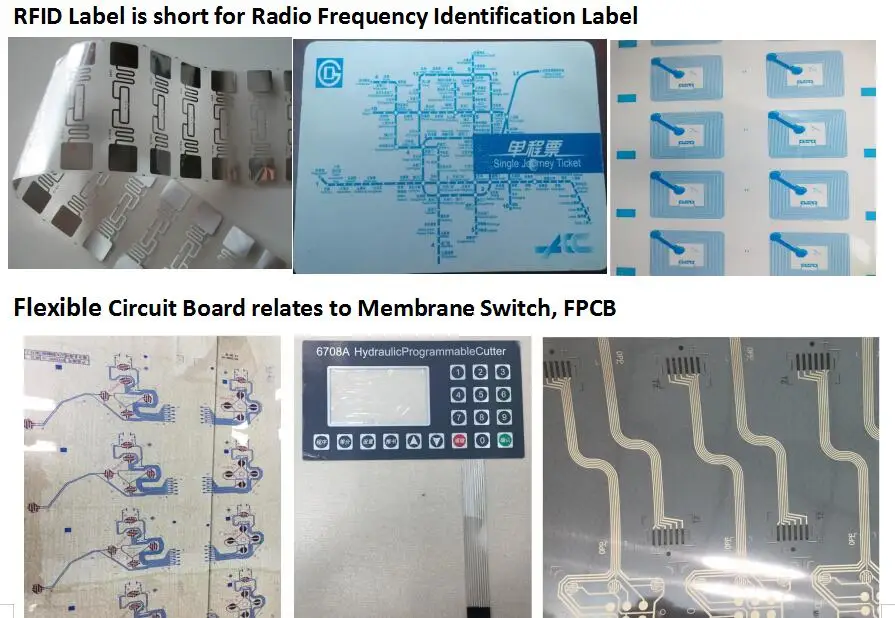

Application
water transfer film, heat transfer films, PVC, PET, PP, PC, PE, BOPP etc all kinds of films, various nameplate for electronic appliances, membrane switches, panels, soft circuit board, IMD, IML, FPC, rubber vulcanization, non-woven fabric, color labels for cars, ceramic decals, thermal transfer paper, leather, electrostatic film, tetoron, coated paper, adhesive sticker and so on. The thinnest which it can be printed is 0.02 mm.

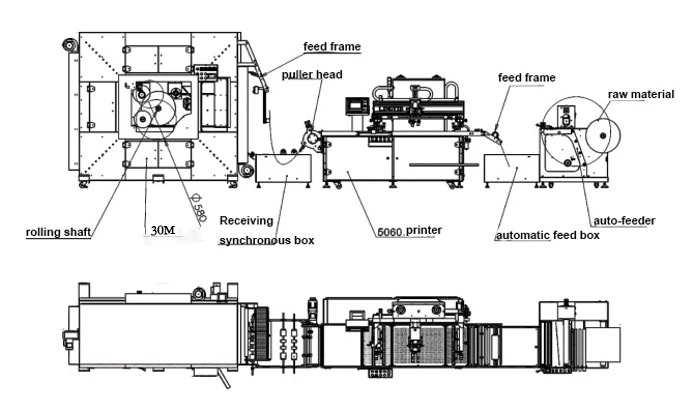

Introduction of the Three Components
Automatic Feeding Machine
1. It is mainly used to feed all kinds of roll material and cooperate with automatic screen printer.
2. The feeding and winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
3. Adopting Japan Mitsubishi frequency converter, automatic control the feeding speed.
4. The feeding machine adopts imported photoelectric switch control, avoids scratching material, and can automatically adjust the feeding length.
Optional functions:
1) Electromagnetic tension control
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device
2. The feeding and winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
3. Adopting Japan Mitsubishi frequency converter, automatic control the feeding speed.
4. The feeding machine adopts imported photoelectric switch control, avoids scratching material, and can automatically adjust the feeding length.
Optional functions:
1) Electromagnetic tension control
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device
Automatic Printing Machine
1. The printing seat adopts 4-column precise linear guide rail, with high repeatable positioning accuracy, strong stability and durability.
2. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
3. With anti-drip ink function, prevent color difference between ink with ink, to achieve high quality printing.
4. Equipped with a man-machine system.
5. It features an automatic registration system with three sensors to ensure high printing precision for multi color overprint.
Optional functions:
1) Automatic punching function
2) automatic registration function
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device
2. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
3. With anti-drip ink function, prevent color difference between ink with ink, to achieve high quality printing.
4. Equipped with a man-machine system.
5. It features an automatic registration system with three sensors to ensure high printing precision for multi color overprint.
Optional functions:
1) Automatic punching function
2) automatic registration function
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device

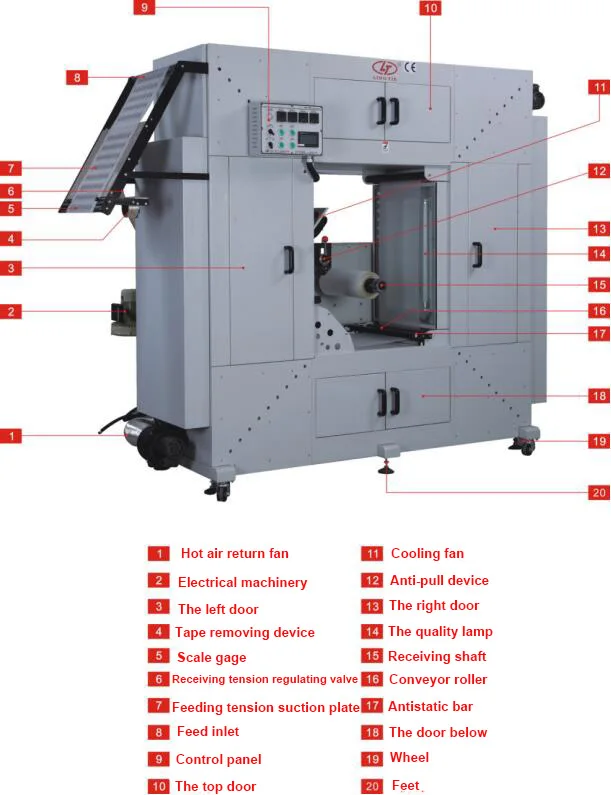

Hot Air Dryer
1. Adopts uniform speed function to ensure that the material stays in the oven at any position for the same time and rewinding speed.
2. Oven with 4 sides, 4 sides heating, air circulation more smooth.
3. Equipped with heat insulation layer, so as not to scald the operator, saving electricity, energy saving and environmental protection.
4. The suction tension can be arbitrarily stepless adjustment, convenient to control the material tension, to ensure that the printing material does not stretch deformation.
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
6) Laminating device
2. Oven with 4 sides, 4 sides heating, air circulation more smooth.
3. Equipped with heat insulation layer, so as not to scald the operator, saving electricity, energy saving and environmental protection.
4. The suction tension can be arbitrarily stepless adjustment, convenient to control the material tension, to ensure that the printing material does not stretch deformation.
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
6) Laminating device

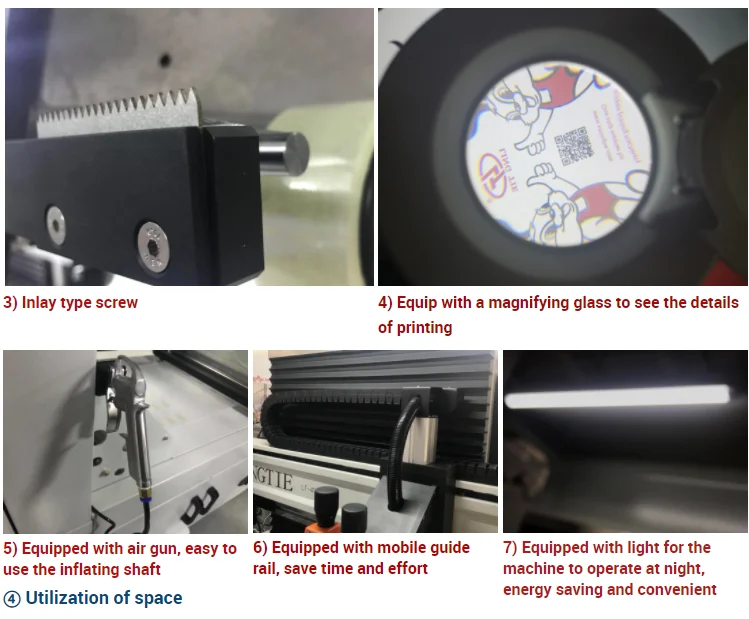

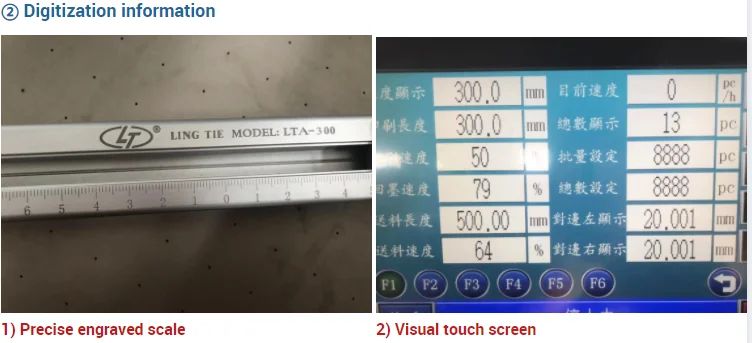

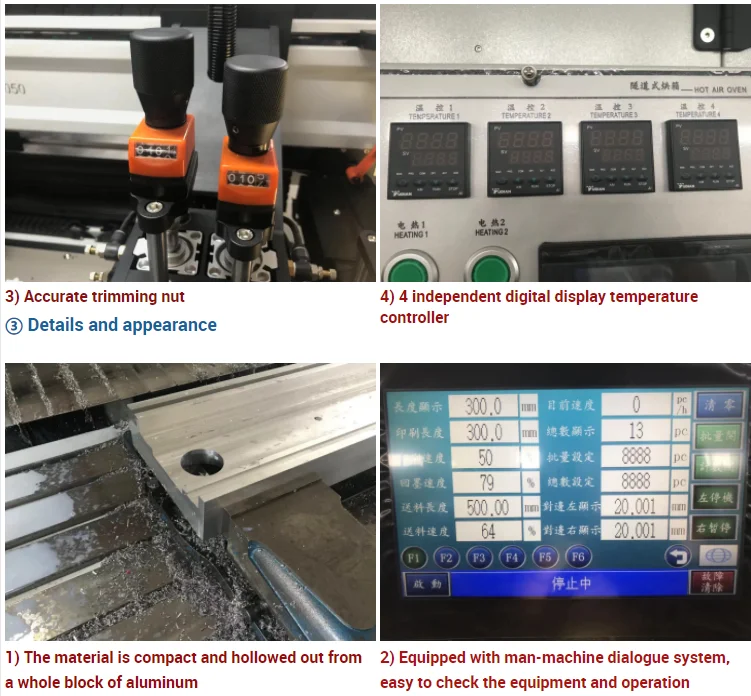

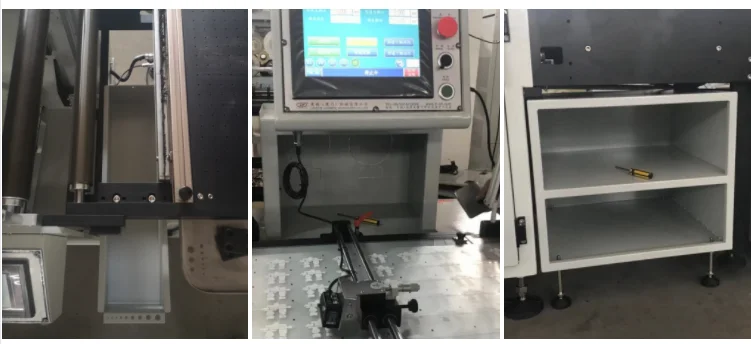

Humanization Design

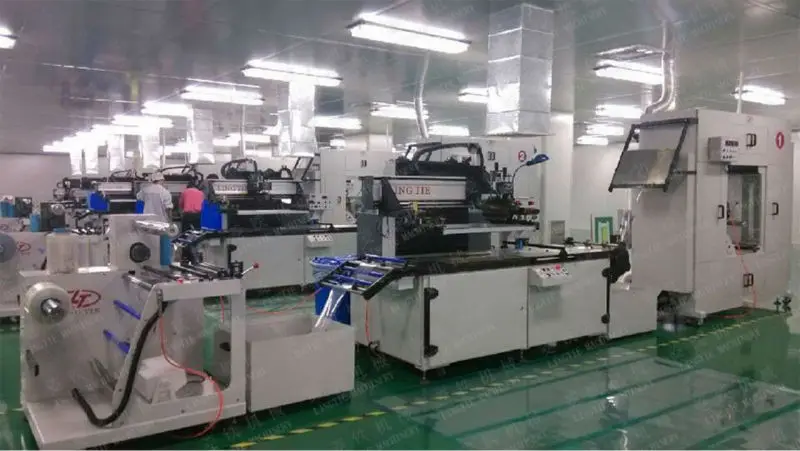

Exihibition＆ Customer Field Visit
