High Quality 1GE+1FE WIFI ONU Epon/gpon/gepon Onu Compatible With zte Etc Olt
Product Description
Introduction
V2802GW terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. These boxes are based on the mature Gigabit EPON technology, which have high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2/3. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom.

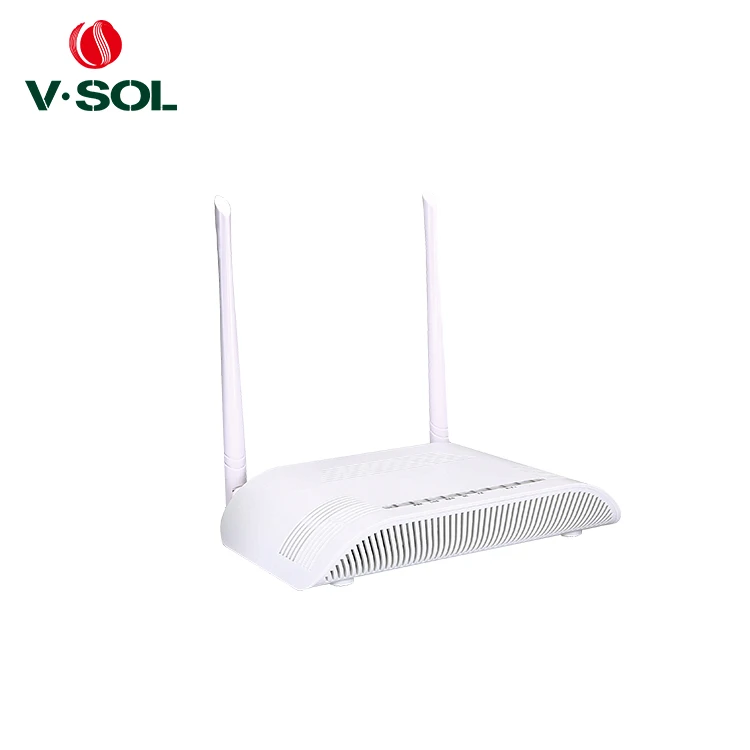

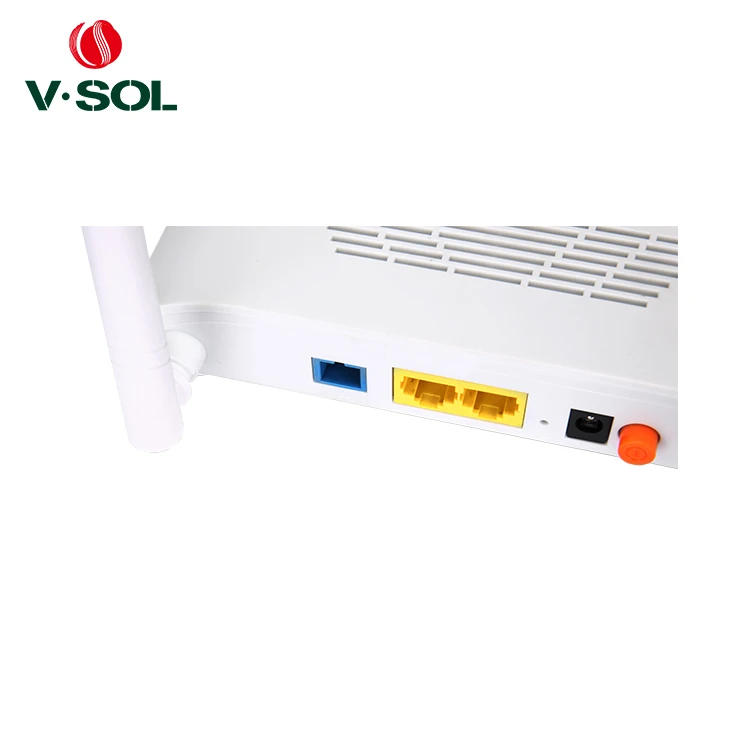

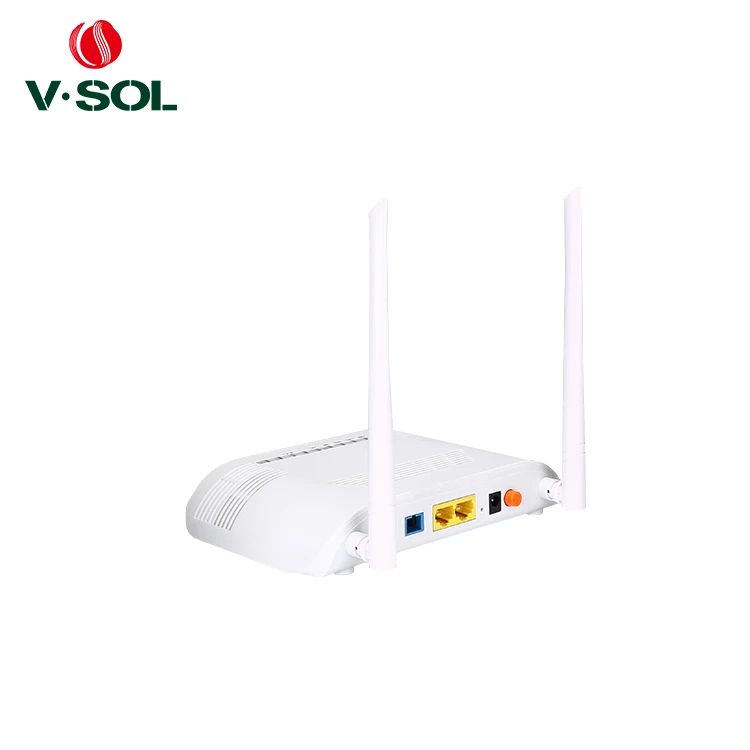

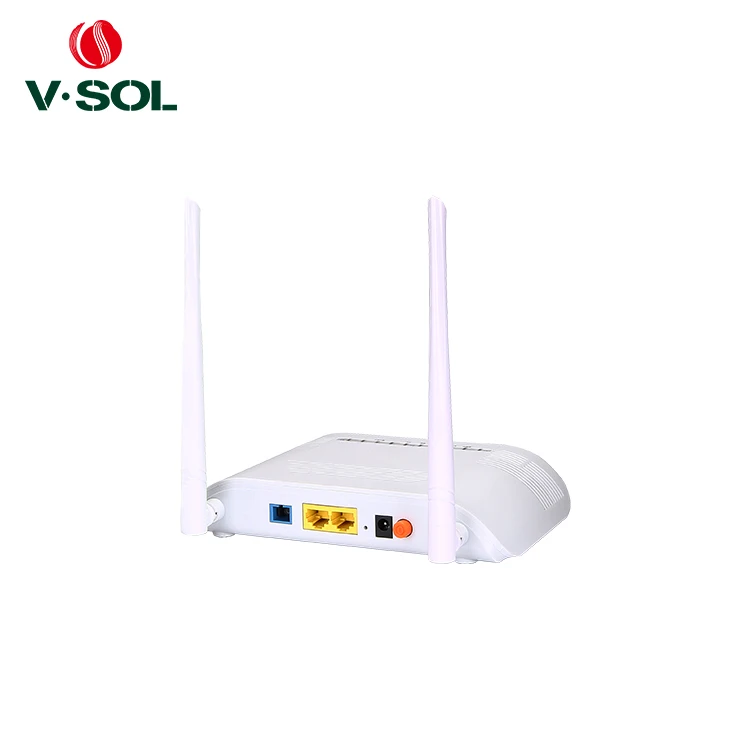

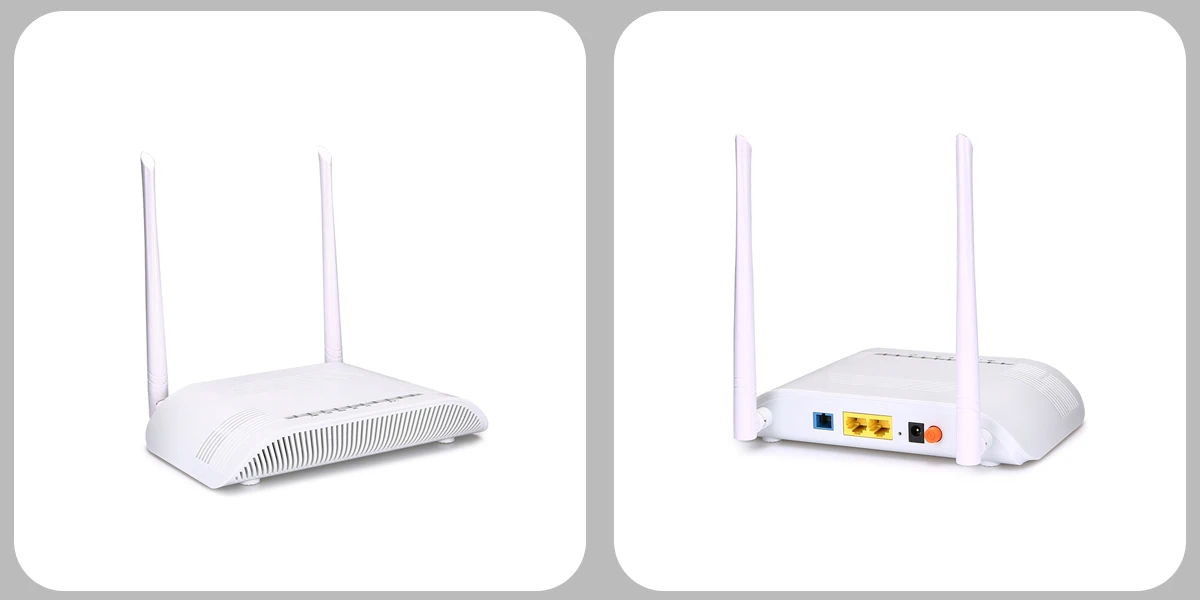

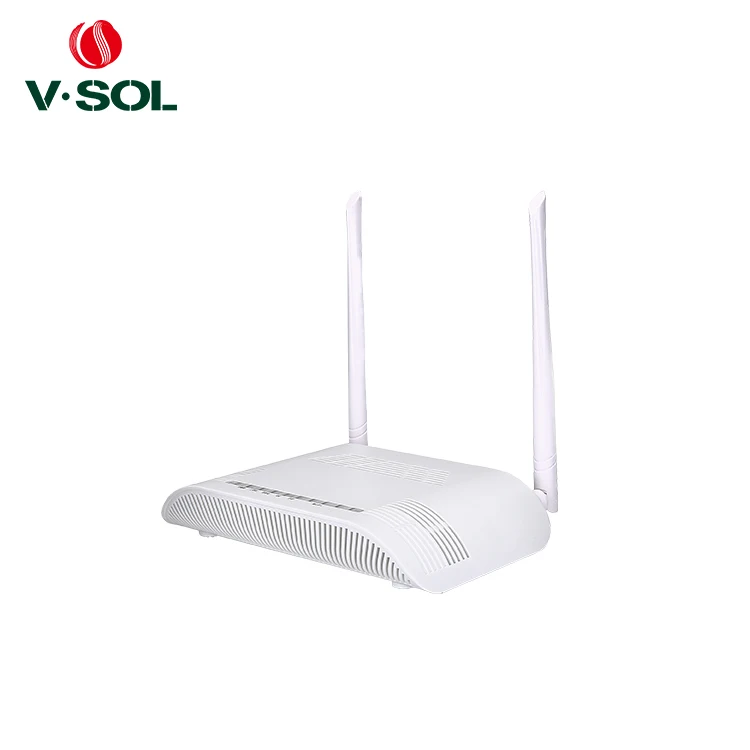

Product photo show
Special features
² Deul Mode( can access gpon/epon olts ).
² Integrated OAM remote configuration and maintenance function.
² Support rich QinQ VLAN functions and IGMP Snooping multicast features.
² Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
² Support 802.11n WiFi(2T2R) function.
² Support NAT, Firewall function.
² Support IPv4 and IPv6 dual stack.
² The WAN port supports bridge, router and bridge/router mixed mode.
Technical parameters
Technical item
1GE+1FE+WIFI
PON interface
1 G/EPON port(EPON PX20+ and GPON Class B+)
Receiving sensitivity: ≤-28dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20KM
Wavelength
Tx1310nm,Rx 1490nm
Tx1310nm,Rx 1490nm and 1550nm
Optical interface
SC/UPC connector
SC/APC connector(signal fiber with WDM)
LAN interface
1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WiFi interface
Compliant with IEEE802.11b/g/n
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps
2T2R,2 external antenna 5dBi
Support: multiple SSID
Channel:13
Modulation type: DSSS,CCK and OFDM
Encoding scheme: BPSK,QPSK,16QAM and 64QAM
Storing
condition
Temperature:-30℃~+60℃
Humidity:10%~90%(non-condensing)
Function Description
Data Service Functions
² Full speed non-blocking switching.
² 2K MAC address table.
² 64 full range VLAN ID.
² Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
² Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
² Support auto polarity detection of Ethernet ports (AUTO MDIX).
² Integrated IEEE802.1p QoS with four level priority queues.
² Support bridge, router and bridge/router mixed mode.
1.Can we get a lower price? Any Discount? Yes,price is not a problem,everything could be negotiated based on the quantity.
2.Can I get a free sample? Sorry that V-Solution is not available to new customer.
3.We are new in this PON fields,can you help me and recommend me some items? Yes,of course.it is our pleasure to help you with it. You only need to offer us more details about your application.
4.What is your MOQ? No MOQ for any sample test,at least 10pcs/models after sample order.
5.OEM,ODM Service is available? Yes,V-Solution have strong ability to offer customers ODM&OEM products of highest quality. And it will requirement about your quantity.
6.For Trade Terms,such as payment and leadtime. >Payment Terms:We mainly support T/T bank transfer,Paypal and Western Union >Price Terms:FOB Guangzhou >Shipping Methods: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent >Leadtime: Sample order,3-7work days; Bulk order 15-25work days(after your payment )
7.How about the Warranty? There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
