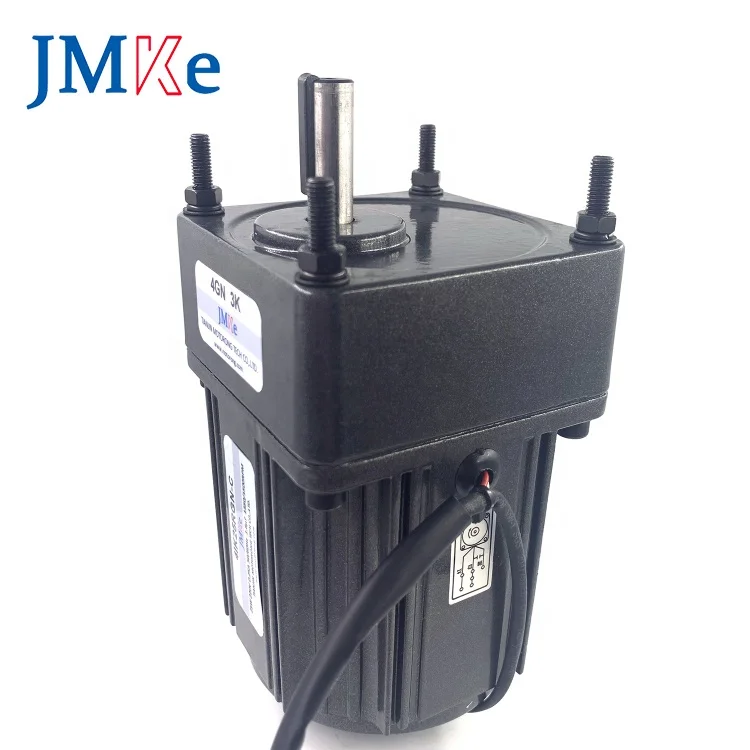

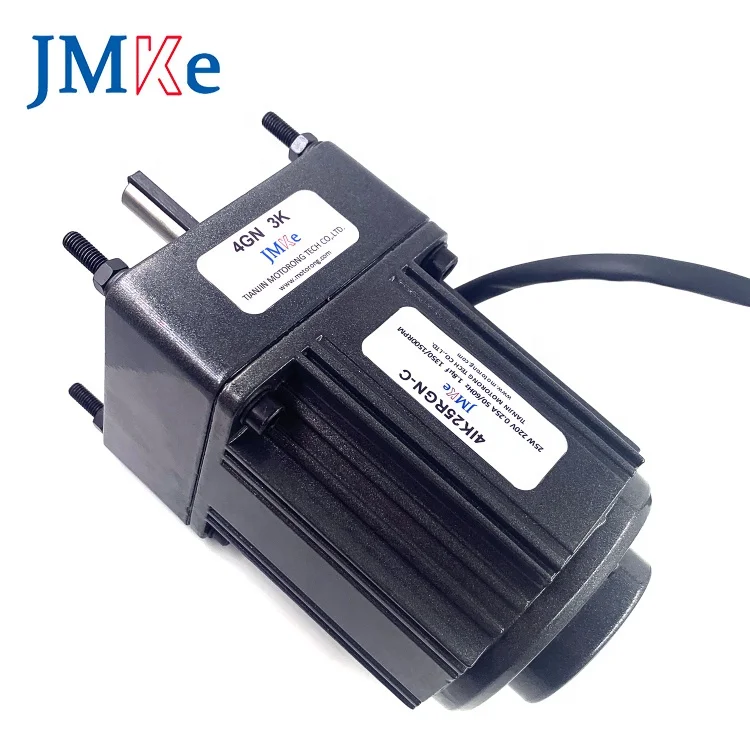

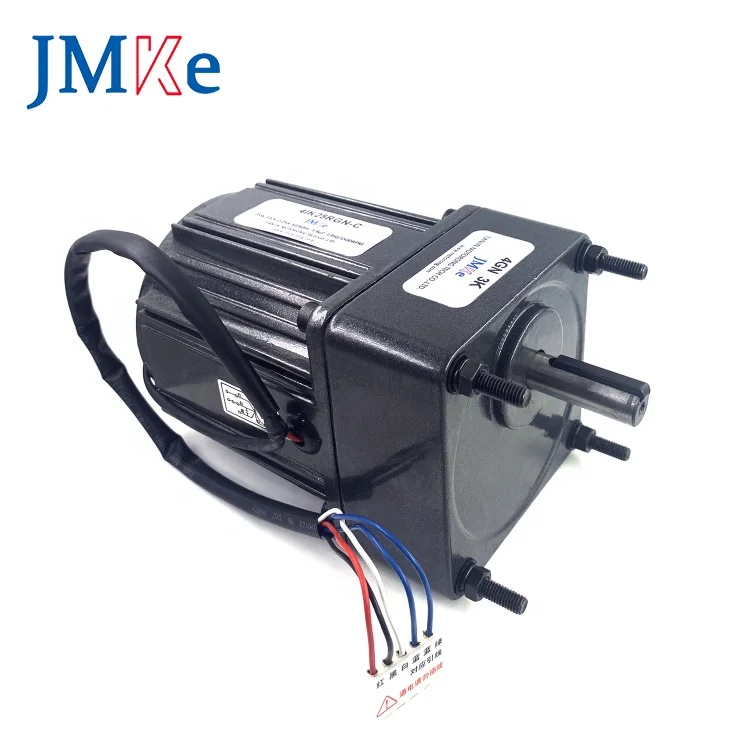

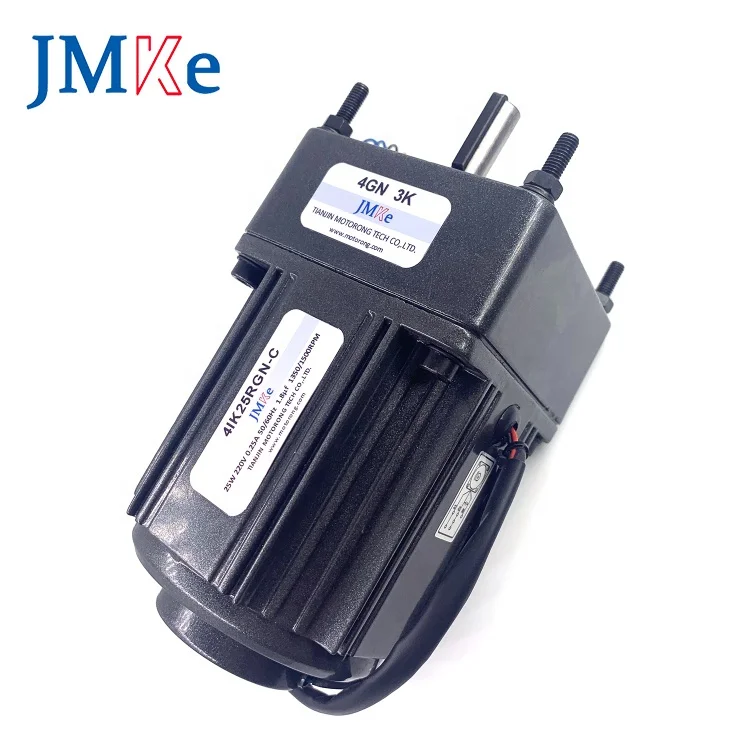

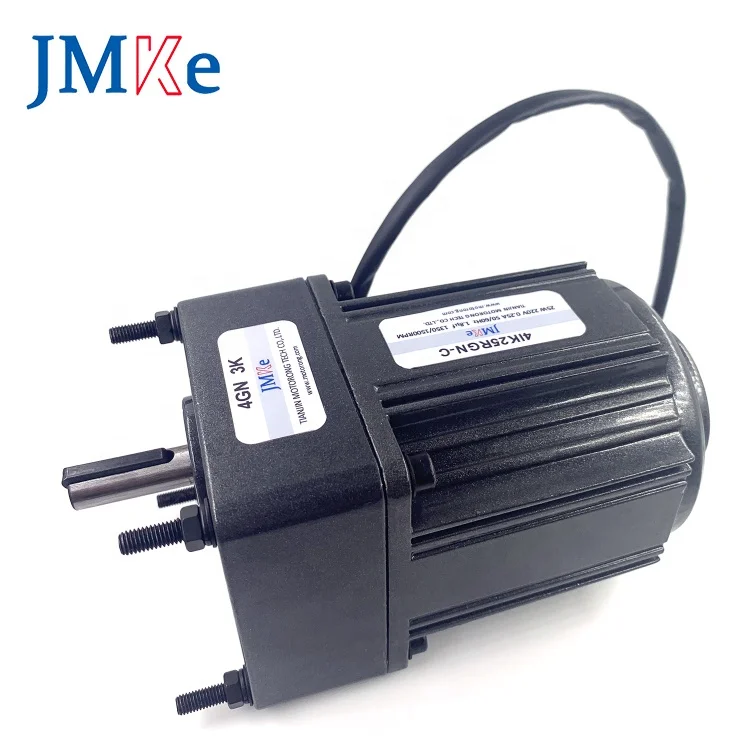

JMKE Cheap gear head motor 220V 25W 10mm shaft motor with gear 4RK25GN-C 4GN gear motor
Specification
Mode | 4GN-A(Oil bearing for applications in light loading) |
Voltage | AC220V/ SINGLE PHASE(if need 110v, contact us) |
Power | 25W |
Frequency | 50/60Hz |
Current | 0.25/0.13A |
Torque | 2.05/1.8kg.cm |
Rated Speed | 1350rpm/1550rpm |
Output Speed | 1rpm~500rpm (if <8.3rpm, add intermediate gear-box) |
Insulation class | B class(130 degree) |
Working duty | Continuous running(S1 working duty) |
Motor housing diameter | 80*80mm |
Accessory | installing screws |
Available accessory | speed controller, Electromagnetic brake |
Using Temperature/humidity | -10°C ~ 40°C (no freeze) / ≤85% |
Warranty | One Year |
Drawing
Net Weight: 1.65+0.5/0.7Kg per set
It’s supported to Start Order even in small quantity.
Delivery by express service.
Datils
Accessory:
Screws*4sets (included) + Capacitor
Speed controller (selected)
Electromagnetic brake (selected)
Speed controller (selected)
Electromagnetic brake (selected)
NOTE
1. Connect wire in right way
2. Don't run on-load for too long time, or run over load in low speed in case of excess temperature
3. Don't drag the expansion line
4. Don't disassemble randomly the assembled gear head in case of noise by drop dusty
5. Don't beat or squeeze it when connecting the output shaft of gear motor and loading subject. Otherwise, inside deformation might cause noise or locked phenomena
Wiring Diagram on boday
Tips for guaranting 12 months
FAQ
Q:What kind of motors you can provide?
A: We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Ac Motors etc. Check above specifications or email us to recommend motors based on your specification.
Q:Can you send me a price list?
A: All of our motors are customized based on different requirements like lifetime, noise, voltage, and shaft etc. Price also varies according to annual quantity. It's difficult to provide a price list. If you can share your detailed requirements and annual quantity, we'll show the best offer.
Q:What's the lead period for regular order?
A: Standard period time is about 30 days, and period can be shorter or longer based on different model, period and quantity. Regular models normally have stock.
Q:Is it possible to have customized service if we pay sample cost.
A: Yes. According to your request for the voltage, speed, torque and shaft size/shape, we quote you. It’s better to share the detailed like annual quantity, target price etc.
Q: What's the MOQ? Can I just order few quantities?
A:Welcome to order for personal use or replacement. It’s no problem to send by international express delivery if regular mode has available stock.If MOQ, price and other terms are acceptable, we'd love to provide customized samples for your testing before official order.
Q: What's your payment term?
A:100% payment if quantity under 100pcs. Above 100pcs, 40% as deposit and 60% paid before shipment.
Q: How can I trust you to make sure my money is safe?
A: Order in trade assurance of Alibaba would be a good chose for you.
