Product Description


Manual diesel 10m scissor lift platform for sale

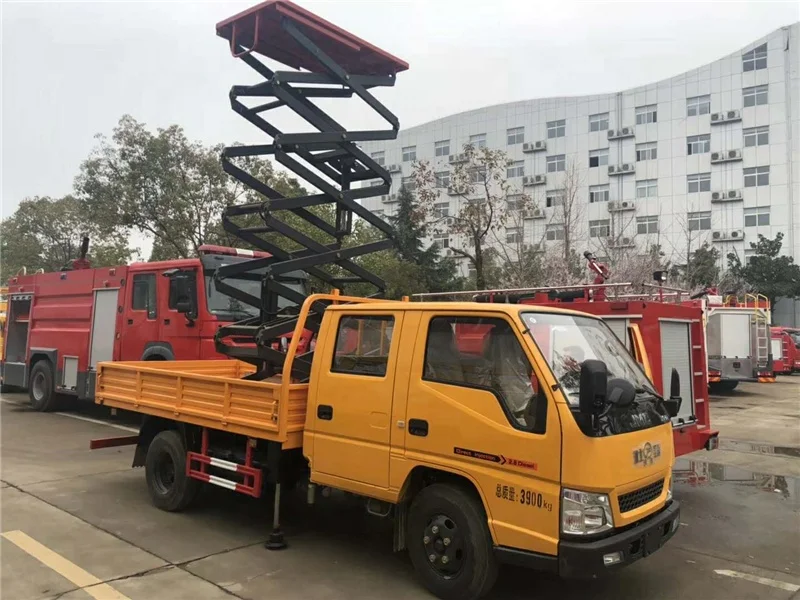

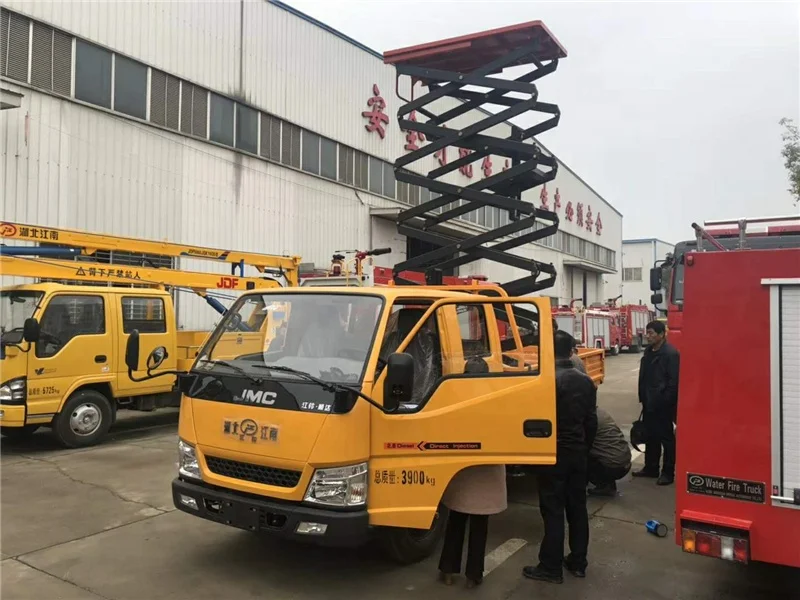

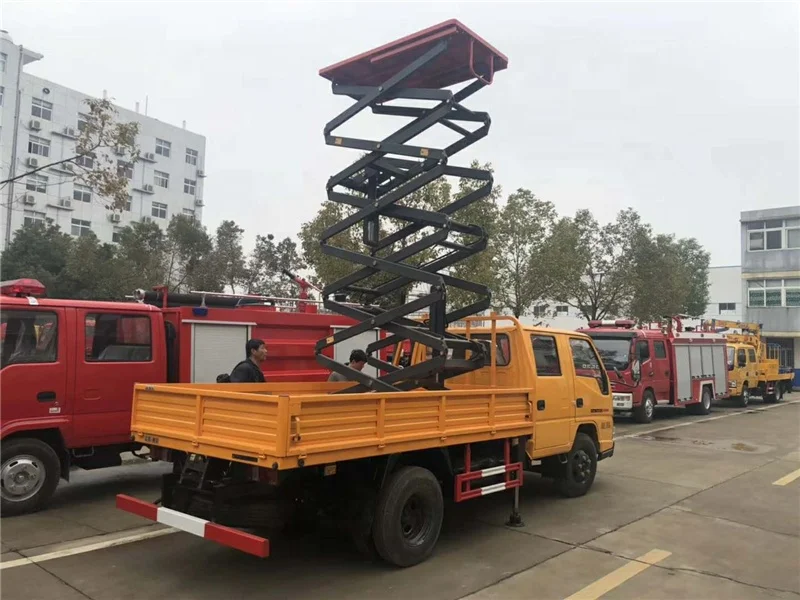

Vehicle-mounted shearing high-altitude operation platform
The scissor fork platform is a special equipment for high altitude operation. The it scissor mechanical structure, make the lifting platform lifting has high stability, wide operating platform and high bearing capacity, make the work high above the range is bigger, and is suitable for many people work at the same time. It makes high-altitude operations more efficient and safer.

The vehicular high-altitude operation platform is refitted from the lifting platform and automobile supporting facilities. It takes the car engine power and realizes the lifting function of the lifting platform. H - type hydraulic support leg is adopted to ensure the stability of machine lifting and the safety of operation. DC DC independent power source can be used to realize the rotation and lifting functions of the elevator. High-altitude work products with wide working area and large scale have the characteristics of large operating range and long working time, especially suitable for field maintenance and street lamp maintenance. It is easy to move, wide range of operation flow, products have no pollution, no tail gas, large scope of operation,strong mobility. Especially suitable for cold storage, crowded areas (billboards, indicator lights, railway stations, bus stations, airports).

Features:
The lifting mechanism adopts high strength manganese steel giant control. Safety protection device is provided to prevent overloading of lifting platform. A safety valve is provided to prevent the hydraulic pipeline from breaking. Emergency descent device in case of power failure. This product is suitable for high - altitude equipment installation, maintenance and other mobile high - altitude operations. According to different requirements can choose different dynamic form (such as: three-phase ac power supply, single-phase ac power supply, dc power and diesel power, etc.), and with manual hydraulic equipment, can be in a power
outage or lifting work as usual, no power supply and can add scale.

Modified configuration:
Model Name: Scissor Vertical
Rotary mechanism rotation form: 360
Balanced leg number: 2
Work bucket bearing quality: 250 kg
Maximum lifting quality: none
Working cylinder: 4
Working height: 12 meters
Working arm structure: scissors vertical
Cab type: double row
Dongfeng Freka climb platform truck

[Main technical parameters]
Total mass (Kg) : 4165
Rated load mass (Kg):
Quality of preparation (Kg):3840
Shape size (mm):5995x1980,2090x2990
Cargo compartment size (mm):3370x1880,1990x400
Number of prospective passengers (persons) in the cab :2+3
Approach Angle/Angle of departure (°) : 19/16
Front/rear suspension (mm):1032/1663
Shaft: 2
Wheelbase (mm) : 3300
Axle weight (Kg) : 1670/2495
Maximum speed (Km/h):95
Others: select and install the cab with the chassis; Select the rear leg; Material materials of side protection and rear bottom protection device :Q235, side protection and rear bottom protection device connection: bolted connection, rear bottom protection device section size (width * height): 30x100 (mm), ground height :540mm.

[chassis technical parameters]
External dimension (mm):5845 * 1900 * 2220
Tyre number: 6
Tire specifications :7.00-16,7.00R16, 6.50-16
Approach Angle/Angle of departure (°) : 19/16
Number of spring plate :8/9+5,6/8+4
Front wheel track (mm) : 1506140
After the wheel track (mm) : 1466145
Fuel type: diesel
Emission standards: euro IV
Engine model :YN33CRD2
Engine manufacturer: kumming neyuni Power Co.,Ltd
Displacement (ml) : 3298
Power (Kw) : 75
