Product Overview
Description
Product Description
222

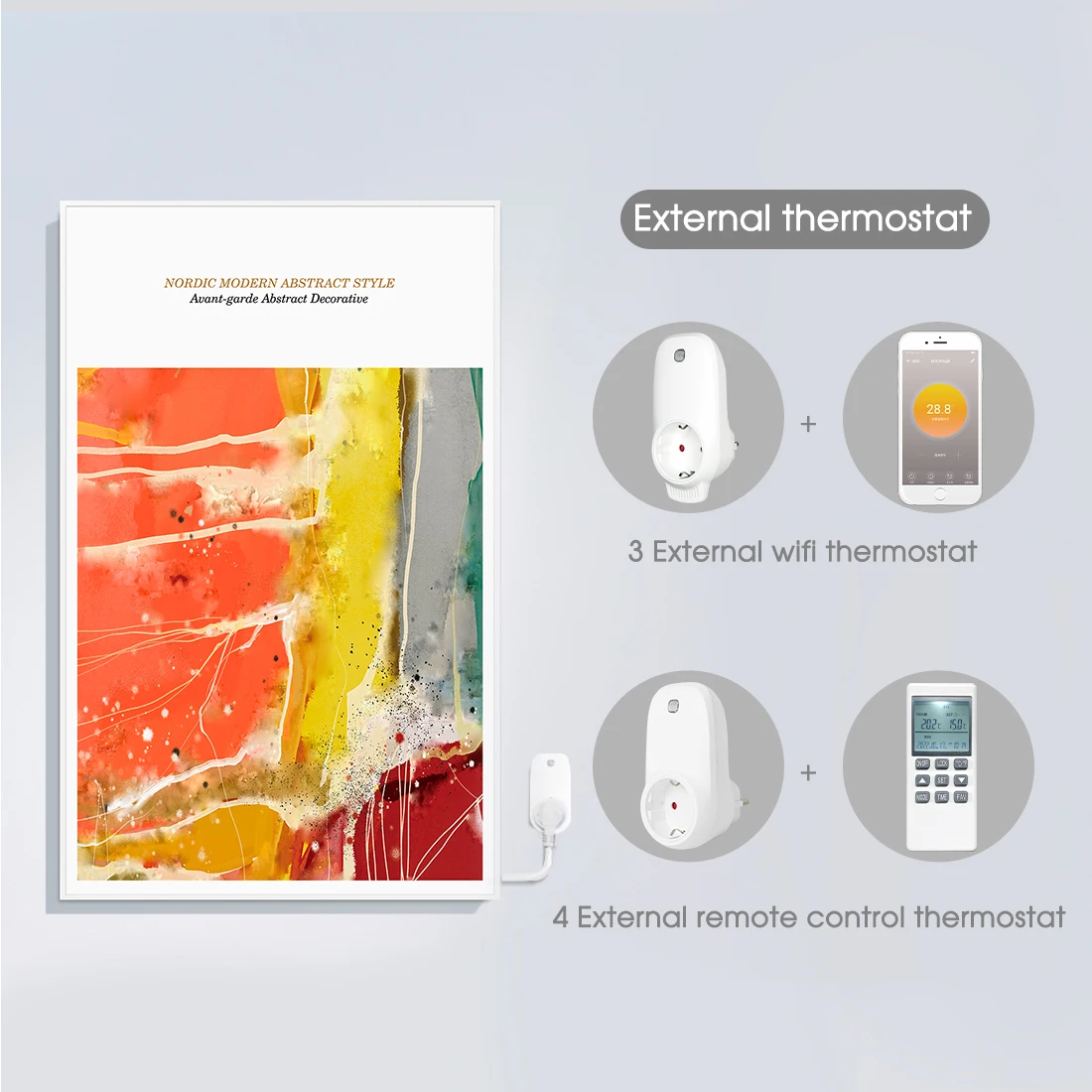

Each set consists of two parts

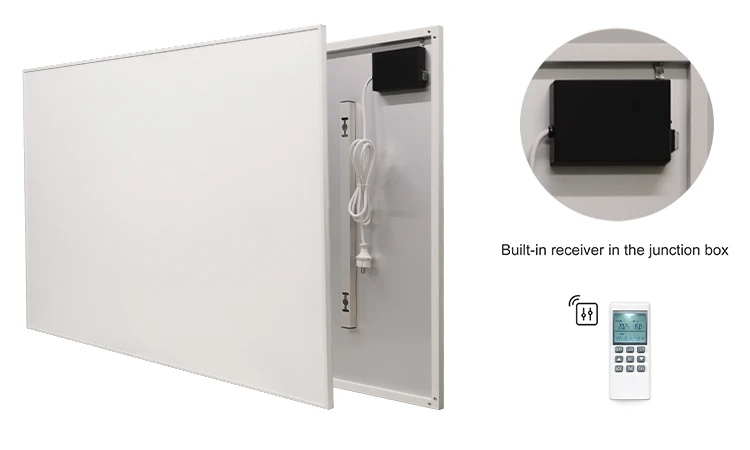

A remote controller with digital display, which accommodates the electronics, the operating elements and the built-in roomtemperatures sensor.Built-in receiver, which can receive and decode signal from the remote controller.

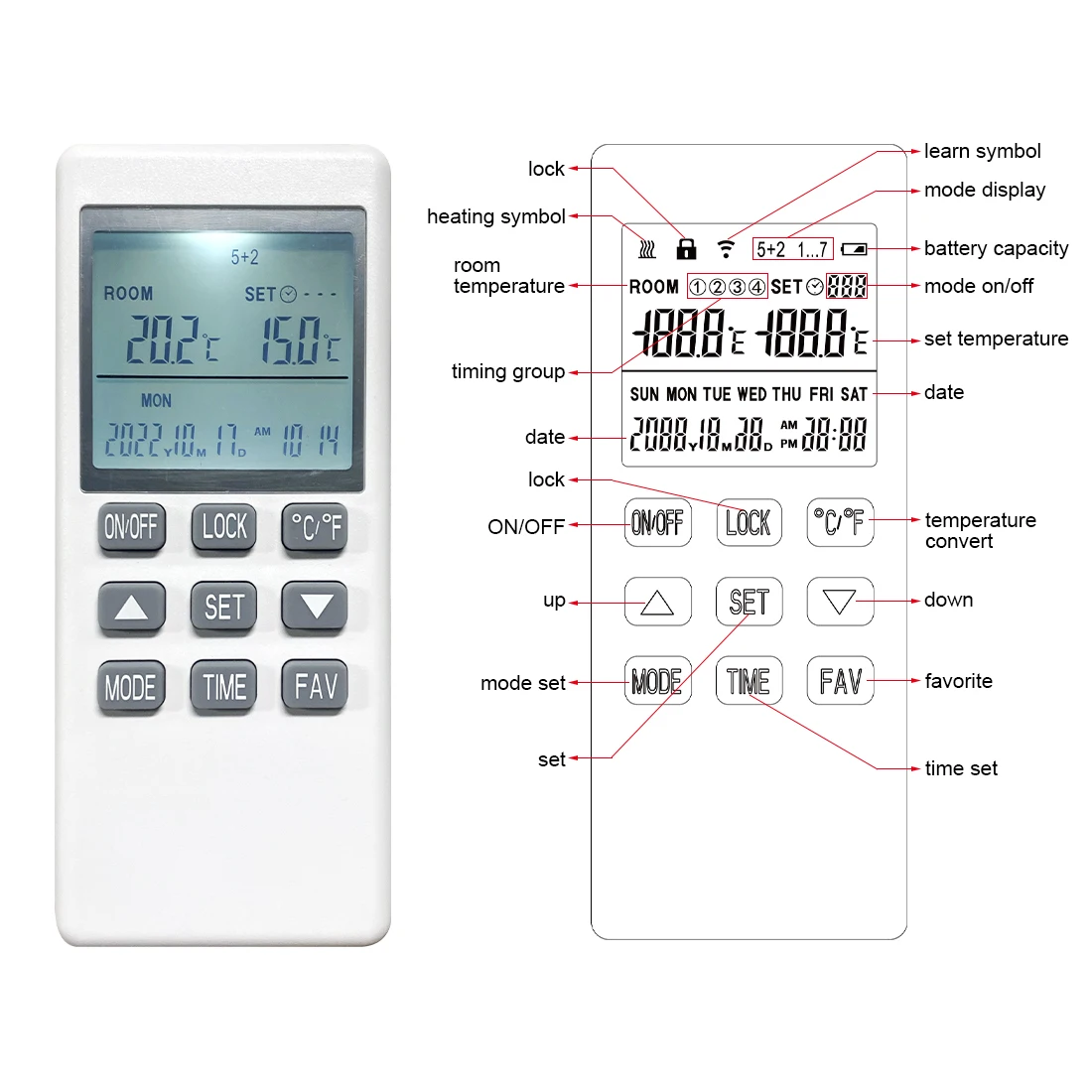

Remote Controller
The remote controller acquires the room temperature with its integrated sensor and transmit signal to the receiver to turn on/off heating device as the ambient temperature changing, in order to maintain a constant room temperature. When the ROOM temperature is 0.5℃ higher than the SET temperature, remote-controller will send OFF commands to receiver; When the ROOM temperature is 0.5℃ lower than the SET temperature, remote-controller will send ON commands to receiver, the connected heating device will be in working status to warm the house.
Function
The remote controller has week programmable、temperature setting、 smart (adaptive start control)、auto-off when temperature jump、favorite temperature 、time setting functions etc.
Technical Data of Built-in Receiver.
2. Power Consumption:0.4W

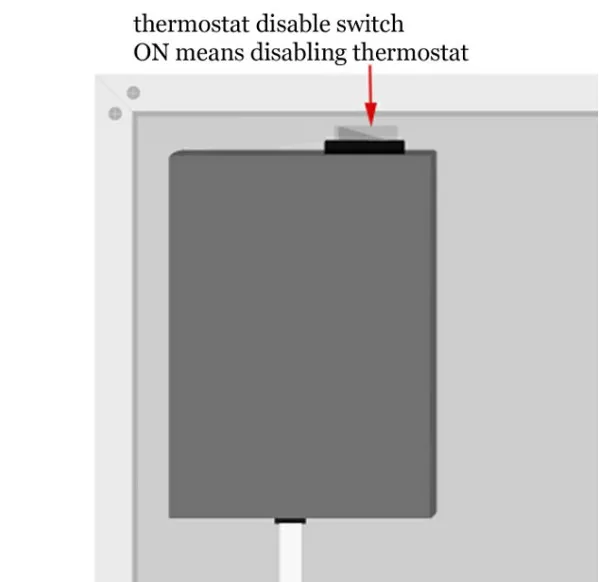

3. With remote control disabling switch at the rear of the heater
Technical Data of Remote-Controller
1. Battery-powered: DC 3V
(2x 1.5V AAA batteries, not included)
2. Power Consumption: 3V,0.1mA
3. Set temperature range: 0℃~ 45℃,
2. Power Consumption: 3V,0.1mA
3. Set temperature range: 0℃~ 45℃,
resolution: 1℃
4. Room temperature range: 0℃~ 50℃, display resolution: 0.1℃
5. Accuracy of the measured temperature: ±0.5℃
6. Working environment range 1℃~ 50℃
7. Dimension: L135mm×W56mm×H18mm
8. Weight: 86g
9. Radio frequency 433.92MHz
4. Room temperature range: 0℃~ 50℃, display resolution: 0.1℃
5. Accuracy of the measured temperature: ±0.5℃
6. Working environment range 1℃~ 50℃
7. Dimension: L135mm×W56mm×H18mm
8. Weight: 86g
9. Radio frequency 433.92MHz
Available in a lot of different sizes and power | ||||||||
Model Number | Body Size | Rated power (wall mounting) | Rated power (ceiling mounting) | Box size | ||||
A0605 | 605*505*22mm | 300W | 240W | 70*58*6cm | ||||
A0606 | 605*605*22mm | 350W | 270W | 70*68*6cm | ||||
A0706 | 705*605*22mm | 450W | 320W | 80*68*6cm | ||||
A0906 | 905*605*22mm | 580W | 400W | 90*68*6cm | ||||
A1206 | 1205*605*22mm | 700W | 550W | 130*68*6cm | ||||
A1207 | 1205*755*22mm | 900W | 700W | 130*83*6cm | ||||
A1209 | 1205*905*22mm | 1100W | 800W | 130*98*6cm | ||||
A1806 | 1805*605*22mm | 1150W | 800W | 190*68*6cm | ||||
Details Images

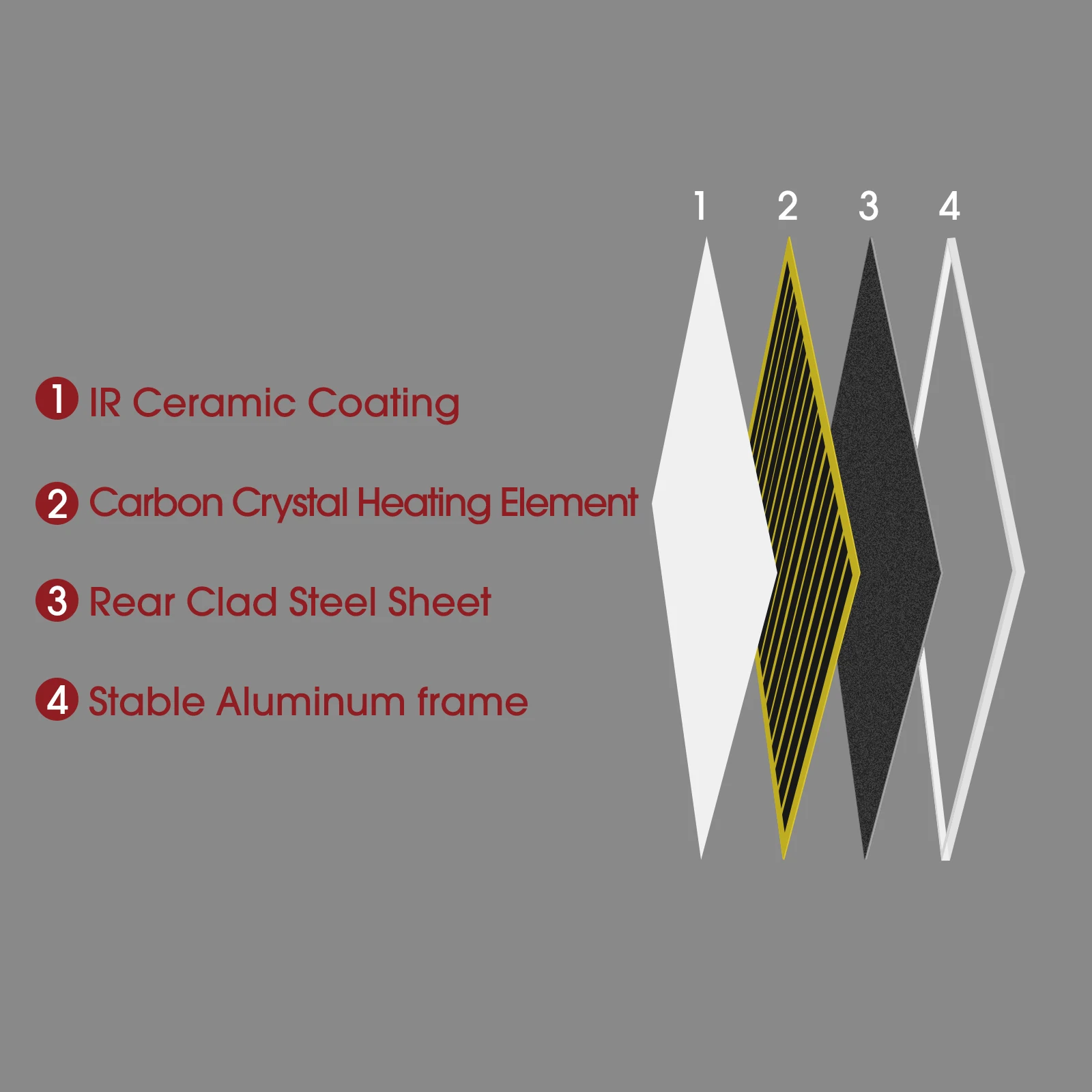

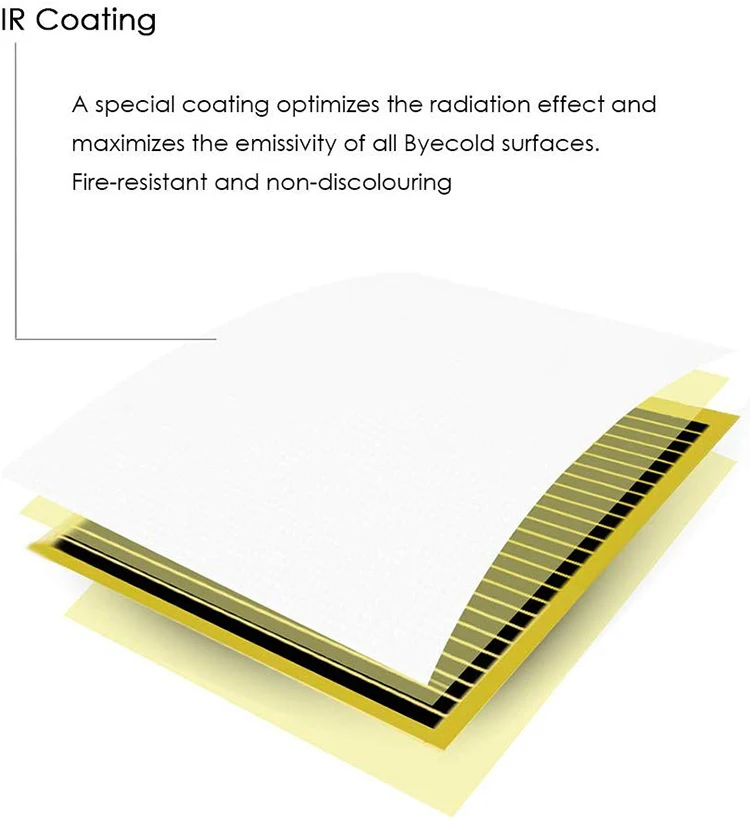

IR ceramic coating
The surface material is IR ceramic coating is patent, which can enhance the far infrared radiation.

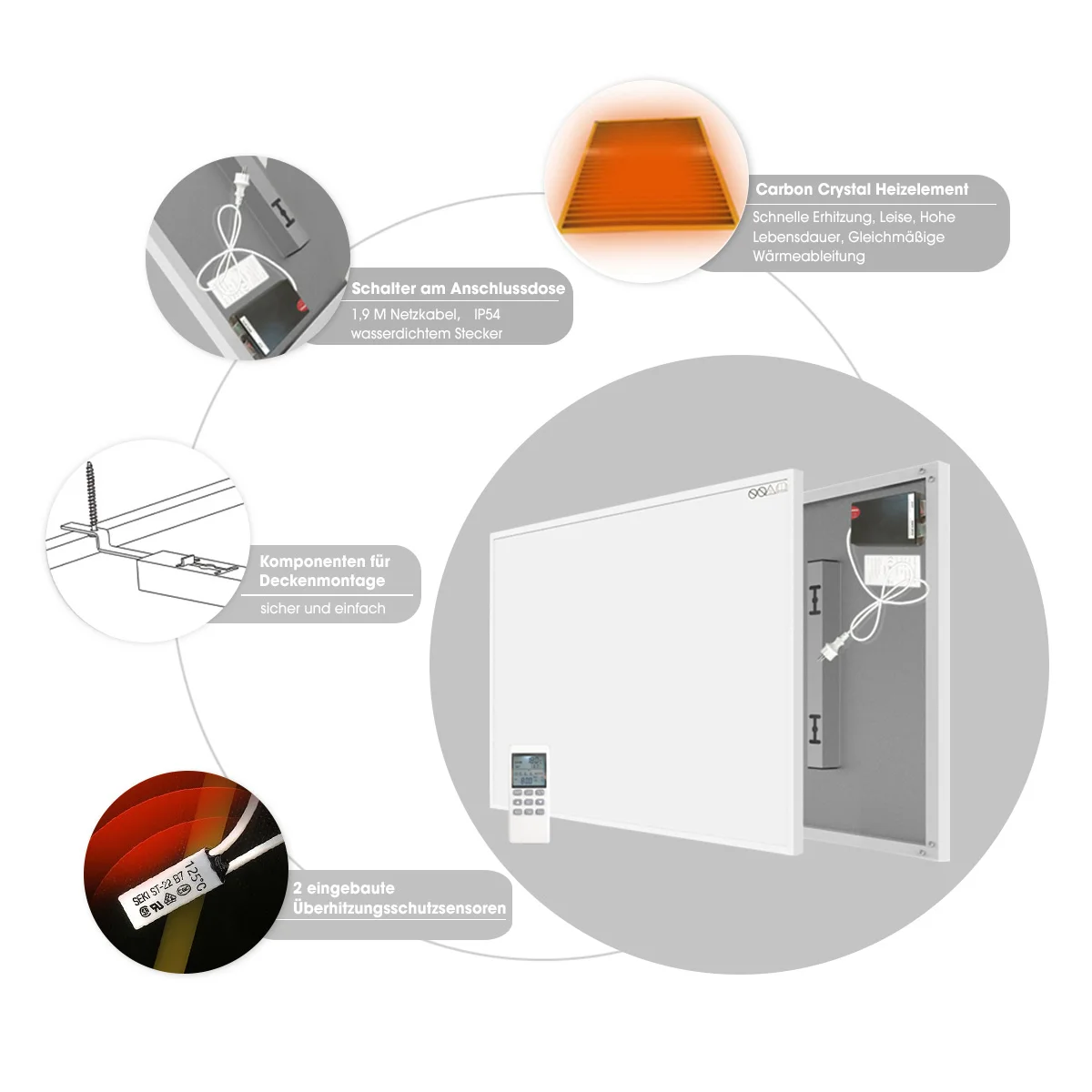

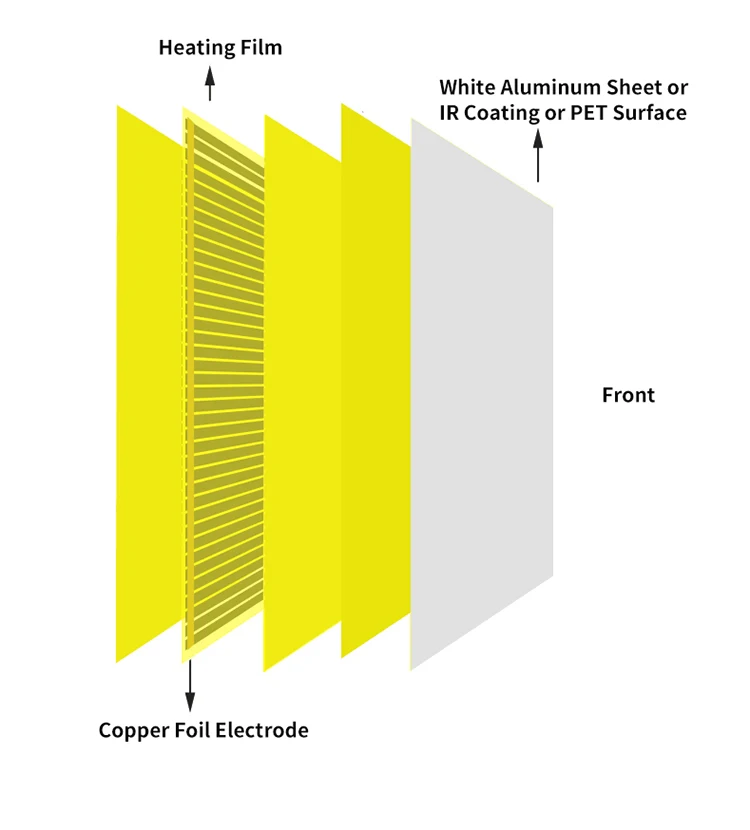

Carbon Crystal Heating Film.
The carbon crystal heating system can warm your space quickly in few minutes; the aluminum sheet surface keeps the good heat storage capacity.

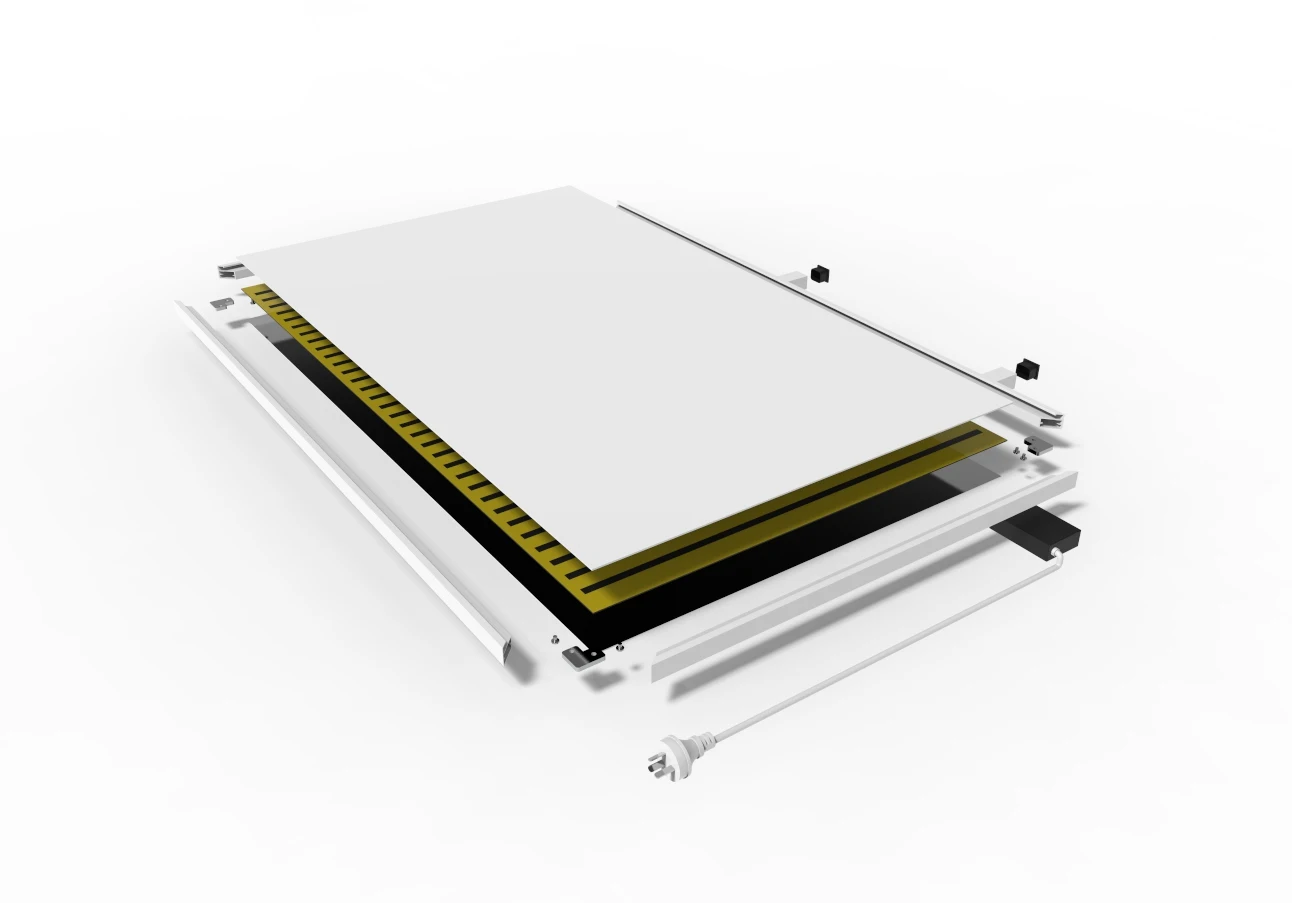

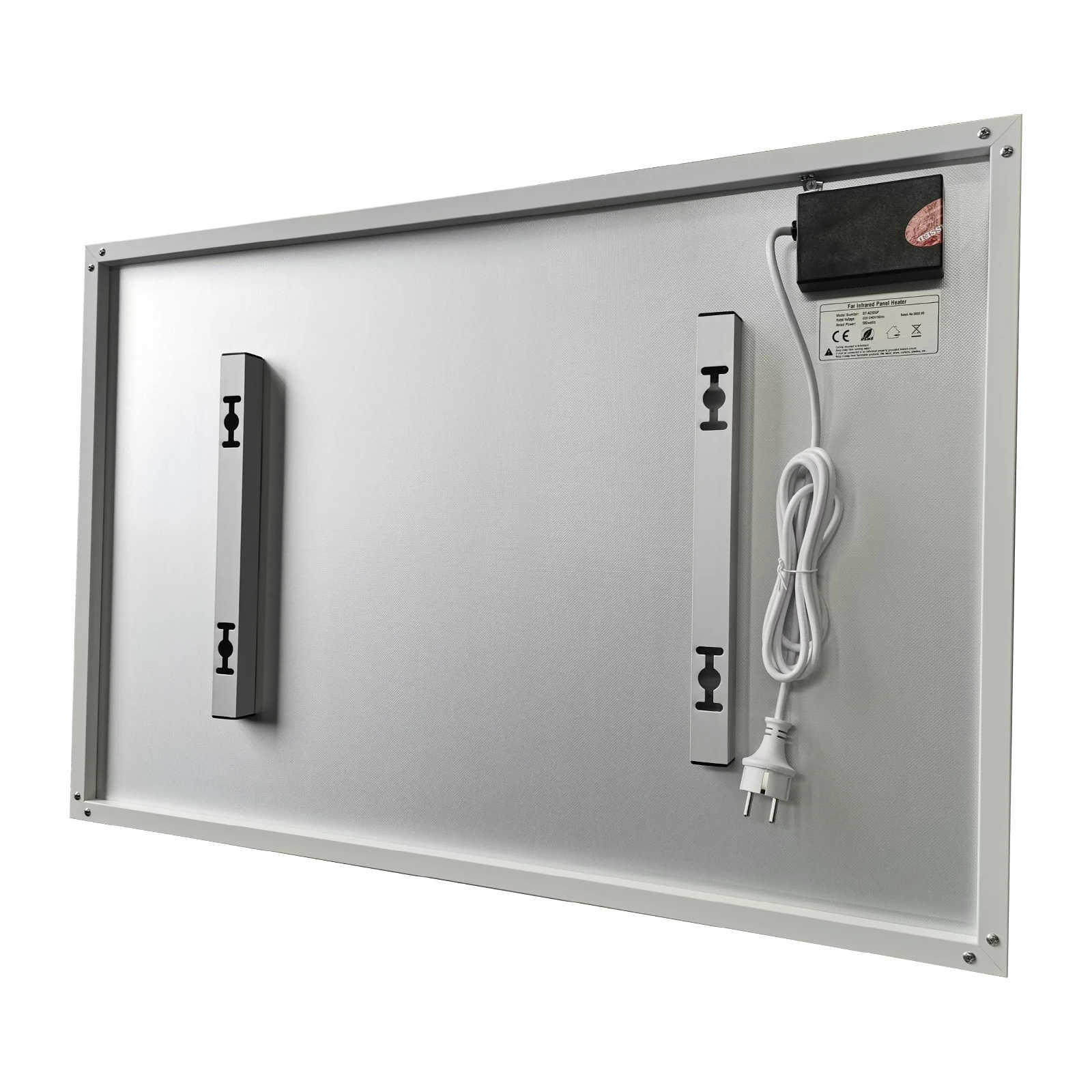

Delicate and Strong Back style
Back Material: Clad steel sheet + two Aluminum mounting brackets bracket+ junction box.
There is 3mm air space between the heating film and the back aluminum sheet as the insulation.
There is 3mm air space between the heating film and the back aluminum sheet as the insulation.
Perfect Corner.
This is no gap between two across corners, never too sharp nor too large a gap. Absolutely stylish!
A series has a very slim body which is very useful for space heating. Absolutely a stylish and contemporary heating solution for your house.
Installation Instructions

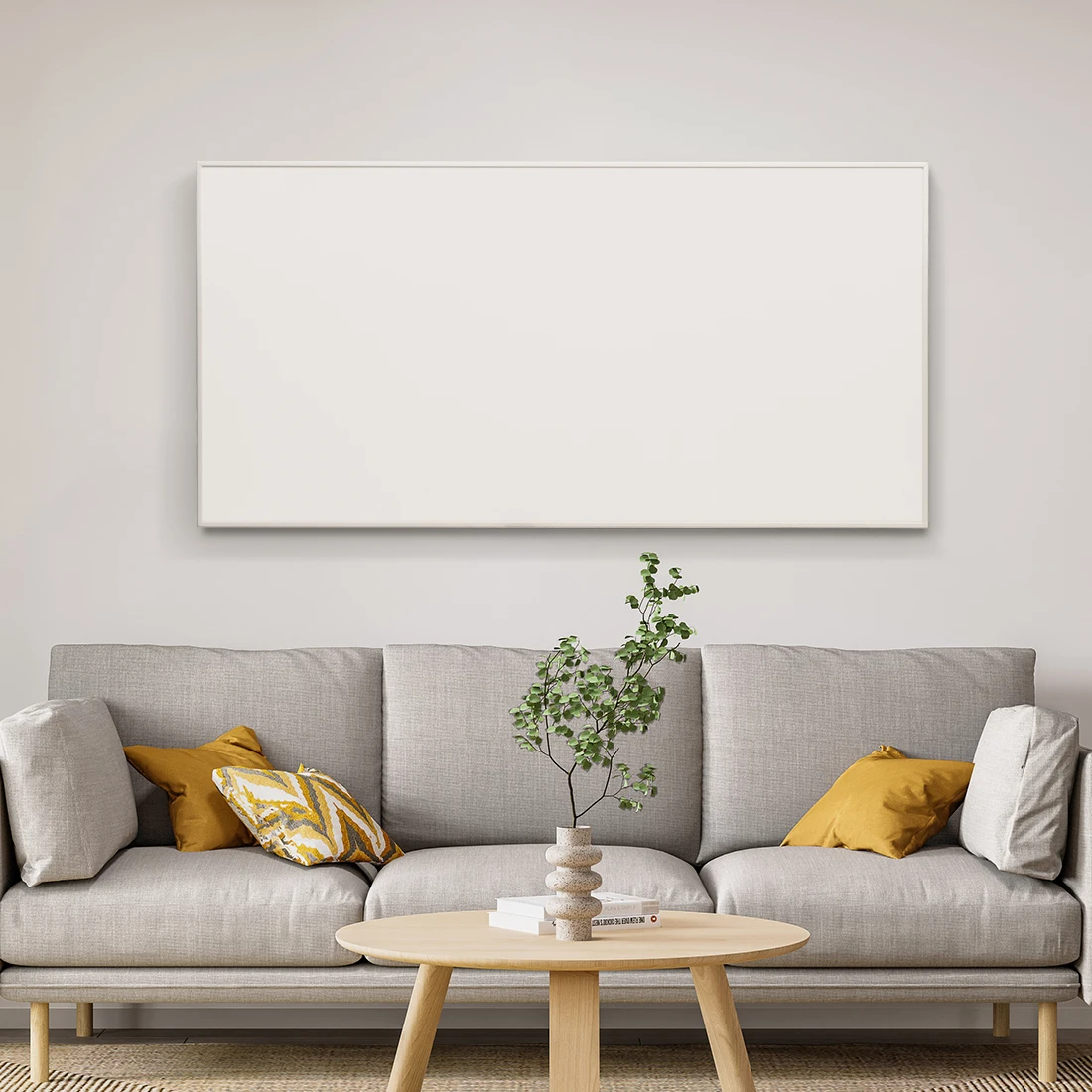

Wall Mounted
Ceiling Mounting

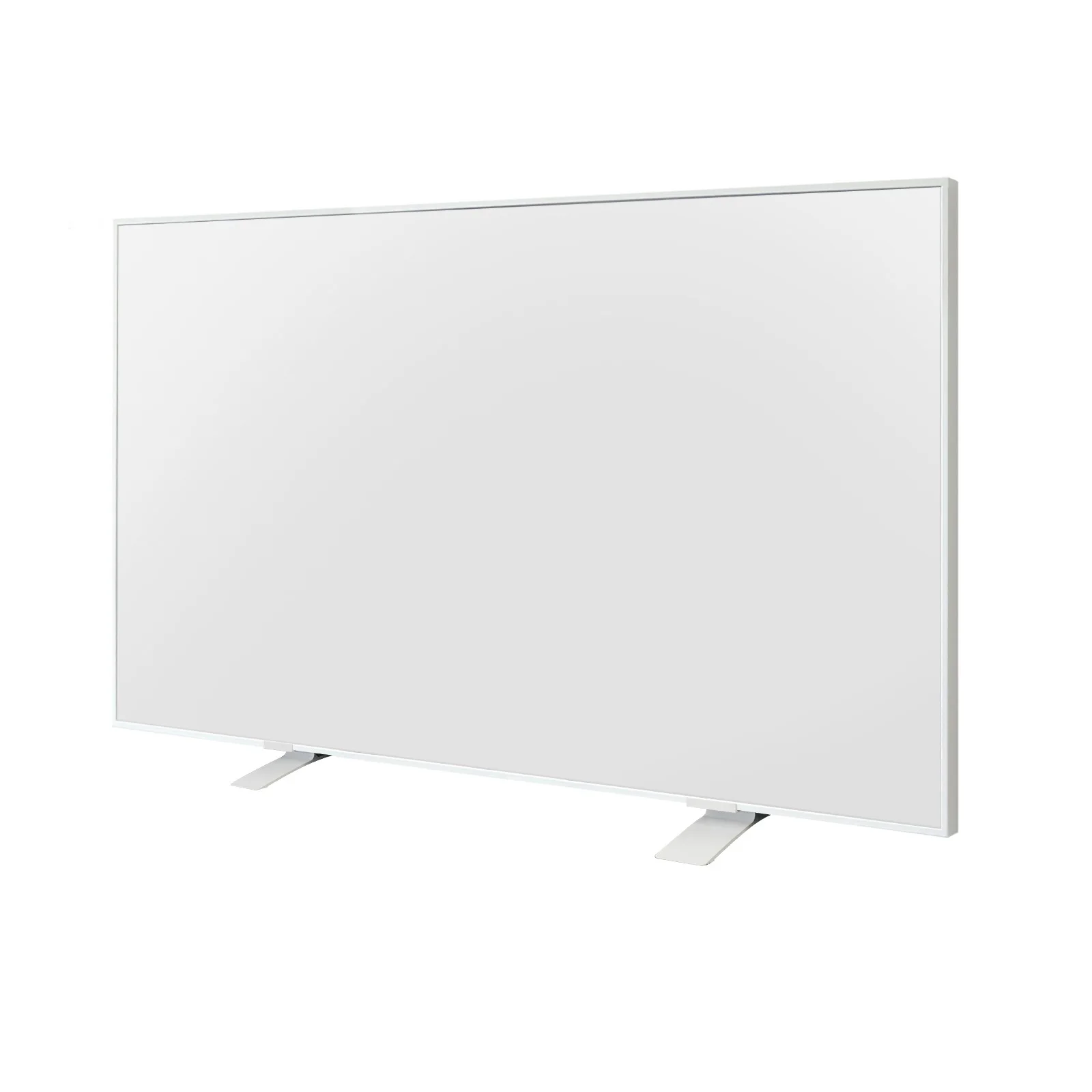

Stangding Feet
ERP Lot20 Compliant Panel Heater
Built-in thermostat
Packing & Delivery
Package
Inside packing:EPE and Corner protection
Outside packing:5 layers corrugated carton
Transpotation packing:Pallet or cartons for 4 pieces.
Outside packing:5 layers corrugated carton
Transpotation packing:Pallet or cartons for 4 pieces.
QC Systems
Company Profie
13000 square meters
160 workers, 4 R&D , 10 QC
Daily output 1000 pieces of heat panels
We have heating film producing line, spray coating line, panel assemble line.
160 workers, 4 R&D , 10 QC
Daily output 1000 pieces of heat panels
We have heating film producing line, spray coating line, panel assemble line.
Our Services
Technology:
Carbon crystal is a kind of modified purification of carbon particle heating product,which the short carbon fiber is modified by ball milling processing,and made into microcrystalline particles, then add far infrared emission agent, with special craft
synthetic made heating element. High quality carbon particles can generate heat more evenly,more efficient.
By continually practiced and compared,we have applied most advance infrared heating technology to improve the quality of our panel heaters.
synthetic made heating element. High quality carbon particles can generate heat more evenly,more efficient.
By continually practiced and compared,we have applied most advance infrared heating technology to improve the quality of our panel heaters.
Certification:
All of our heaters have approved CE , ISO9001 , SAA etc Certificates, some have pasted GS certificates.
we will keep on working on the way of improving ourself to provide customers with high quality certificated panel heaters.
we will keep on working on the way of improving ourself to provide customers with high quality certificated panel heaters.
FAQ
Q1: Can I customize the printing of the packing and the brand of these IR panel heaters?
A: Yes.
Q2: What's your normal MOQ?
A: For standard size, even 10pcs is acceptable. And 1pc for sample checking is also available.
Q3: What's your normal lead time?
A: For small orders, 3-7 days. For mass order, 20-30 days.
Q4: What's the shipment method I can choose?
A: Up to you, courier door to door, air shipping to your airport, or ocean shipping to your sea port.
Q5: What certificates you have?
A: CE-LVD, EMC, RoHS and SAA. A series products have got TUV GS certificate.
Q6: Will you pay for all the shipping cost if any quality problems during warranty period?
A: Yes.
A: Yes.
Q2: What's your normal MOQ?
A: For standard size, even 10pcs is acceptable. And 1pc for sample checking is also available.
Q3: What's your normal lead time?
A: For small orders, 3-7 days. For mass order, 20-30 days.
Q4: What's the shipment method I can choose?
A: Up to you, courier door to door, air shipping to your airport, or ocean shipping to your sea port.
Q5: What certificates you have?
A: CE-LVD, EMC, RoHS and SAA. A series products have got TUV GS certificate.
Q6: Will you pay for all the shipping cost if any quality problems during warranty period?
A: Yes.
