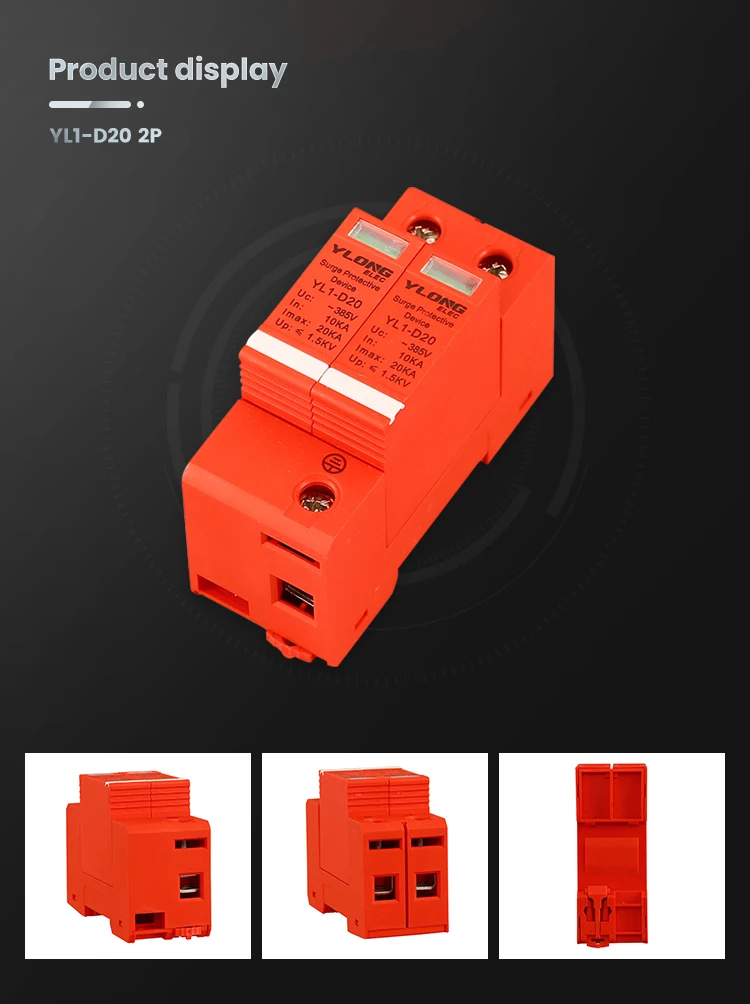

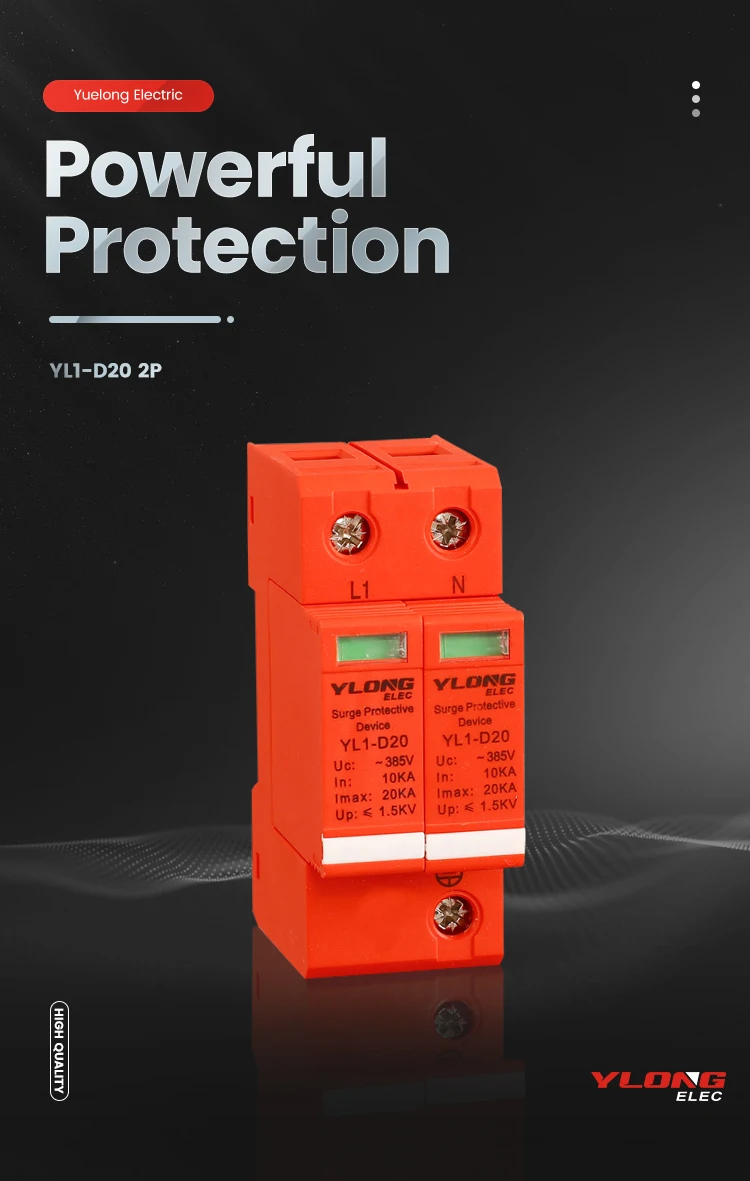

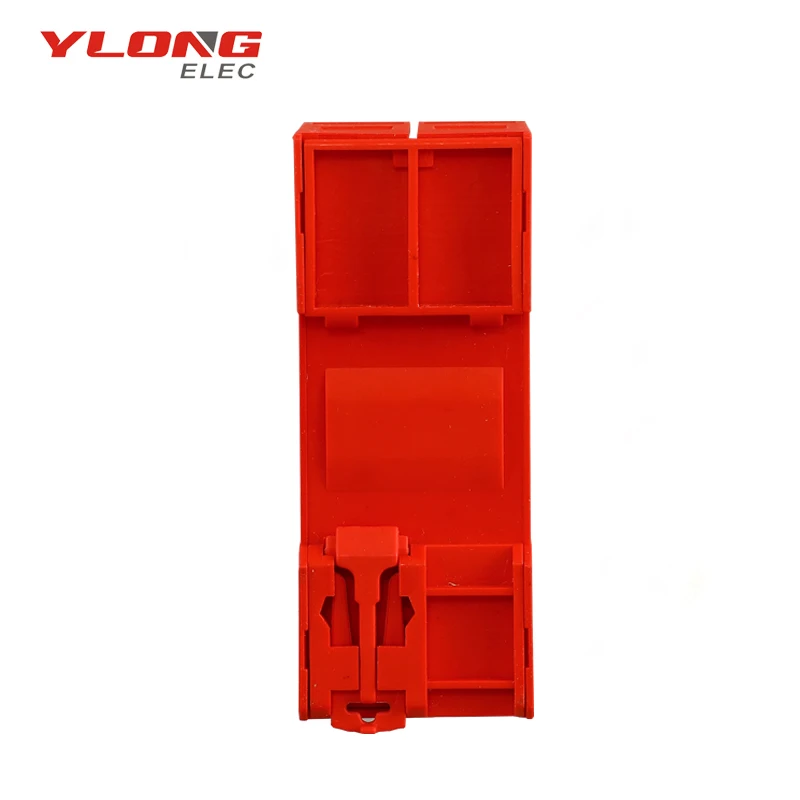

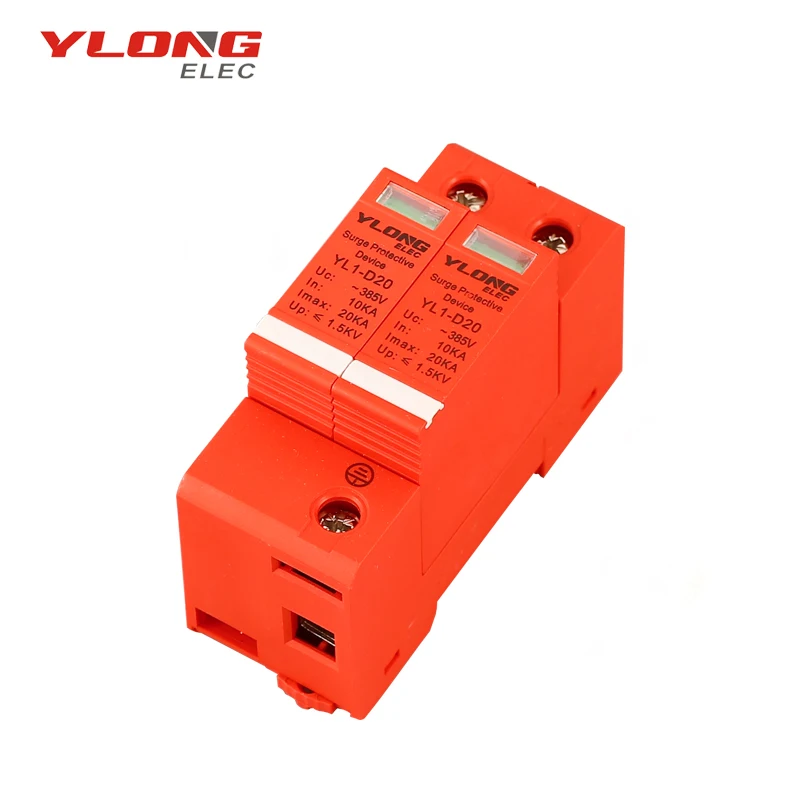

CE YL1 D20 20KA 385V 2P SPD

Product Detail



MODEL		YL1-D20	YL1-D20	YL1-D20
Rated voltage of Un(V)		275V	385V	420V
Max. continuous operating voltage Uc(-V)		275V	385V	420V
Voltage protection level of up(8/20 μs)(KA)		1.2kV	1.5kV	1.6kV
Normal discharge current In(8/20μs)(KA)		10	10	10
Max.discharge current of Imax(8/20μs)(KA)		20	20	20
The response time of NS		< 25
Test level		II  Level
The width of mm		18
Color		Red
Protection grade		IP20
Shell material		Reinforced flame retardant PBT
Environmental temperature		.-40℃~+85℃
A fuse or circuit breaker(A)		20A
The line Specifications	Phase line,zero line	2.5~35mm²
	Wire	4.0~35mm²
	The signal line	1.5mm²
