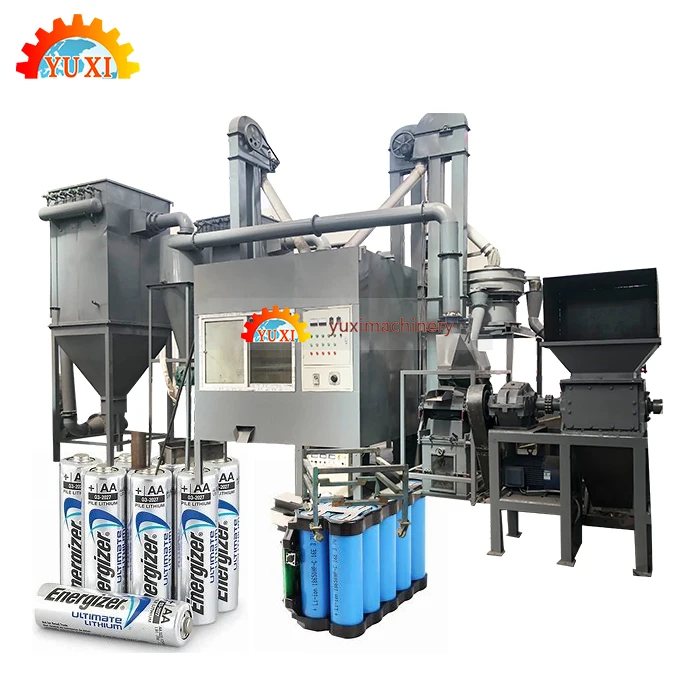

130KW Li Ion Battery Recycling Machinery Lithium Ion Battery Recycling Plant Manufacturers
- Category: Waste Treatment Machinery >>>
- Supplier: Zhengzhou Yuxi Machinery Equipment Co. Ltd.
Share on (62012111101):
Product Overview
Description
Product Description
Introduction of Lithium Battery Recycling Machine

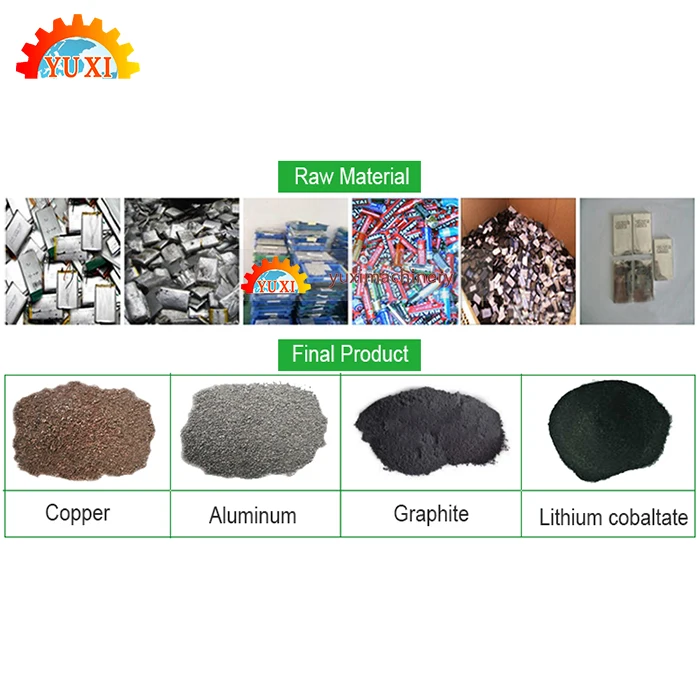

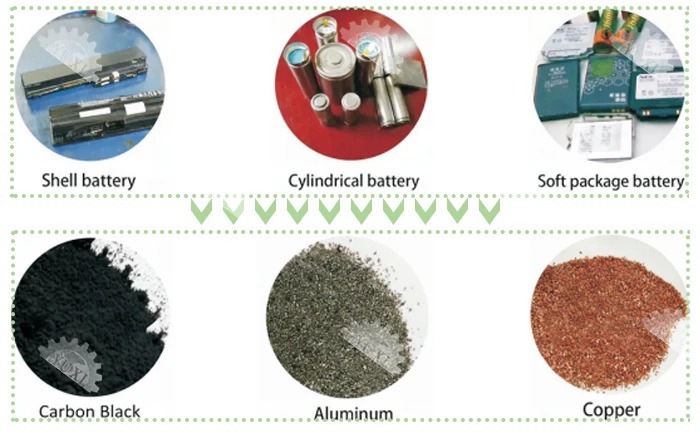

The waste lithium battery contains various rare raw materials such as copper, aluminum, graphite powder and lithium powder, and has high recycling value. The lithium battery recycling machine production line produced by yuxi machinery can disassemble and separate various lithium batteries to obtain copper, aluminum and graphite powder with higher purity. Effectively protect the environment and make rational use of resources.

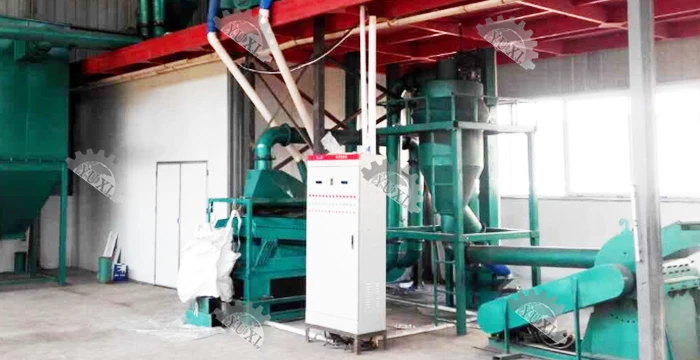

Configuration Line
Some machine of lithium battery recycling machine line for your reference. If you have any question, you can call us
No | Machine Name | Model | Size | Power | Quantity |
1 | Conveyor | 500 | 3000*500*1500 | 1.5 | 1 |
2 | Shredder | 800 | 2000*800*2200 | 44 | 1 |
3 | Crusher | 800 | 1600*1600*1700 | 30 | 1 |
4 | Air Flow Sorter | 3000 | 4000*1350*2200 | 3 | 1 |
5 | Pulse Dust Collector | 3600 | 2000*1500*3000 | 1 | |
6 | Induced dDraft Fan | 500 | 900*700*1150 | 5.5 | 1 |
7 | High Pressure Fan | F115 | 950*700*1150 | 5.5 | 1 |
8 | Magnetic Conveyor | 550 | 500*55*50 | 1.5 | 1 |
9 | Vibration Sorting Screen | 1600 | 4000*1600*2000 | 0.5 | 2 |

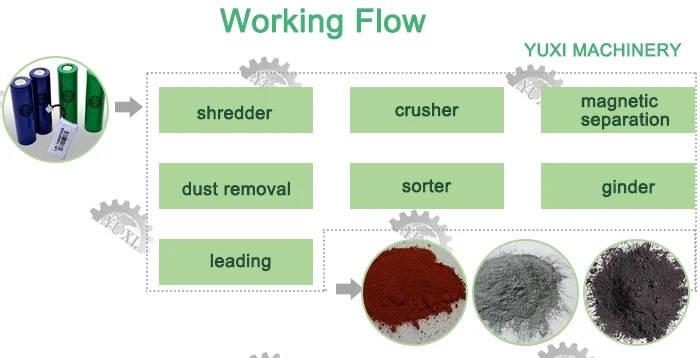

Working Process
After the positive and negative materials are crushed twice, iron can be sorted by the magnetic separation, and the remaining materials are sent to the airflow sorter, then the paper was separated in the positive and negative poles by the
induced draft fan and the cyclone feeder.
Finally the sorted positive and negative electrodes were introduced into the three-stage crusher, and the material was finely crushed and pulverized to about 20 mesh.
induced draft fan and the cyclone feeder.
Finally the sorted positive and negative electrodes were introduced into the three-stage crusher, and the material was finely crushed and pulverized to about 20 mesh.
Technical Parameter
Model | YX-300 | YX-500 | YX-1000 |
Capacity(kg/h) | 300-400 | 500-600 | 800-1000 |
Total Power(kw) | 130 | 190 | 270 |
Space Needed(square meter) | 260 | 380 | 550 |
Advantage
1. The resource utilization of metal copper and carbon powder in the anode material of waste lithium battery can be realized by hammer vibration crushing, vibration screening and airflow sorting combined process;
2. The copper and carbon powder after sorting can be directly sent to downstream enterprises for recycling;
3. The equipment is mainly used for lithium ion battery manufacturers to separate the aluminum mooring, copper mooring and positive and negative materials in the scrapped positive and negative electrode sheets for recycling purposes. The complete set of equipment operates in a negative pressure state without dust and diarrhea, and the separation efficiency can reach 98% or more.
Application
Before inquiring us, please tell me your raw materials, the finished products you want, and the requirements for machine production.
Why Choose Us

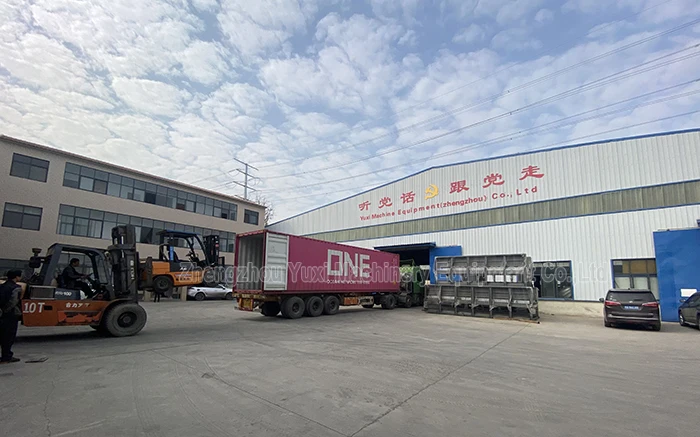

The price is reasonable. We have two own factories, not middlemen.
Long warranty period, our machine has a two-year warranty
Production experience, we have 21 years of production experience.
