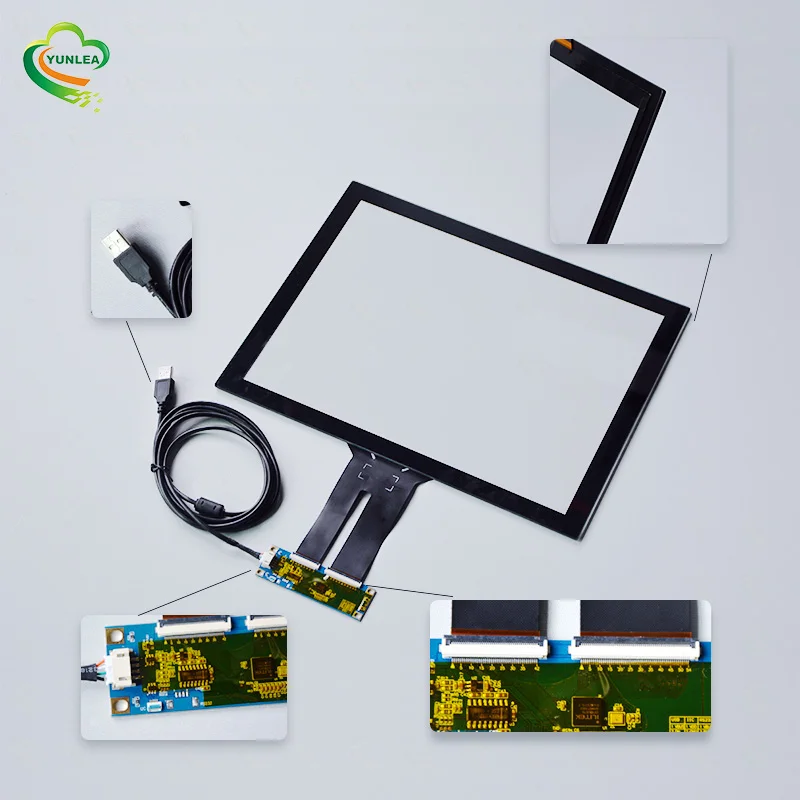

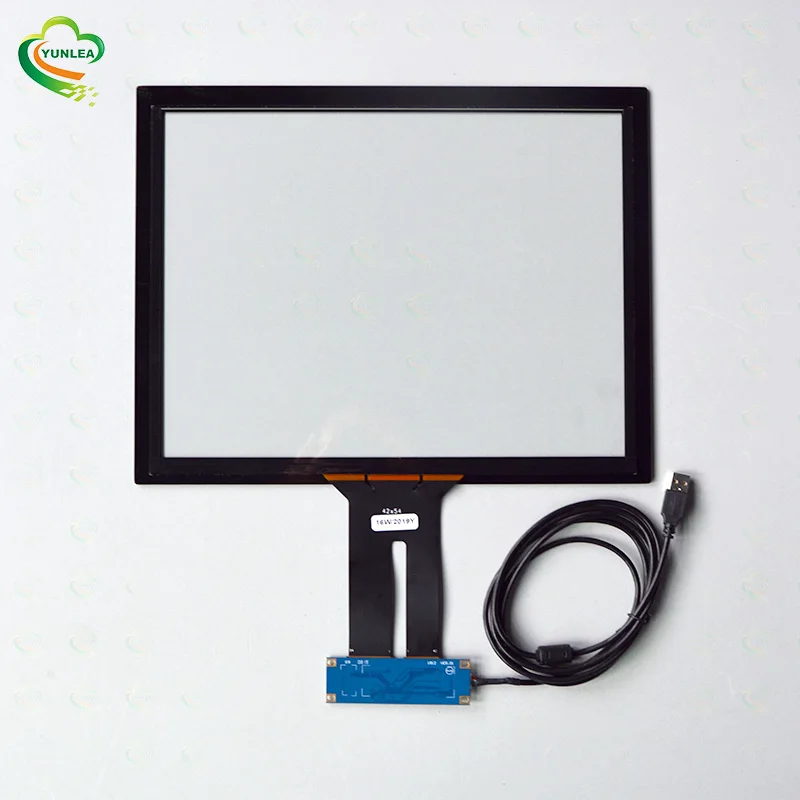

YUNLEA touchscreen multi touch custom usb interface pcap 15 inch capacitive touch screen panel kit
- Category: LCD Touch Screen >>>
- Supplier: Shenzhen Yunlea Electronics Co. Ltd.
Share on (62012122927):
Product Overview
Description
You can choose:
1. 3.5 to 65 inch standard touch screen,
2. 1.4 to 10.1 inch touch display,
3. custom available:Size/shape/logo/transparency hole/real hole/silk-printing color/Anti glare/Anti fingerprint/Anti reflective/touch with water/gloves touch
Know more about price pls click
Product Description

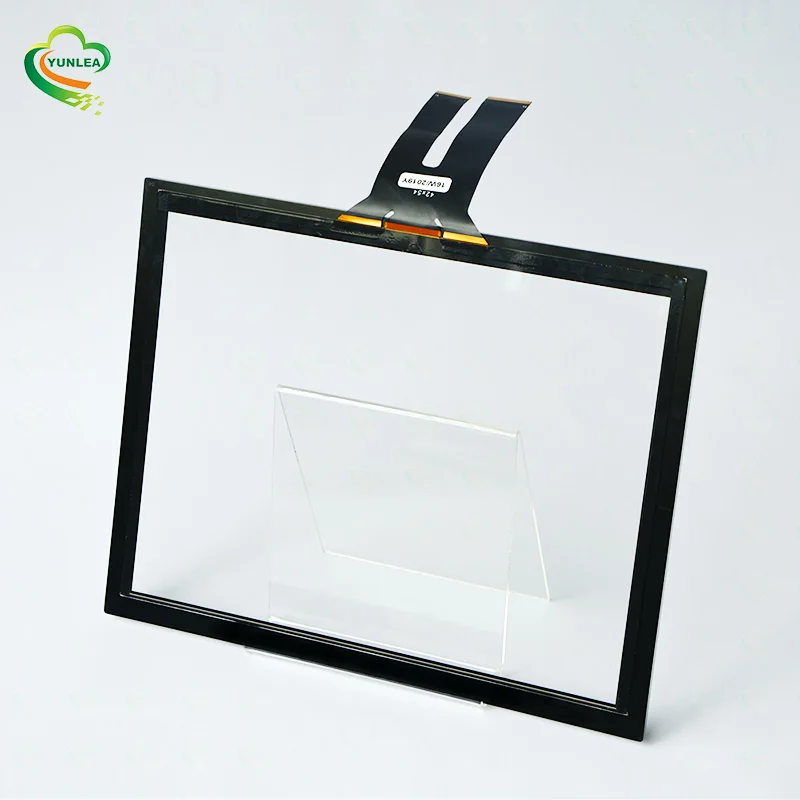

| Type | 15''Capacitive touch screen | Structure | G+G |
| Lens OD | 339.9X263.9mm | Surface Hardness | 6H |
| Sensor OD | 329X245mm | Transparency | 86%min |
| Window VA | 304X228mm | Interface of CTP | USB/I2C/RS232 |
| Cover Glass Thickness | 3mm | Touch Points | 10points |
| Sensor Thickness | 0.7mm | Storage Temp | -30 to 80 degree |
| Total Thickness | 3.95mm | Operating Temp | -20 to 70 degree |
| Touch Controller | EETI/ILITEK2510 | Touch Solution | COB |
| Silk-print Color | Black | Customized | Available |
| Supported Os | Windows, Linux, Android, Mac, QNX | ||
| MOQ | 1 piece | Trade Terms | EXW or FOB |
| Warranty | 12 months | Lead Time | Samples in stocks,2~4 weeks for mass production |
| Payment | 100% Paypal or T/T or Western union in advanc for samples , 50% T/T in advance and 50% before delivery for mass production | ||
In addition to the 15 inch touch screen,we have the standard products as below,please skim them,hope you find what you want.
Hot Selling Products

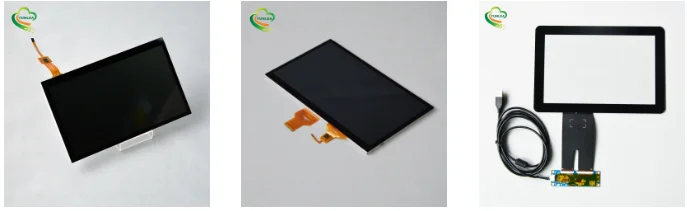

click3.5 inch touch display 4.3 inch touch display 5 inch touch display
7 inch touch display 10.1 inch touch display 10.1 inch touch screen
15 inch touch screen 15.6 inch touch screen 27 inch touch screen
Product catalogue
| Size | Part No. | Sensor OD | Sensor (T) | Lens OD | Cover glass(T) | Window VA | Touchcontroller | |
| 3.5 | YL035CY03 | 82.34X56.86 | 0.4 | 94.94X66.86 | 0.7 | 74.94X50.36 | Mstar 2133A | click |
| 4.3 | S82327H | 103.10x85.40 | 0.7 | 114x77 | 0.7 | 96.04x53.86 | FT5346 | click |
| 5 | YL050CY01 | 120.7X75.8 | 0.55 | 127X85.80 | 0.7 | 109x65.8 | FT5436 | click |
| 7 | YL070CY01 | 159.70X94.10 | 0.55 | 164.90X100 | 0.7 | 154.08X85.92 | FT5436 | click |
| 8.4 | 8333084V01 | 182X140.2 | 0.7 | 207X166 | 1.1 | 170.4x127.8 | EETI/ILITEK | click |
| 10.1 | 8154101V02 | 239.6x158.20 | 0.7 | 254.96x172.6 | 1.1 | 217.96X136.6 | EETI/ILITEK | click |
| PET+Glass | 248.1x151.5 | 1.1 | 257x159.5 | 0.25 | GT928 | click | ||
| 10.4 | 8334104V01 | 233.4X177.9 | 0.7 | 259.10X206.3 | 1.1 | 213.1X160.3 | EETI/ILITEK | click |
| 12.1 | 8335121V01 | 259.6X201.1 | 0.7 | 293X237 | 1.1 | 246X184.5 | EETI/ILITEK | click |
| 12.3 | 8424G123 | 306x127.5 | 0.7 | 316x139.5 | 3 | 292.03x109.51 | EXC80H83 | click |
| 13.3 | 1338500V03 | 310.52x183.57 | 0.7 | 330.92x215.89 | 1.1 | 294.92x166.46 | ILITEK | click |
| 15 | 8001150V03 | 319X244 | 0.7 | 339.9X263.9 | 3 | 304X228 | ILITEK | click |
| 8278150V02 | 329X245 | 0.7 | 339.9X263.9 | 3 | 304X228 | EETI/ILITEK | click | |
| 15.6 | 8002150V03 | 358X210 | 1.1 | 387X231 | 3 | 344X194 | ILITEK | click |
| 8156156V01 | 362X222 | 0.7 | 387X231 | 1.1 | 344X194 | EETI/ILITEK | click | |
| 1568825 | 360.9x212.2 | 0.55 | 379x225 | 3 | 343.8x192.5 | ILITEK | click | |
| 17 | 8003170V03 | 356.92x290.34 | 0.7 | 377x309 | 3 | 338.92x271.34 | ILITEK | click |
| 8273170V02 | 366.58X299 | 0.7 | 377X309 | 3 | 338.92X271.34 | EETI/ILITEK | click | |
| 17.3 | 8562173V01 | 399.7x235.9 | 1.1 | 402x239 | 3 | 383X216 | EETI | click |
| 18.5 | 8005185V03 | 429.8X249.9 | 0.7 | 458X283 | 3 | 410.8X231.4 | ILITEK | click |
| 8163185V01 | 430.8X261.4 | 0.7 | 440.8X271.4 | 1.1 | 410.80X231.4 | EETI/ILITEK | click | |
| 19 | 8006190V03 | 395.32x321.06 | 0.7 | 421X346 | 3 | 377.32X302.06 | ILITEK | click |
| 19.5 | 8007195V02 | 450.5X259.76 | 1.1 | 473.5X281.26 | 3 | 433.5X241.26 | ILITEK | click |
| 21.5 | 8888215V01 | 496.42X287.43 | 0.7 | 524X321.8 | 3 | 477.6X269.10 | ILITEK | click |
| 8160215V02 | 500X297.65 | 0.7 | 524X321.8 | 1.8 | 477.6X269.10 | EETI/ILITEK | click | |
| 23.6 | 9001236V01 | 543.84x316 | 0.7 | 537X349 | 3 | 523.3x295.2 | ILITEK | click |
| 23.8 | 9002238V01 | 544.03x315.5 | 1.1 | 573x349 | 3 | 525.5X297 | ILITEK | click |
| 27 | 8014270V02 | 618X355.7 | 1.1 | 646X384 | 3 | 598X336 | ILITEK | click |
| 8245270v01 | 619x362 | 1.1 | 646x384 | 3 | 598X336 | EETI/ILITEK | click | |
| 32 | 8016320V02 | 719.7X414.3 | 1.1 | 746.7X441.3 | 3 | 698.7X393.3 | ILITEK | click |
| 8246320V01 | 720.7X420.3 | 1.1 | 746.7X441.3 | 3 | 698.7X393.3 | EETI/ILITEK | click | |
| 43 | 8018430V02 | 973X561.5 | 1.1 | 994.2X587.3 | 4 | 943.2X531.4 | ILITEK | click |
| 55 | 8021550V01 | 1254.6X716.417 | 1.8 | 1287.6X758.4 | 4 | 1209.6X680.4 | ITLITEK |
We also can customize more sizes, click here to contact us.
Costomized solution
We have standard 3.5-55 inch Touch screen.And if our standard one can't fit with your project.We are welcome you to customized own touch screen,we have rich professional customization experience.So if you have any demand ,pls don't hesitate to contact with me.
We can according to your demand to customized cover glass's shape,size,logo,silk-printing color and so on.Also can do touch screen, touch with water and touch with gloves.If you are interested in, pls click it to watch the videos.
Company Information
Shenzhen Yunlea Electronics Co., Ltd.
YUNLEA is is a leading designer and manufacturer of Capacitive Touch Panel, And we have rich experiences in medical & industrial & home automation& products supply.Our strength lies in understanding the special needs of clients, to provide the most suitable products and professional technical supports.
Why choose Yunlea?
Yunlea have :
1.5000 m2 factory area
2.10 years touch screen experience
3.Stronger engineer team and 24 hours -7 days Online service
4.High quality&low price and high reliability of our touch screens and Ensure long-term supply
Yunlea can do:

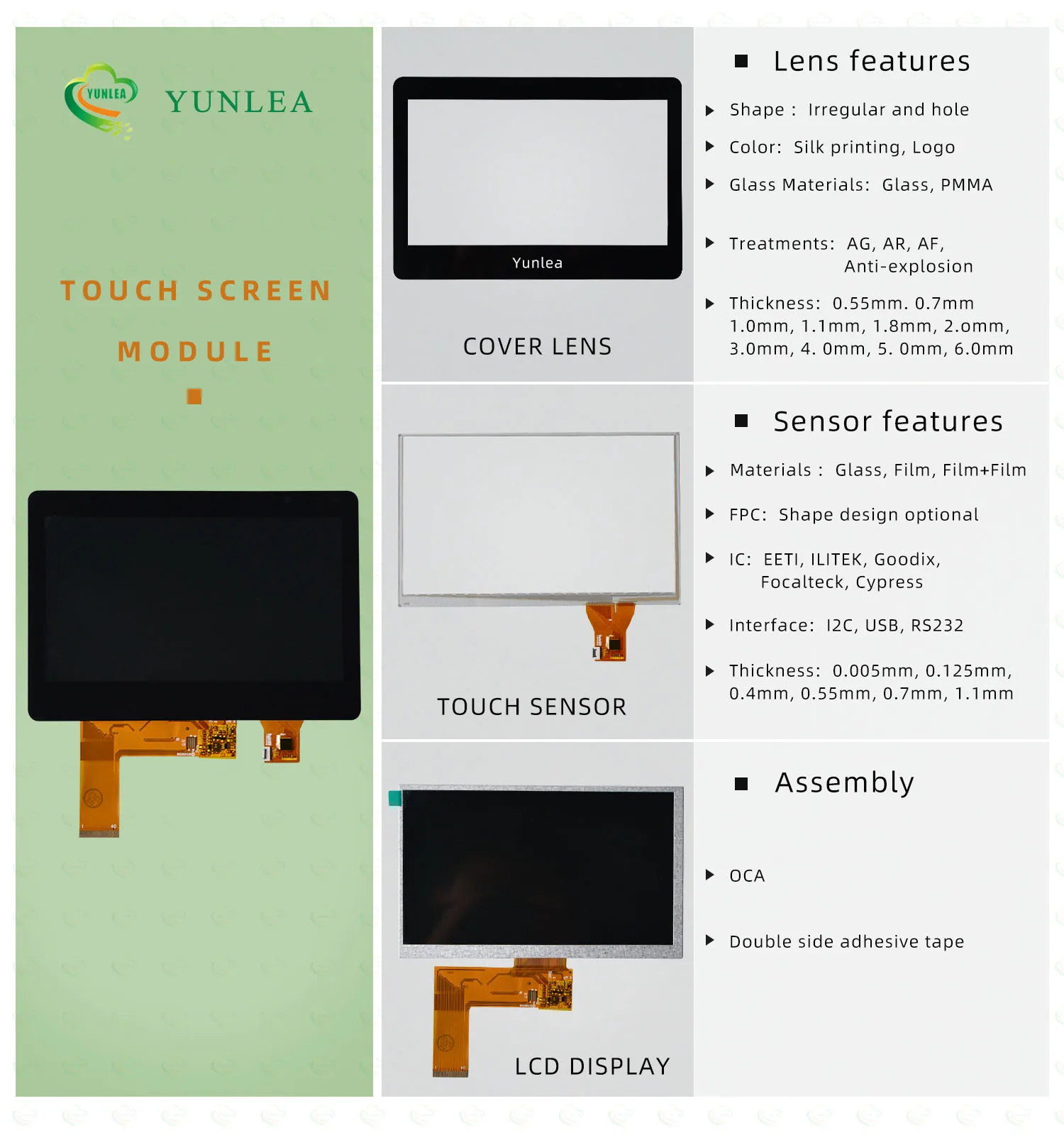

1.ITO sensor glass/ ITO sensor film/ Touch screen panel/ Touch display
2.We have some standard products (3.5 inch to 55 inch PCAP )in stock and no tooling request
3. Customized available : size, FPC,logo printing, silk-printing color
4. Special Treatment :AG/AG/AF ,Water-proof,With glove touch
5. Touch controller: ilitek, EETI ,Goodix, Focaltech and so on.
6.Short lead time,15 days for customized product,2-4 weeks for mass production
Our client:

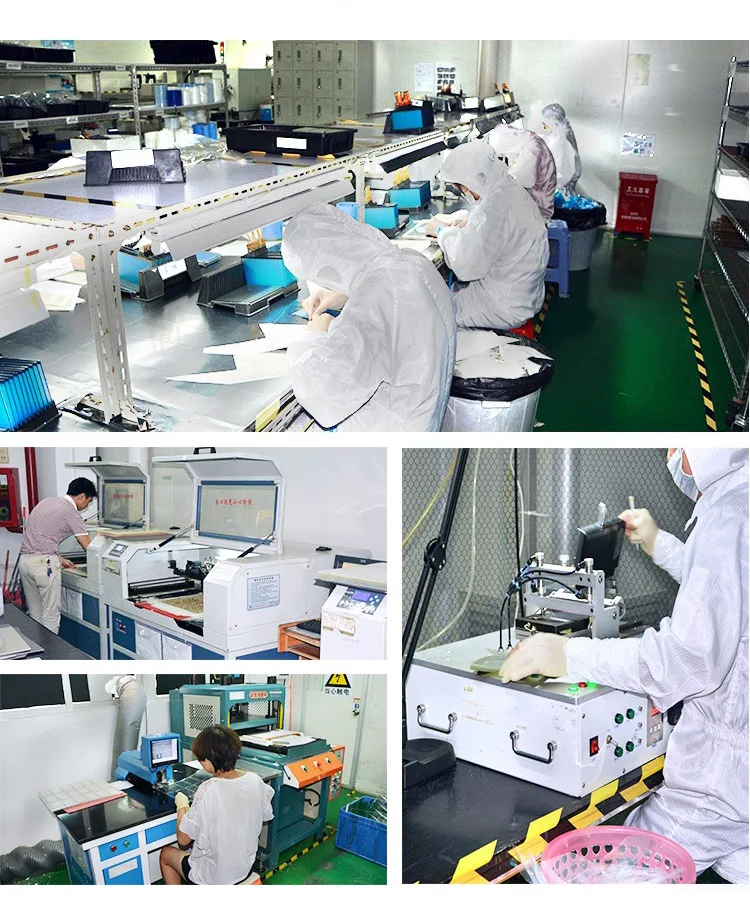

If you come to China, welcome to visit our factory.We will show you how touch screen is made.
Package&Feedback
FAQ
1. What is your delivery method?
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
5. What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.
6. What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
