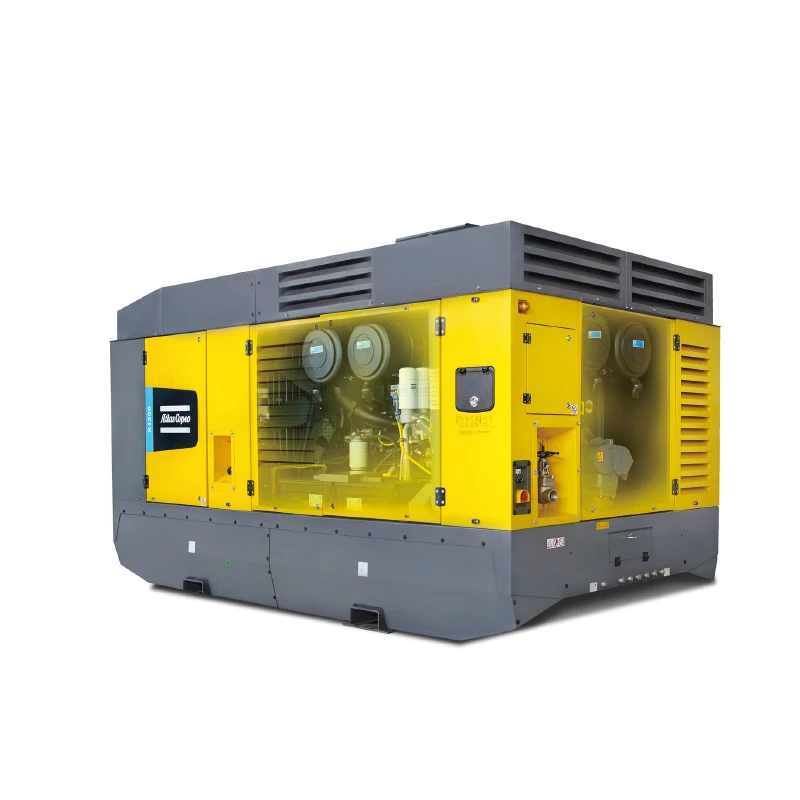

atlas copco 1100cfm 964cfm 20Bar 25Bar XRVS1100 Diesel Air Compressor
- Category: >>>
- Supplier: Liuzhou Tuozhi Mine Tech Co. Ltd.
Share on (62012207119):
Product Overview
Description
Atlas Copco is a leading manufacturer of portable compressed air machines in the world. Over the years, we have consistently listened to our customers and developed machines that exceed their expectations.
ATLAS COPCO portable air compressor technical data

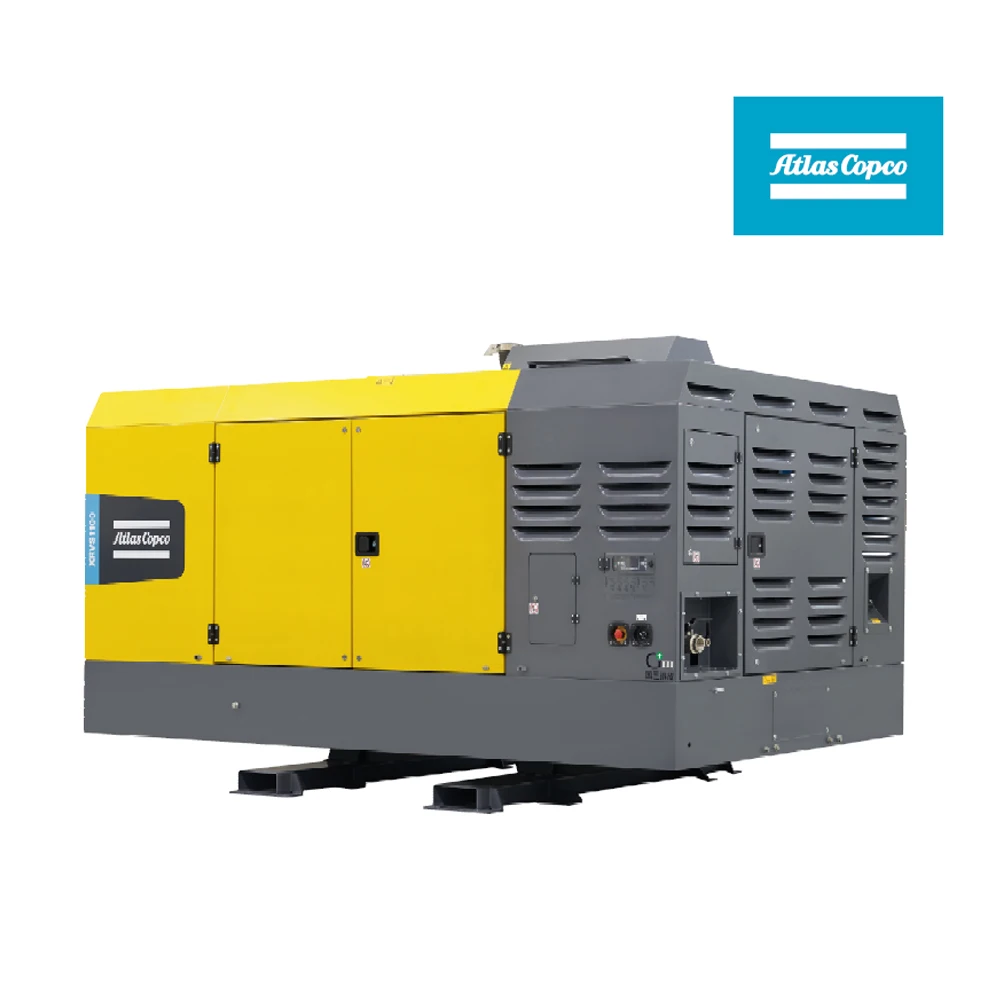

| Compressor Data | XRVS1100(Box frame) |
| Free Air Delivery @ Normal Working Pressure | 1071cfm or 964cfm |
| Normal Working Pressure | 20Bar or 25Bar |
| Air Receiver Capacity | 89L |
| Outlet Valve Configuration | 1 x 2” G |
| Nominal working condition | Inlet pressure 1bar,Humidity0%,Temp20 °C |
| Sound Pressure Level (ISO2125) | 80dB(A) |
| Maximum Ambient Temperature at sea level | 50 °C |
| Diesel Engine Data | Cummins QSM11-C420 |
| Horsepower Developed @ Rated Speed | 305.4W |
| Cylinders | 6 |
| Fuel Tank Capacity | 420L |
| Engine Coolant Capacity | 58L |
| Engine Oil Capacity | 21L |
| Maximum Loaded Speed | 1880/ 1660RPM |
| Dimensions | Standard Towing Speed 20 km/h |
| Length | 3650mm ( within towbar ) |
| Width | 2100mm |
| Height | 2440 mm |
| Weight ( filled with oil & coolant , Initial fuel ) | 4800 kg |

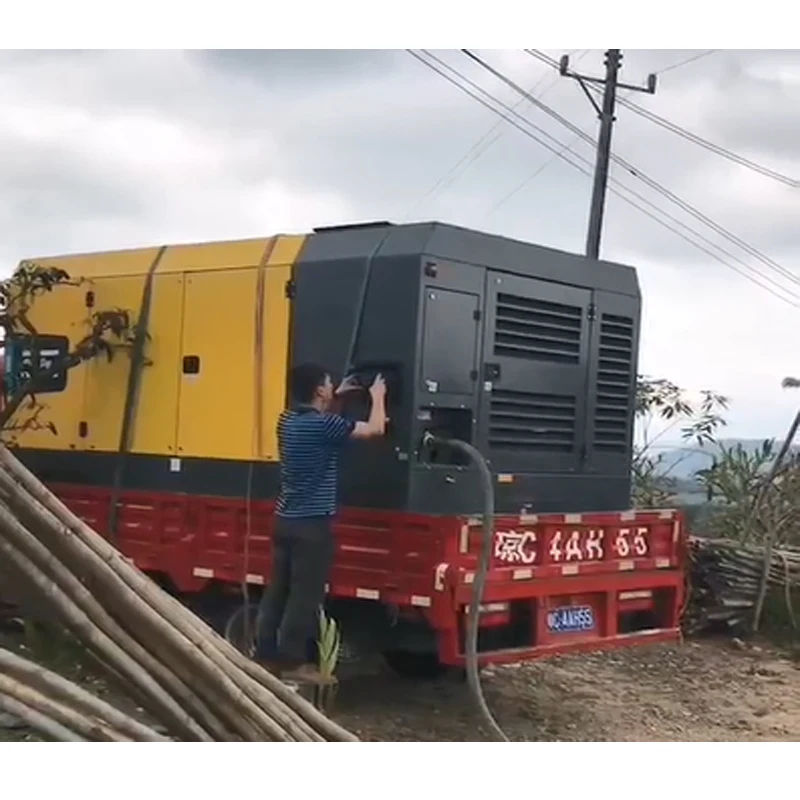

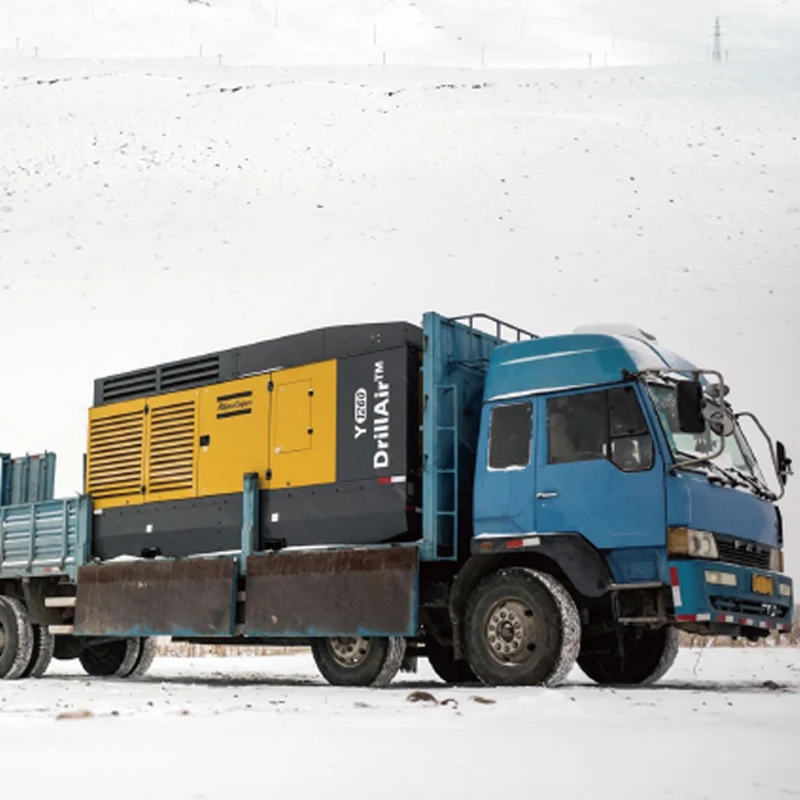

Working show:
