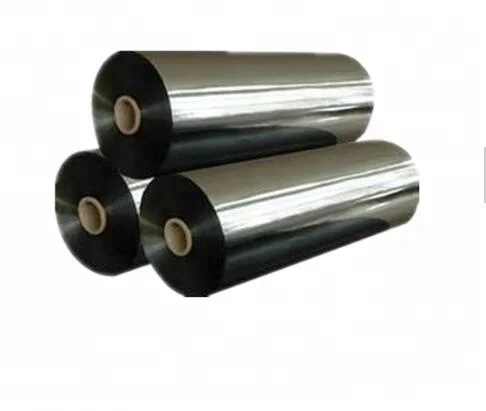

1.By surface rewinding to achieve rewind . 2.The machine is suitable for rewind and slitting the plastic films such as CPP,PET and Metallized films. 3.By closed loop to control the unwind tension which consist of magnetic powder brake,tension sensor and tension controller. 4.Equipped with a photoelectricity tracking and correction device. 5.Equipped with an automatic counter to set the length of production during working. 6.By imported drive to control the working speed of machine. 7.Both rewind shaft and unwind shaft are pneumatic inflate shafts. 8.By pneumatic devices to control rewind pressure.There is each pressure controller on both rewind shafts to control the suitable rewind pressure.

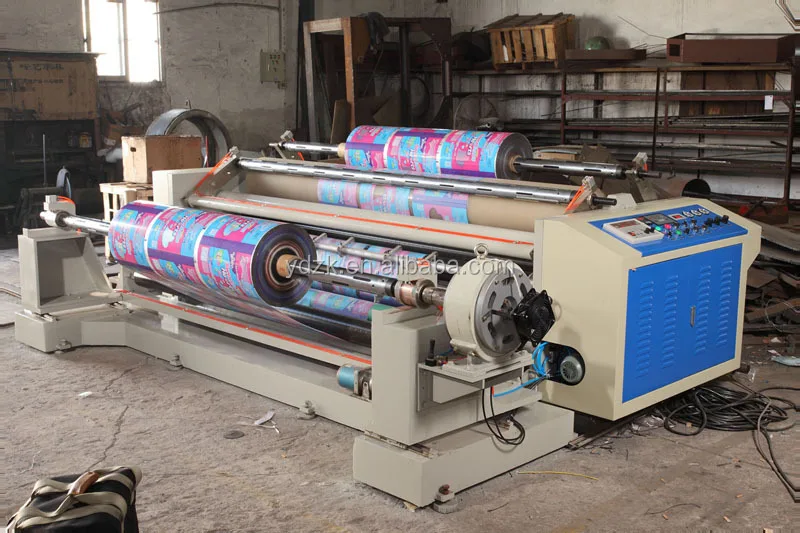

Note: the display machine just for reference, subject to be the actual configuration.

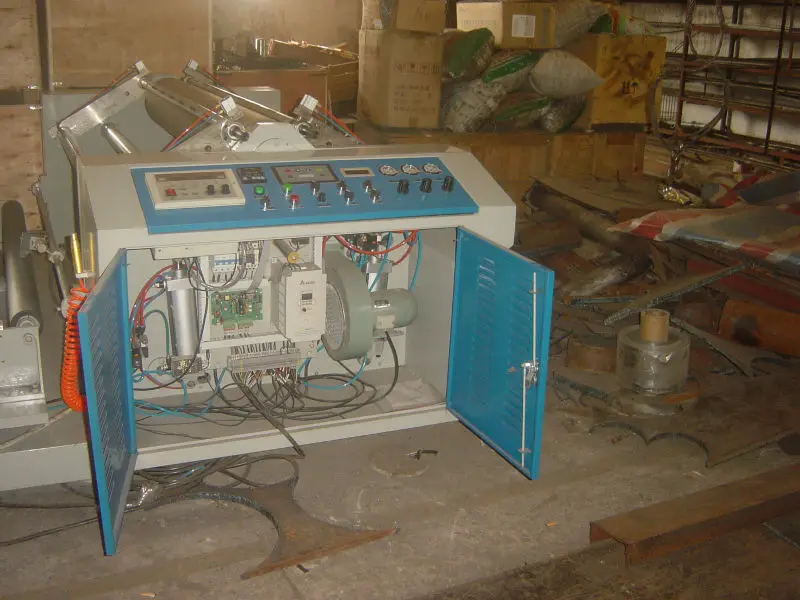

slitting and rewinding machine technical parameters:
Item
BFT-1300
BFT-1600
BFT-2000
BFT-2600
Max.Dia. of material (mm)
700
700
800
850
Max.width of material (mm)
1320
1620
2020
2500
Max.Dia. of rewind (mm)
700
700
800
850
Slitting width (mm)
200~1300
200~1600
300~2000
300~2500
Slitting speed (m/min)
10~300
10~300
10~300
10~300
Total power (Kw)
4
5
6.5
8.5
Outsize (L×W×H mm)
2000*2400*1200
2000*2700*1200
2100*3100*1250
2800*3600*1450

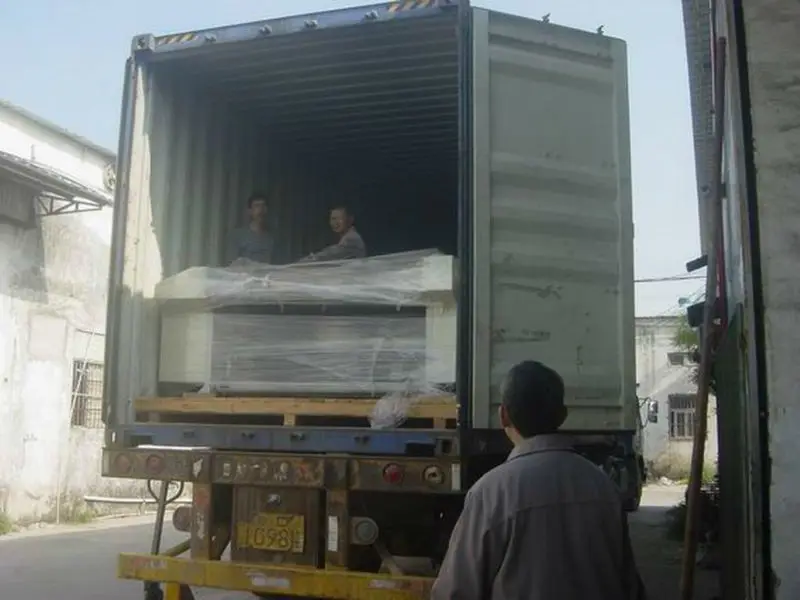

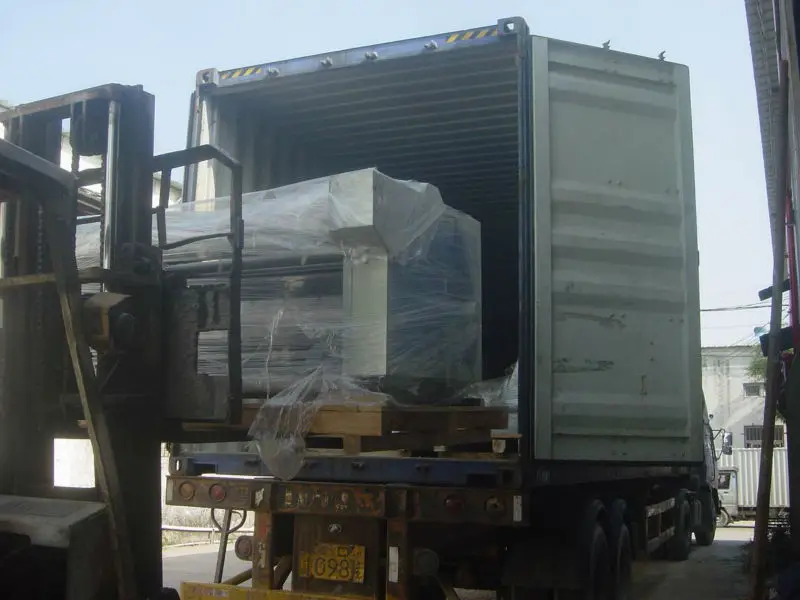

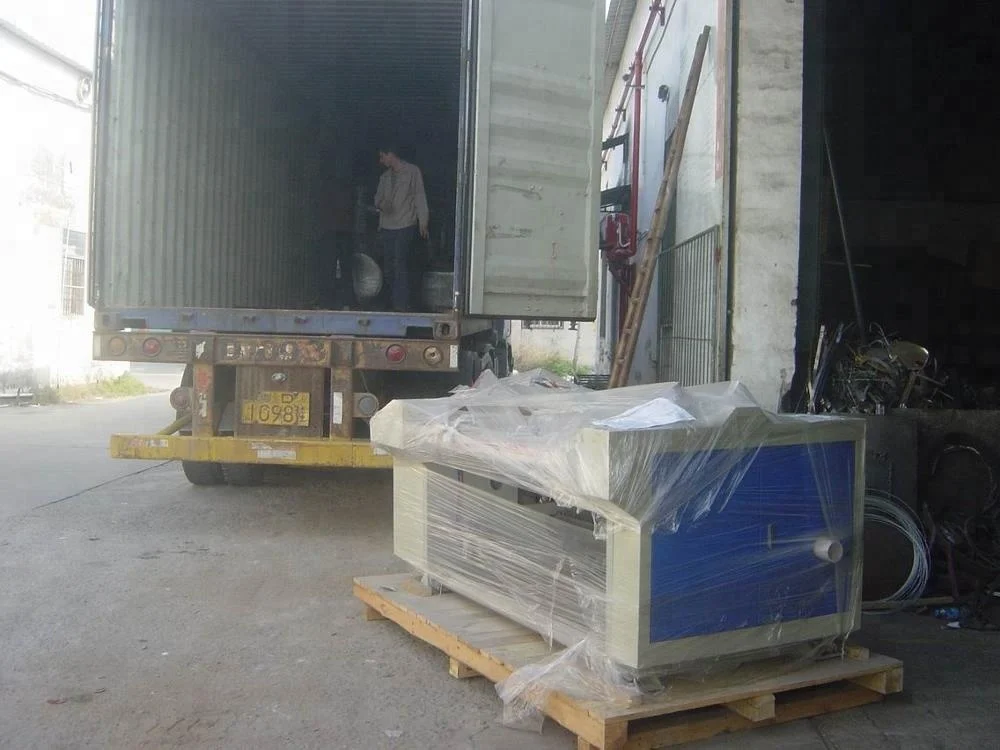

Packaging & Shipping
slitting and rewind machine has the packing & shipping as followings:
Our Services
1.Two engineers available to service machinary overseas.
2. It's 12 months after-sales service and improve machine performance forever.
3.We are a family company and not a partner company,so we can supply after-sales service for long term.
