Wire to Board connector terminal block harness wenzhou termination machine
- Category: >>>
- Supplier: Zhejiang Kuaili Electronic Co. Ltd.
Share on (62012212884):
Product Overview
Description
| Rated current | Content |
| Series | DF14 Series Pressure welding Bar Connector(1.25mm) |
| PLACE OF ORIGIN | ZHEJIANG,CHINA(MAINLAND) |

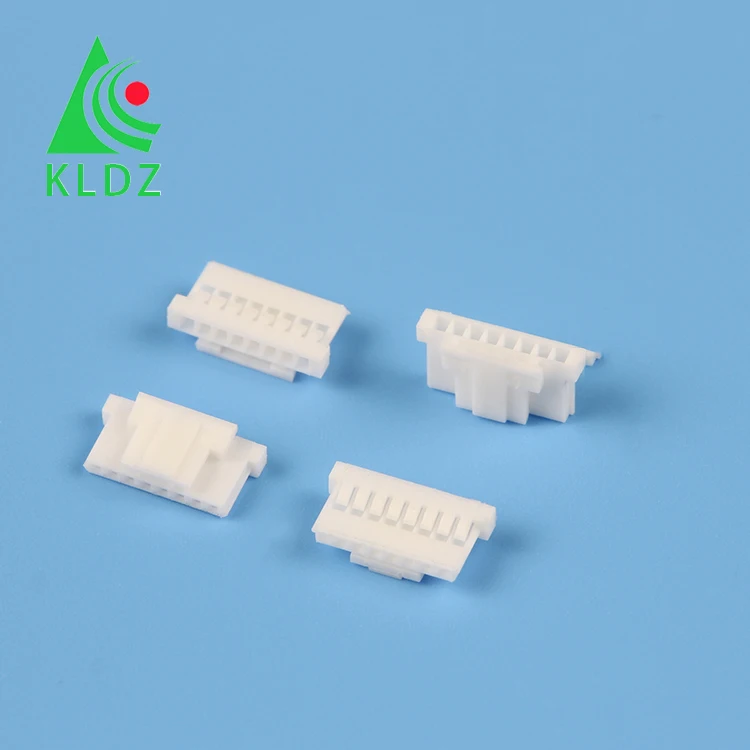

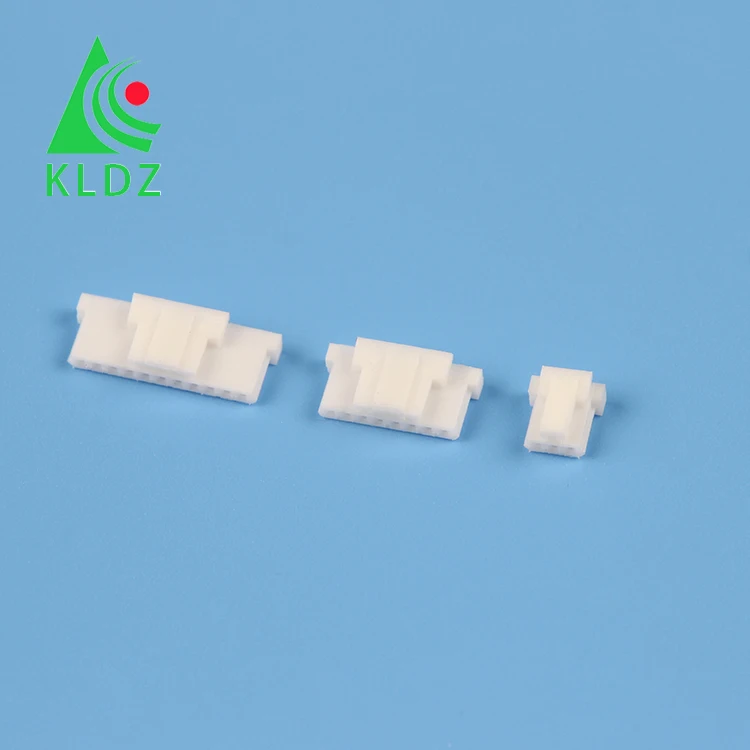

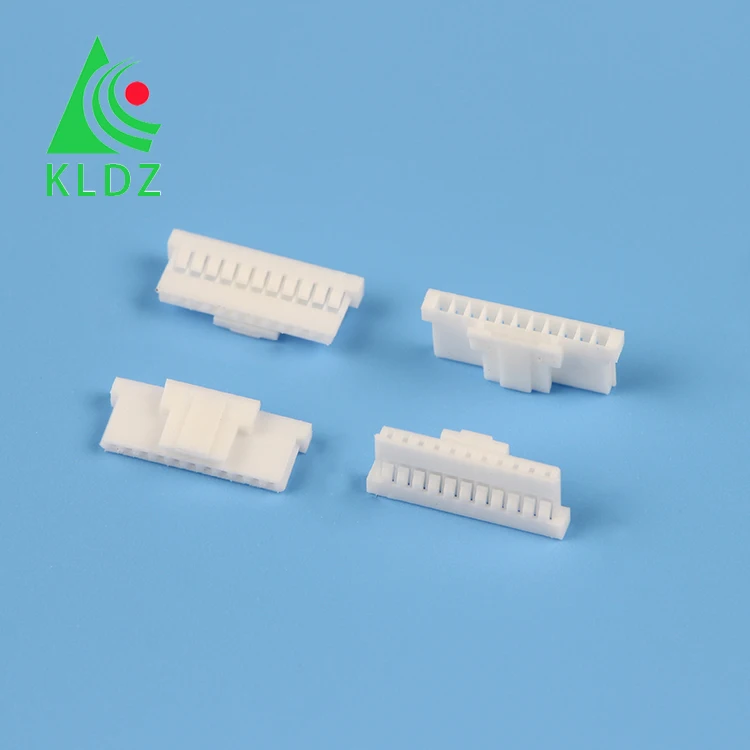

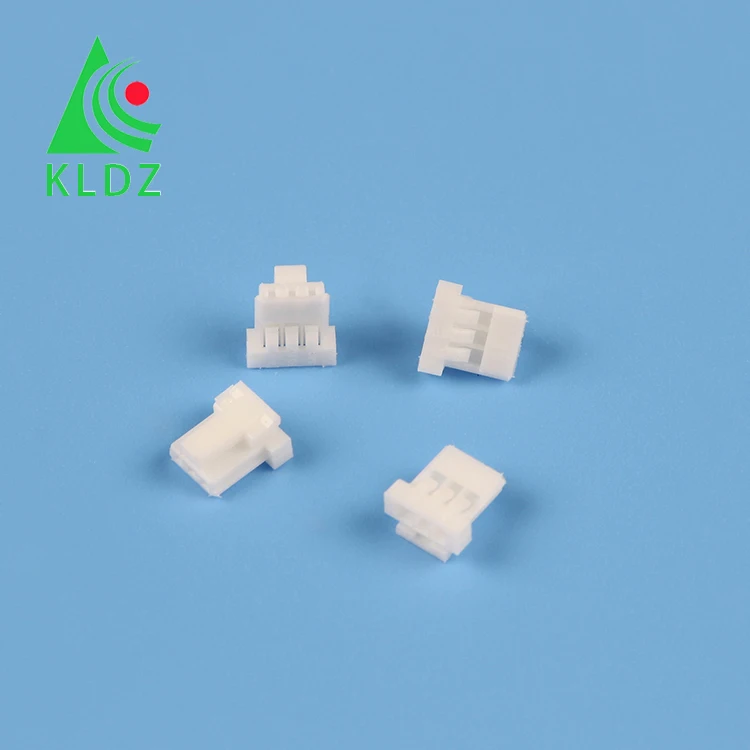

| PRODUCT NAME | DF14 Series 1.25mm pitch 4-pin 6-pin 8-pin wire to board male female plug and socket Connector |
| ROW | Single row |
| POLES | 2-20P |
| PITCH | 1.25mm |
| MATERIAL | PA66 & Brass Tin |
| COLOR | White |
| FEATURES | Fire-proof, Flame retardancy |
| RATED VOLTAGE | 50V AC,DC |
| RATED CURRENT | 1A |
| CONTACT RESISTANCE | 20mΩ MAX |
| INSULATION RESISTANCE | 500MΩ MIN |
| WITHSTAND VOLTAGE | 250V AC/min |
| WORKING TEMPERATURE | -25℃~85℃ |
| APPLICABLE WIRES | AWG#32~#24 |
