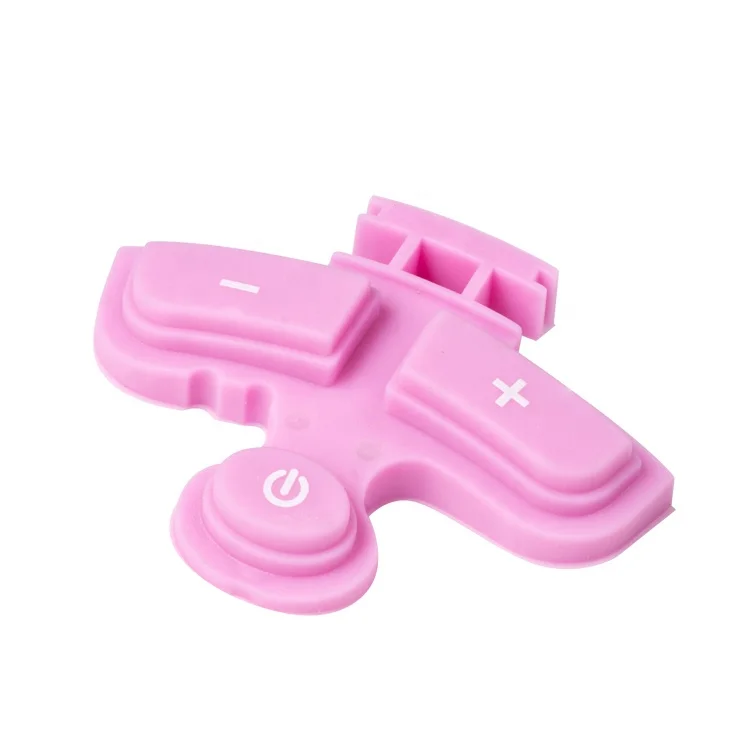

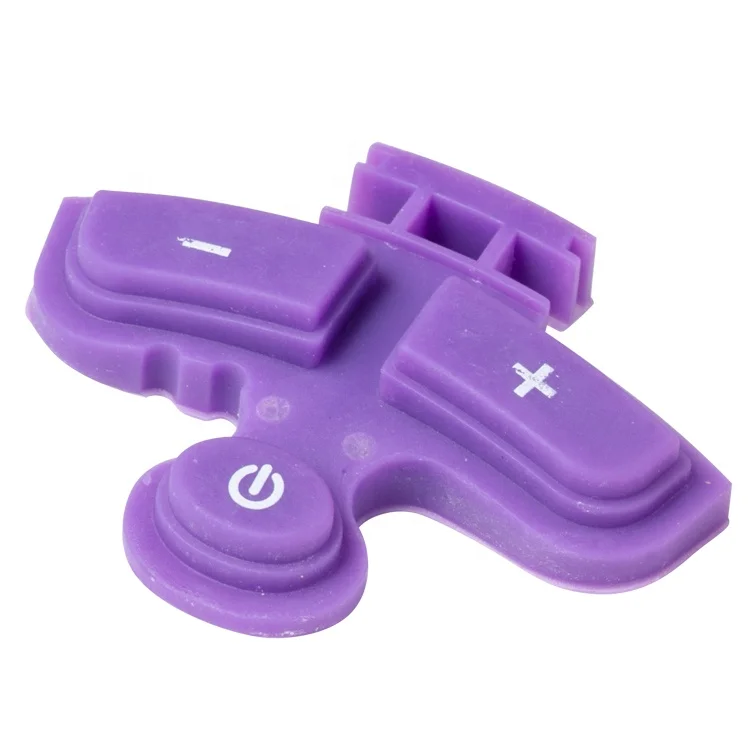

customized hign quality remote controller silicone buttons rubber keyboard
- Category: Keypads & Keyboards >>>
- Supplier: Dongguan Jinpeng Electronic Technology Co. Ltd
Share on (62012242058):
Product Overview
Description
Product Description
All of our products are custom made from dimension, color, material requirment, cable length, tracks pitch, total thickness etc..
Also add special structure to make the products more attractive, like backlight, fluorecent etc..
Expect for getting your design idea, then we will work hard together to achieve it.
Technical Specification
| Operating voltage | <35 VDC |
| Operating current | <100 mA |
| Contact resistance | <100 ohms |
| Open circuit resistance | >10 M ohms |
| Operating temperature | -35 to 70 degrees Celsius |
| Storage temperature | -45 to 90 degrees Celsius |
| Life expectancy | 500,000 to 30,000,000 cycles |
| Switch stroke | 0.1 to 0.6 mm |
| Contact bounce | 5 to 30 ms |
| Actuation force range | 50 to 500 g |
| Actuation force tolerance | +/-20 to 45 g |
| Tactile ratio | FC>40% |
| Operating humidity | up to 95% RH |
| Material | Nitrile Rubber, NR, EPDM, SILICONE, Viton, Neoprene, SBR, HNBR, ACM, etc. |
| Certification | ISO9001: 2015 Passd ROHS, MSDS, FDA, CTI, REACH, etc |
| Size | Customize |
| Color | Any color |
| 3D, CAD drawing | Accept |
| Temperature | -40°C to+300°C |
| Hardness | 20-95 shore A |
| Logo | OEM & ODM orders are welcome |
| Tolerance | 0.05mm |
| Package | Standard package or according to your request |
| Feature | 1. Ozone and Chemical resistance 2. Anti-aging,good flexibility,good elasticity 3. Excellent oil resistance |
| Application | Electronic field, industrial machine & equipment, house-hold appliance, tele-communication, automobile, medical equipment industry etc. |
Hot item
Company Information
Packaging & Shipping
FAQ
1. What is silicone?
Silicone is a natural material, the density higher than the average plastic, is a non-ordinary plastic. It’s more eco-friendly and durable.
2.Do you have professional Mould Department and designers?
1) We have spent a great deal of money on machine, there are 5 Computer Numerical Controls, and 2 Electrical Discharge Machine etc.
2) Professional designers and programmers can provide you with professional services.
3. What’s your MOQ?
Different item MOQ differ, please consult with enquiry or contact our Trade Manager.
