USA Canada AT&T Firstnet Critical Point 700 MHZ 800 MHz Class A B Chanalize Selective Public Safety Bi Directional Amplifier

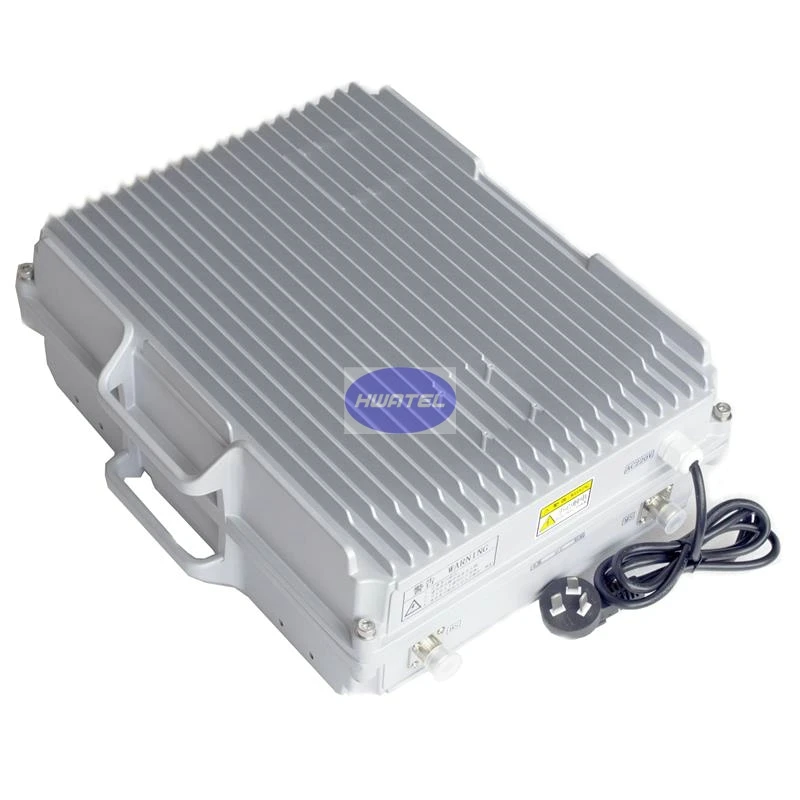

The CriticalPoint Public Safety Class A Bi-Directional Amplifier (BDA) provides consistent signals for crucial First Responder communications.

The CriticalPoint can be configured by our signal experts for any Public Safety installations. It is a a 700MHz/800MHz single or dual band digital channelized repeater that supports up to 32 channels per band. Depending on the size of the building, the BDA is offered in two versions, a .5W or 2W of downlink power per band to accommodate smaller buildings. The unit can be either AC or 48V DC powered depending on installation needs. It is fully compliant with IFC and NFPA (National Fire Protection Association) requirements.

Channelized uplink Automatic Gain Control (AGC) ensures minimum interference to cell towers and optimizes quality and coverage.

The CriticalPoint features comprehensive alarming capabilities, which supports all NFPA and IFC required monitoring and alarming, and also provides local and SNMP based remote monitoring. The built-in signal generator and isolation testing function make deployment by system integrators convenient and straightforward.

• Single or dual band configuration (700MHz/800MHz)


• Supports up to 32 channels per band


• 2W/5W  output power for each band. ½W version available.


• Channelized uplink (AGC)


• Channelized uplink squelch supported


• Web based GUI for simple configuration


• Built-in mandatory isolation test to prevent BDA oscillation


• NFPA compliant dry contact alarms

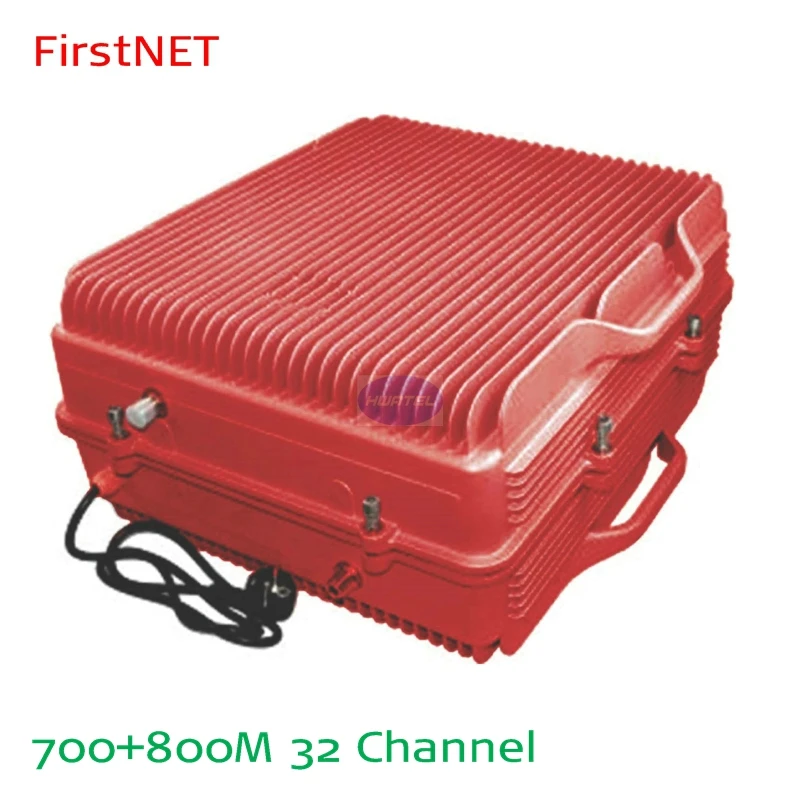

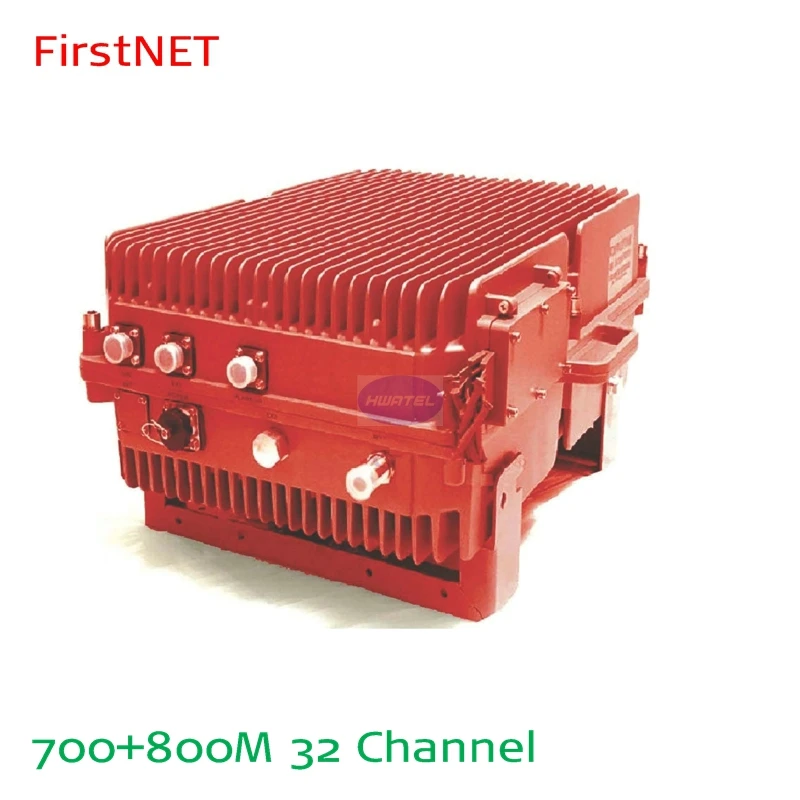

• NEMA 4 enclosure

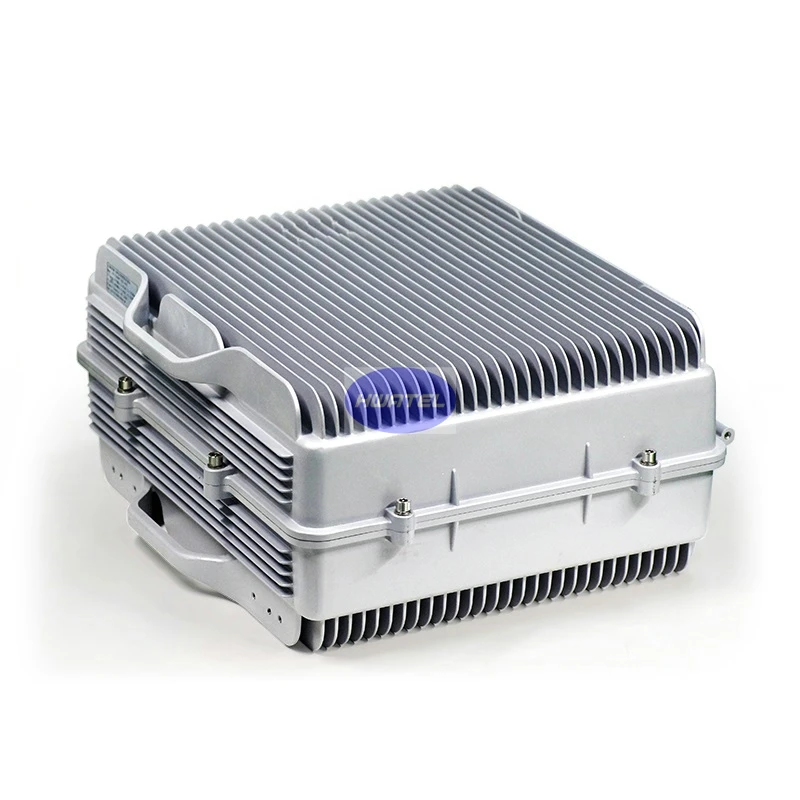

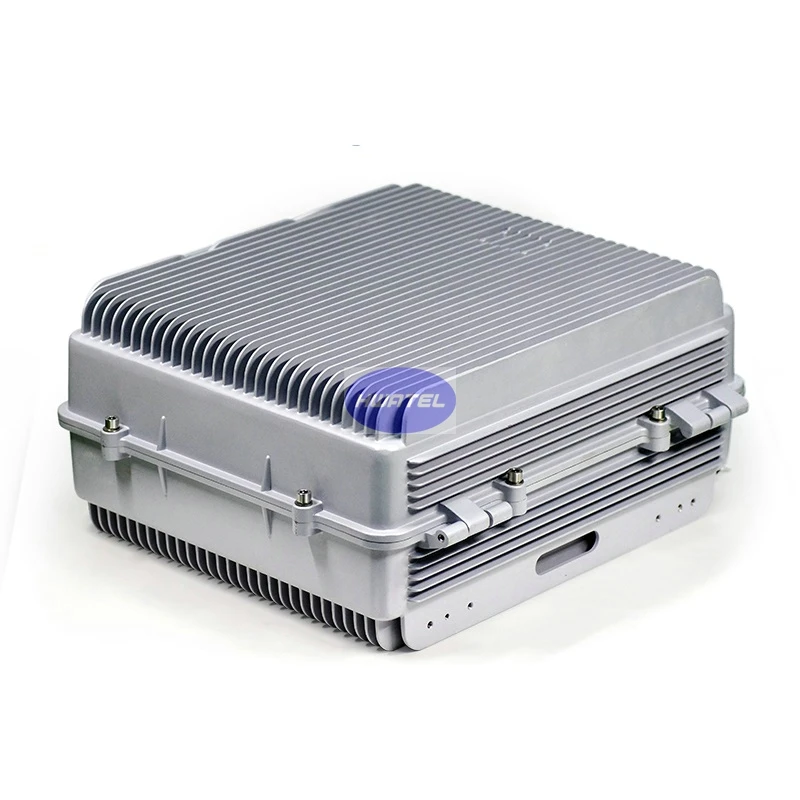

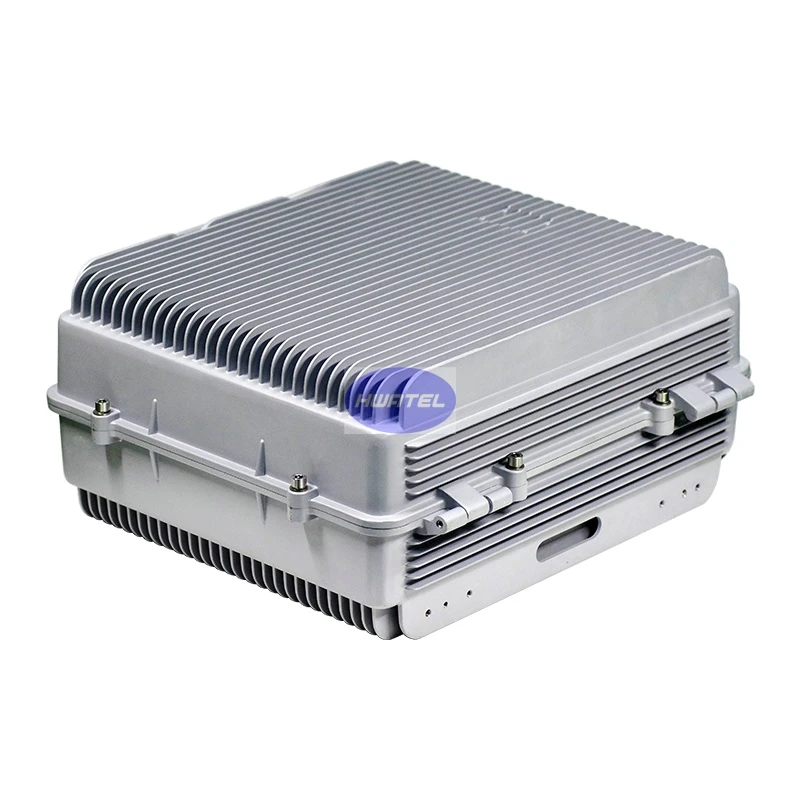

•  HIGH RELIABILITY: IP65, waterproof, dust proof ALUMINIUM. 40MM DOUBLE SIDE HEAD SINKER. SAME DESIGNING AS HUAWEI ERICSON NOKIA ALCATEL BASE STATION

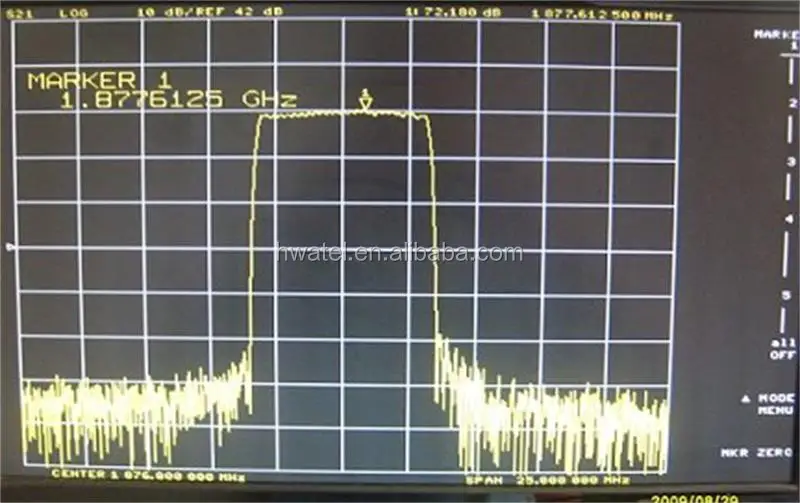

• Alway 2~3 dBm power, 3~5 dBi gain higher than our respect competitor. Because we alway install 20 Watt Power Amplifier modular in our repeater to ensure the high system RF power.

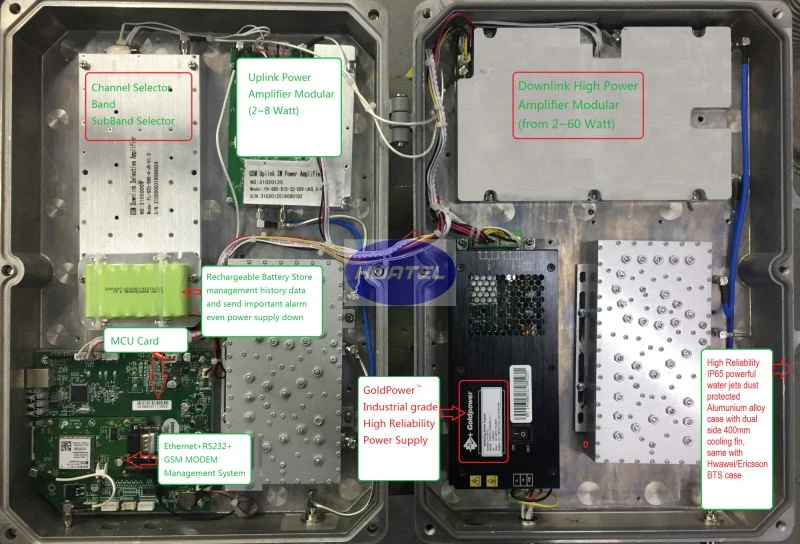

• HWATEL choose GOLDPOWER(www.goldpower.com.cn) Industrial Grade Power Supply , which is certificated by Indonesia PT.TELKOM,India Reliance, Alcatel-Luccent, Hitachi, Kyocera, HUAWEI, ZTE.


• SUPPORT: FULL BAND, FIXED BAND SELECTIVE, channel selective, band tunable/ADJUSTABLE , multi sub bands, hybrid( band SELECTIVE + channel selective)

• Equip with local serial port, GSM MODEM and Local IP/Ethernet maintenance port, operator can monitor and maintenance network more easily.  With NMS software, technicians can control repeaters in the monitoring center or optimize parameters according to the actual situation of network.


• Support future bandwidth re-allocation, easy for refarming


• Adjustable output power and gain, flexible and easy engineering design
