Product Application- China mini dingo post hole digger for sale mini digger

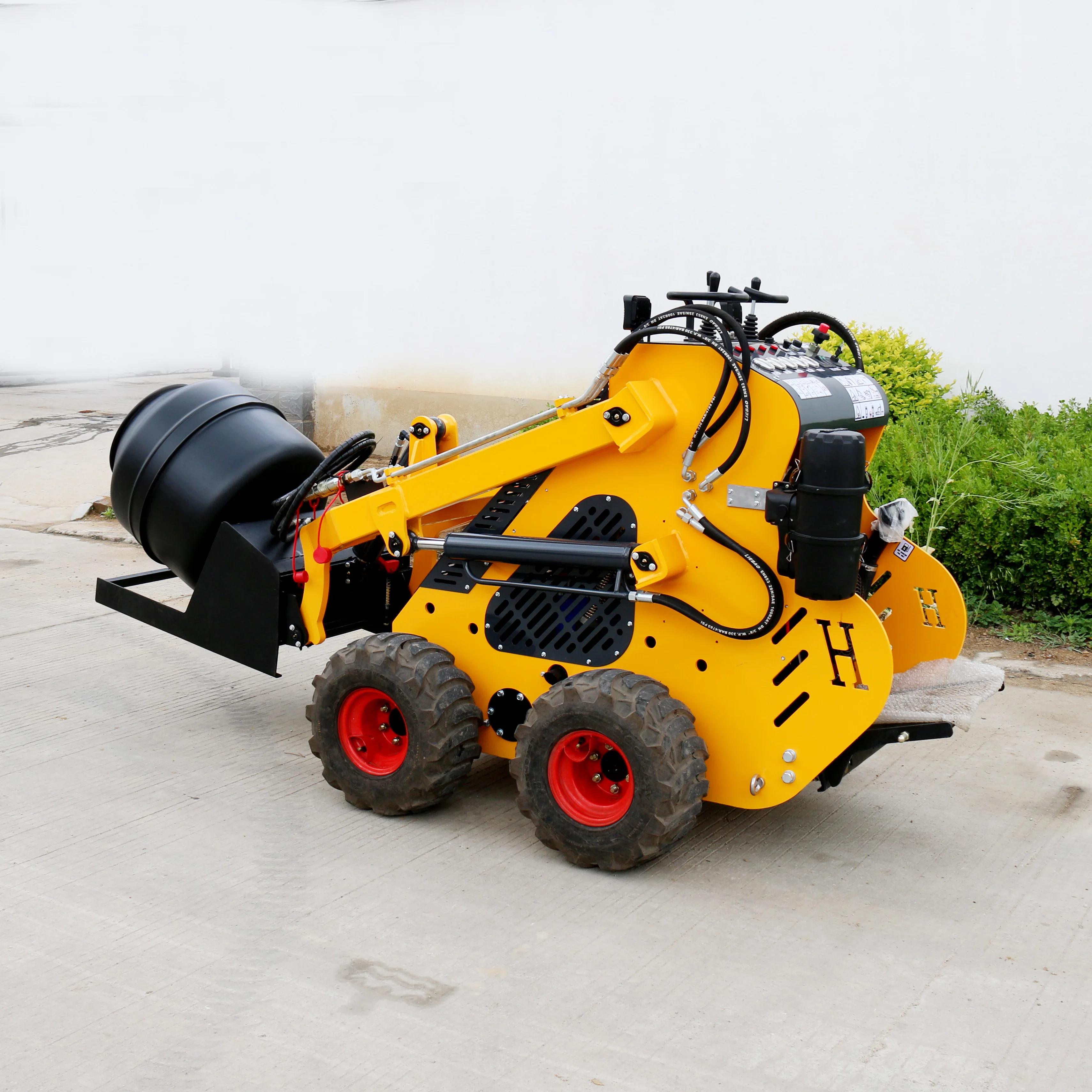

TY-323 SERIES is a kind of mini skid steer loader designed for productivity. Its ease of use, compact size, versatility and efficiency make it and ideal machine in any compact raodways or low space working.this is the mini digger , China mini digger, like a dingo post hole digger for sale.
TY-323 has both wheeled and tracked type, 4WD and skid-steering. Ride-on and folable platform adds convenience and comfor for operation and transportation,simply put it into a traioler or in a delivery van to transport, no need special equipment.
SPECIFICATION FOR MINI WHEELED LAODER TY-323T
Item
Main description
Units - Metric
Units- US
A
Overall operating height
2452mm
96.5 in
B
Height to bucket hinge pin
1914mm
75.3 in
C
Height to top of cab
1370mm
54 in
D
Height to bottom of level bucket
1790mm
70.4 in
E
Overall length without bucket
1740mm
68.5 in
F
Overall length with bucket
2170mm
85.4 in
G
Dumping angle at maximum height (°)
33.7
33.7
H
Dumping height
1515mm
60 in
I
Dumping reach
545mm
21.5 in
J
Rollback of bucket on ground (°)
26
26
K
Rollback of bucket at full height (°)
114
114
L
Wheelbase
657mm
25.9 in
M
Ground clearance
140mm
5.5 in
N
Angle of departure (°)
23mm
23
O
Turning radius front without bucket
801mm
31.5 in
P
Front turning radius with bucket
1282mm
50.4 in
Q
Rear turning radius
1026mm
40.5 in
S
Tread width, centerline to centerline
960mm
37.8 in
T
Width between outside of two wheels
1150mm/830mm
45.3 in
U
Bucket width
1160mm/850mm
45.7 in
Main Features for mini skid steer loader TY-323T and TY-323S
The wheeled type model is TY-323S ,mini digger, the tracked type model is TY-323T China mini dingo post hole digger for sale ,mini digger from China.
1 - TY-323 mini wheel loader is an exellent tool in tight sports like inside buildings or compact roadways wher bigger machines can not go.
2 -The combination of powerful America engine and motor, Italy pumps and other quality parts helps you to lift more than TY-323 listed.
3 - Construction tires, turf tires , solid tires and narrow tires are available , depending on the jobsite.
4 -1370mm total height, working stand up on the back, it is have a widely wide view.
Compare
Detailed Images
Machine Parts
Name: If you like can optional outside air cleaner type
This will help you to have more room .
Main Features
Name: Swing-open radiator
Easy for you to daily check and to have a look at your machines.
Machine Parts
Name: Stand up plate can be fold after you finished work , to save more room for your warehouse.
Main Features
Name: Quick connector can help you to change every attachments from auger to bucket , to trencher, to breaker, too grapple etc. in a little time , save labor , save tiime.more effiency.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
0.8kgs
Packaging Details
The normal package when you order 1 or two units is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
