Commercial Used Meat Pickle Brine Injector Machine Industrial Meat Brine Marinate Injection Machine

Product Overview

Description



Saline Injection Machine Advantages:

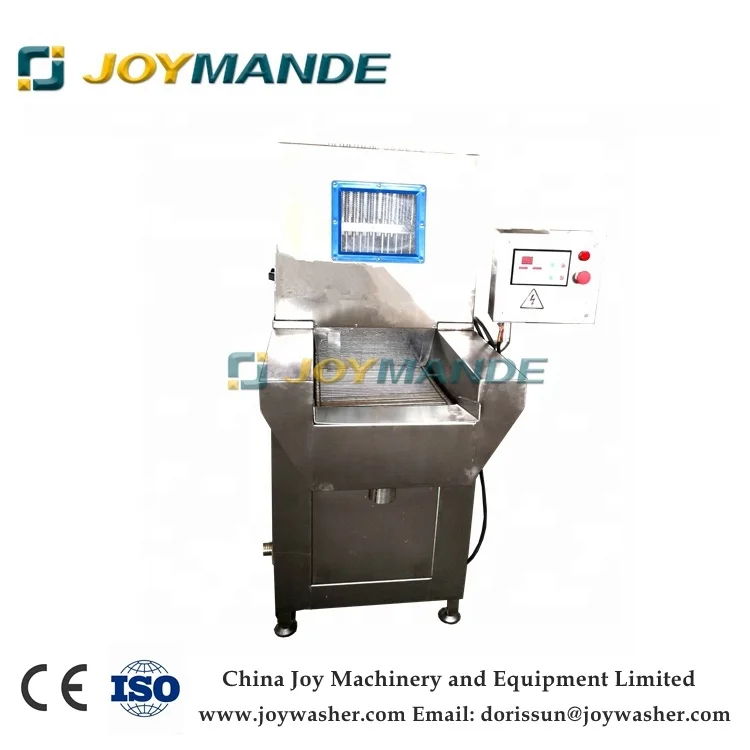

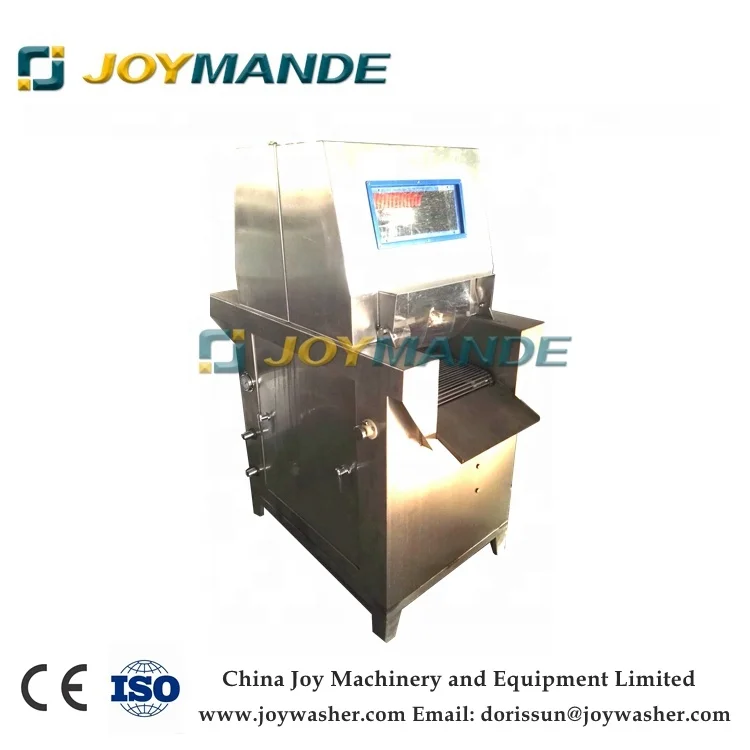

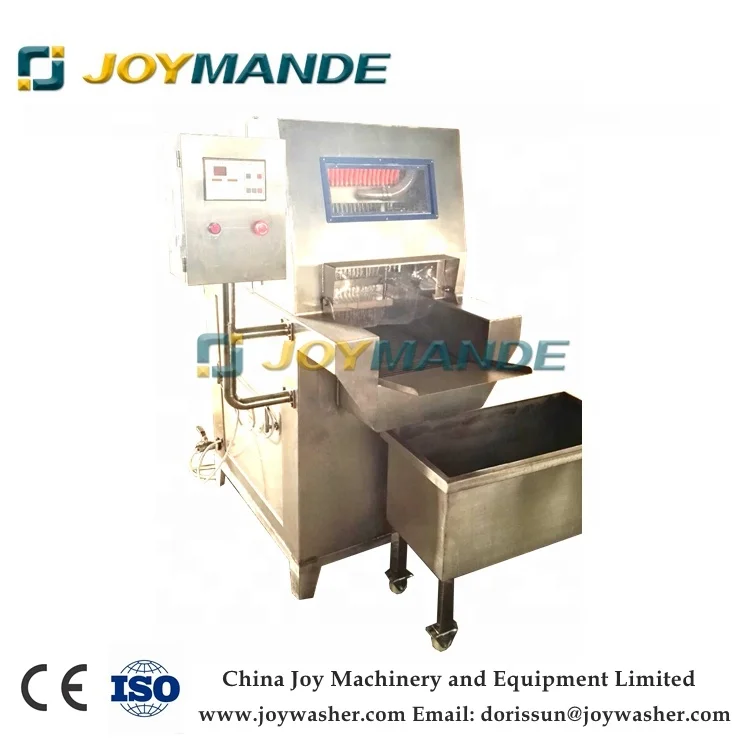

This automatic brine injecting machine is to inject saline, starch, soybean protein, and other auxiliary material into meat to marinate fully. Based on advanced technology and mechanical device, it can realize quick marinate, improve taste and keep meat nutrition.

The saline injection machine is working with higher injection percentages and repeat accuracy.

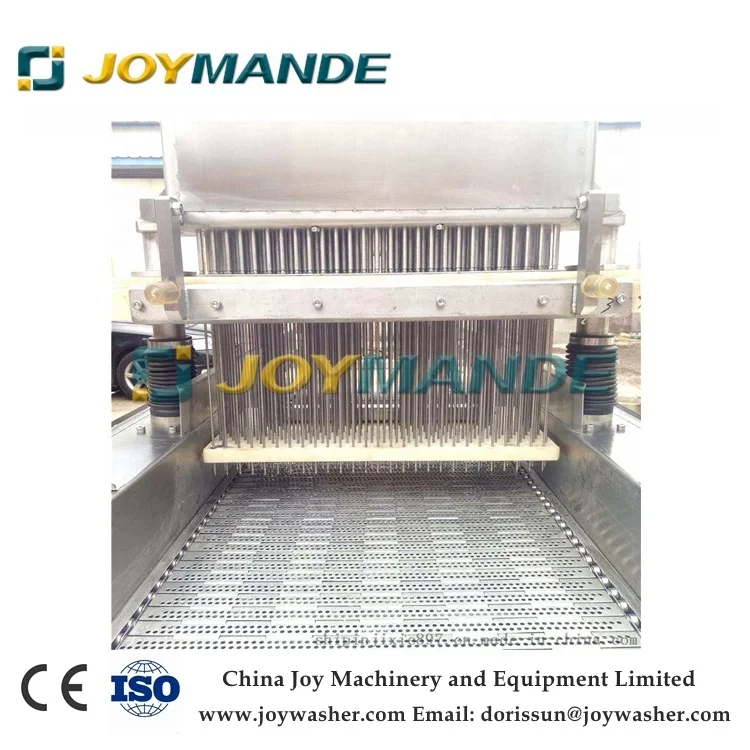

Direct drive technology provides full speed control of the needle head in and out of the product. This machine can adjust stepping speed, stepping distance, meat press plate space and injection pressure according to different meat materials so as to get ideal effect.

Improve product quality through even distribution of viscous brine and supply solution at higher injection rates.

Efficient, three stage brine filtration system operates continuously for brine solution refinement, resulting in optimal injection treatment. Its unique design offers fast, convenient and effective sanitation.

The oblique-positioned water return barrel and mixing function can effectively prevent the settlement of all materials under processing. The machine is reasonable designed with removable chain for easy cleaning.

It’s ideal equipment for superior meat-borne products with high productivity.

Type	JME48	JME60	JME80	JME108	JME180
Capacity (kgs)	200-300	300-600	500-700	700-900	900-1000
Power (kw)	4.1	4.1	5.1	6.2	7
Injection rate	40-80%	40-80%	40-80%	60-90%	60-90%
Injection needle size	2mm 3mm 4mm	2mm 3mm 4mm	2mm 3mm 4mm	2mm 3mm 4mm	2mm 3mm 4mm
Injection pressure(bar)	4.5-9	4.5-9	4.5-9	4.5-9	4.5-9
Injection speed(rpm)	15-40	15-40	15-50	15-50	15-50
Step speed (m/min)	40-70	40-70	40-70	40-70	40-70
Machine size(mm)	1350x750x1650	1550x880x1650	1550x1060x1720	1850x1350x1800	1950x1350x1850

Advantage:

1. Full stainless steel material.

2. Hygiene and healthy.

3. Fast injecting speed and even injection.

4. Equipped with automatic protection device, if the entry needle touch any hard matters, it will uplift without damage.

5. Removable chain and easy cleaning.

6. The machine can adjust stepping speed, stepping distance, meat press plate space and injection pressure according to different meat materials so as to get ideal effect.
