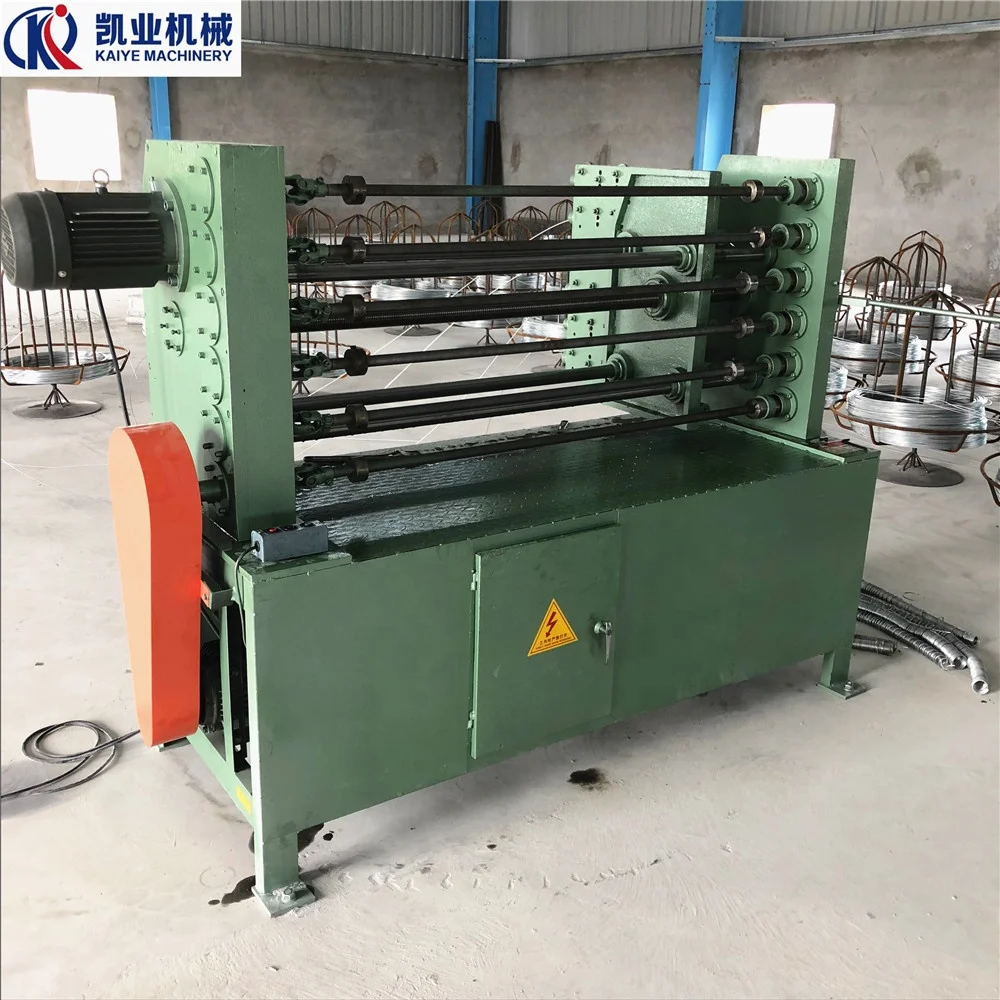

Heavy wire weaving hexagonal net gabion mesh machine

Product Overview

Description

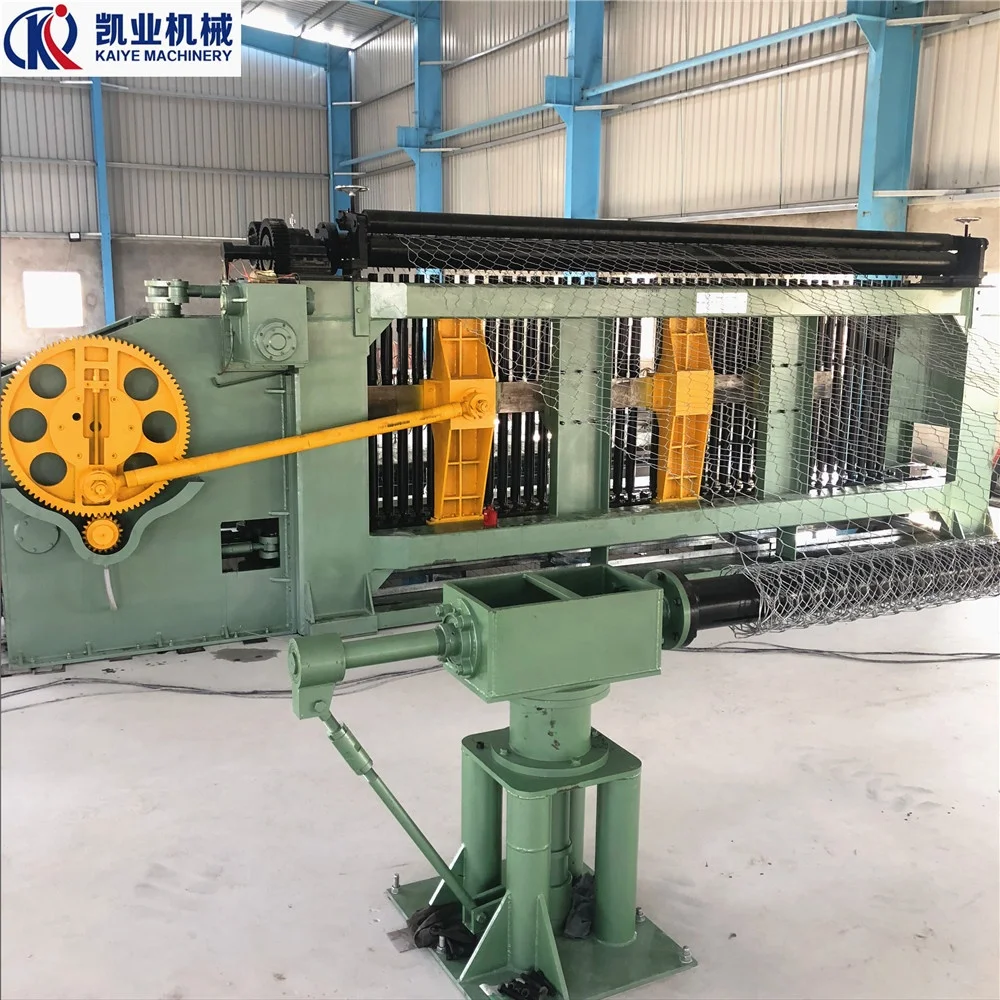

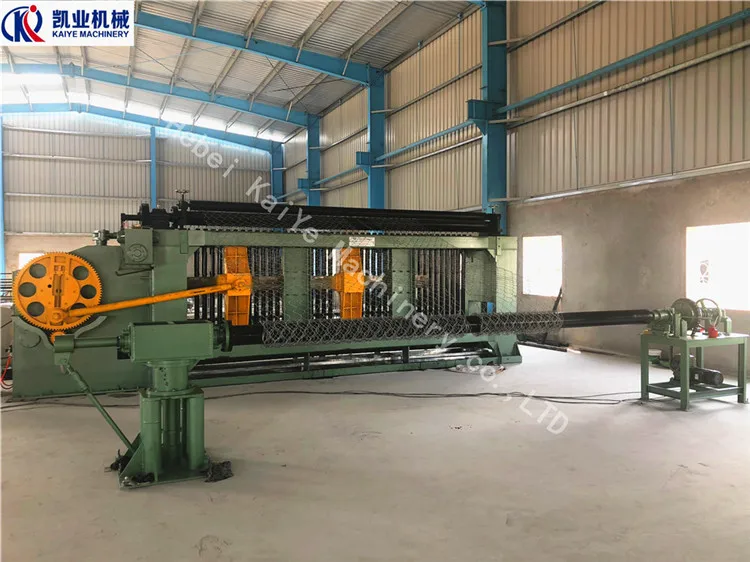

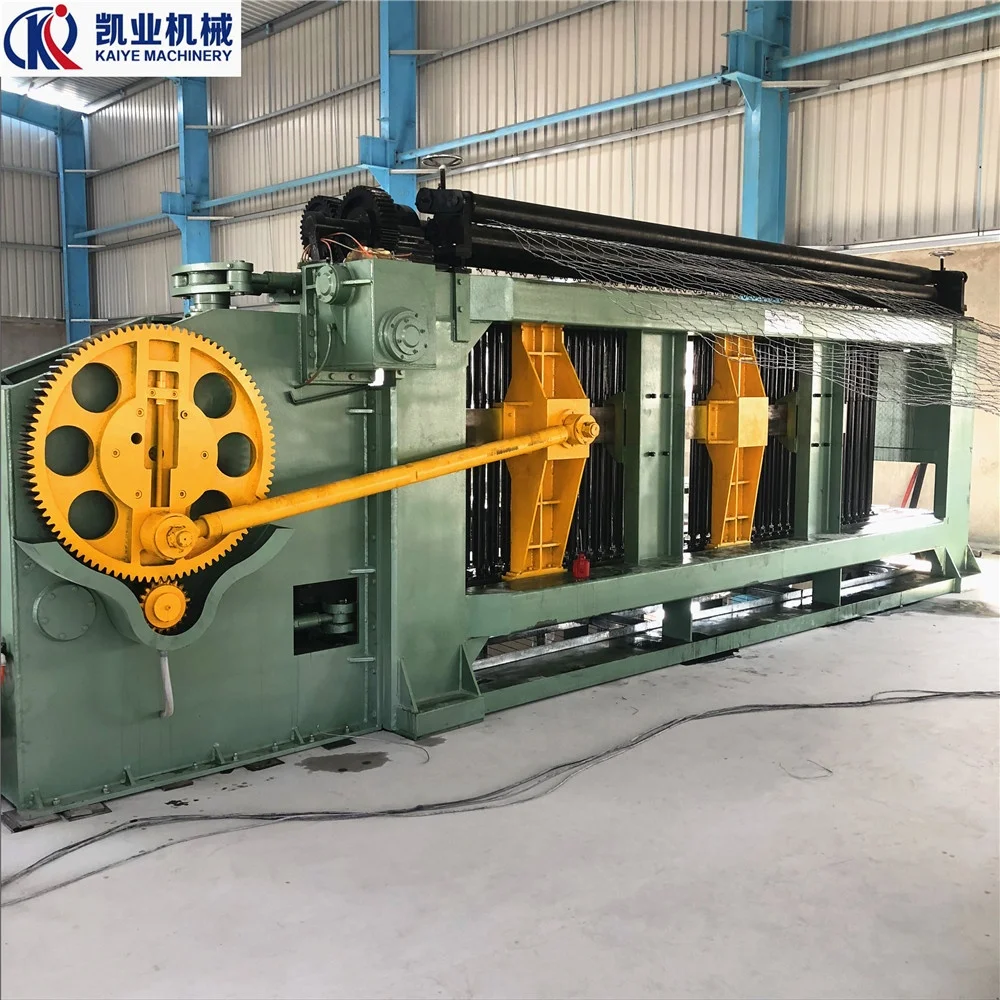

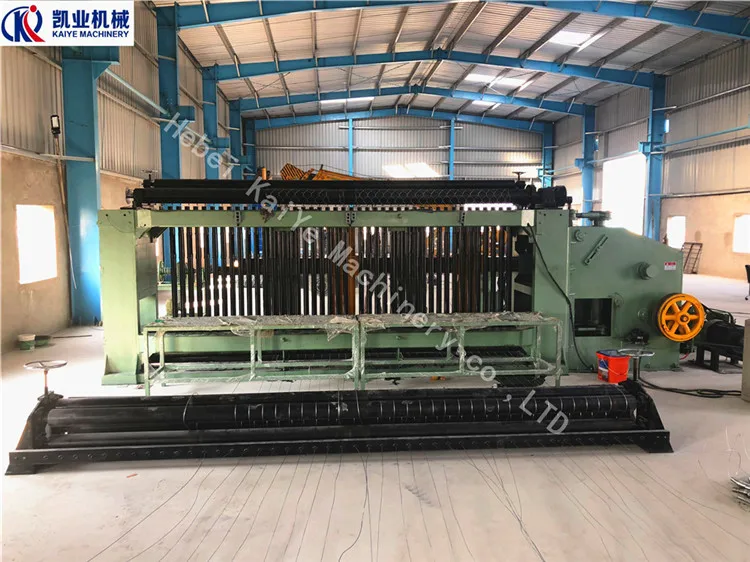

Heavy hexagonal wire net gabion mesh machine



Description of machine:

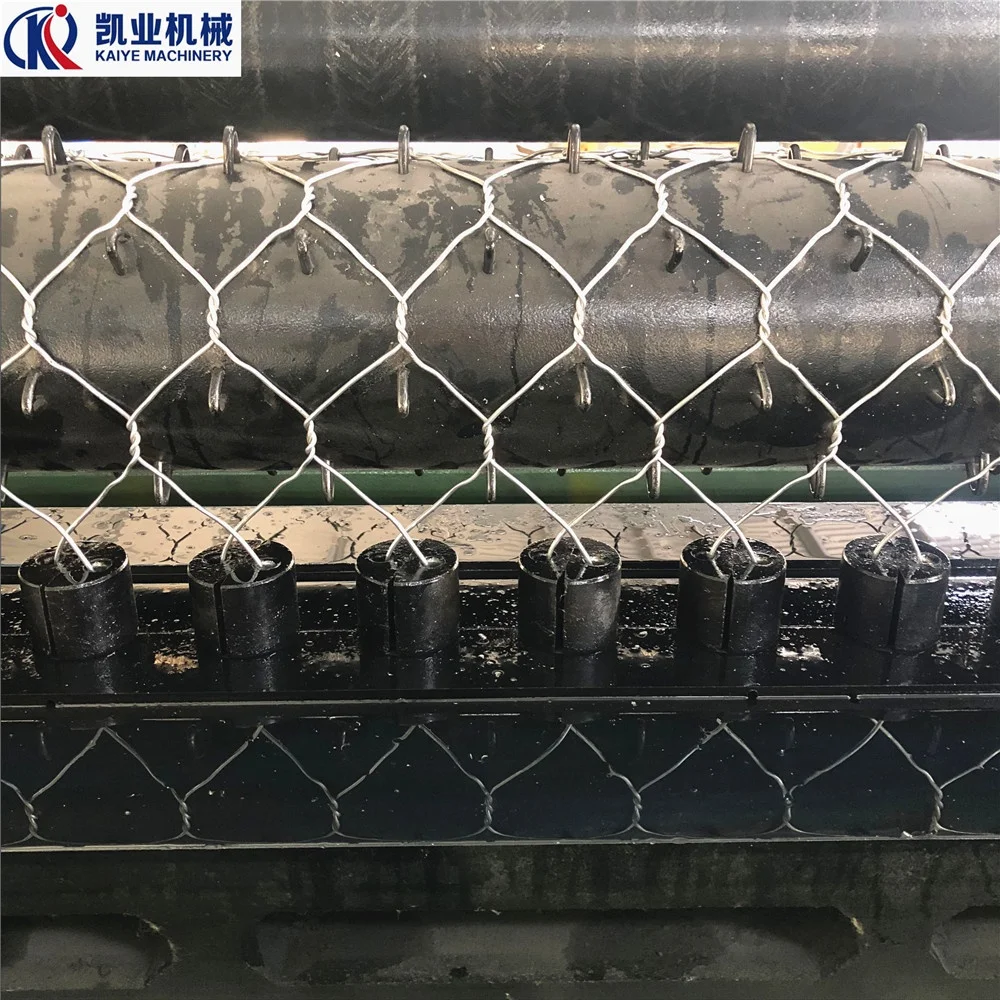

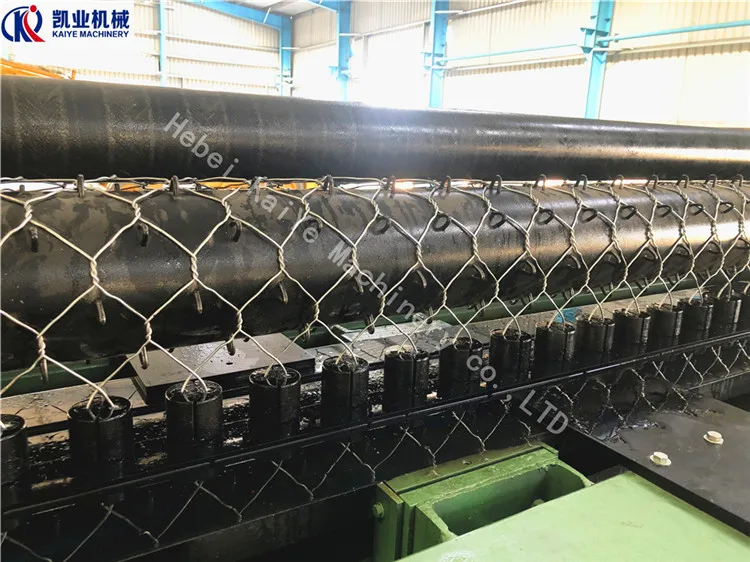

Gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth.gabion mesh machine is also called heavy duty hexagonal wire mesh machine or gabion box machine, which is to produce the hexagonal wire mesh for reinforcement stone box use to protect and support the seawall,hillsides,road and bridge,reservoirs.



Mechanical specifications:

Style	Mesh size	Width	Wire diameter	Spindle Speed	Twist	power of motor	Theoretic output
	(mm)	(mm)	(mm)	(r/min)	(r )	(kw)	(m/h)
LNWL23-60-2ZX	60X80	2300	1.6-3.2	25	3	11	165
LNWL23-80-2ZX	80X100		1.6-4.0		3		195
LNWL23-100-2ZX	100X120		1.6-4.0		3		225
LNWL23-120-2ZX	120X150		1.6-4.2	20	3		255
LNWL33-60-2ZX	60X80	3300	1.6-3.2	25	3	15	165
LNWL33-80-2ZX	80X100		1.6-4.0		3		195
LNWL33-100-2ZX	100X120		1.6-4.0		3		225
LNWL33-120-2ZX	120X150		1.6-4.2	20	3		255
LNWL43-60-2ZX	60X80	4300	1.6-3.2	25	3	22	165
LNWL43-80-2ZX	80X100		1.6-4.0		3		195
LNWL43-100-2ZX	100X120		1.6-4.0		3		225
LNWL43-120-2ZX	120X150		1.6-4.2	20	3		255
LNWL43-60-3ZX	60X80		1.6-3.2	25	5		165
LNWL43-80-3ZX	80X100		1.6-4.0		5		195
LNWL43-100-3ZX	100X120		1.6-4.0		5		225
LNWL43-120-3ZX	120X150		1.6-4.2	20	5		255



Our machine has several models for different sizes of mesh and the maximum mesh width is up to 5500mm. We can accept any special orders from customer.

We also accept any special order form clients. Twists selection: double twists(3 cross); three twists(5 cross); Double twists share with three twists(3 cross share with 5 cross together)



Standard production line

1	Gabion mesh machine	1 set
2	Netting winging machine	1 set

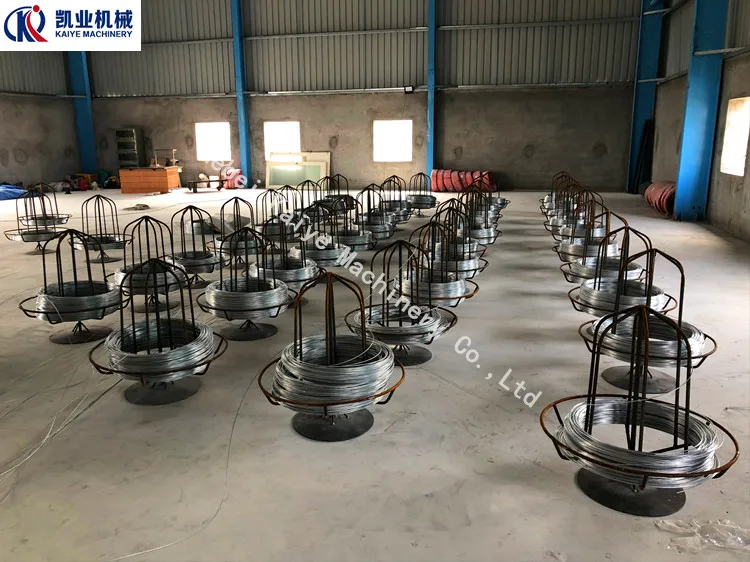

3	Wire tension device	1 set
4	Spring coiling machine	1 set



Can choose other supporting machinery
