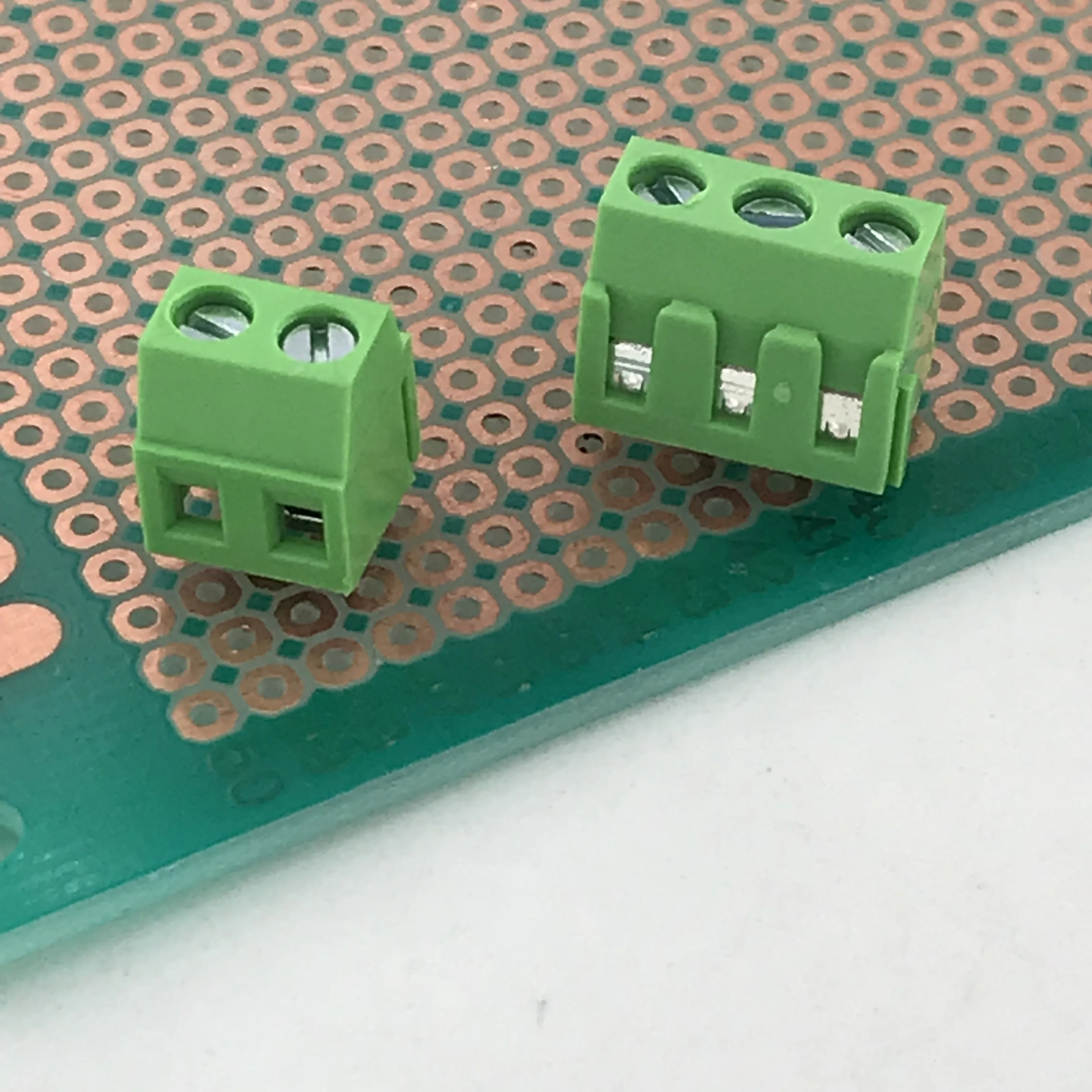

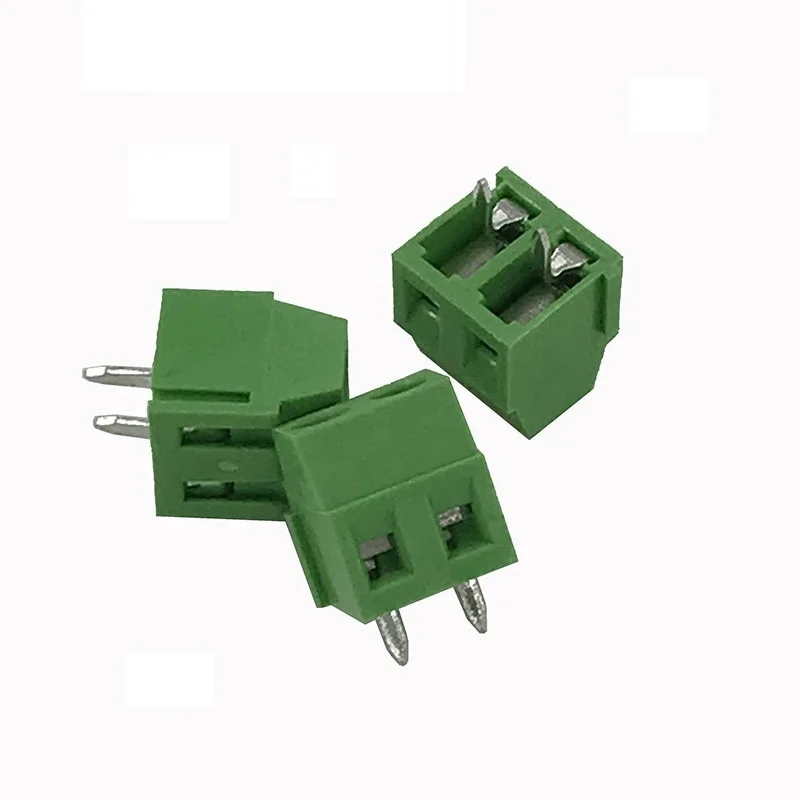

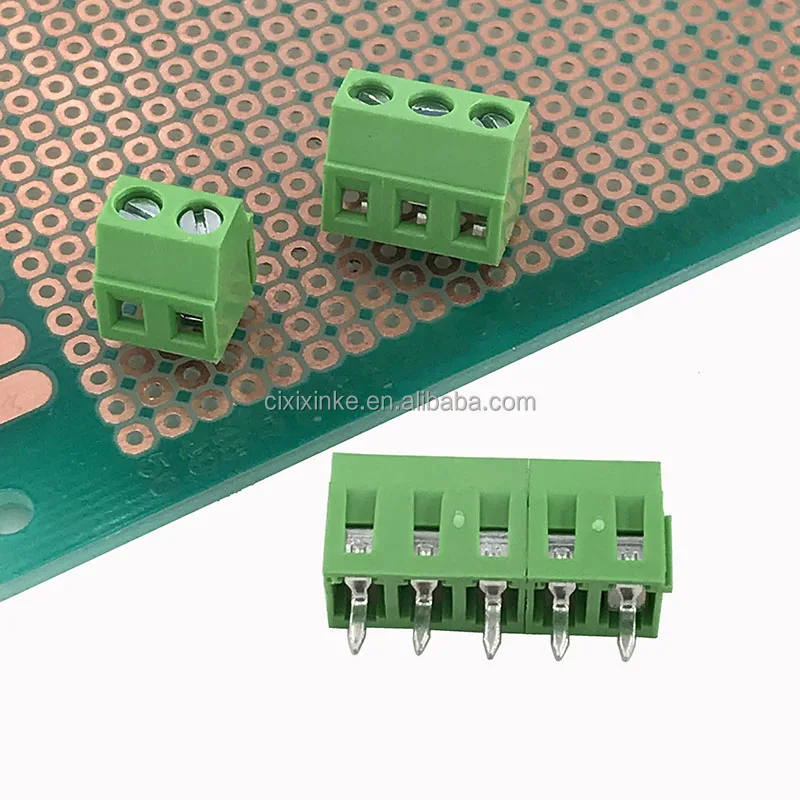

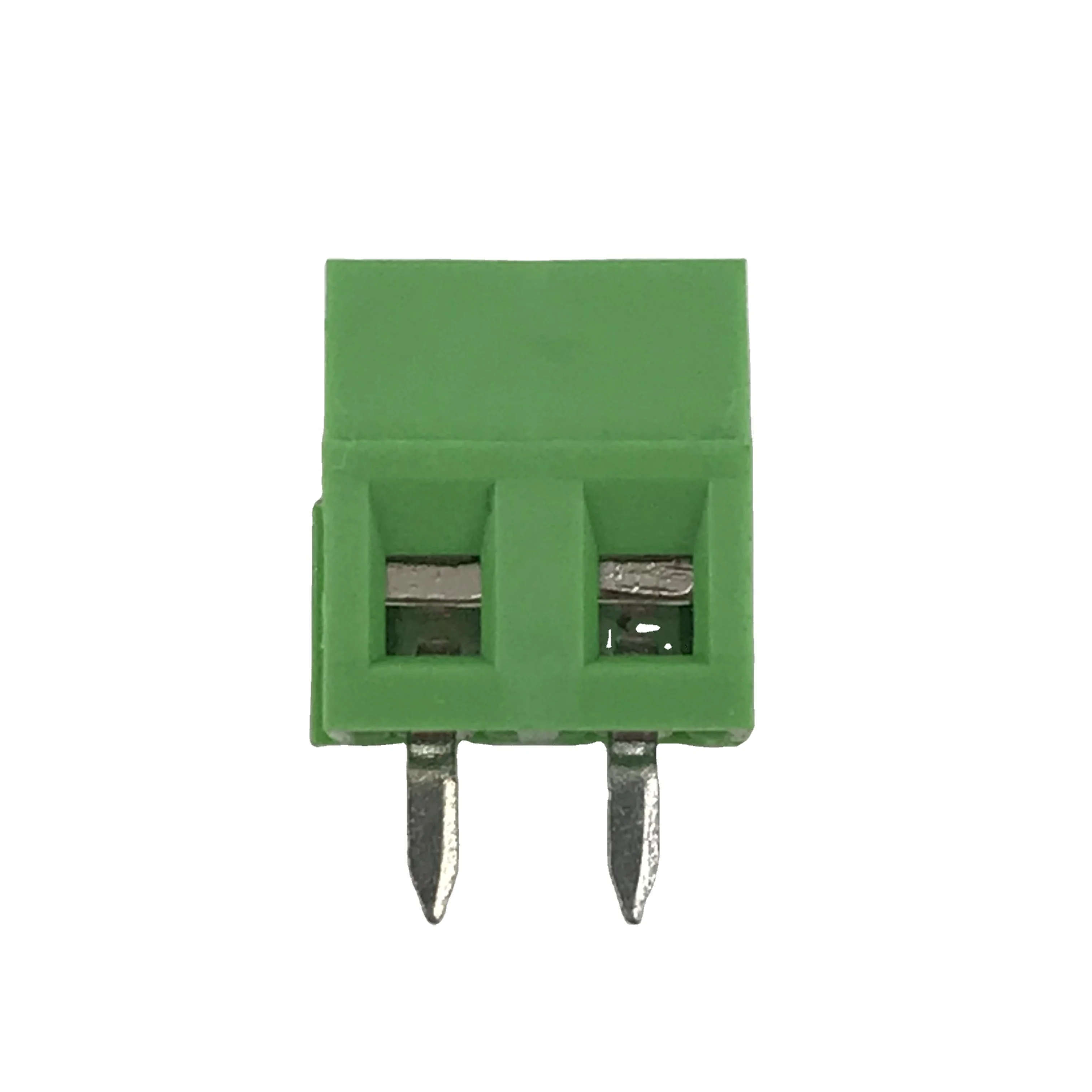

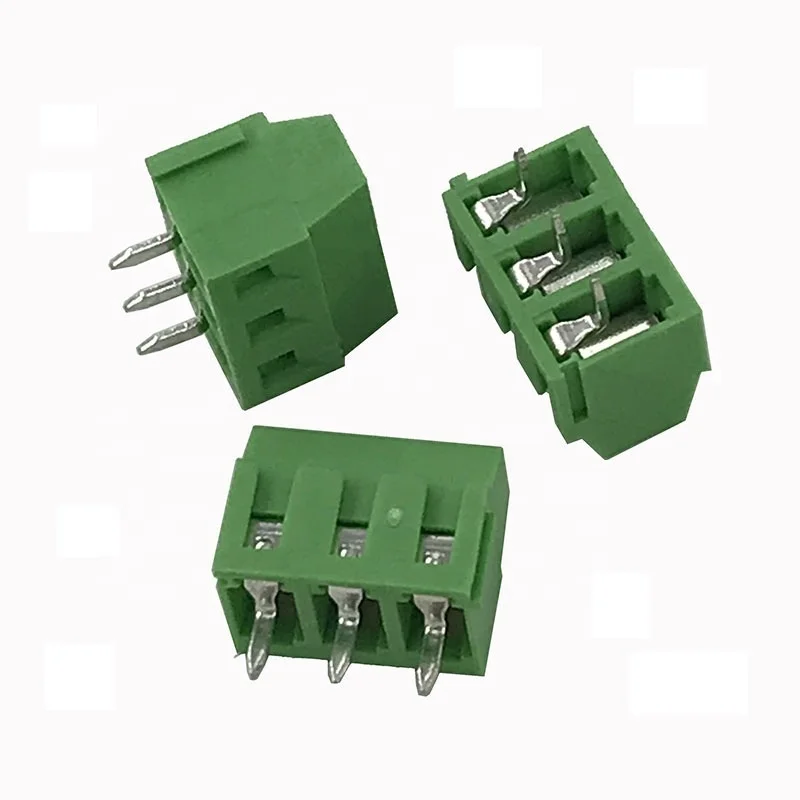

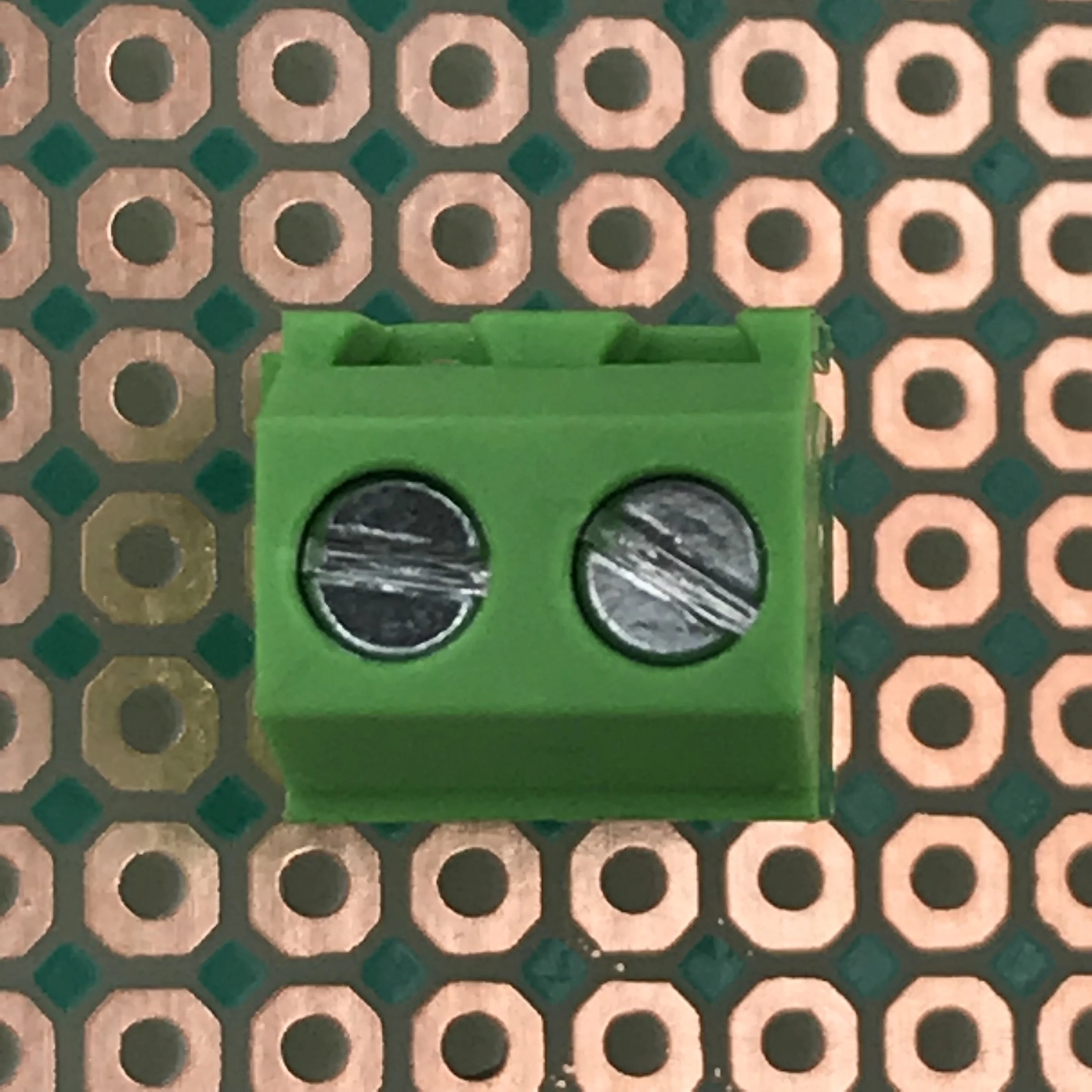

3,81 мм Шаг установленный pcb Винтовые клеммы разъема могут быть объединены в 2PIN 3PIN 4PIN XK128L 3.81MM
- Category: >>>
- Supplier: Cixi Xinke Electronic Technology Co. Ltd.
Share on (62012373978):
Product Overview
Description
Product Description

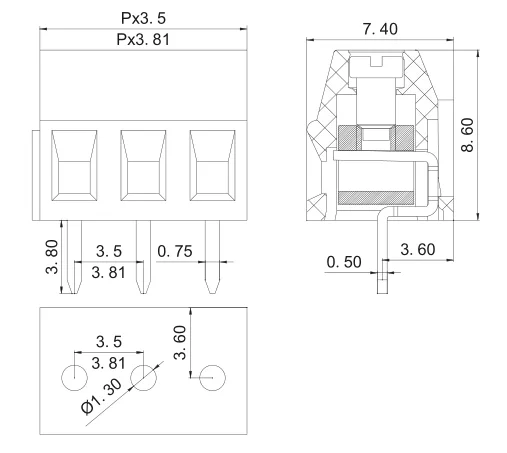

Pitch:3.81m;Poles:2P,3P;Rated Voltage/Current:300V/10A
| Plastic material: | PA66 |
| Welding needle: | copper |
| Screw: | M2 Steel |
| Rated voltage: | 300V |
| Rated current: | 10A |
| Wire range: | 26-16AWG 1mm2 |
| Withstanding voltage: | AC2000V/1Min |
| Temp.: | -40℃~+105℃ |
| Strip length: | 5-6mm |
| Maximum locking torque: | 0.2Nm(1.8lb-in) |
| Pitch: | 3.81mm |
Packaging & Shipping
The package of XINKE has the the unity of inner and outer packing.
Also special cartons can be made for the customer if have any requirements.
