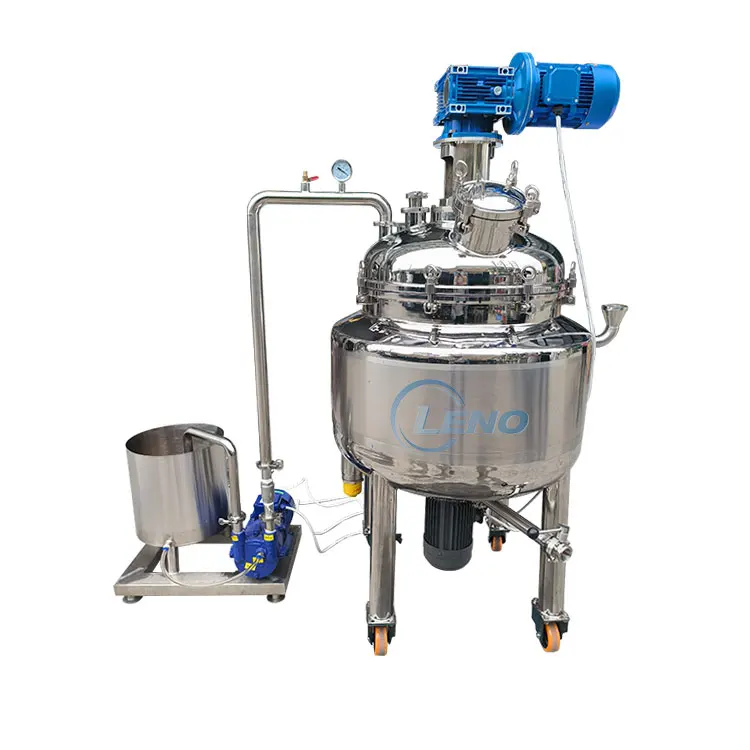

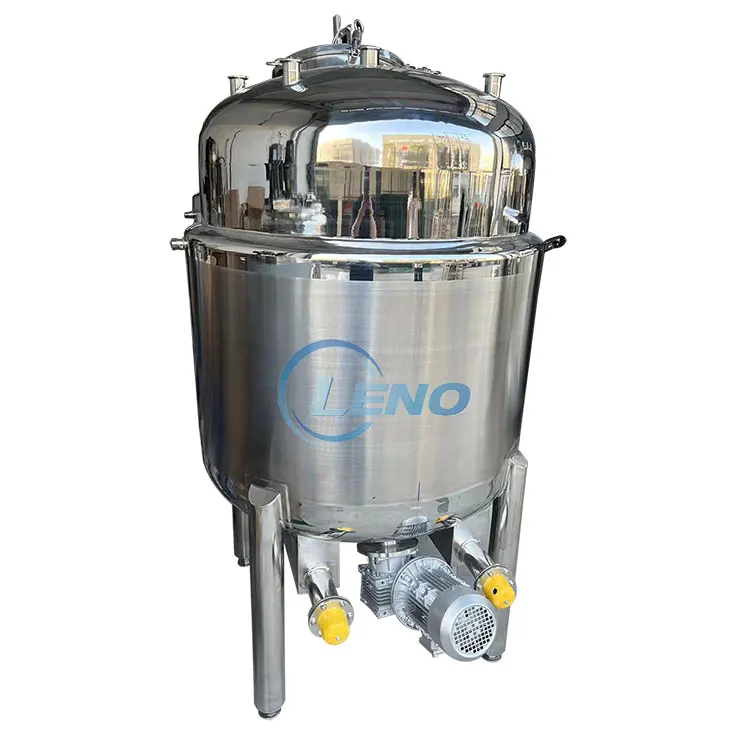

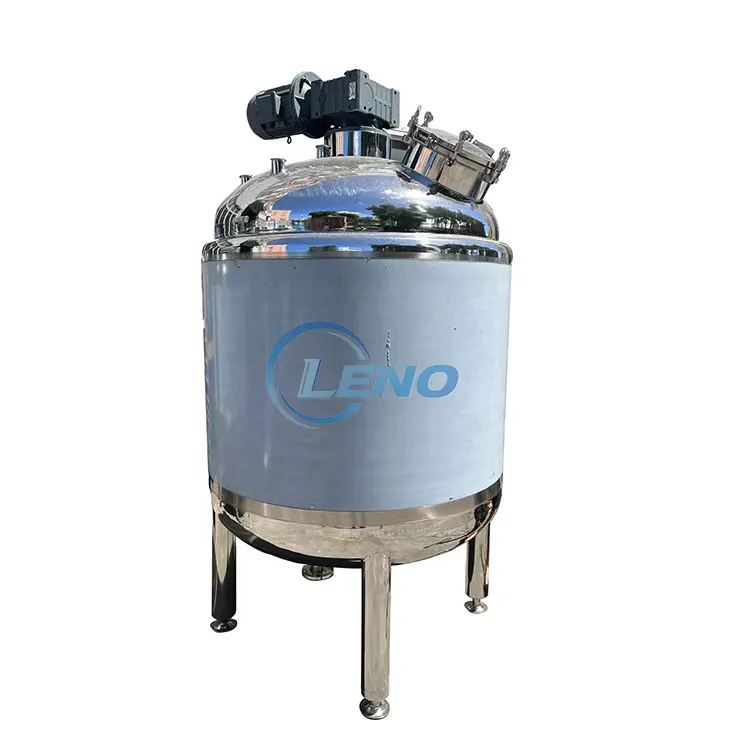

SS304 316 Double layers Cooling jacket hot water electrical heating heated jacket tank
- Category: >>>
- Supplier: Wenzhou Leno Machinery Co. Ltd.
Share on (62012378526):
Product Overview
Description

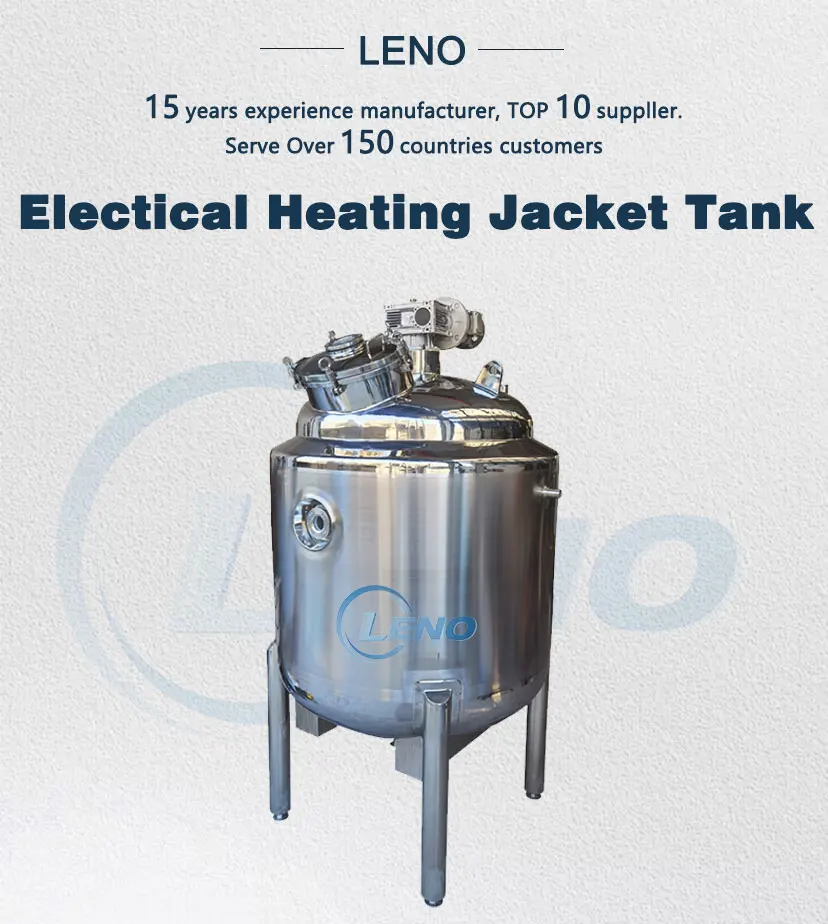

LENO electrical heating tank is a device used to heat and store water or other fluids for various purposes, such as domestic hot water supply, industrial processes, or space heating. The working process of an electrical heating tank typically involves the following steps:
1.Water Inlet: Cold water or the fluid to be heated is introduced into the tank through an inlet valve. The inlet is usually
located near the bottom of the tank to ensure that the entire volume of the tank can be filled.
2.Electric Heating Element: Inside the tank, there are one or more electric heating elements, usually made of a resistant
material like copper, stainless steel, or Incoloy. These heating elements are responsible for raising the temperature of the
water.
1.Water Inlet: Cold water or the fluid to be heated is introduced into the tank through an inlet valve. The inlet is usually
located near the bottom of the tank to ensure that the entire volume of the tank can be filled.
2.Electric Heating Element: Inside the tank, there are one or more electric heating elements, usually made of a resistant
material like copper, stainless steel, or Incoloy. These heating elements are responsible for raising the temperature of the
water.
3.Thermostat Control: The electrical heating tank is equipped with a thermostat, which monitors the temperature of the water inside the tank. When the temperature drops below the set point, the thermostat signals the heating elements to turn on.
4.Heating Process: When the thermostat detects that the water temperature is below the desired level, it allows electrical
current to flow through the heating elements. As a result, the elements heat up, transferring their heat to the surrounding
water.
5.Temperature Regulation: As the water heats up, the thermostat continuously monitors the temperature. Once the desired temperature is reached, the thermostat cuts off the electrical supply to the heating elements, preventing overheating.
6.Hot Water Outlet: When the water reaches the desired temperature, it is ready for use. The hot water can be drawn from the tank through a hot water outlet located near the top of the tank.
7.Insulation: Electrical heating tanks are typically well-insulated to minimize heat loss. This insulation helps keep the water
hot for an extended period, reducing the frequency of heating cycles and improving energy efficiency.
8.Safety Features: Modern electrical heating tanks often include safety features, such as a pressure relief valve to prevent
excessive pressure build-up, a temperature and pressure relief valve to protect against overheating, and sometimes a drain
valve for maintenance and emergencies.
The cycle repeats as the hot water is used and replaced by cold water through the inlet. The heating elements will continue to turn on and off as needed to maintain the set temperature, ensuring a steady supply of hot water for various applications.
4.Heating Process: When the thermostat detects that the water temperature is below the desired level, it allows electrical
current to flow through the heating elements. As a result, the elements heat up, transferring their heat to the surrounding
water.
5.Temperature Regulation: As the water heats up, the thermostat continuously monitors the temperature. Once the desired temperature is reached, the thermostat cuts off the electrical supply to the heating elements, preventing overheating.
6.Hot Water Outlet: When the water reaches the desired temperature, it is ready for use. The hot water can be drawn from the tank through a hot water outlet located near the top of the tank.
7.Insulation: Electrical heating tanks are typically well-insulated to minimize heat loss. This insulation helps keep the water
hot for an extended period, reducing the frequency of heating cycles and improving energy efficiency.
8.Safety Features: Modern electrical heating tanks often include safety features, such as a pressure relief valve to prevent
excessive pressure build-up, a temperature and pressure relief valve to protect against overheating, and sometimes a drain
valve for maintenance and emergencies.
The cycle repeats as the hot water is used and replaced by cold water through the inlet. The heating elements will continue to turn on and off as needed to maintain the set temperature, ensuring a steady supply of hot water for various applications.
Products Description
Product Paramenters
Modell | Effective volume(L) | Dimension of tank(D*H)(mm) | Heating power(Kw) | Motor power (kw) | Blending speed(r/min) | |||||
LNT-100 | 100 | Φ500*600 | 9 | 0.55 | As customers'requirement | |||||
LNT-200 | 200 | Φ600*700 | 12 | 0.75 | ||||||
LNT-300 | 300 | Φ700*700 | 18 | 0.75 | ||||||
LNT-500 | 500 | Φ800*900 | 24 | 1.1 | ||||||
LNT-1000 | 1000 | Φ1000*1200 | 36 | 2.2 | ||||||
LNT-2000 | 2000 | Φ1200*1500 | 64 | 4.0 | ||||||
We can customize the equipment according to customers' requirment. | ||||||||||

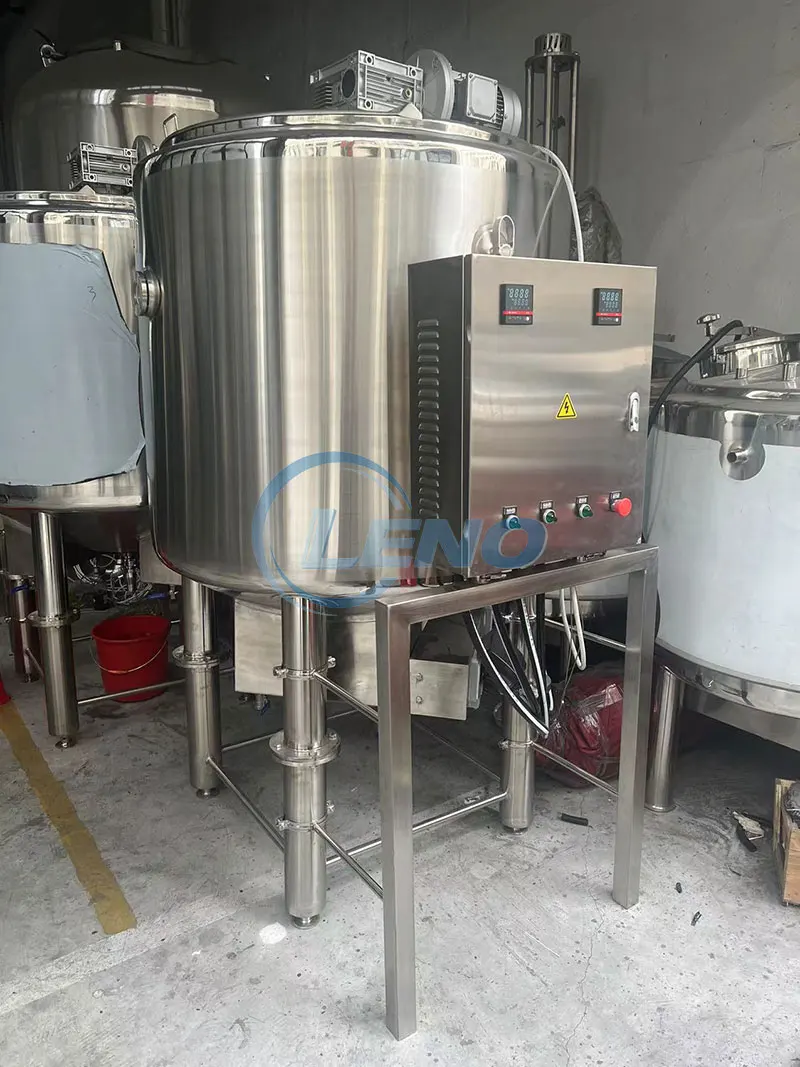

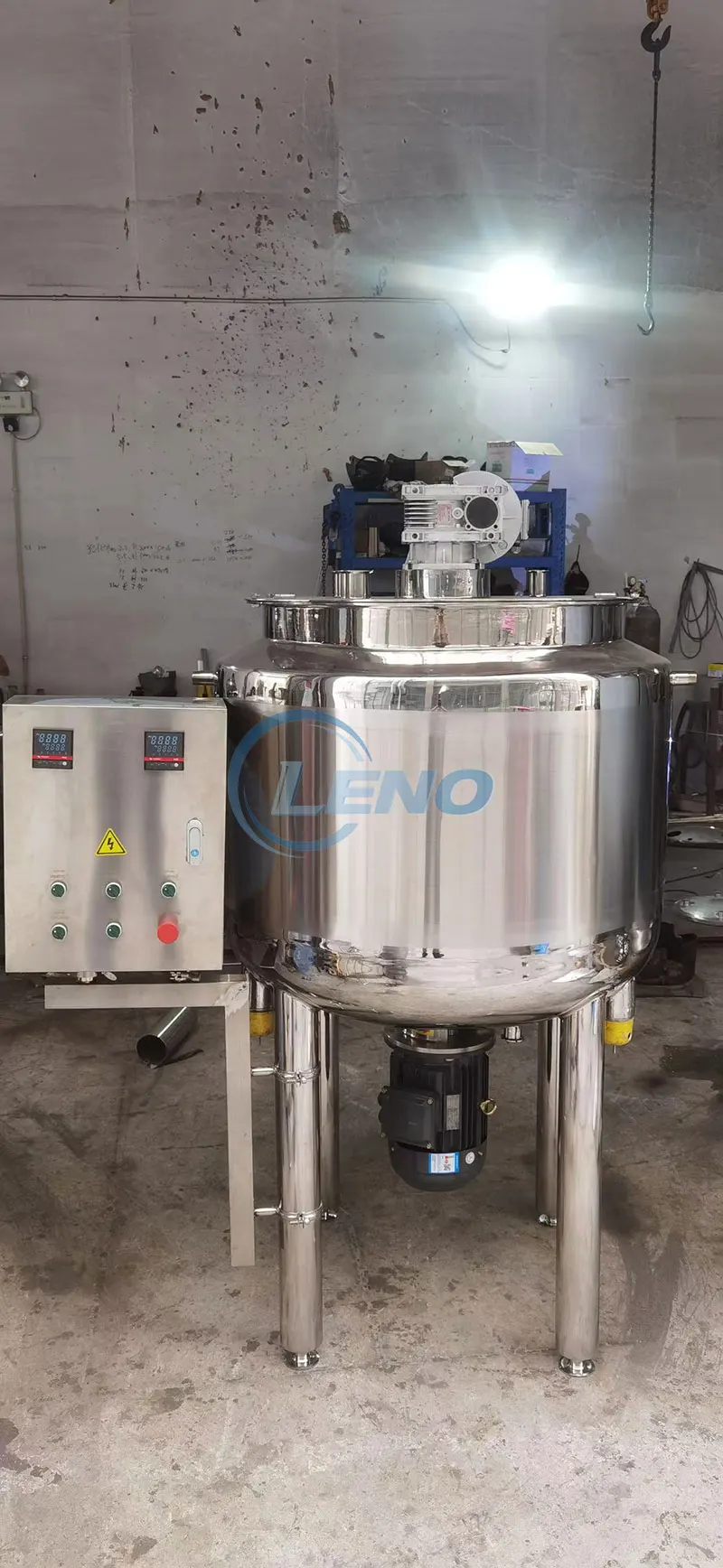

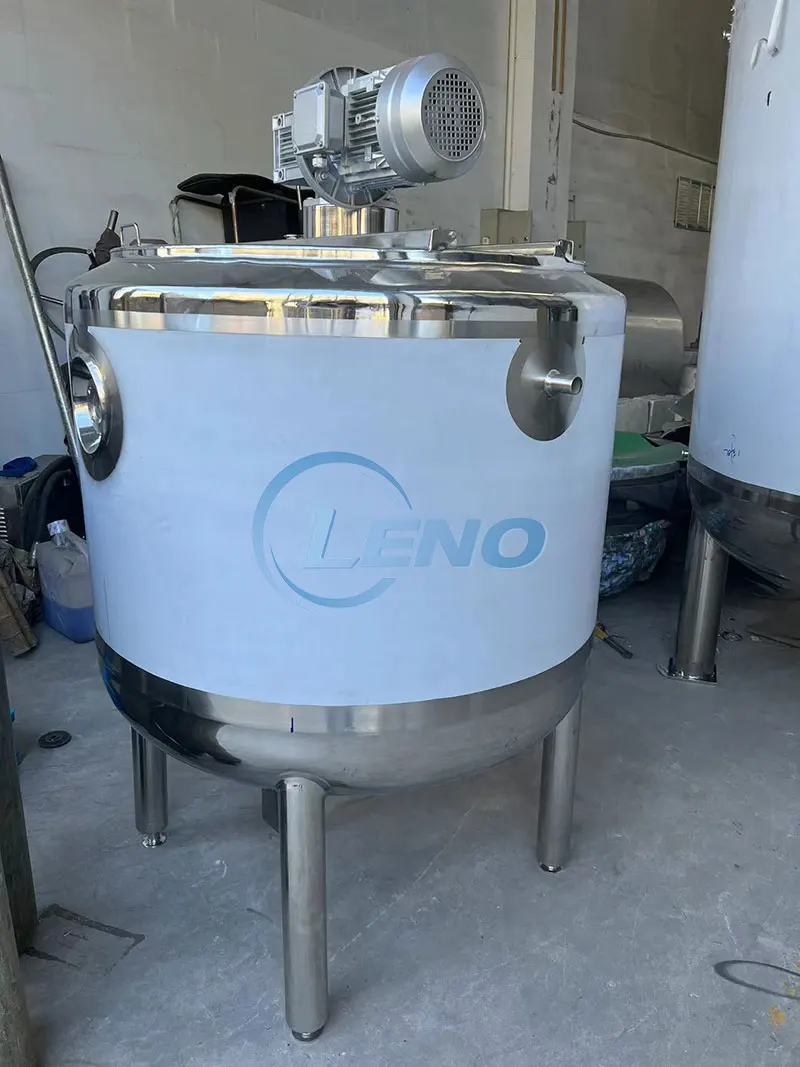

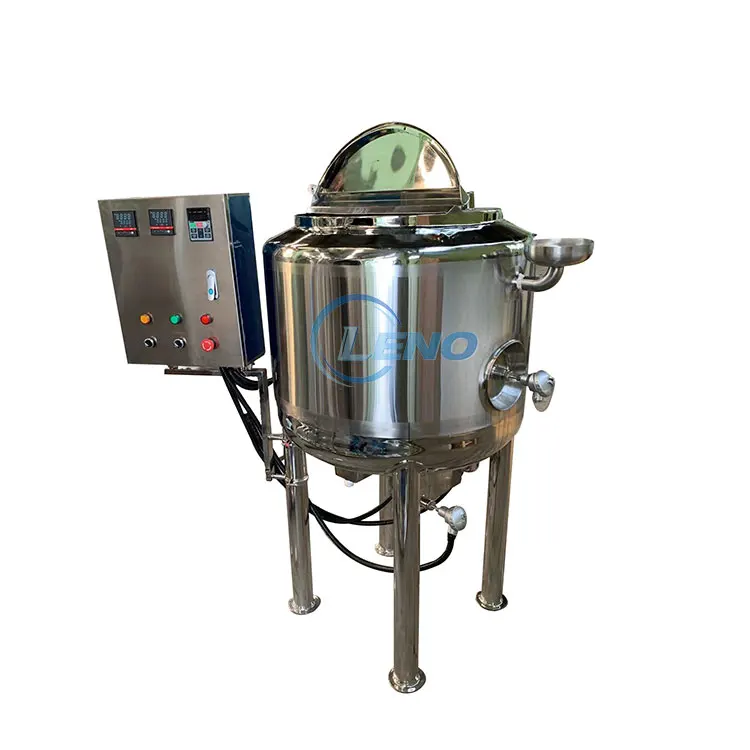

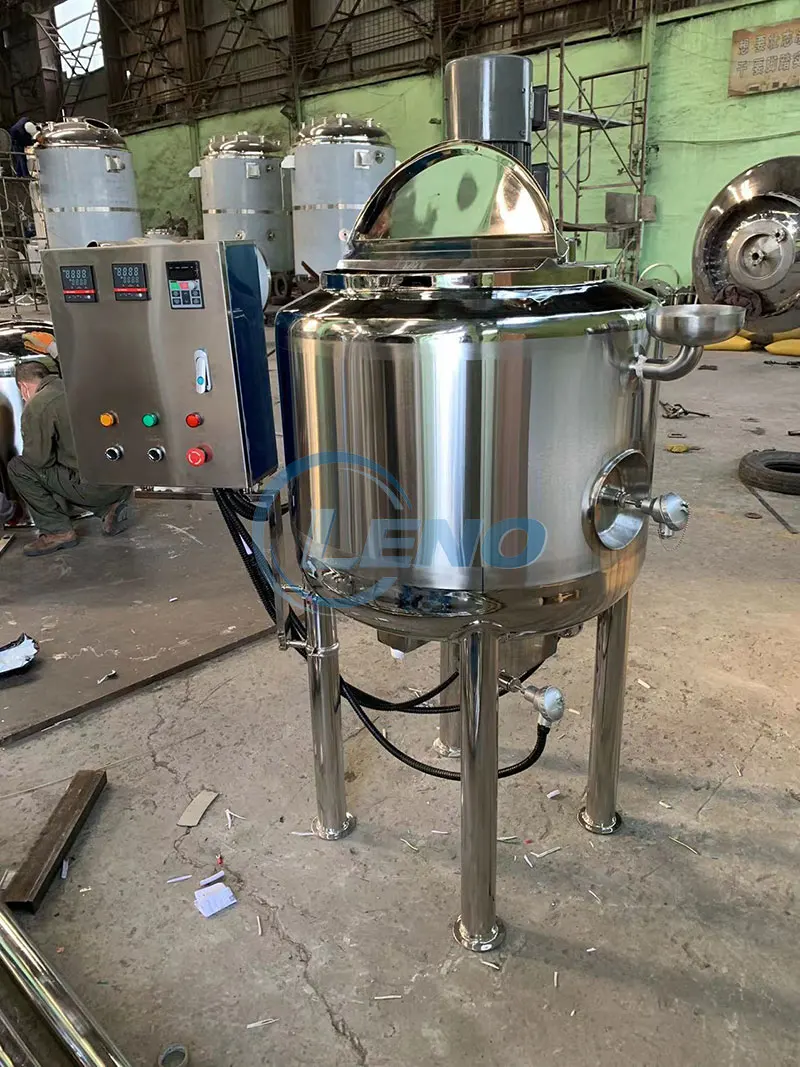

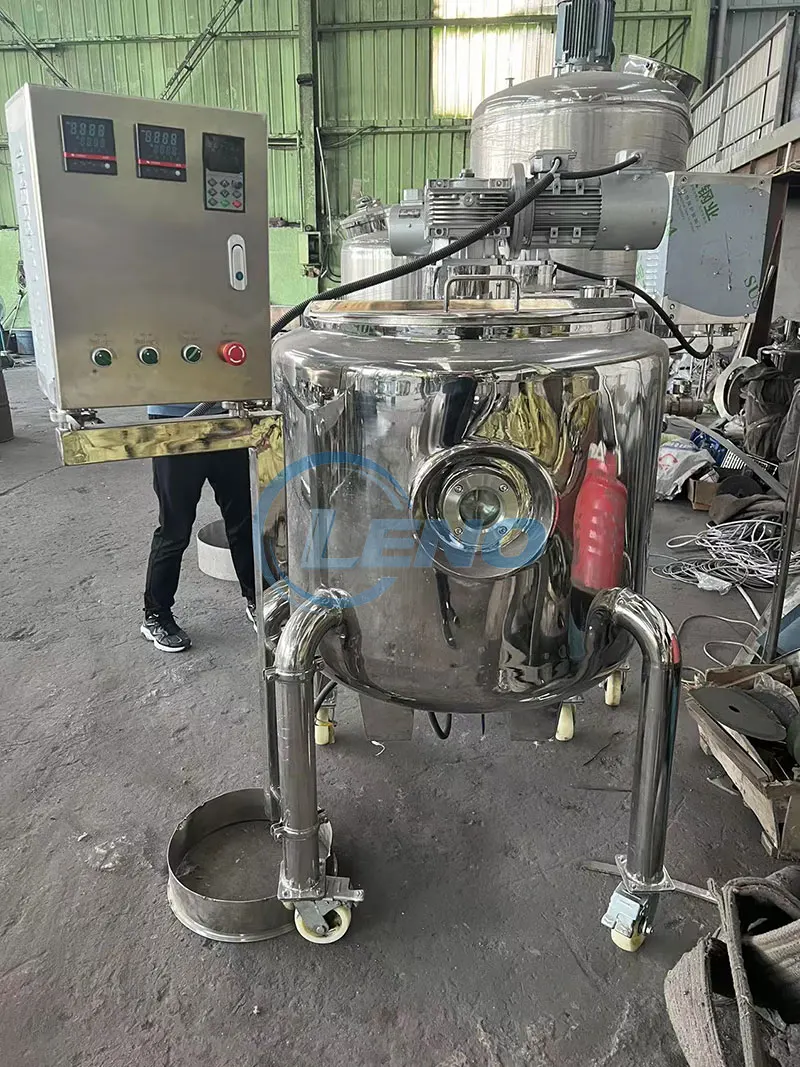

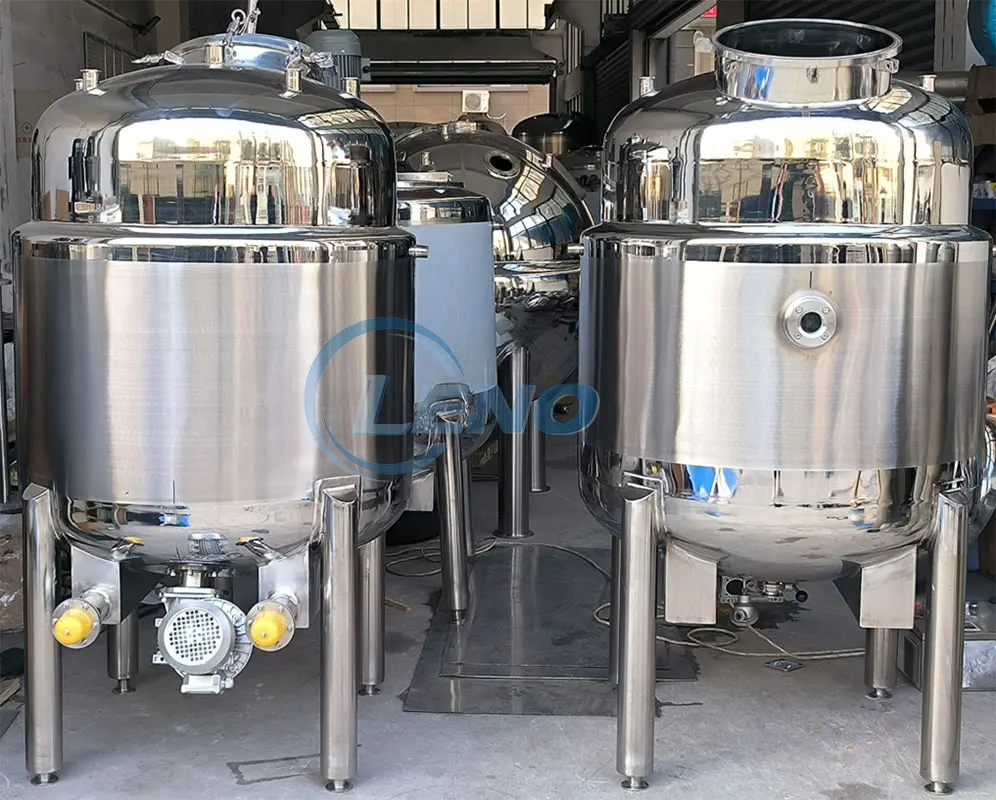

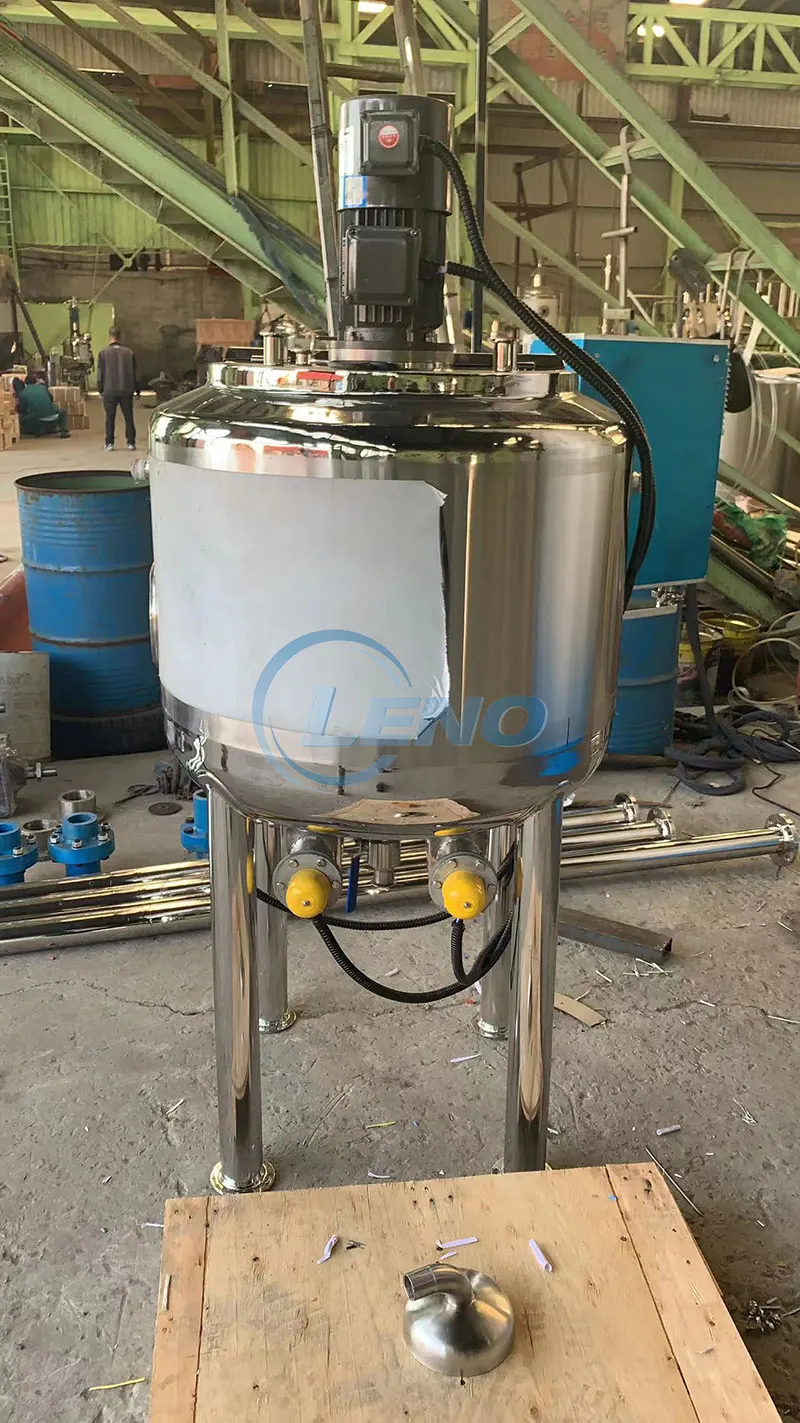

Product Image

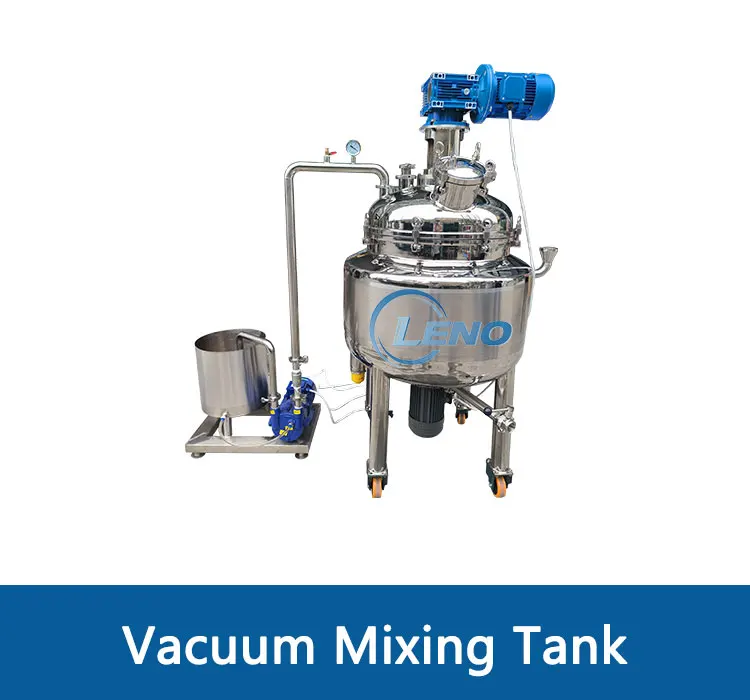

Recommend Related Products
Various kinds of the mixers showing

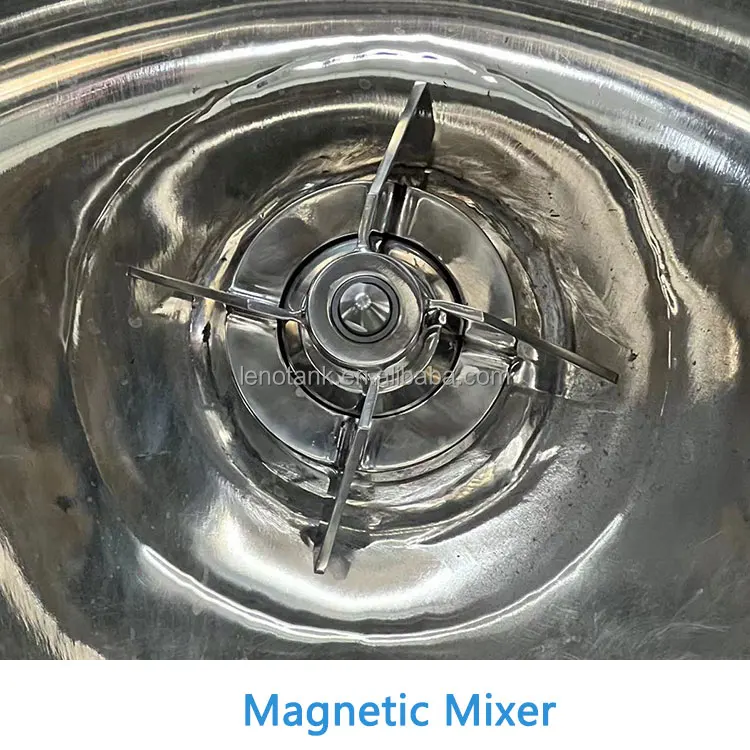

LENO magnetic agitator is a type of mixing equipment that uses a magnetic field to rotate a magnetic stir bar inside a container. The stir bar is typically made of a magnetic material, such as PTFE -coated neodymium, and is placed inside the container along with the material being mixed.

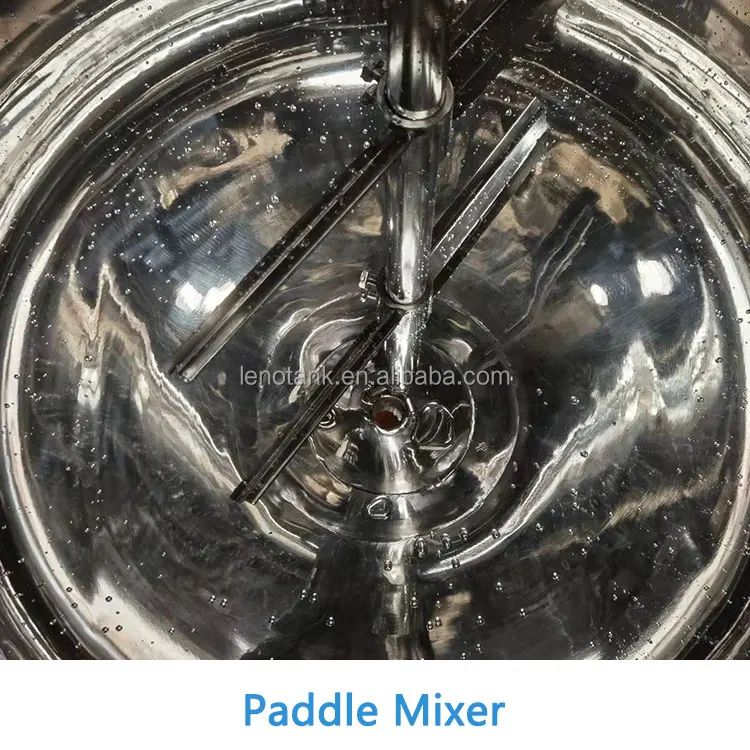

LENO paddle mixer is a type of mixing equipment used in various industries to blend dry powders, granules, and other solid materials. The mixer consists of a large, rotating agitator, called a paddle, that moves the material around inside the mixer. The paddles are typically shaped like wings or blades, and they move the material in a tumbling motion, creating a gentle yet effective blending action.

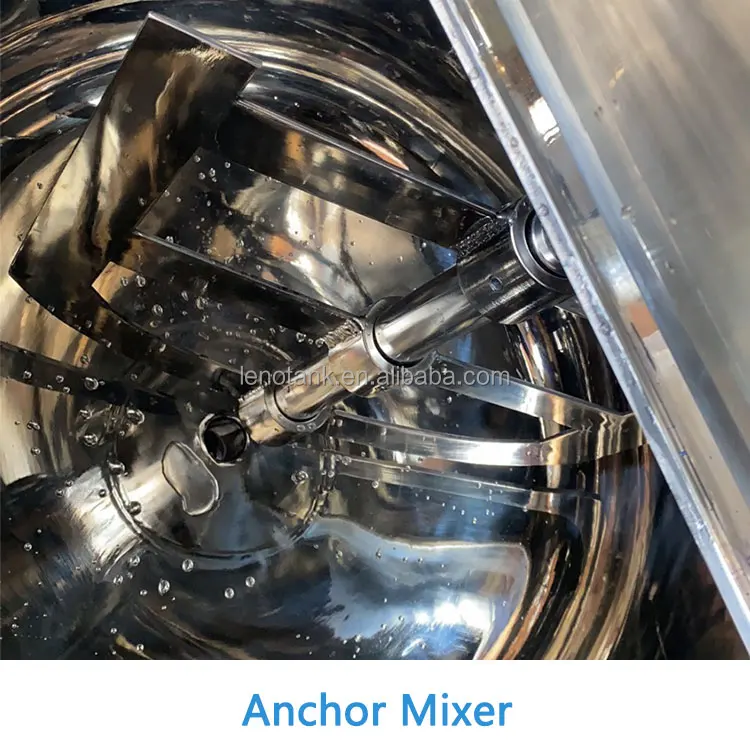

LENO anchor agitator is a type of mixing equipment used in various industrial applications to blend viscous liquids and pastes. The agitator consists of a central shaft with several blades, or anchors, attached to it. The anchors are typically flat, rectangular or trapezoidal in shape, and are positioned perpendicular to the shaft. As the shaft rotates, the anchors move the material around in a scraping motion, creating a mixing action that ensures thorough blending of the ingredients.

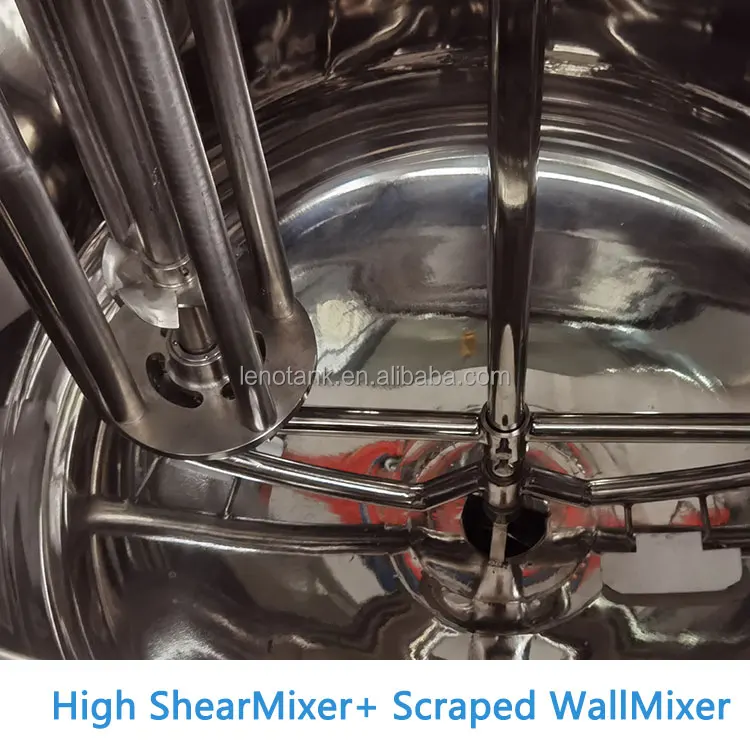

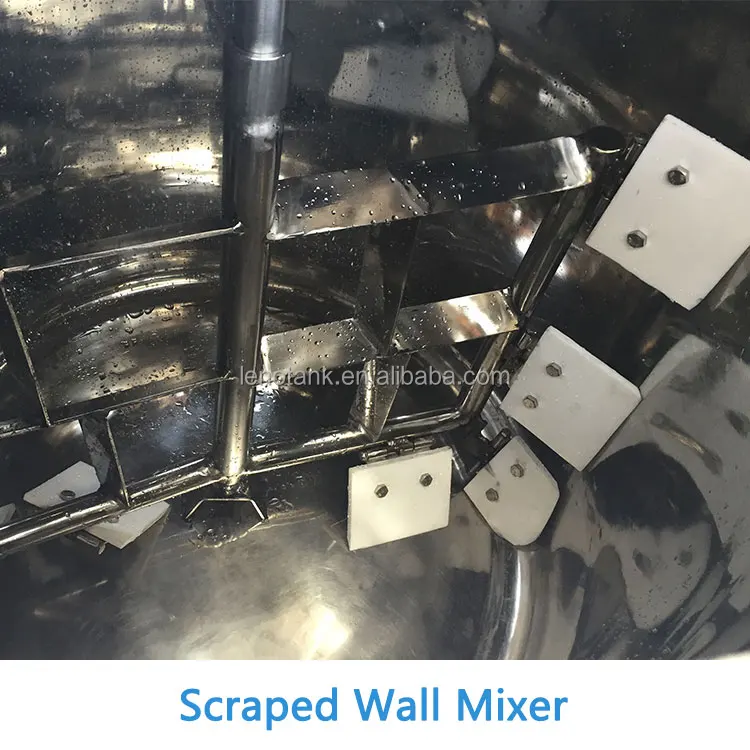

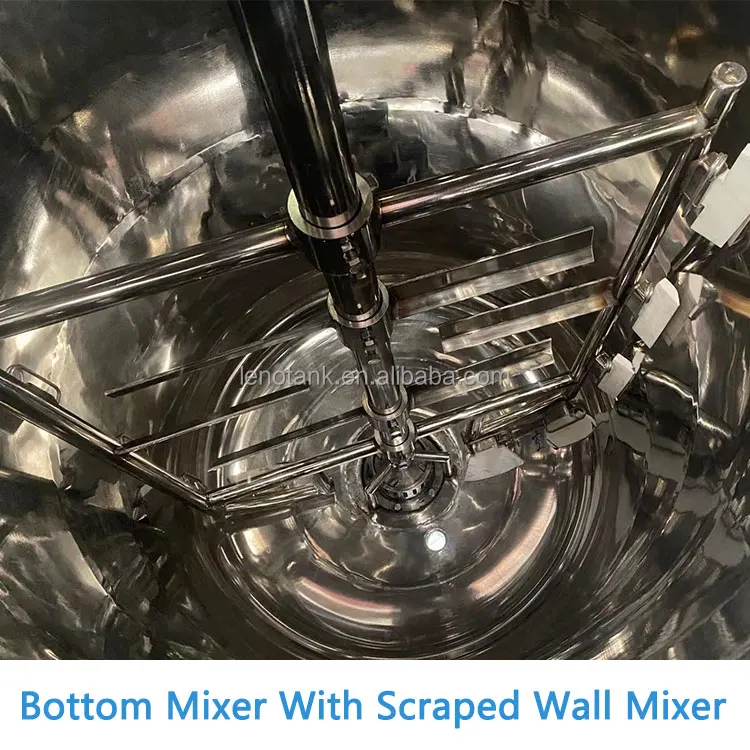

LENO scraped wall agitator is a type of mixing equipment used in various industrial applications to blend high viscosity materials, such as creams, gels, pastes, and ointments. The agitator consists of a central shaft with several blades, or scrapers, attached to it. The scrapers are typically rectangular or trapezoidal in shape, and are positioned parallel to the shaft. As the shaft rotates, the scrapers move along the wall of the mixing vessel, scraping off the material and ensuring that it is thoroughly mixed.
LENO high shear mixer is a type of mixing equipment used in various industrial applications to blend and emulsify
materials. The mixer consists of a rotor and stator assembly, which work together to create a high shear force that breaks down particles and blends the material into a uniform mixture.
materials. The mixer consists of a rotor and stator assembly, which work together to create a high shear force that breaks down particles and blends the material into a uniform mixture.

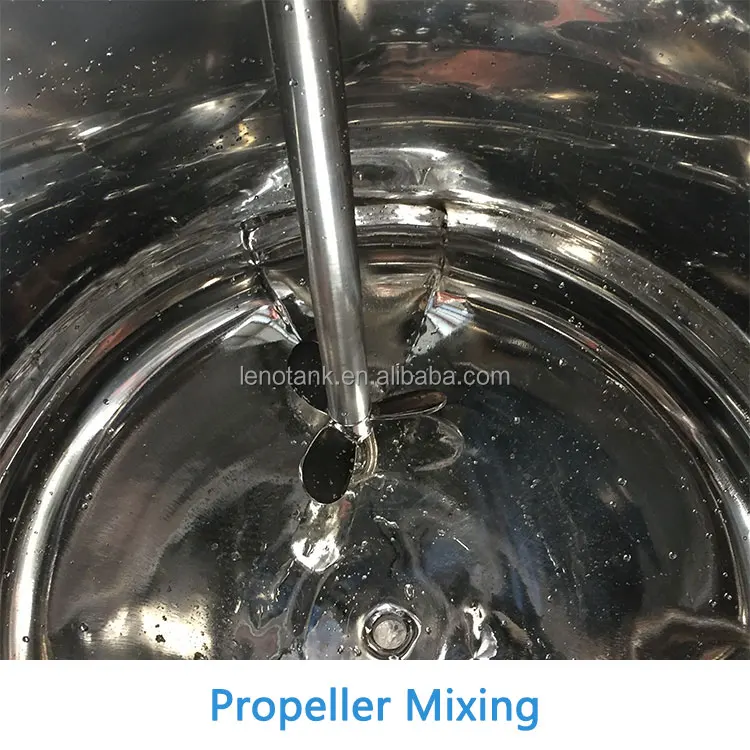

LENO propeller agitator is a type of mixing equipment used in various industrial applications to blend low to medium viscosity liquids. The agitator consists of a central shaft with several blades, or propellers, attached to it. The propellers are typically flat, curved, or angled in shape, and are positioned perpendicular to the shaft. As the shaft rotates, the propellers create a flow pattern that circulates the material and blends it together.

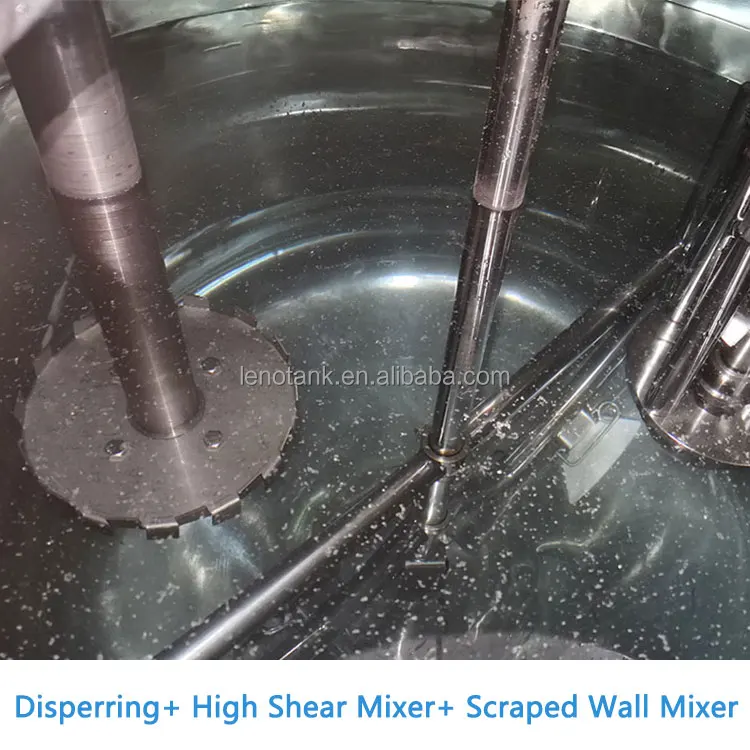

LENO dispersing mixer is a type of mixing equipment used in various industrial applications to disperse, homogenize and agglomerates materials. The mixer consists of a rotor-stator assembly, which works together to create a high shear force that breaks down particles and blends the material into a uniform mixture.
LENO spiral mixer is a type of mixing equipment used in commercial bakeries and food processing industries for mixing dough. The mixer has a unique design that uses a spiral-shaped dough hook to mix the ingredients together.
LENO spiral mixer is a type of mixing equipment used in commercial bakeries and food processing industries for mixing dough. The mixer has a unique design that uses a spiral-shaped dough hook to mix the ingredients together.
LENO Provide Different Jacket types
LENO Dimple jacket, also known as a dimple pad, is a type of external heat transfer surface commonly used in the construction of tanks and vessels. It consists of a series of small depressions or dimples formed on the outer surface of the tank.
LENO the water jacket(Whole jacket) is typically made of a durable and corrosion-resistant material such as stainless steel or copper. It is designed to withstand the pressure and temperature requirements of the specific application
LENO Half Piper Jacket, also known as a half pipe coil or half pipe casing, is a type of jacket used in industrial equipment and vessels
for heat transfer purposes. It consists of a semi-cylindrical pipe or channel that is attached to the outer surface of the
equipment.
for heat transfer purposes. It consists of a semi-cylindrical pipe or channel that is attached to the outer surface of the
equipment.
(Please Note Some Mixing Tank suppliers Quote the cheap price with dimple jacket, Material also could be SS201)
