80A MPPT 100A MPPT Voltronic VM Hybrid solar inverter 5000VA 3200VA with maximum 500VDC PV input voltage
- Category: >>>
- Supplier: Shenzhen Sunray Power Co. Ltd.
Share on (62012434140):
Product Overview
Description
80A or 100A MPPT Voltronic VM Hybrid solar inverter 5000w 3200w with maximum 500VDC PV input voltage
Product Description
Feature
•High efficiency pure sine wave inverter(PF=1);
• Wide PV input range(120Vdc--500Vdc)80A MPPT SCC;
•Surges to 2X continuous power for 5 seconds for motor loads.
• Intelligent functionality enables utility and solar input prioritication
•Wide utility input range(90Vac--280Vac)for unreliable grid even
• In the most challenging environments.
• Field serviceable with replacement boards and spare parts.
• Monitor,troubleshoot,or communication with USB/RS232.
•System configures quickly into compact,wall-mounted system.
• Working without batteries in sun day
Product Parameters
| Model No. | MPS-V-3000-24V | MPS-V-5000-48 | |
| Rated power | 3200VA /3200W | 5000VA /5000W | |
| Input | voltage | ||
| selectable voltage range | 170-280VAC(For Personal Computers) 90-280Vac(For Home Appliances) | ||
| Frequency range | 50Hz/60Hz(Auto Sensing) | ||
| Output | AC voltage regulation (Batt.mode) | 230VAC ±5% | |
| Surge power | 6000VA | 10000VA | |
| Efficiency (peak)PV to INV. | 97% | ||
| Efficiency (peak)Battery to INV. | 94% | ||
| transfer time | 10 ms(For Personal Computers);20ms(For Home Appliances) | ||
| waveform | Pure sine wave | ||
| Battery&AC charger | battery voltage | 24VDC | 48VDC |
| floating charge voltage | 27VDC | 54VDC | |
| overcharge protection | 33VDC | 63VDC | |
| maximum charge current | 80A | 60A | |
| Solar charger | MAX PV array power | 4000W | |
| MPPT range@ operating voltage | 120~450VDC | ||
| maximum PV array open circuit voltage | 500VDC | ||
| maximum charging current | 80A | ||
| maximum efficiency | 98% | ||
| Physical | Dimension, D*W*H(mm) | 100x300x400 | |
| Net weight (kgs) | 9 | 10 | |

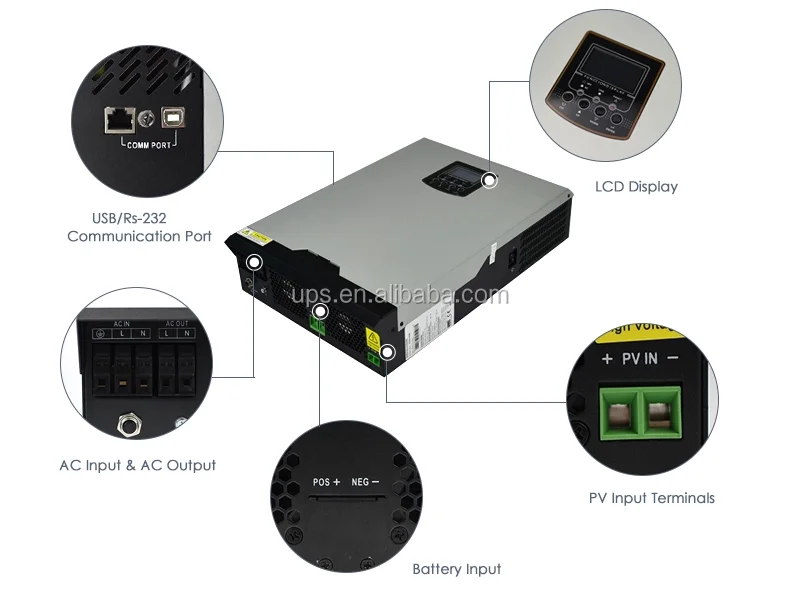

| Communication interface | USB/RS232 | ||
| operating Environment | humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| operating temperature | 0℃-55℃ | ||
| storage temperature | -15℃-60℃ | ||
