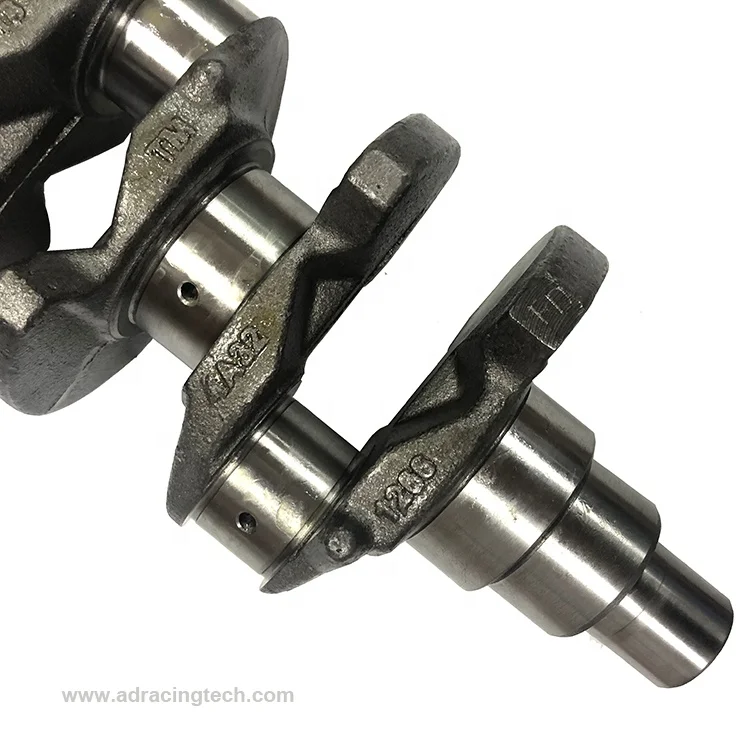

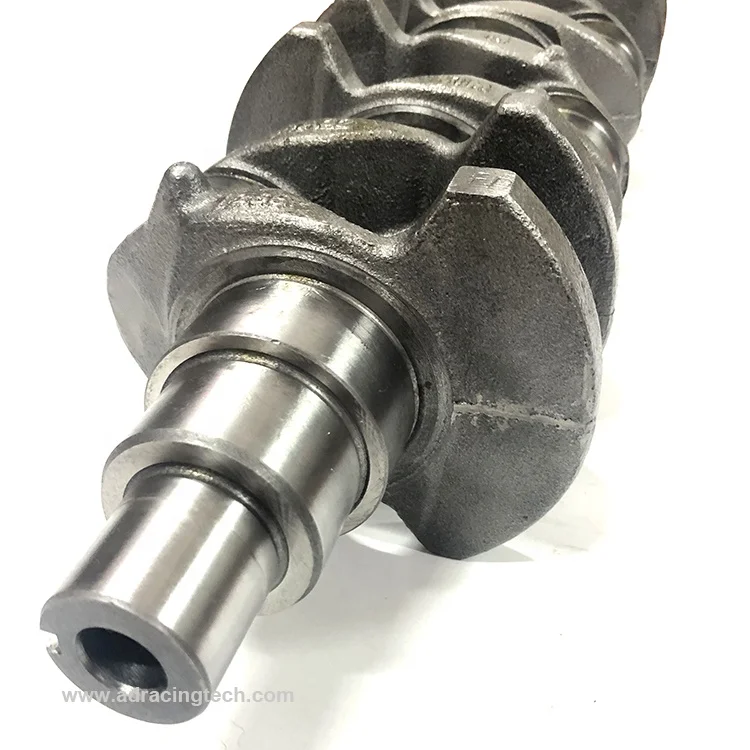

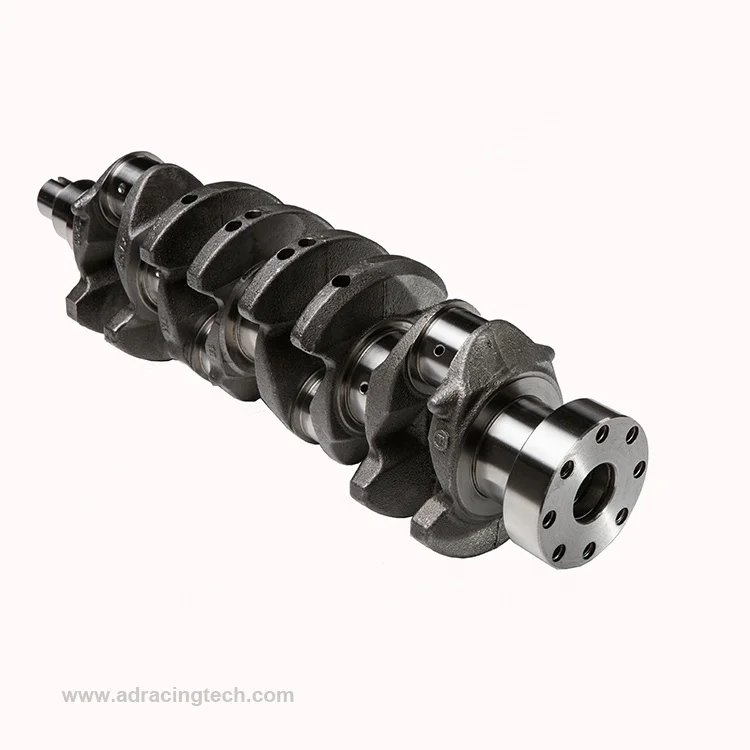

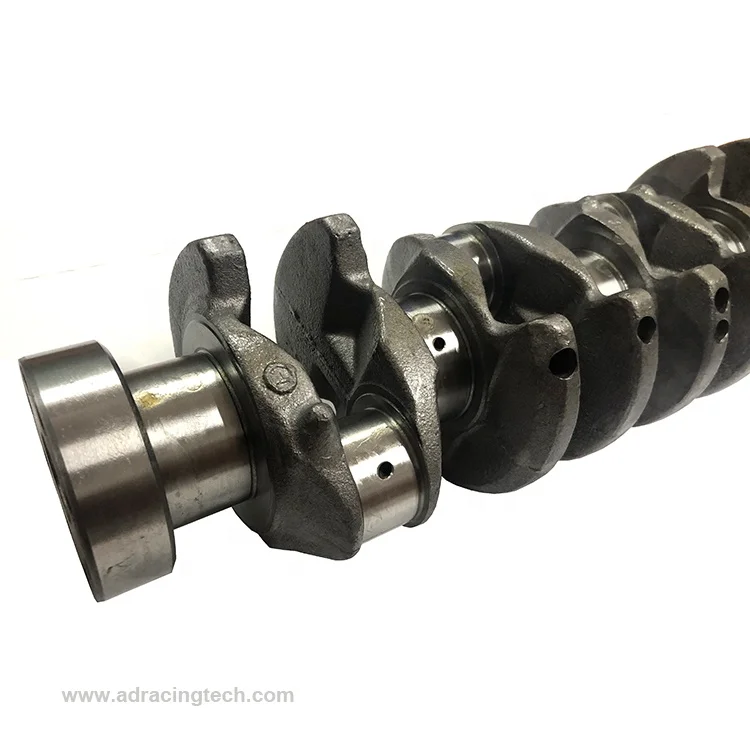

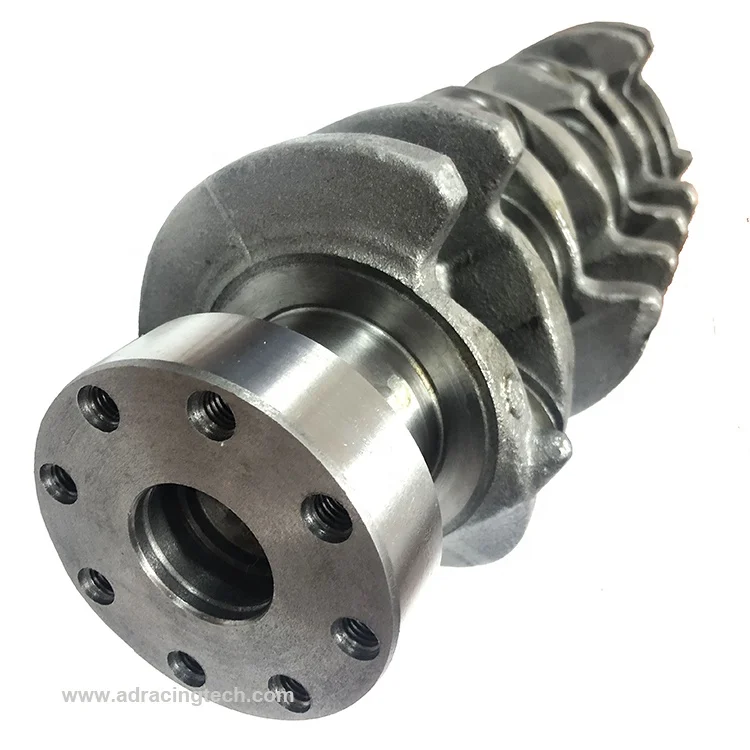

Stock 86mm Stroke Casting Crankshaft For Volvo 240 B230 Crankshaft

Product Overview

Description

Stock 86mm Stroke Casting Crankshaft For Volvo 240 B230 Crankshaft





For Volvo B230 Crankshaft Specifications





Brand:Adracing
Application(s)	For Volvo 240/740/940 Crankshaft
Engine(s)	B230
Material	Casting Steel
Stoker	86mm
Main Journal Diameter	63mm
Rod Journal Diameter	49mm





Technical Features



- Full CNC Machining

- Multi-step heat treatment process

- Knife-edged counterweights

- Gun drilled crank pin and counterweights to reduce weight and rotating mass

- Micro-polishing for longer bearing life

- Heating treatment:HRC34-38

- Peening treatment will be done after balance weight

- magnetic flaw detecting will be done according to standard JB/76729-93











Difference between Forged steel crankshaft and billet crankshaft:



- Forged steel crankshaft need to machine balance hole to keep good balance result

- Billet Crankshaft can get good balance by different design on counterweight. and Surface on counterweight will be more beautiful







Custom Service

- Our main business is to supply customized service

- we supply customized service based on your sample or drawing

- Price can be estimated if you can send Stroke--rod journal--rod journal width--main journal--main journal width--total length--fan plate bore--width between fan plate bore and photo



Delivery Time

- If the goods are in stock,the delivery time is 1-3 days

- If the goods are not in stock,the delivery time is 80-90 days
