Китай, AIGER ZYT 2 дюйма/3 дюйма/4 дюйма, очистка воды, сельское хозяйство, диск для орошения, фильтр Mahine

The AIGER Disc filter has a highly efficient backwash, automatic continuous production. Low water consumption and a compact design, the system alters its backwash cycle automatically between units to ensure constant output and minimal pressure loss.

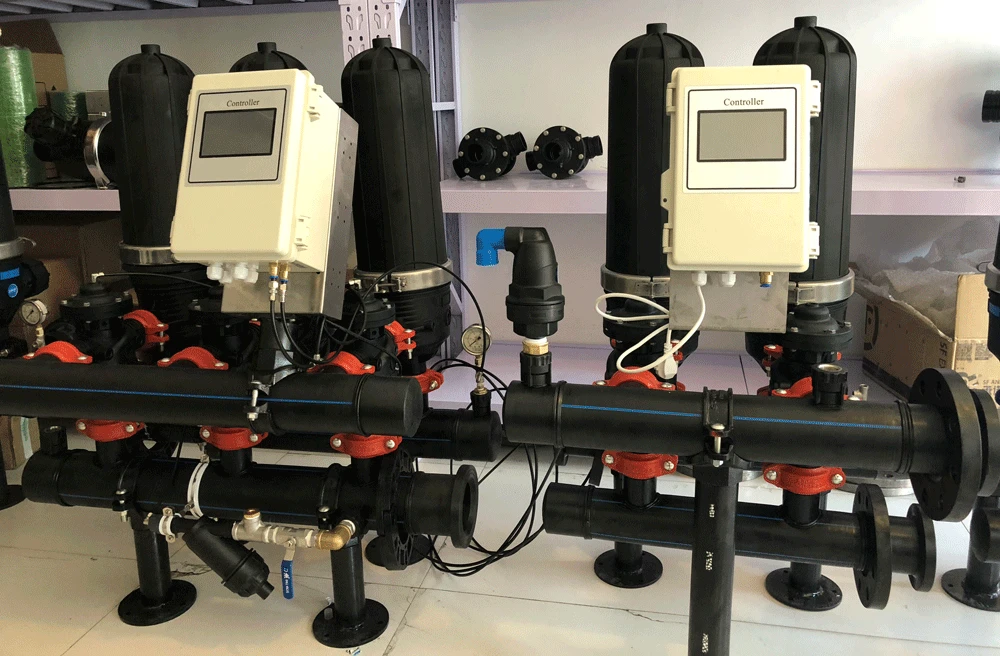

Automatic disc filter system with disc filtering element with 2"/3"/4" backwash valve,manifolds,controller.Easy to install.Automation available in 220V.

1.Fully automatically continuous on-line self cleaning;low water consumption;Compact design;Low pressure loss.

2.Optimizes the performance and minimizes the frequency of maintenance.
3.Maximum saving of water with efficiency in backwashing.
4.Disc filter system is per-assembled and easy to operate.
5.Modular configuration allows design according to customer preference or space availability.
6.Different anticorrosion material will be used according to environmental condition.

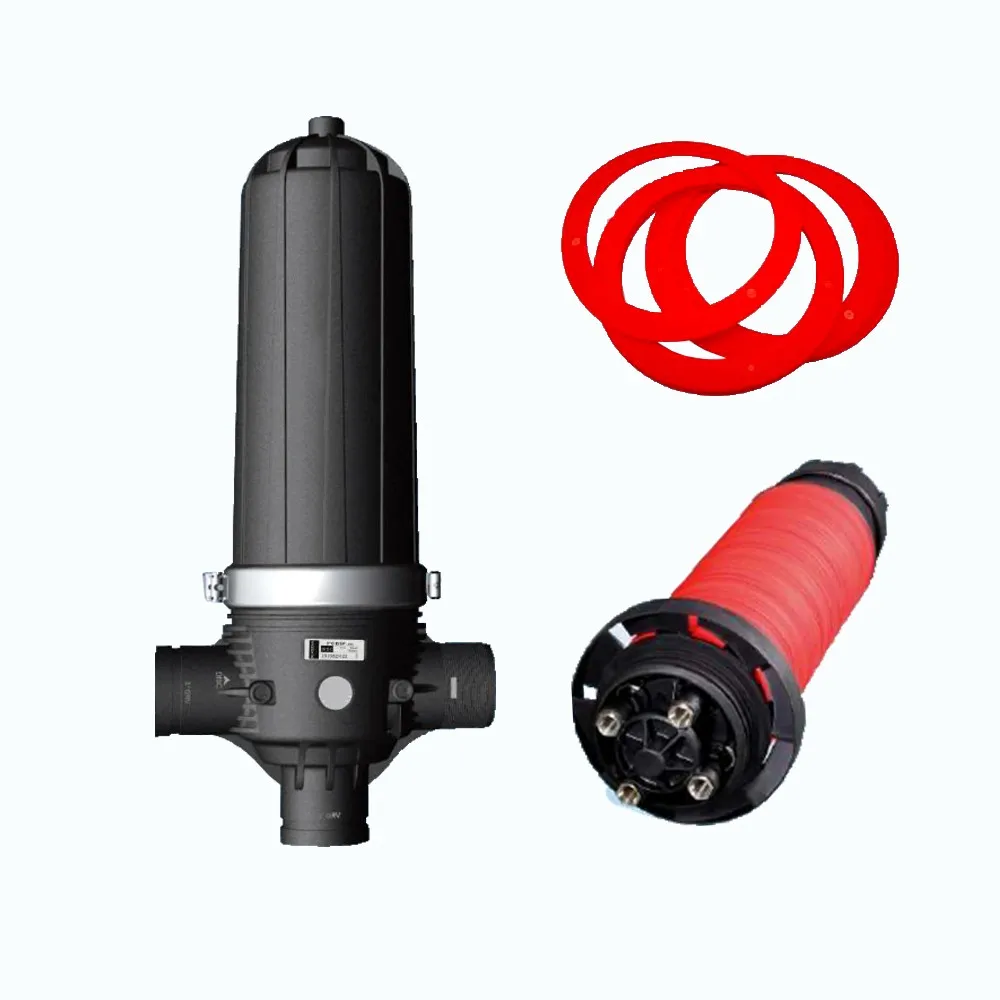

There are thin grooves on the surface of the discs; the grooves in opposite direction between vicinity discs then make many crossed points. The numbers of crossed points are different along with different disc precision. The crossed points form many chamber and irregular channels will intercept suspending particles better by the next crossed point after they are skipped from the previous crossed points.

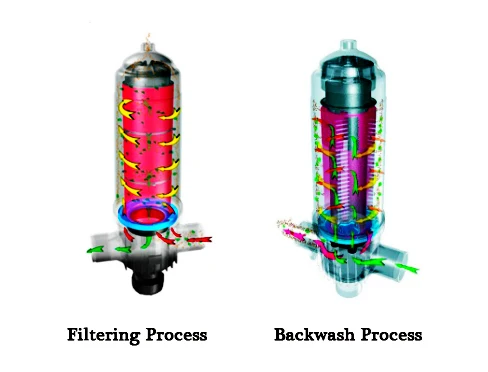

When there are many impurities accumulated in the grooves between discs, the disc filter will change water direction of inlet and outlet, compressed discs will open automatically and compressed water will inject to discs and rotate the discs quickly. The discs will be cleaned through injecting water and fast rotating. Then the filter will change water direction again to renew filtration status.

Technical parameters

A500 self cleaning filter
