Heavy Duty GW50 Manual Rebar Bending Machine Steel Rod Bender
- Category: Rebar Bending Machine >>>
- Supplier: Henan Landao Machinery And Equipment Co. Ltd.
Share on (62012510410):
Product Overview
Description

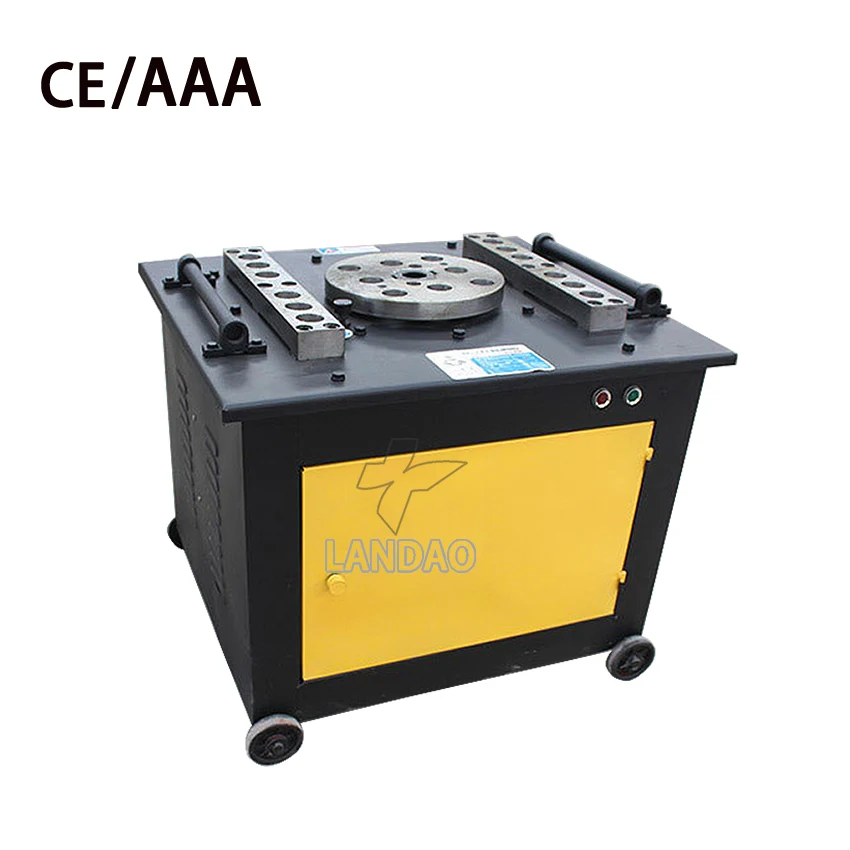

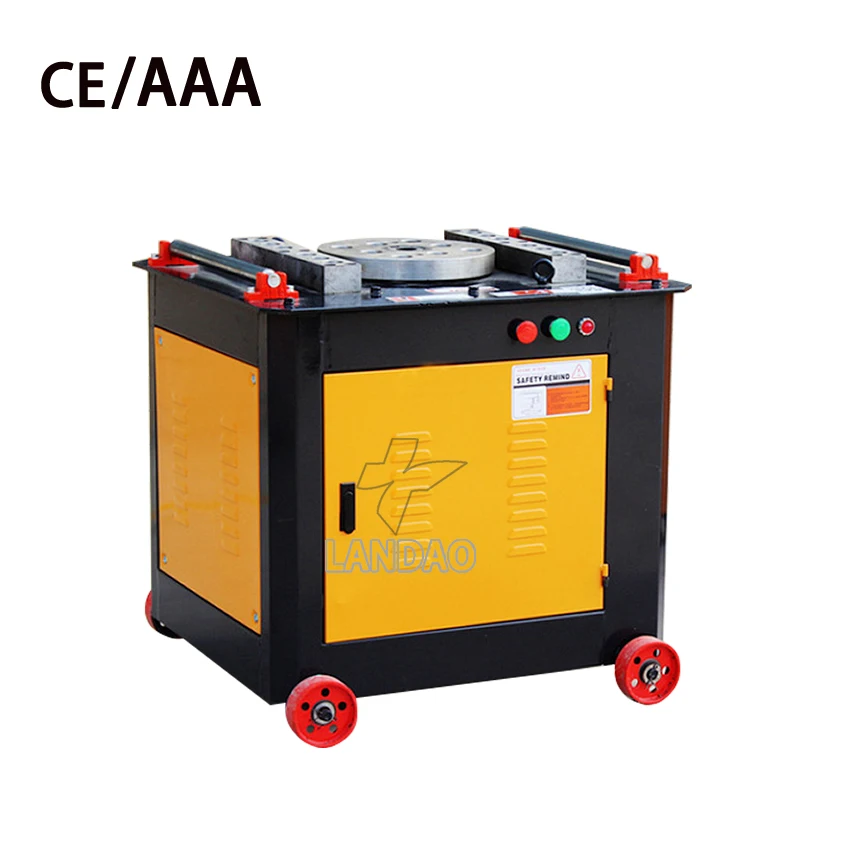

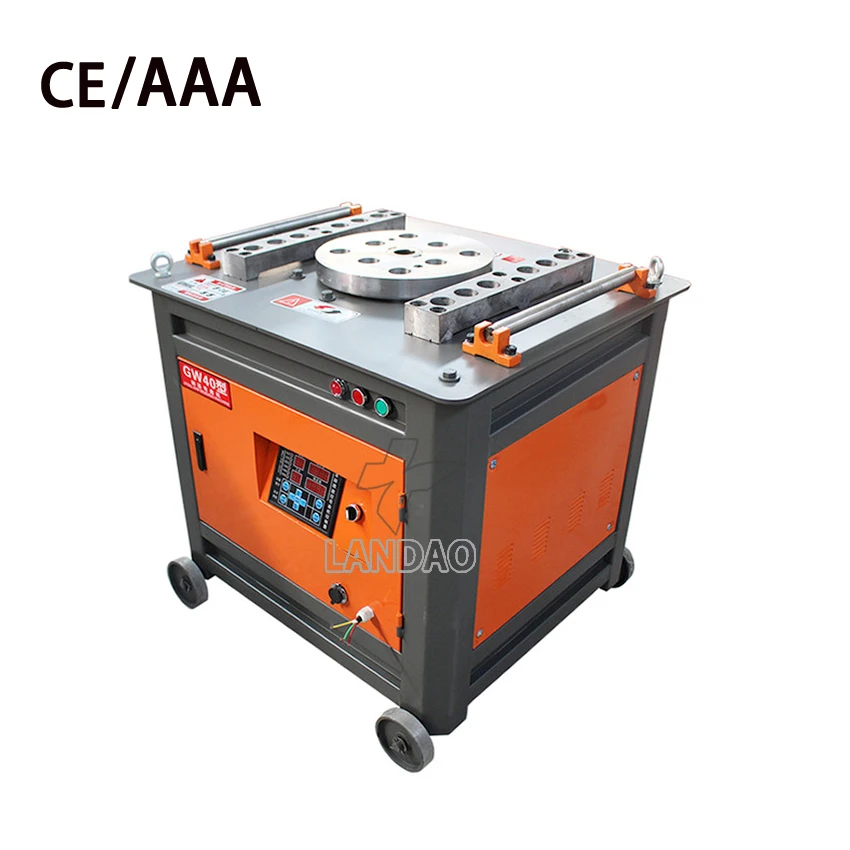

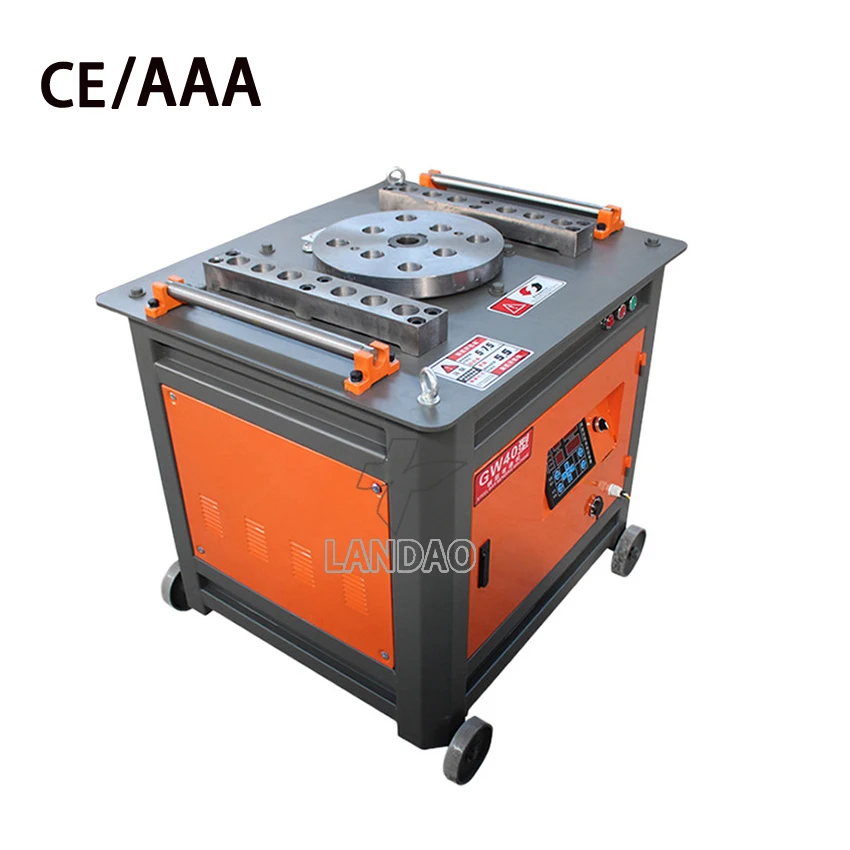

Heavy Duty GW50 Manual Rebar Bending Machine Steel Rod Bender
Product Description
| Product Introduction |

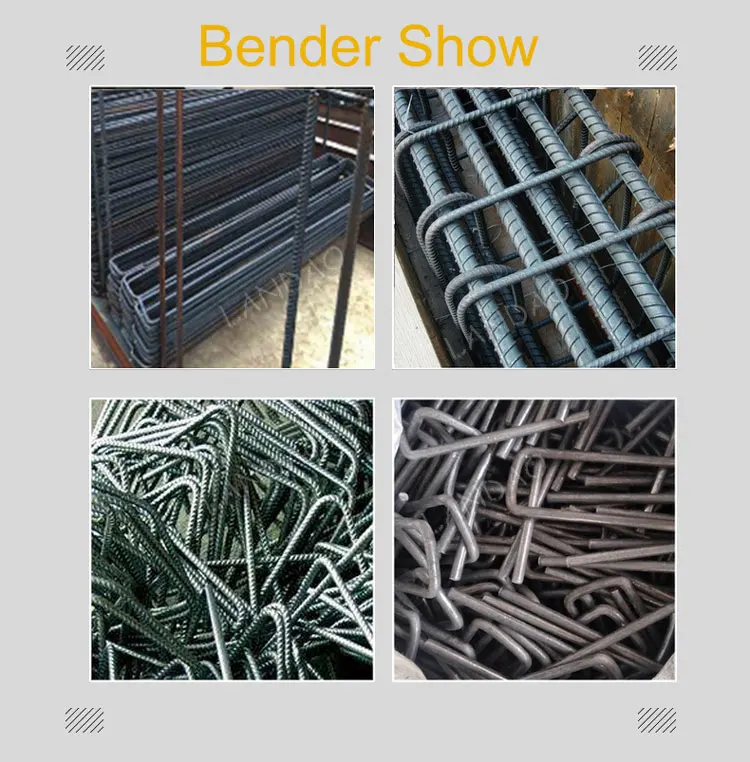

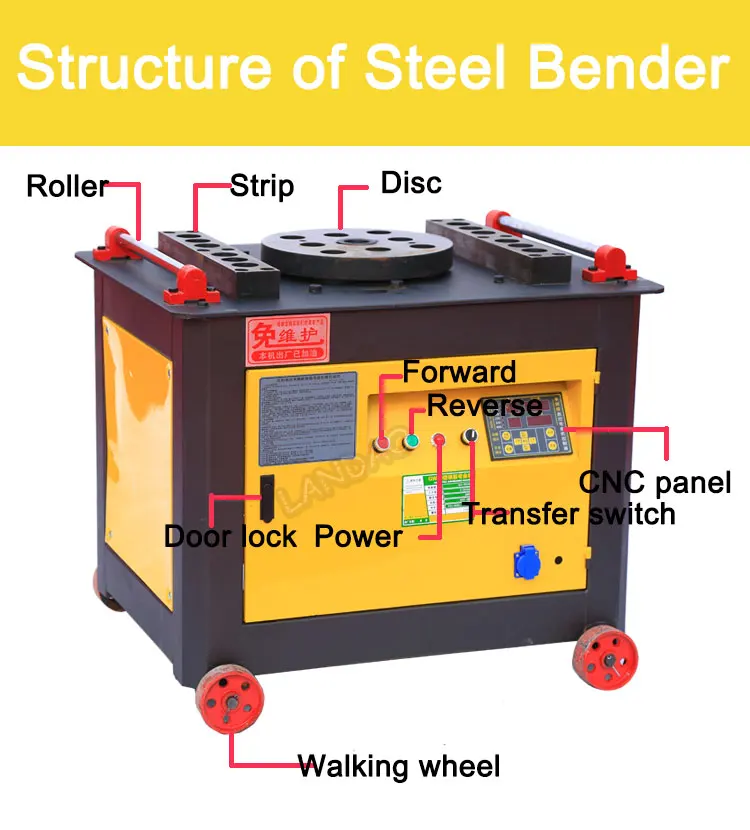

| GW Series Steel Bar Bending Machine constited by the motor,gear,operation disc,breaker and machine body.this machine is able to bender ribbed steel bar diameter from 6mm to 70mm,with various shapes using in construction project. |
Technical Parameters

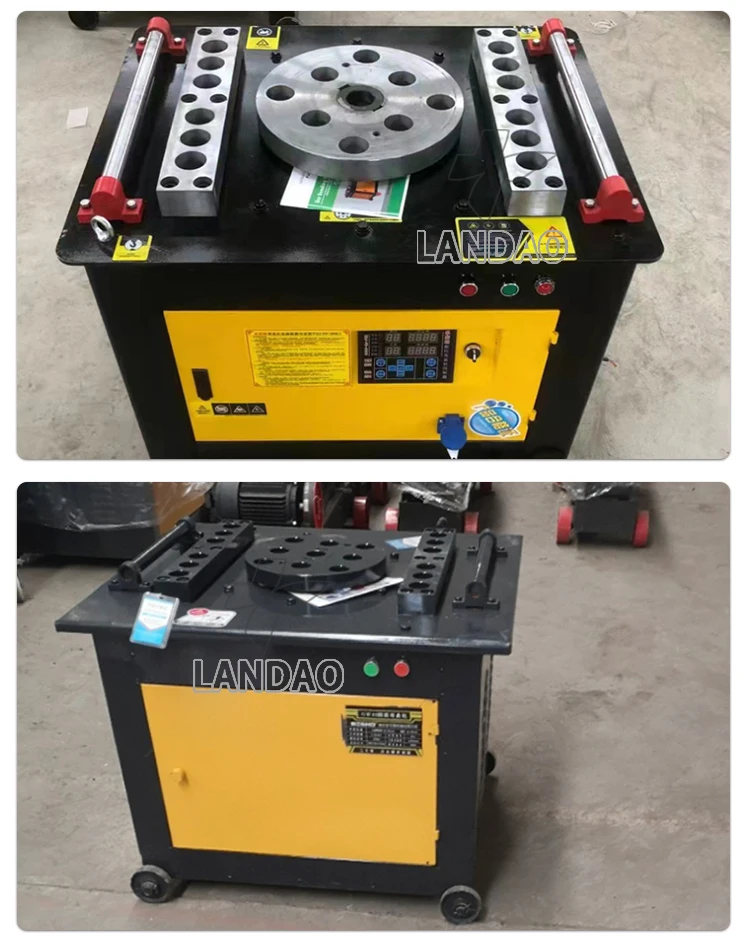

Heavy Duty GW50 Manual Rebar Bending Machine Steel Rod Bender

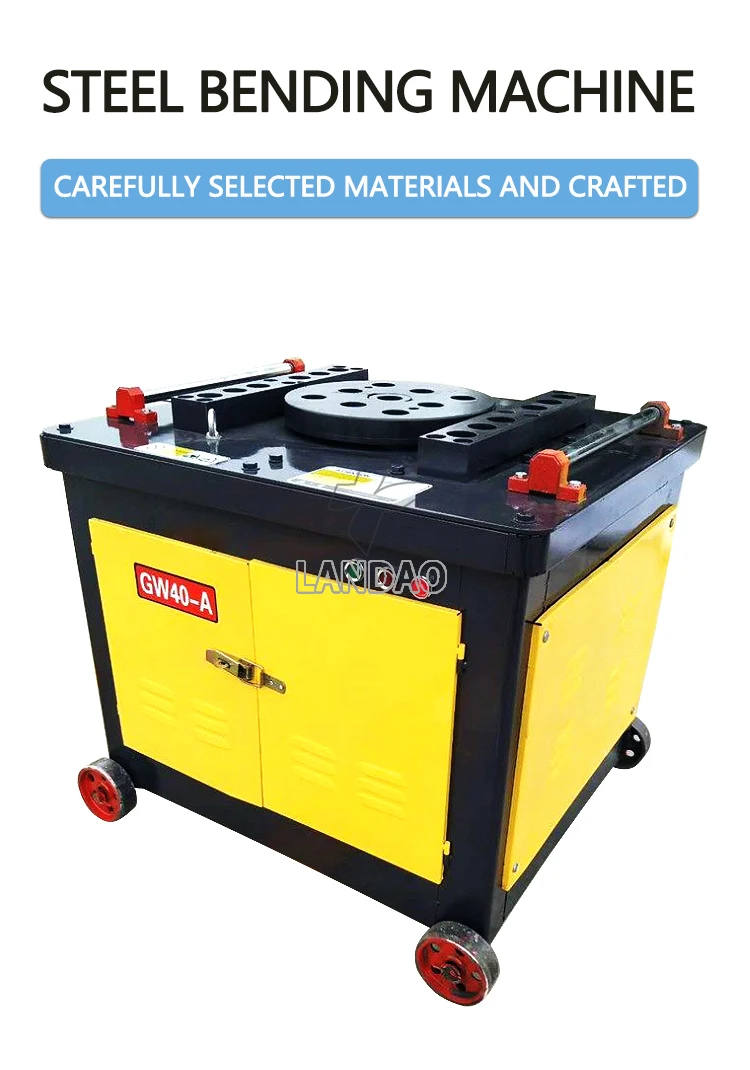

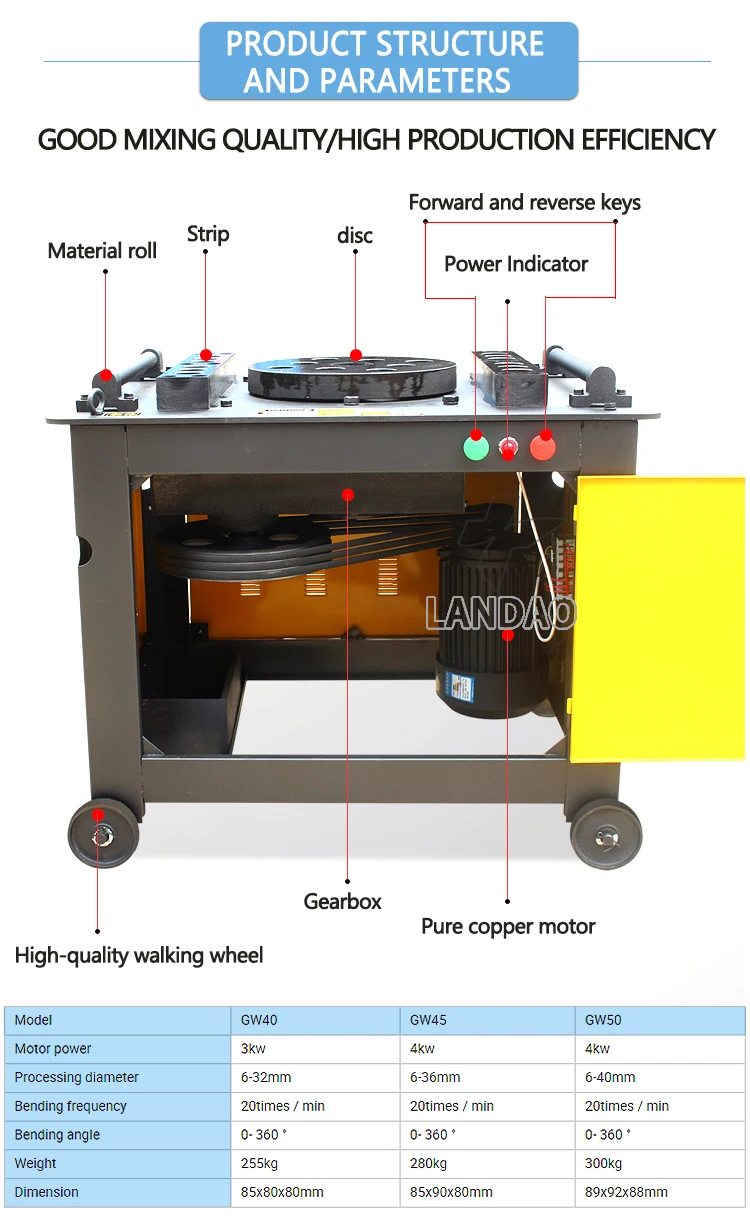

| Technical parameters of GW40A/GW40/GW50/GW60 steel bar bending machine | ||||
| Model | GW40A | GW40 | GW50 | GW60 |
| Bending Diameter | Plain carbon steel ≤Φ32mm | Plain carbon steel ≤Φ40mm | Plain carbon steel ≤Φ50mm | Plain carbon steel ≤Φ60mm |
| Deformed steel ≤Φ25mm | Deformed steel ≤Φ32mm | Deformed steel ≤Φ40mm | Deformed steel ≤Φ50mm | |
| Operation disc spec | Φ300mm | Φ350mm | Φ400mm | Φ400mm |
| Axis Rotate speed | 4.5r/min | high speed:9.63r/min | 2.685r/min | 4(8)r/min |
| low speed:4.68r/min | ||||
| Motor power | 2.2KW | 3KW | 4KW | 5.5KW |
| Voltage | 380V/220V/440V/415V | |||
| Motor Rotate speed | 5-15r/min | 1429r/min | 1400r/min | 1400r/min |
| Overall Dimension | 91×81×95cm | 93x73x71cm | 106×81×72cm | 108×85×74cm |
| Whole Weight | 245Kg | 350kg | 450kg | 500kg |
Our advantage

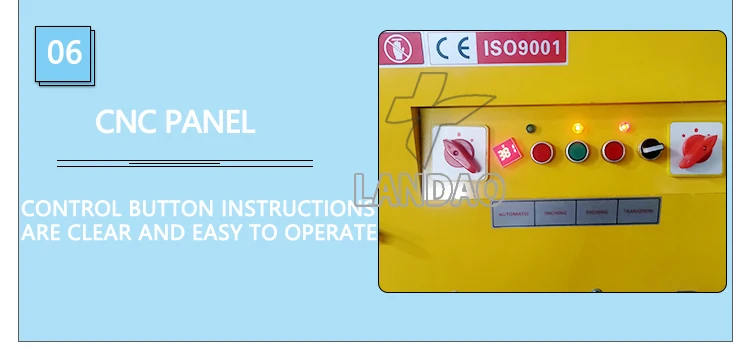

| Equipped with stop switch,and its flexibly and relibale to operate. |
| Foot pedal control switch gives the ease of one-man operation for bending rebats. |
| Pin-type positioning disk,it can adjust angle from 0-360 degree,more easily and convinient. Heavy Duty GW50 Manual Rebar Bending Machine Steel Rod Bender |

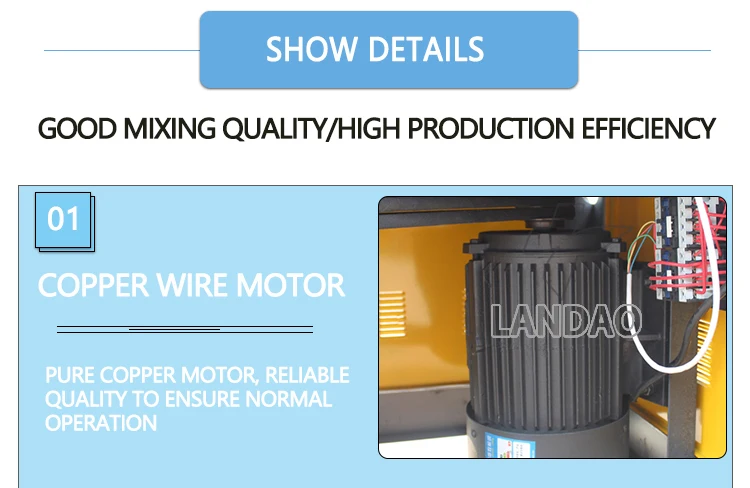

| The motor with internnational standard cooper motor,which enables steel rod bender machine having a relatively long lifespan.And this steel bar bender can work for a long time continuously. |

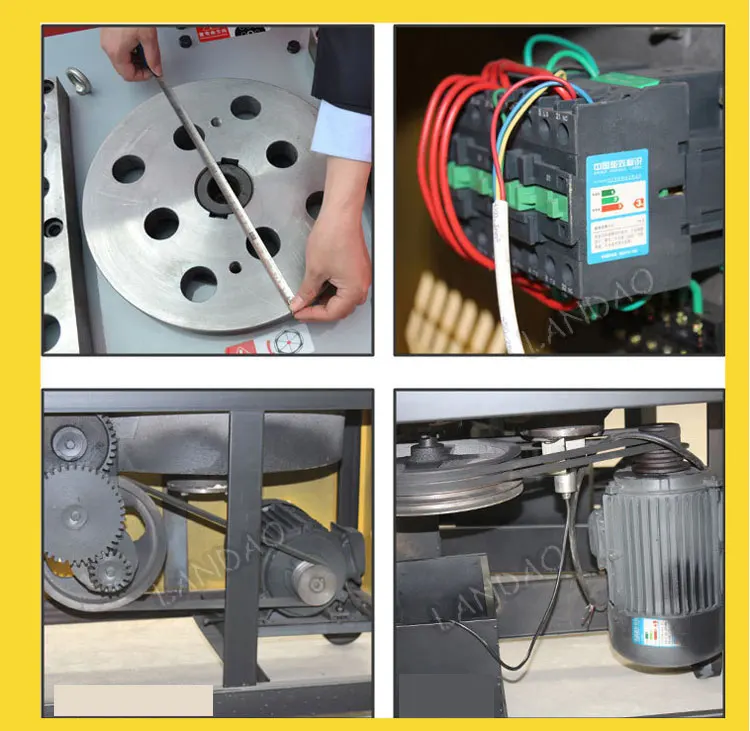

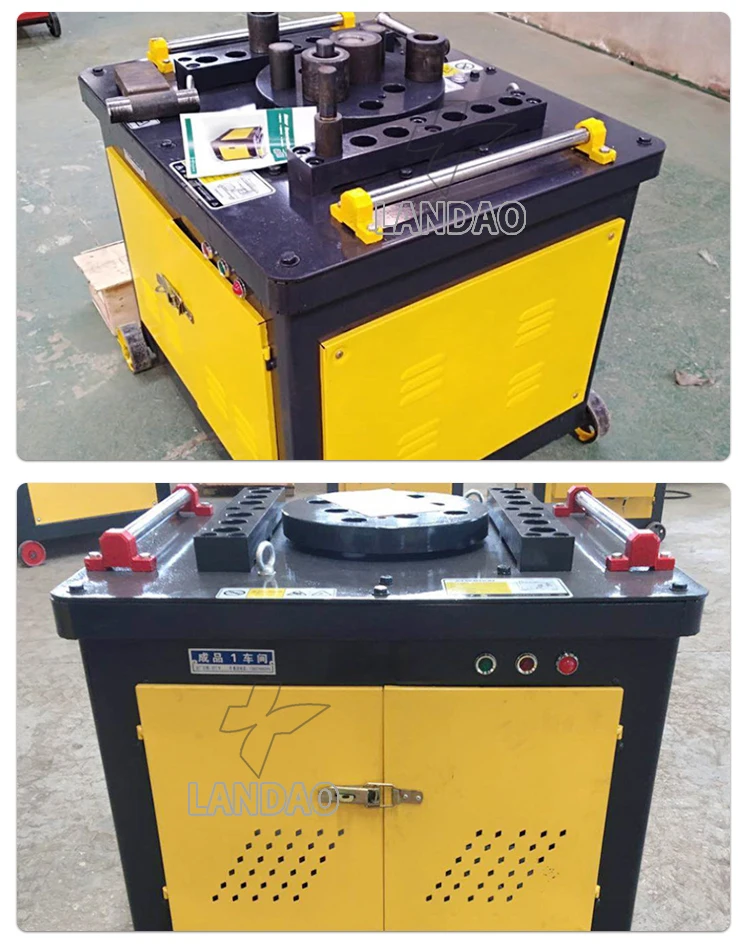

Detailed Images

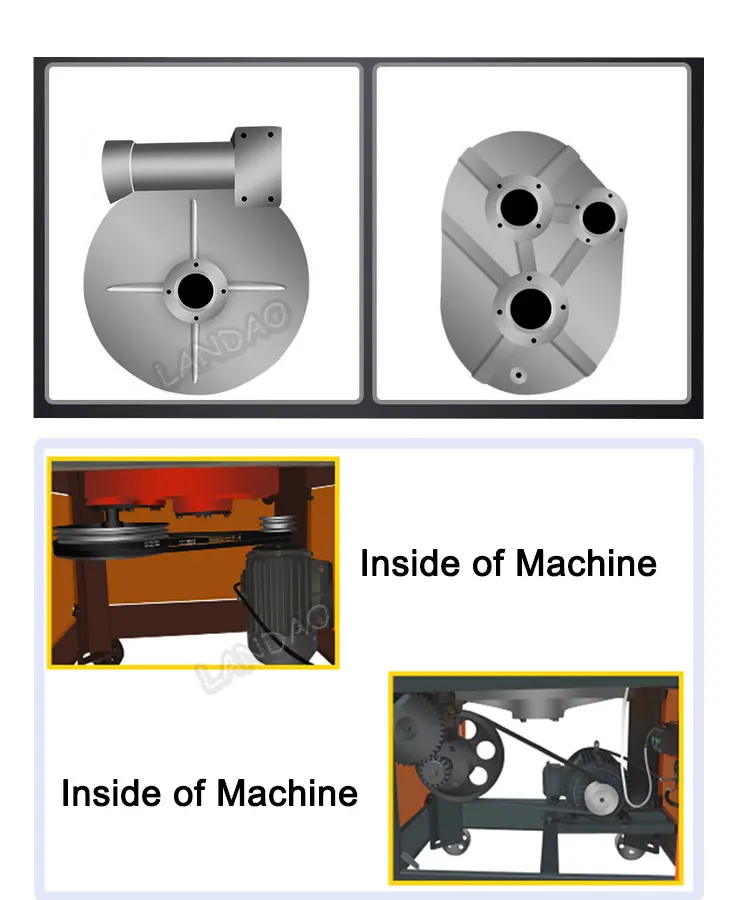

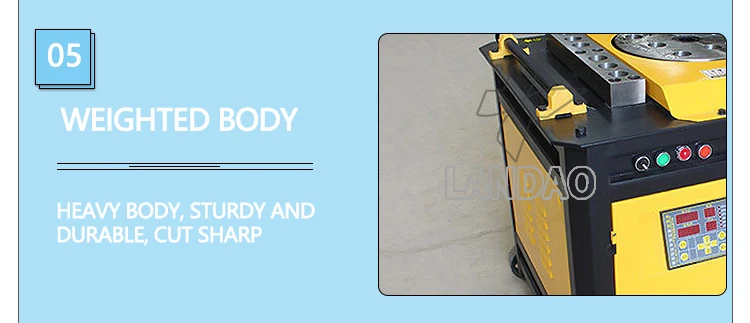

| This bending machine adopts the fully enclosed gear box separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine. |
| • Dust proof brake motor and two limit switch to ensure the accuracy of the bending angle also after stopping and restarting. |

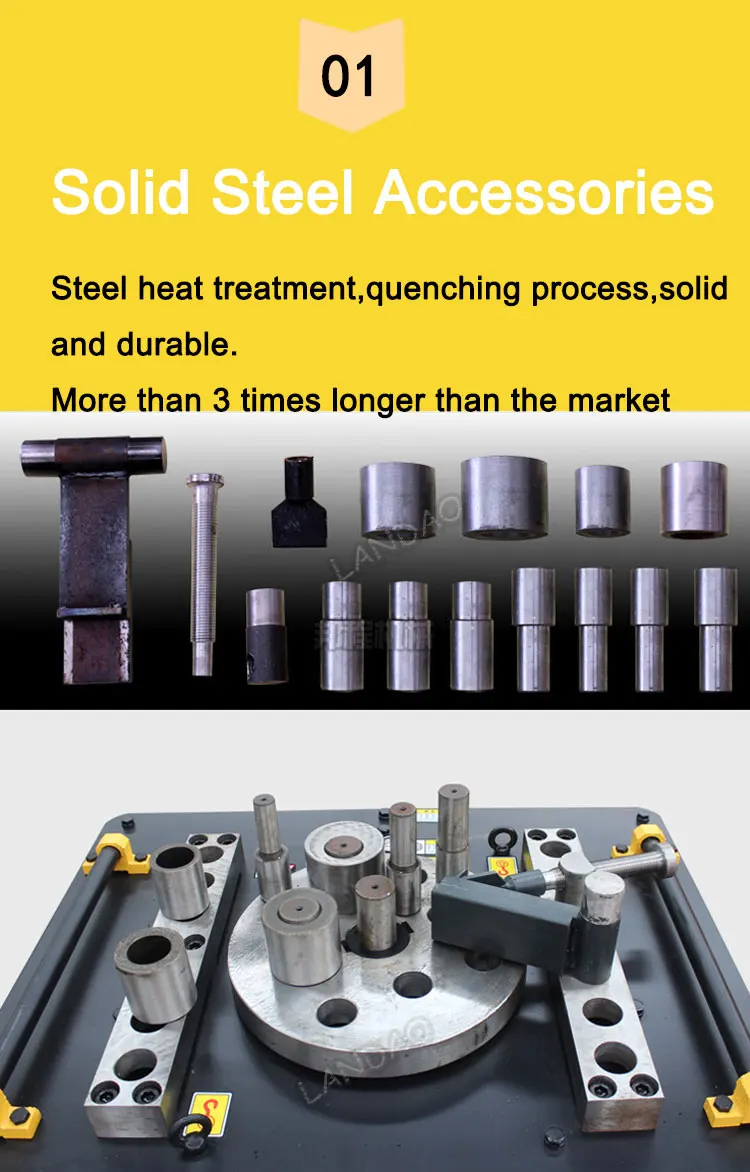

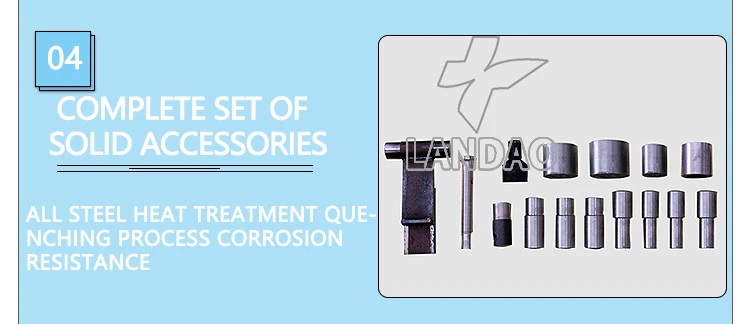

| • Gear .Gear shaft,working disk,stop gauge,pile head and PILE HEADS are made of high quality alloy steel with proper heat treatment.(quenching /tempering/high frequency), and 3mm thick external case to ensure high performances also under heavy loads and long working life. |

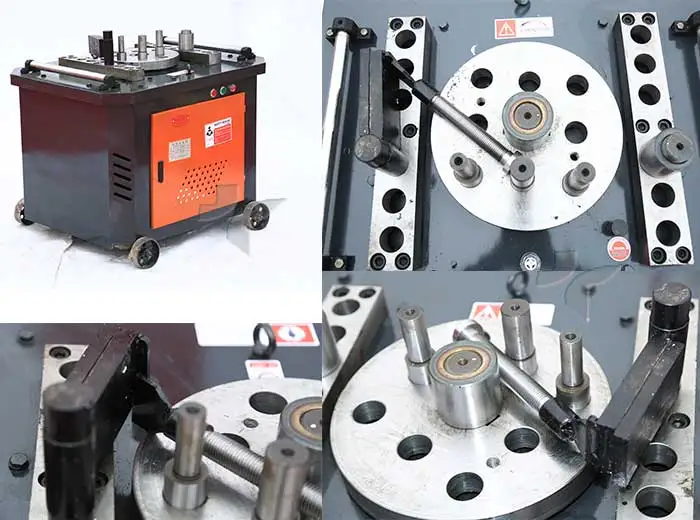

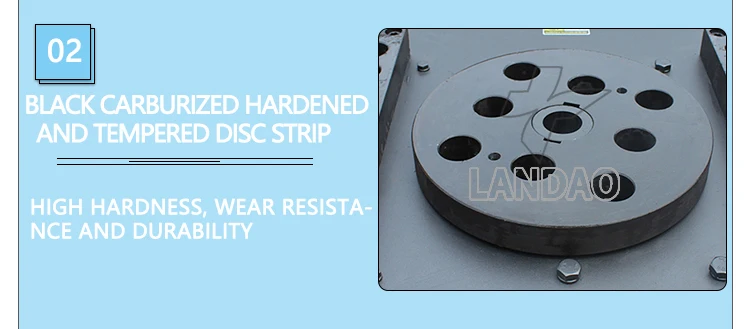

| • Insert-pin type disk and movable saddles for a precise adjusting of the bending angle. Heavy Duty GW50 Manual Rebar Bending Machine Steel Rod Bender |

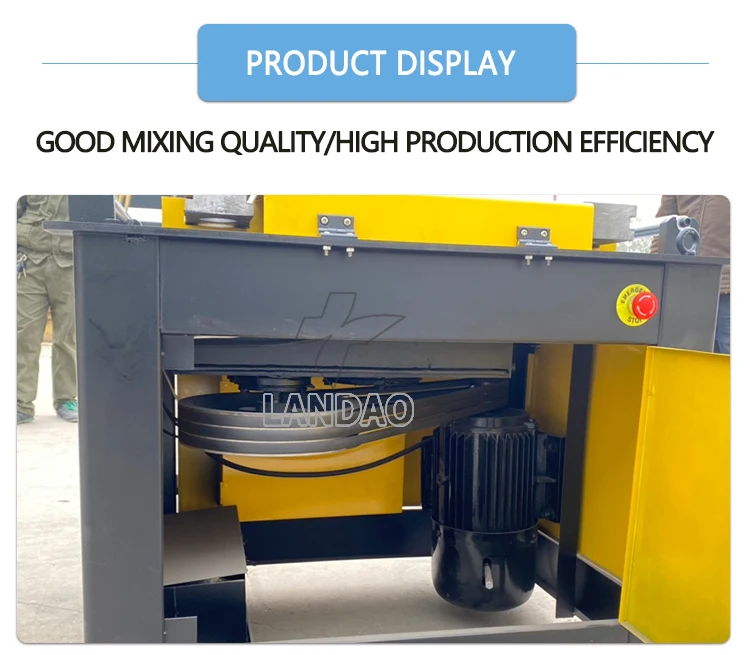

Product display
After-sales Service
FAQ
| To save your time, it better to confirm when send inqiury as below: |
1.Bending modle do you need or bar diameter? (GW40,GW50,GW60) OR (mm) |
2.Working voltage? (V/HZ/Phase) 380V/50HZ/3Phase |
3.Quantity? MOQ: 1 Set |
| 4.Destination port (for CFR Price) |
