Cantilever Type Load Cell 500kg 500kg Livestock Cells To Hopper Or Tank High Quality Strain Gauge For Load Cell
- Category: >>>
- Supplier: Ningbo Goldshine Electronic Co. Ltd.
Share on (62012527839):
Product Overview
Description
Cantilever Type Load Cell 500kg 500kg Livestock Cells To Hopper Or Tank High Quality Strain Gauge For Load Cell
Dimensions Unit:mm:
Cap.Size | L | L1 | L2 | L3 | L4 | ΦD | H |
0.1~0.5t | 130 | 54 | 12.7 | 25.4 | 76.2 | 13.5 | 74~84 |
1~3t | 130 | 54 | 12.7 | 25.4 | 76.2 | 13.5 | 74~84 |
3~5t | 171.5 | 77 | 19.1 | 38.1 | 95.3 | 20 | 82~92 |
7.5~10t | 223 | 100 | 25 | 50.8 | 120 | 25 | 92~102 |
Application:
1. Low profile platforms;
2. Pallet truck weighing;
3. Tank and silo weighing;
Product Characteristics:

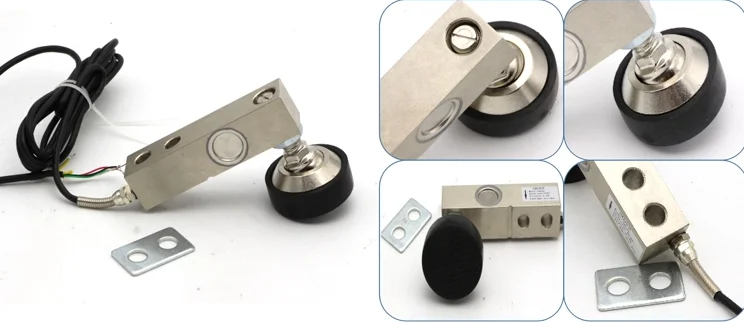

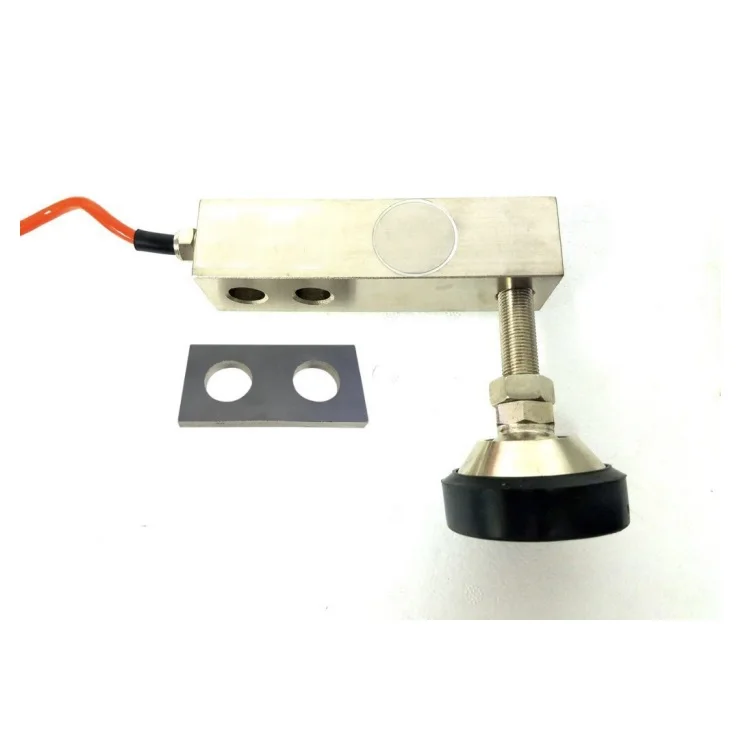

Model SQB With Foot is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications.It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Nickel plating and full environmental sealing assures long-term reliability. A alloy steel or stainless steel option is available for the lb or kg versions for use in harsh or corrosive environments. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.
Technical Parameter:
Rated Load: | 0.1/0.2/0.3/0.5/1/2/3/5/7.5/10t | ||
Sensitivity: | (2.0±0.1%) m V/V, (3.0±0.1%) mV/V | Operating Temp. Range: | -30~+70°C |
Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
Temp. Effect On Zero: | ±0.02% F.S/10°C | Maximum Excitation: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10°C | Sealing Class: | IP67/IP68 |
Input Resistance: | 385±5Ω | Element Material: | Alloy /Stainless Steel |
Output Resistance: | 352±2Ω | Cable: | Length=L:3m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) | ||
| Item Name | Cantilever Type Load Cell 500kg 500kg Livestock Cells To Hopper Or Tank High Quality Strain Gauge For Load Cell | |||||||||
| Model | SQB3 | |||||||||
| Materials | Alloy / Stainless Steel | |||||||||
| Output | 2.0mV/V | |||||||||
| Principle | Convert electrical signal to the force signal | |||||||||
| Usage | Weigh the weight of the weigher | |||||||||
| Features | Good quality and low price | |||||||||
| Form of sale | Factory supply | |||||||||
| MOQ | 1 PCS | |||||||||
MEAS | 0.35x0.3x0.2cm | |||||||||
Sample Lead Time | 5~40Days | |||||||||
| Sample price | The price according to capacity | |||||||||
| OEM,ODM | Welcome | |||||||||
| Market | All over the world | |||||||||
| Payment Terms | 30% advance payment, the rest payment before delivery | |||||||||
Related Products
Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique IDs will be created.It will save labor cost for you.
Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.
Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q5: What about the load cell for floor scales price?
A: We promise the load cell for floor scales price we offer is lowest if same application, only to enlarge the market share.
Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.
Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.
