SY1300 bopp used adhesive tape slitting machine,scotch machine for tape slitting
- Category: >>>
- Supplier: Weifang Sheen-E Economic And Trade Co. Ltd.
Share on (62012530310):
Product Overview
Description
Product Description

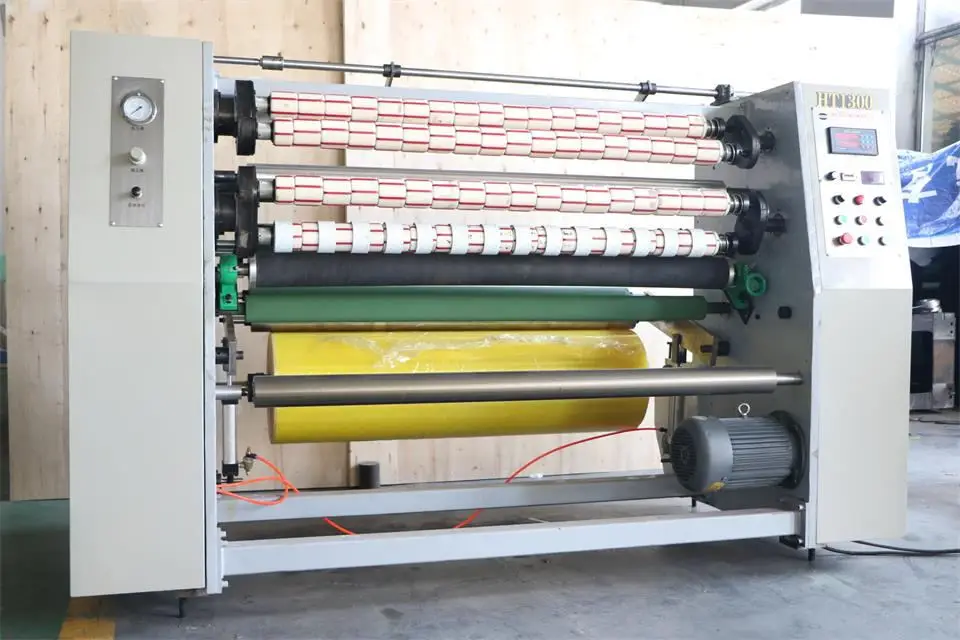

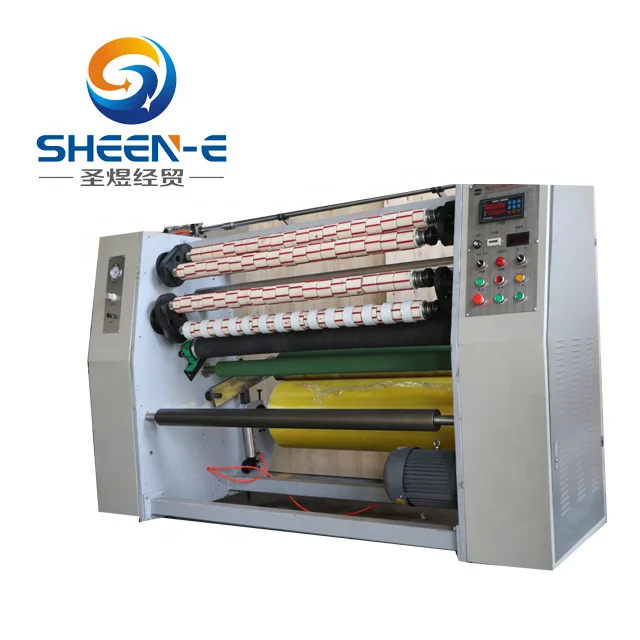

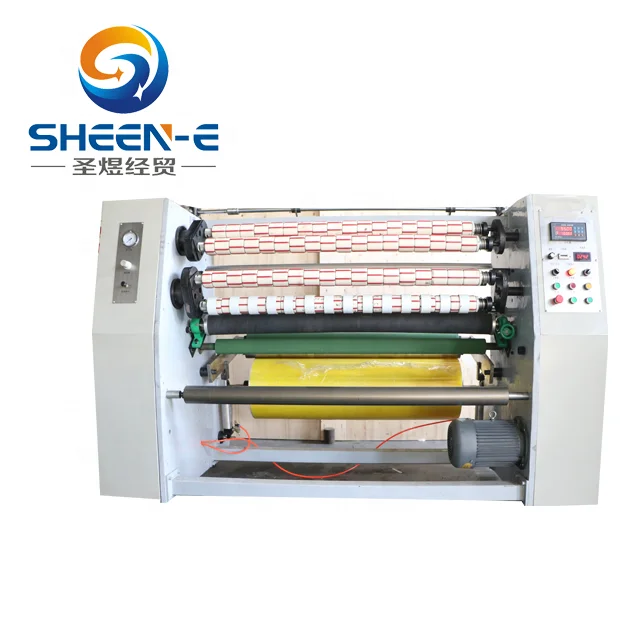

SY-1300 OPP Tape Slitting Machine
CONFIGURATION LIST
| (1)Functions:Apply to Opp tape,glass paper and other material | ||
| (2) Specification: | ||
| 1.Width of mechanical roller | 1400mm | |
| 2.Max. unwinding diameter | 700mm | |
| 3.Slitting width | According tp customers request | |
| 4.Rewinding tube dia. | 3"(76.2mm) | |
| 5.Rewinding dia. | Four-axis exchange 25.4mm-76.2mm | |
| 6.Tool use | Induatrial straight knife | |
| 7.Mechanical speed | 0-180M/min | |
| 8.Power supply | 380V 50HZ 3PHASE | |
| 9.Air compressor | 5KG(preoared by customer) | |
| 10.Weight | 1100KG | |
| 11.Demension | 1200*2300*1500mm | |
| (3) Machine outfit | ||
| 1.Discharge shaft | Manual | 1 Pcs |
| 2.Discharge brake | Pneumatic brakes 10KG | 1 Group |
| 3.Discharge roller | Hard chrome on steel | 1 Group |
| 4.Main motor | Decelerates motor 5HP | 1 Set |
| 5.Counter | Three-stage clectronic counting control | 1 Group |
| 6.Transmission roller | Aluminum surface anodizing | 1 Set |
| 7.Transmission | Steel surface anodizing | 1 Set |
| 8.Slitting tool | Industrial straight knife 60*22*1 (prepared by customer) | |
| 9.Slitting tool transmission | Pneumatic | 1 Set |
| 10.Edge material rewinging | Roller-type bilateral synchronous coilin | 2 Pcs |
| 11.Automic roll change system | AC mator 1HP | 1 Set |
| 12.Rewinding roller | Aluminum with slip bushing | 4 Pcs |
| 13.Unwingding wheel | Surface covered with rubber,diameter 100 | 1 Set |
| 14.Noise cancellation | ||
| Matched Machine: | ||
| 15: Paper tub loader | 1 Set | |
| 16.Small rewinding machine | 1 Set | |
| 17.Paper cutting machine | 1 Set | |
Advantage of the tape slitting machine:
The noise reduction funcyion is added to the original equipment.
Certificate of tape slitting machine

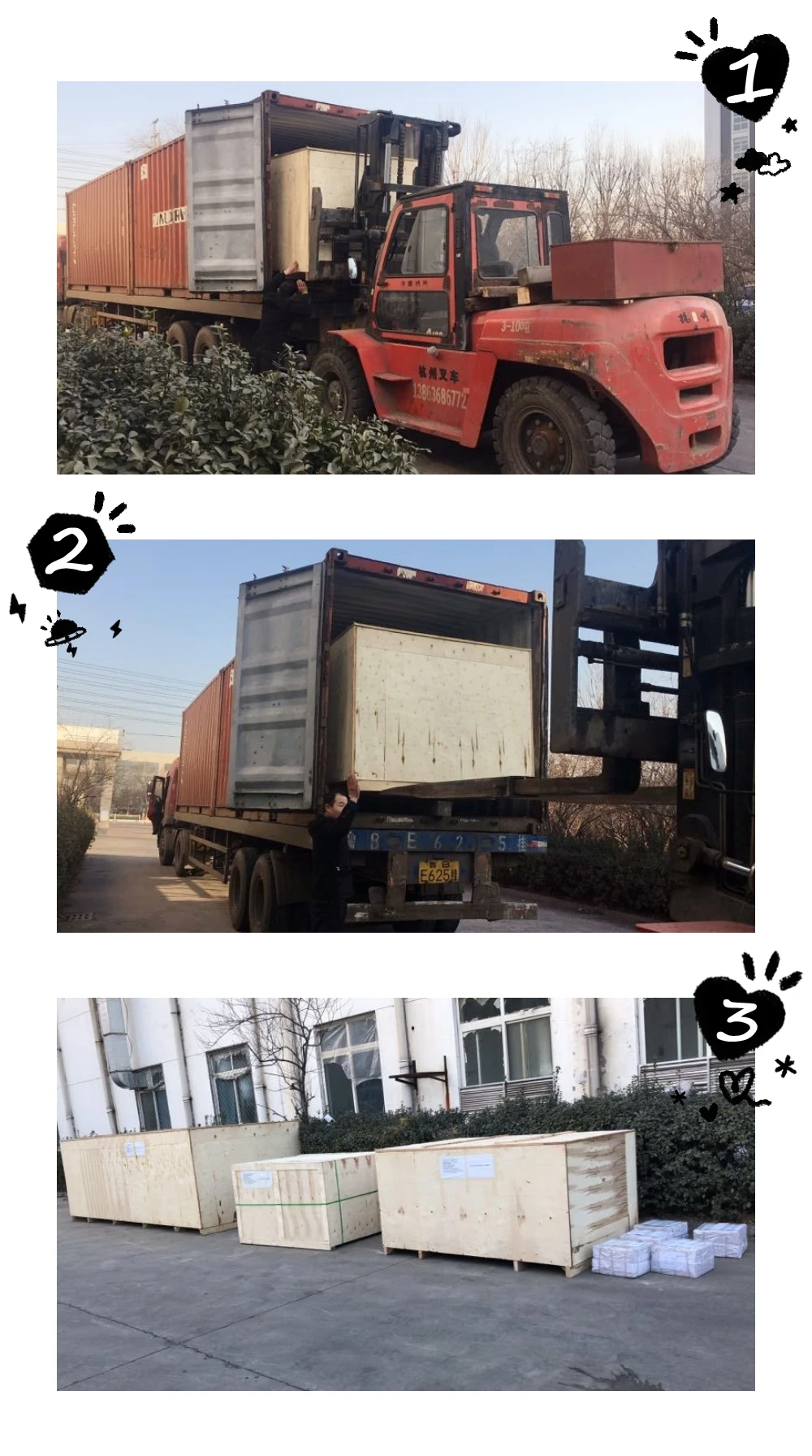

Packaging & Shipping
Port: Qingdao/Shanghai
Packing: Wooden case or according customers requirements.
Smple
Our Services
Company Information
Advantages of the enterprise:
Our company has an independent research and development team,seven years of overseas sales experience,and a fixed market in China.
Factory
Office
Our partners

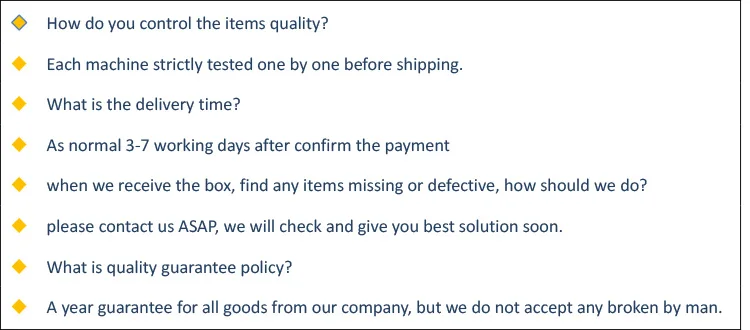

FAQ
