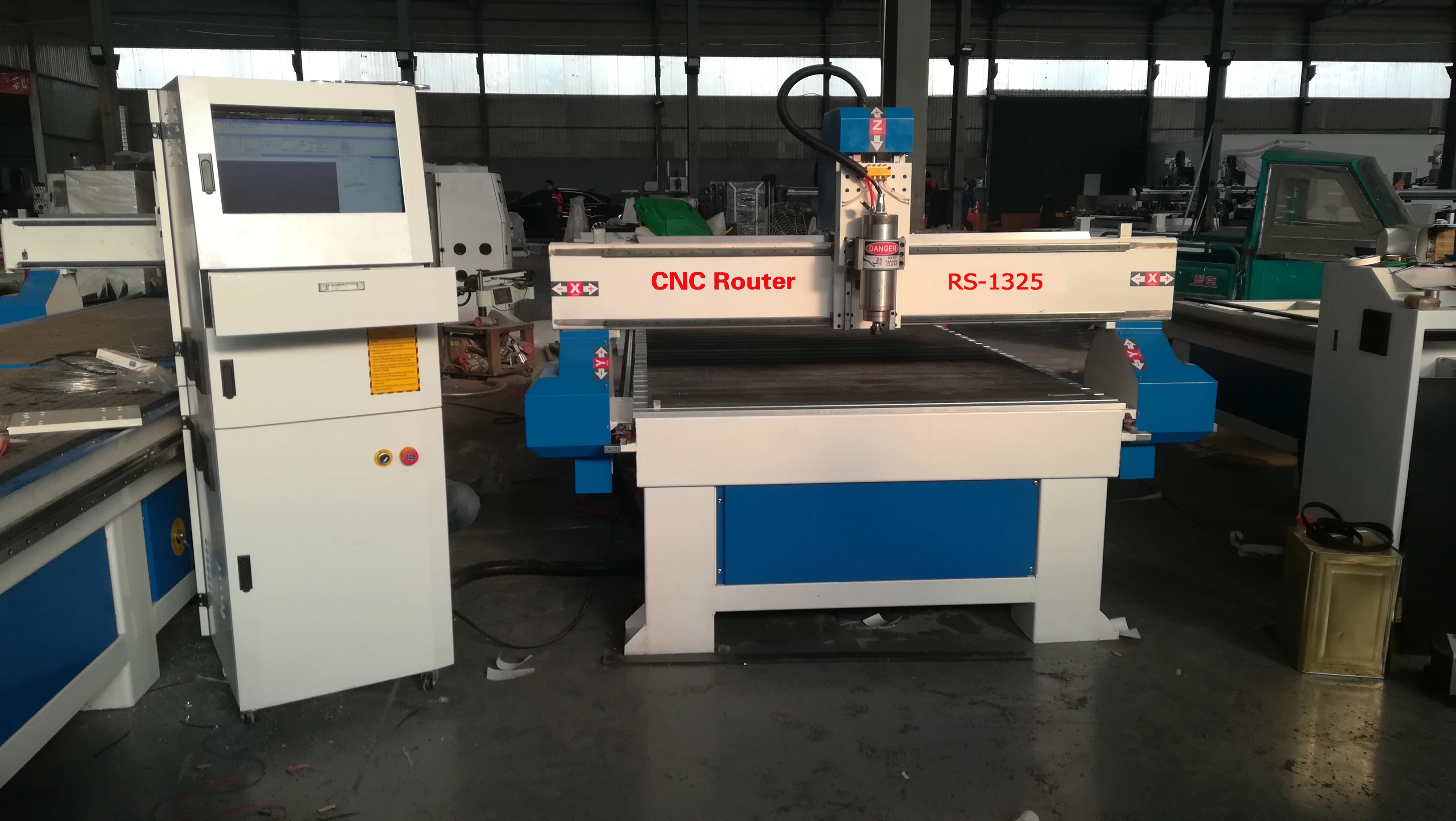

cheap factory price 1325 3d CNC Wood carving router machine with 3kw water cooling spindle

Product Overview

Description

cheap factory price 1325 3d CNC Wood carving router  machine with 3kw water cooling spindle



2.Application:

Wood furniture industry, furniture decoration industry, wood crafts making industry, large area plate plane carving, solid wood,  Solid wood art murals, MDF Paint-free doors, composite doors, cabinet windows door, bedside cabinets, screen carving , etc.

Mould industry: can engrave all kinds of molds, wooden molds, aviation wooden molds, propellers, automotive foam molds and other non-metallic.

Advertising industry: Acrylic cut, name plate make, photo frame making, foam model make,

foam sheet cutting with automatic scannding and cutting



3.Machine parts details:

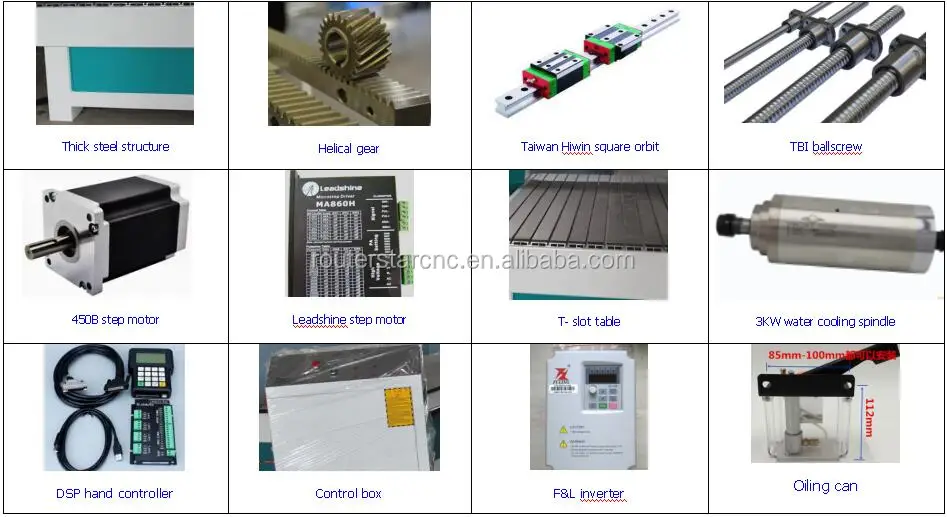

Configuration:

H type welding square steel pipe machine body

1300*2500*200 mm size

step motor ACT 450B and Leadshine 860 step driver

Vacuum  table

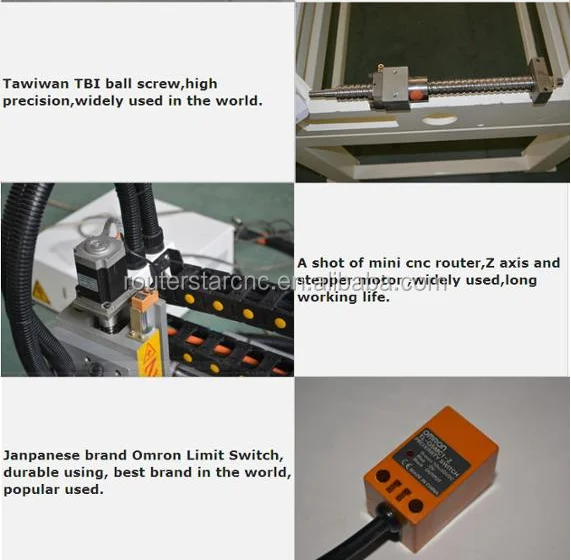

XY helical gear, Z axis TBI ballscrew original

Original NC studio cnc control system

4.5kw air cooling spindle(SK brand) with water pump

In contraterol box with one extra driver for rotary connection for client

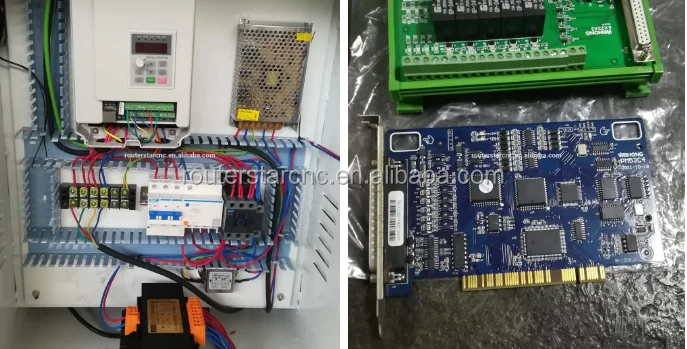

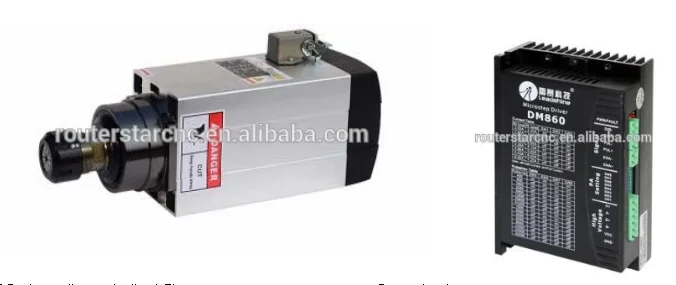

CS air cooling spindle 4.5kw                                              Control cabnet



Fuling inverter                                                                             nc studio original controller



4.Parameters:

Model Number	Processing length	Processing width	Machine size
RS-1325 cnc router	2500mm	1300mm	3.1 *2.1*1.5m
Package size	Driving motor	Driver	Table  type
3.2*2.2*1.7m	Micro step motor 450B (Japan servo optional)	Step driver Leadshine 860 (Japan servo optional)	vacuum table
XY axis Transmission way	Z axis transmission way	Orbit	Machine body material
Helical gear	TBI ballscrew	Taiwan Hiwin square orbit	Welding steel pipe
Control system	Dust collect	Dust proof and pipe	Carving spindle power
NC Studio system 3 axis	with	without (need extra $165)	4.5kw air cooling C&S brand
Carving spindle speed	Frequency converter for carving spindle	Max moving speed	Max cuting speed
0-24000r/min	China F&L brand 5.5kw	35m/min	15-20m/min
Max carving speed	Power supply	Net weight	Gross Weight
8-15mm/min	AC380V 50HZ (can custom 220V)	1100kgs	1200kgs







5. working samples:



6. working video:

//youtu.be/ars2TRif5Og

//youtu.be/Nl9FtdG9wf8

https://youtu.be/EXGaR0BOt7c



Please tell your detailed work, better show me your sample pictures.

single spindle cnc router machine can make the commen engraving and cutting.

if you want to double working efficiency you can select the multi spindle cnc carving machine.

If your drawing is complicated, you can select the small ATC or real ATC cnc router

Tell your needed working size?

our standard size 600*900/200*1200/1300*2500/1500*3000/2000*3000/2000*4000mm, and can customed size for you.

About the configuration?

After achieve your function requirement, we can according to your budget and work select configuration.

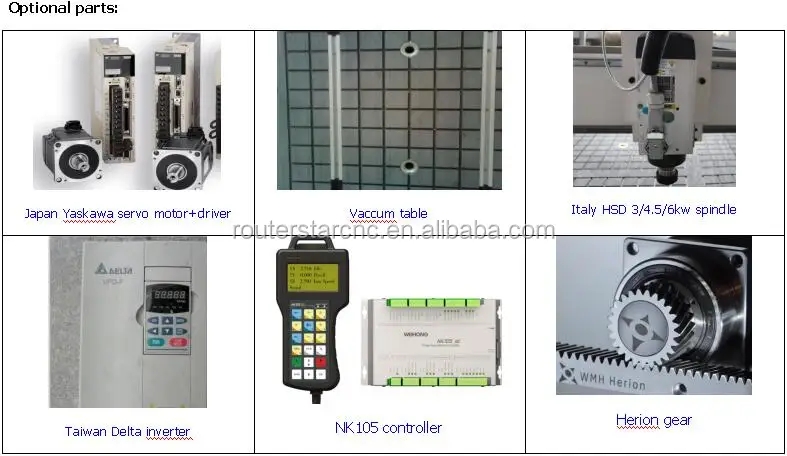

such as step motor or China/Japan servo motor, China control system or Taiwan Syntec/LNC control system



B. This is my first time to buy machine, are you believable?

We have been in cnc router business and foreign trade for 8 years, and exist on sincerity and honest.

We have long term cooperated agent and end client.

And we have long term cooperated factory, and with research deparment.

We can deal from Alibaba Assurance deal, we accept supervision from Third Party.

We are legal trading company, have complete formalities.

We warmly welcome your come to visit our factory.



C. How to deal?

After our negociate about the machine, we will send you the PI from company email with stamp, if you agree, you can transfer from your bank, or if we deal through alibaba assurance, you can pay with TT or Credit card or E checking.

After we get prepayment, we will arrange manufacture for you, after 10-15 days, we will take picture and videos with your machine, if satisfy please arrange balanced payment, we will arrange shipment for you.





2. 12 month quality guarantee time after sale, the machine main parts(excluding the consumable parts) broken which is not caused by manmade, we will send you a new one for free during the guarantee term(but need you help return back the old part).

3. Free training at our factory.

4. will supply you parts at cost price.

5. 24 hours on line service each day, free technique support all lifespan.

our staff can come to your place for training or adjust
