2020 New Type Hot Sell Hybrid Dual Axis solar gps tracker system solar panel 10kw solar tracking system
- Category: >>>
- Supplier: Shandong Jinhong New Energy Co. Ltd.
Share on (62012686194):
Product Overview
Description
Product Description

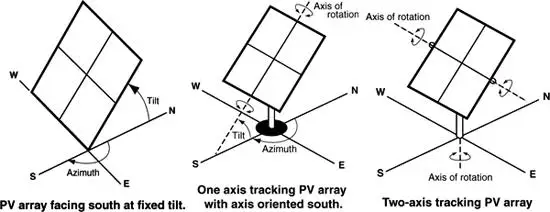

Why choose solar tracking system?
Solar Experts: Why sign up for the cost and hassle of Tracking when you could just add more solar panels to match the added production?
1. Land Cost: As solar penetration increases, and transmission costs soar, solar will physically move towards the distribution grid, rather than the transmission grid. The distribution grid is closer to urban areas, with more expensive land and smaller sites, which puts tracking and higher production density at a premium. Adding more panels here will not be economical due to land cost and lower energy production density.
2. Time of day energy production: utilities highly value WHEN energy is produced during the day, not the maximum energy
production. Tracking produces more energy during higher value times with a more constant output curve, which utilities highly value. In contrast, fixed-tilt arrays produce a higher energy peak during the middle of the day. As solar penetration increases, the production curve of tracking arrays is significantly higher value energy, resulting in better LCOE and PPA rates.
3. Higher Cost: Adding more fixed panels increases balance of system (BOS) costs (inverters, wiring, etc.), making the PV system higher cost but lower value. Improving the energy production density by tracking the sun is higher value.
1. Land Cost: As solar penetration increases, and transmission costs soar, solar will physically move towards the distribution grid, rather than the transmission grid. The distribution grid is closer to urban areas, with more expensive land and smaller sites, which puts tracking and higher production density at a premium. Adding more panels here will not be economical due to land cost and lower energy production density.
2. Time of day energy production: utilities highly value WHEN energy is produced during the day, not the maximum energy
production. Tracking produces more energy during higher value times with a more constant output curve, which utilities highly value. In contrast, fixed-tilt arrays produce a higher energy peak during the middle of the day. As solar penetration increases, the production curve of tracking arrays is significantly higher value energy, resulting in better LCOE and PPA rates.
3. Higher Cost: Adding more fixed panels increases balance of system (BOS) costs (inverters, wiring, etc.), making the PV system higher cost but lower value. Improving the energy production density by tracking the sun is higher value.

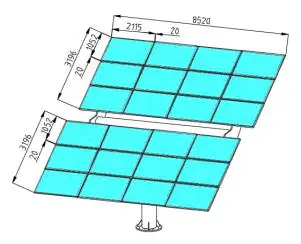

10kw dual axis solar tracking system

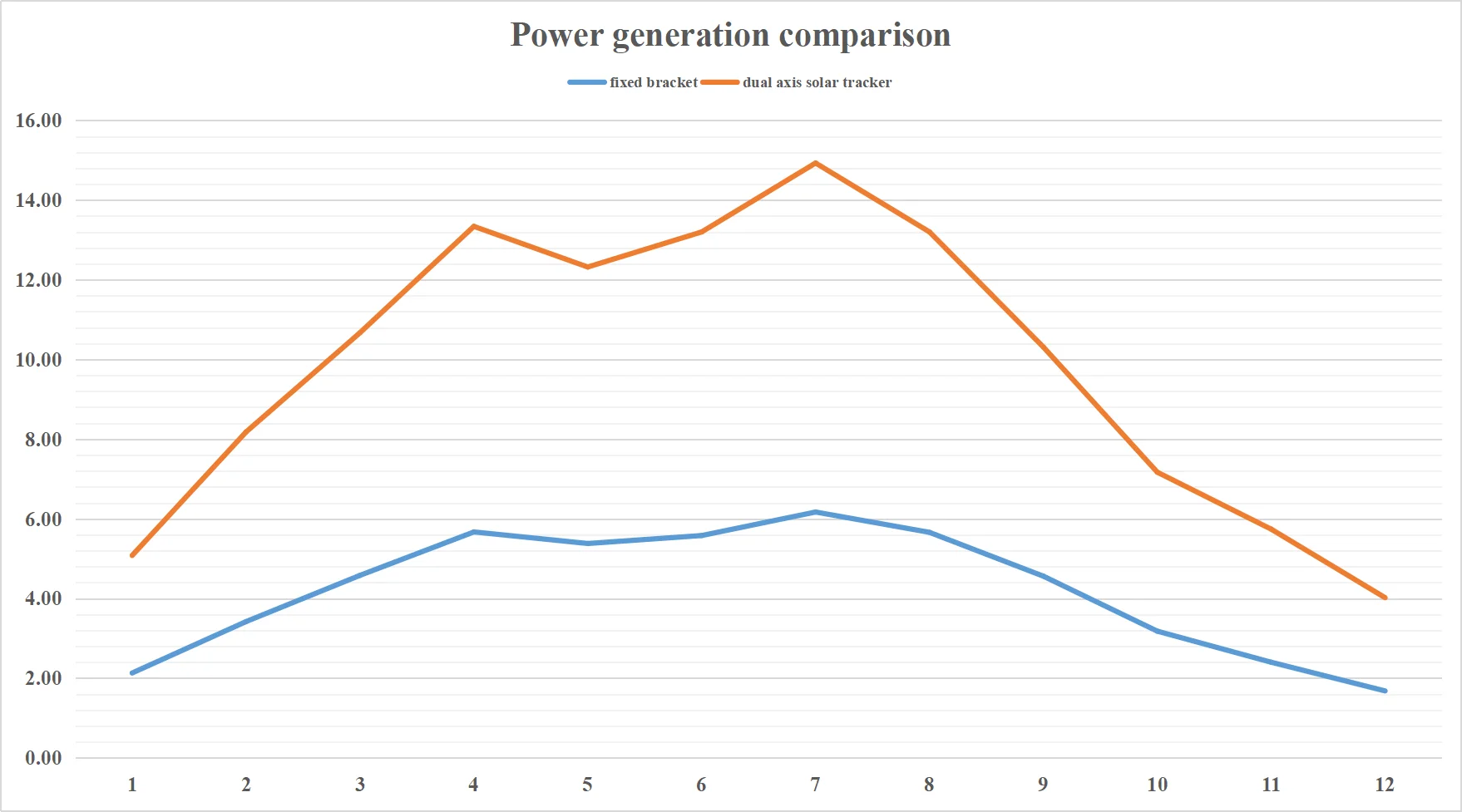

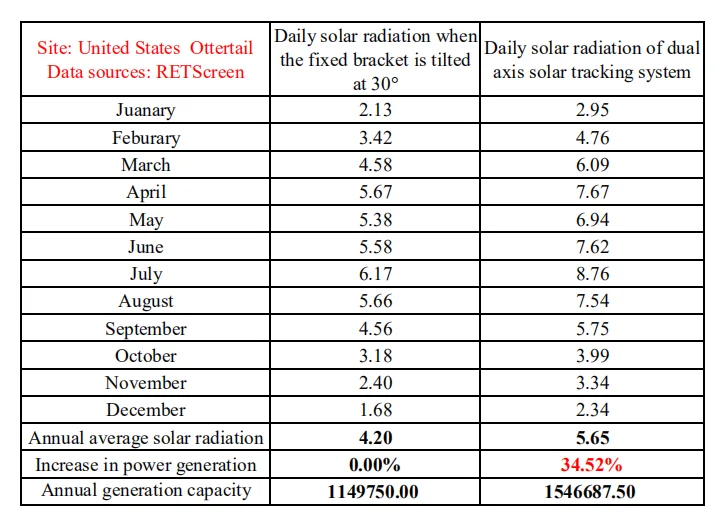

The solar tracking system uses high-precision astronomy algorithm to calculate the angle of the sun,combined with high performance microcontroller(DSP core),making the system accurate and realiable,no rainy day interference.Adopt to our self-designed technologies power generation increased by 30%-50% compared with fixed bracket.
Product Paramenters
Project | Value | Project | Value | ||
Control Method | Astronomical algorithm | Ipone APP | Optional | ||
Accuracy | ≤ 1° | Back Tracking | YES | ||
Azimuth tracking | -120°～+120° | Elevation tracking | 30°～90° | ||
Normal Wind protection | 17m/s | Operation under Max wind speed | 35m/s | ||
Power supply | AC:220v/AC380v | Driving Power | 90*2 | ||
Mechanical Lifetime | >25year | Daily power consumption | 0.5kwh | ||
Operating Temp | -25℃～65℃ | Weight | 1800kg | ||
Meterial | hot galvanized steel | Wind protection | Optional | ||
GPS positioning | Optional | Communication | RS485-MODBUS | ||
Protection degree | IP65 | Standards | GBT 29320-2012 | ||
Remote function | Yes | Data protection | Yes | ||
Certification | CE,CQC, ISO9001, ISO14001, OHSAS18001 | ||||

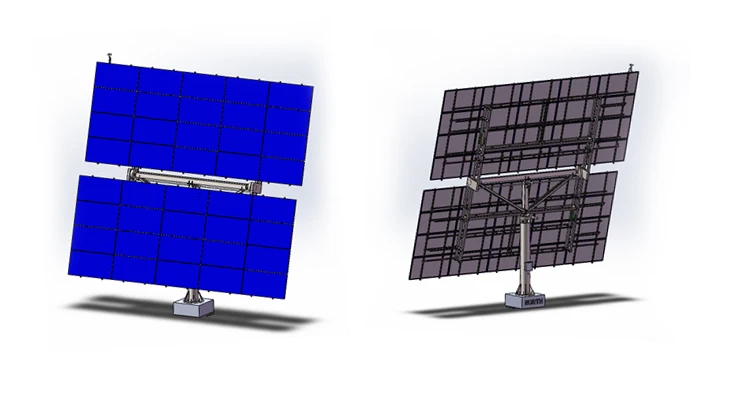

Details Images

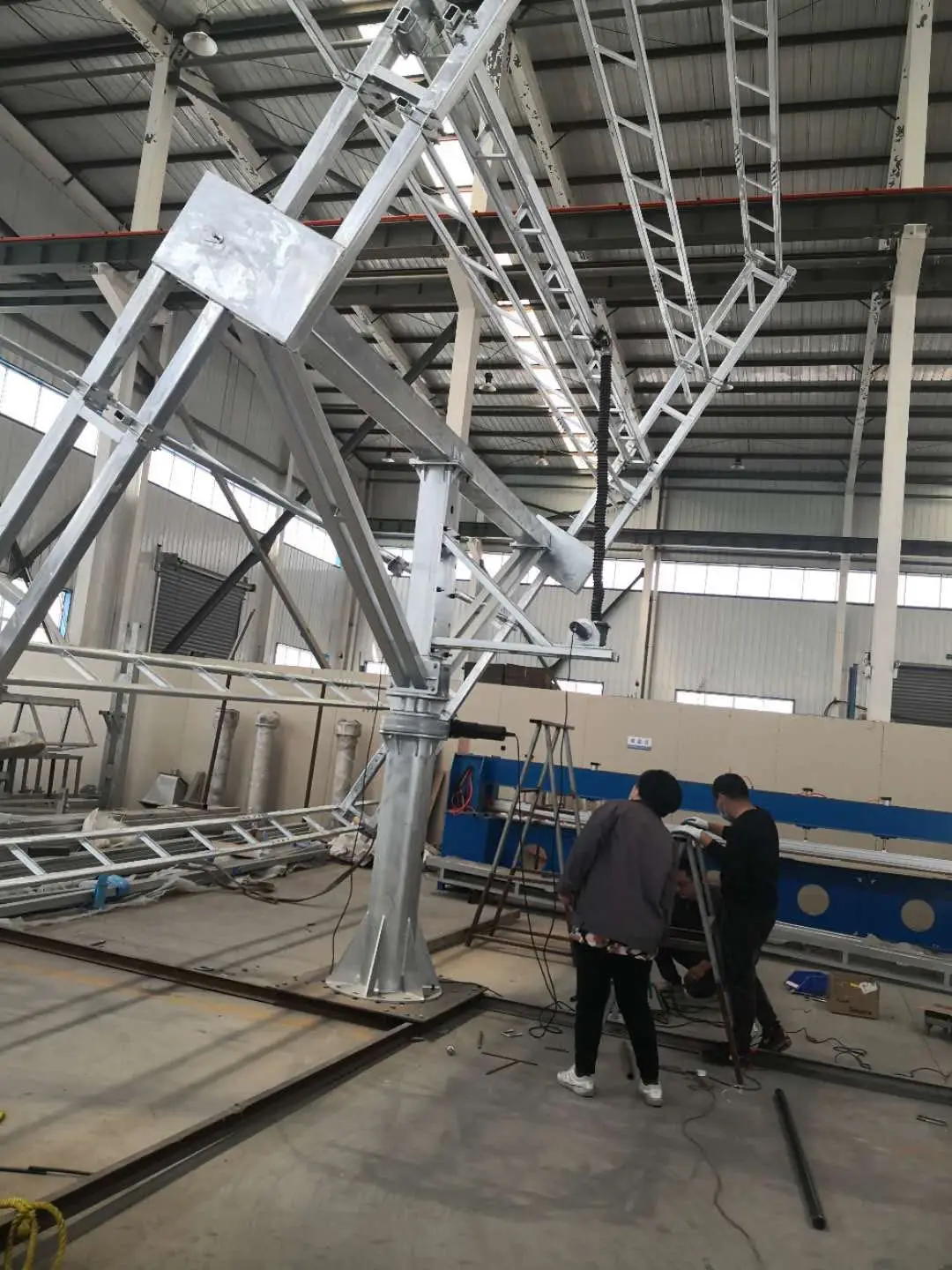

Manufacturing Technique
Our company independently develops the cloud platform,which can upload and save the data in real time to the cloud control center.Users can view the tracking data and remote control in real time through the computer and mobile.
Remote control
RS485-MODBUS standard communication interface,the computer software can read the device ata any time the following information:
1.Sun angle,inclination angle,running status.
2.Actuator,inclination,limit,communications fault alarm.
3.Remote start,stop,reset,manual,anti-wind,anti-snow,anti-rain.

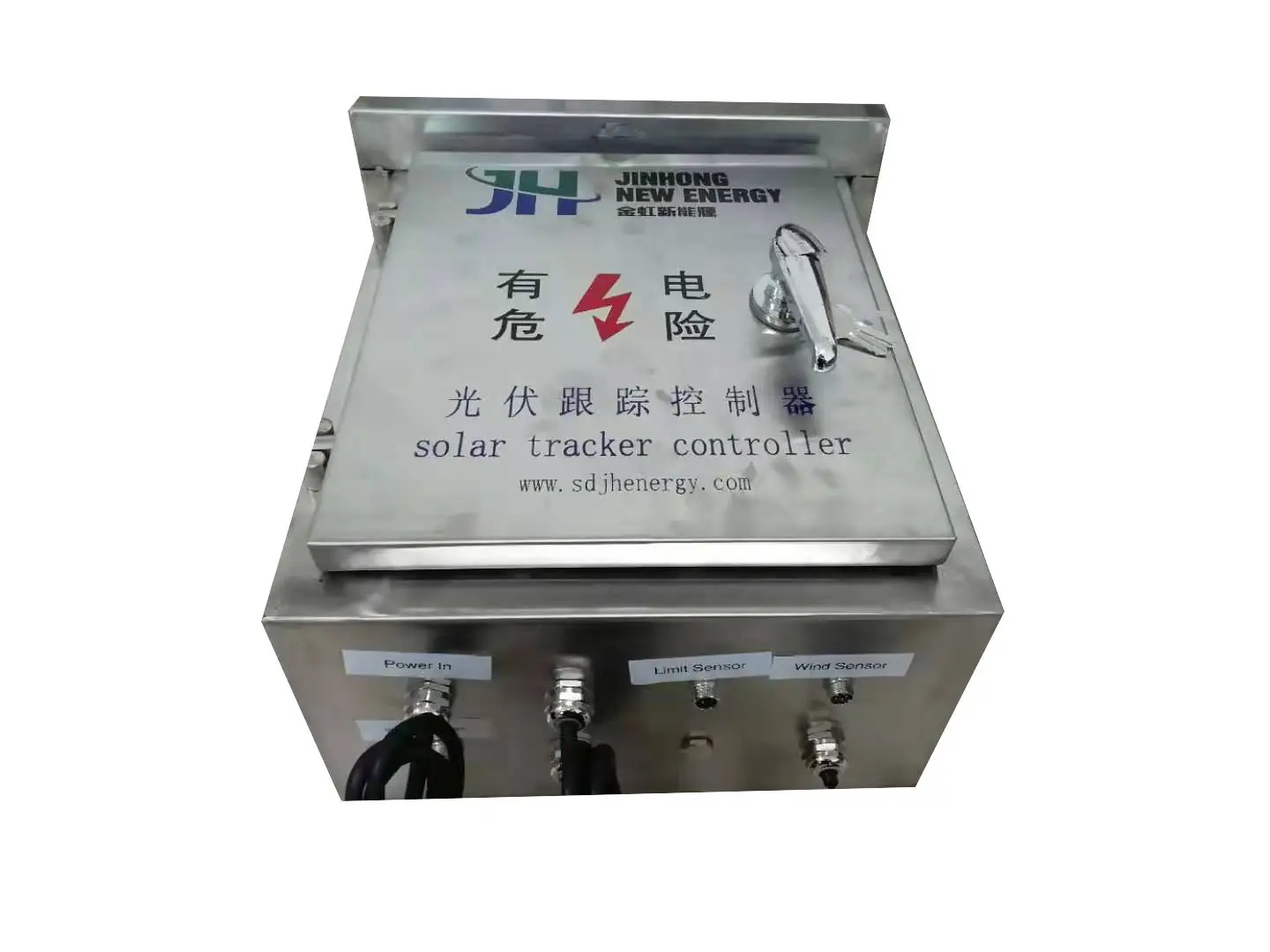

Intelligent tracking controller
The control method of solar controller is time control,precise calculation.When lack of illumination in cloudy and rainy days ,the solar tracker can calculate the actual location of the sun accurately and track according to the local longitude ,latitude and time using high accuracy sunlocation algorithm .when the weather turning to sunny from cloudy,the solar tracker can collect all the solar energy immediately,realizing the most efficient solar tracking.
Company Profile
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to gurantee total customer satisfaction.Besides,we have received CE,TUV.

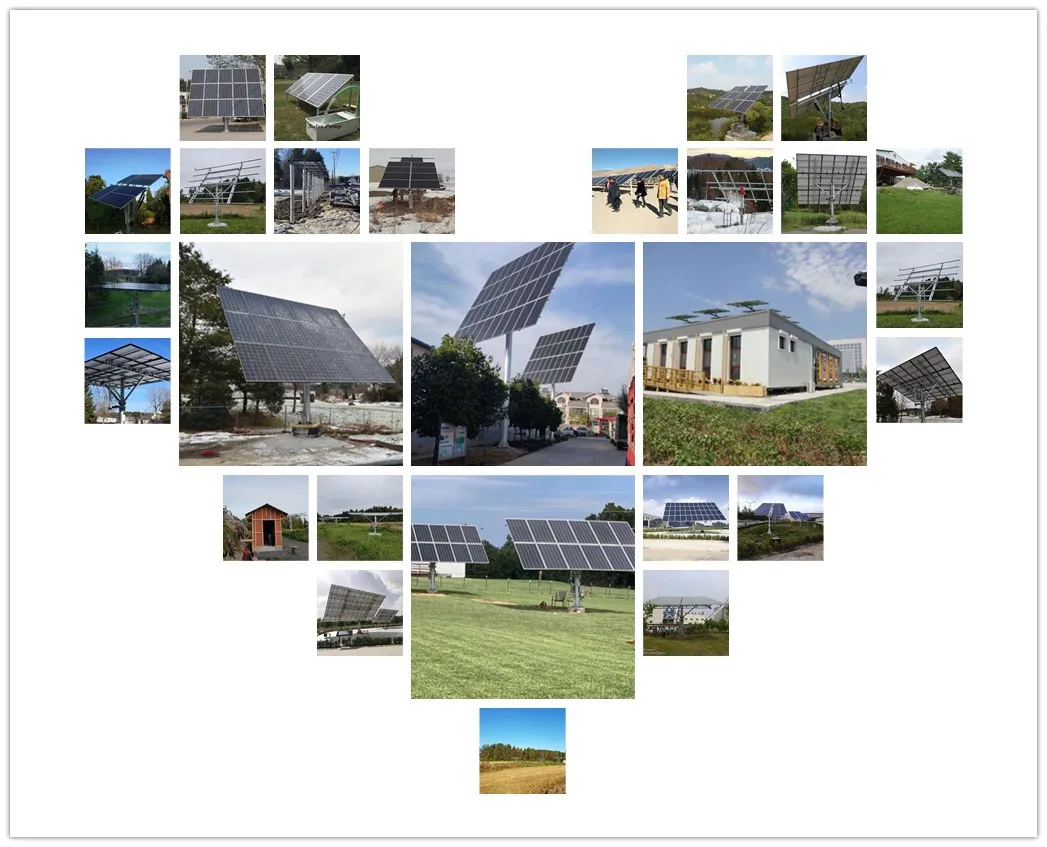

As a result of our high quality products and outstanding customer service,we have gained a global sales networking reaching the following country:
As a result of our high quality products and outstanding customer service,we have gained a global sales networking reaching the following country:
FAQ
1.What is your terms of payment?
Payment ≤1000USD,100% in advance.Payment ≥1000USD ,50%TT in advance,balance before shippment.
2.Are you a manufacturers?
Yes,we have our own factory.All solar systems are self designed.Welcome to visit our company.
3.How long is your delivery time?
Generally,solar tracker system is 5-10 days shipped if in stock,if not,30 days is required.
