Regulator Step down Power Supply Module with LED Display 1.25V 28V DC LM317 AC/DC Continuously Adjustable Voltage

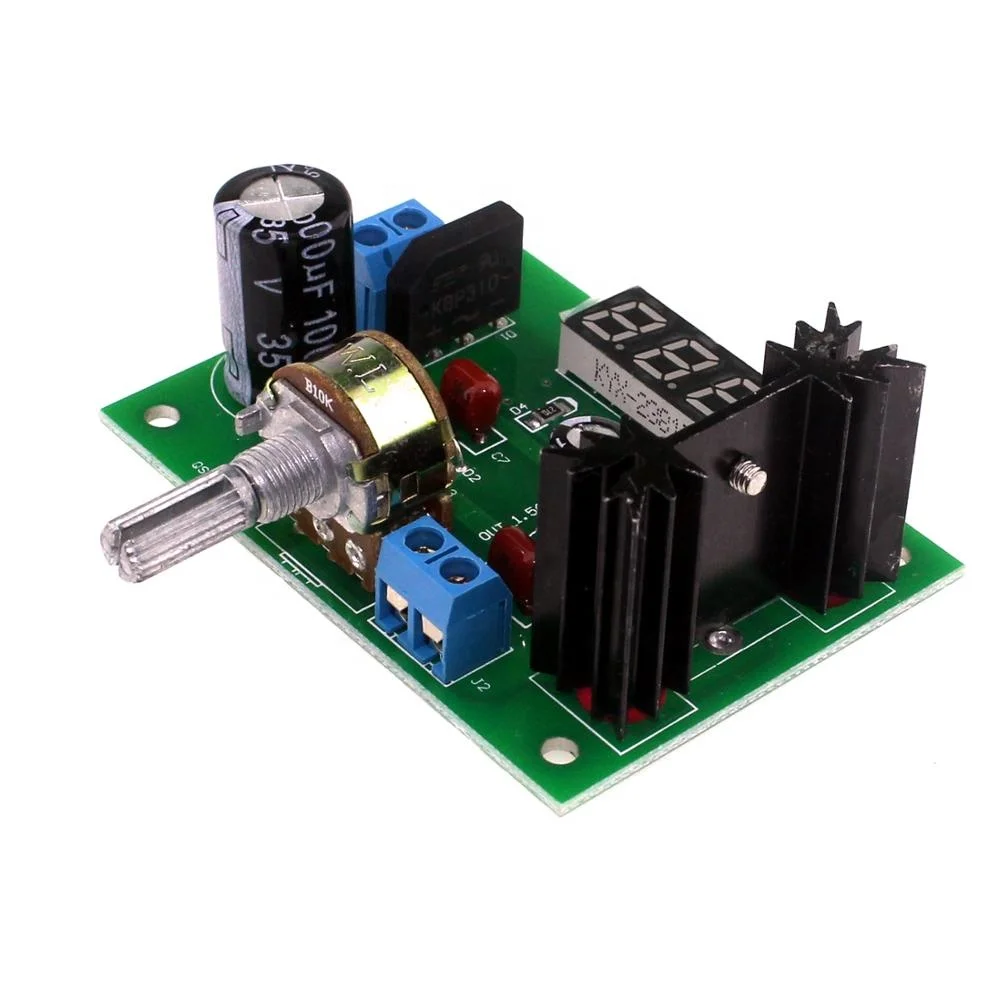

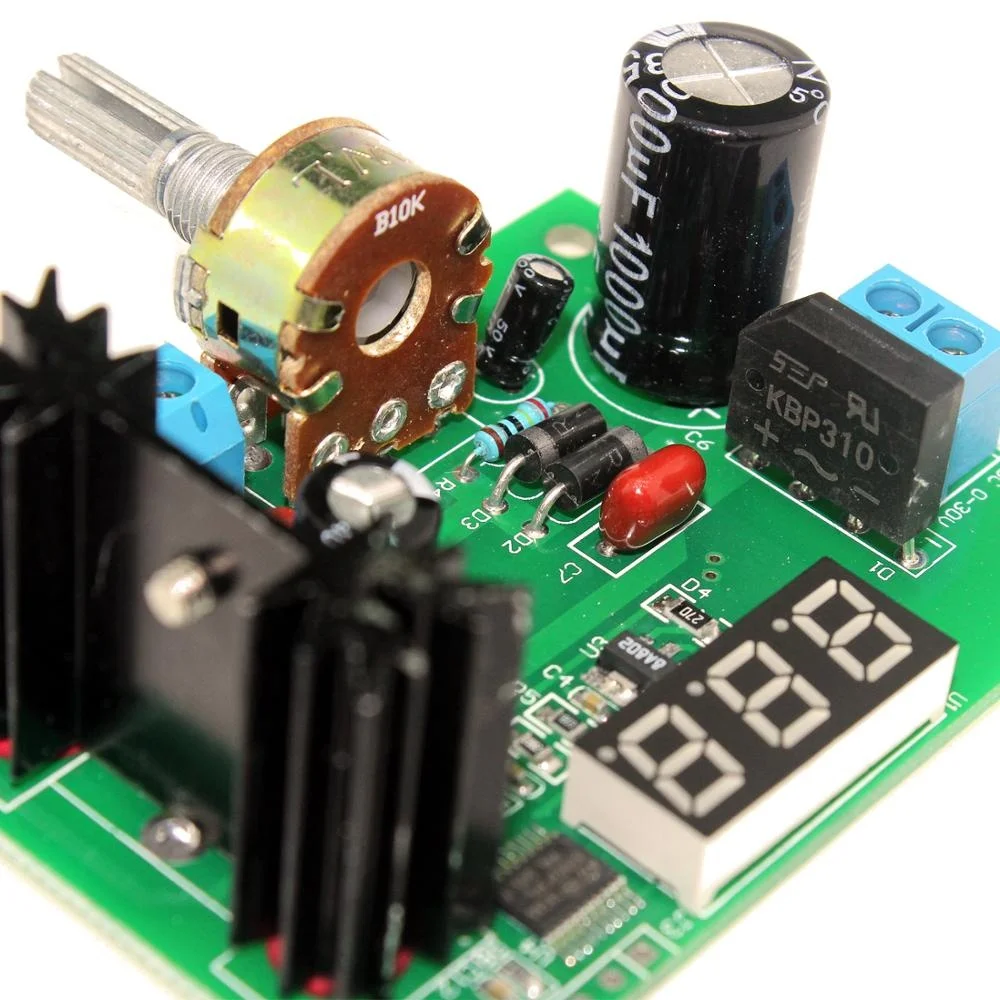

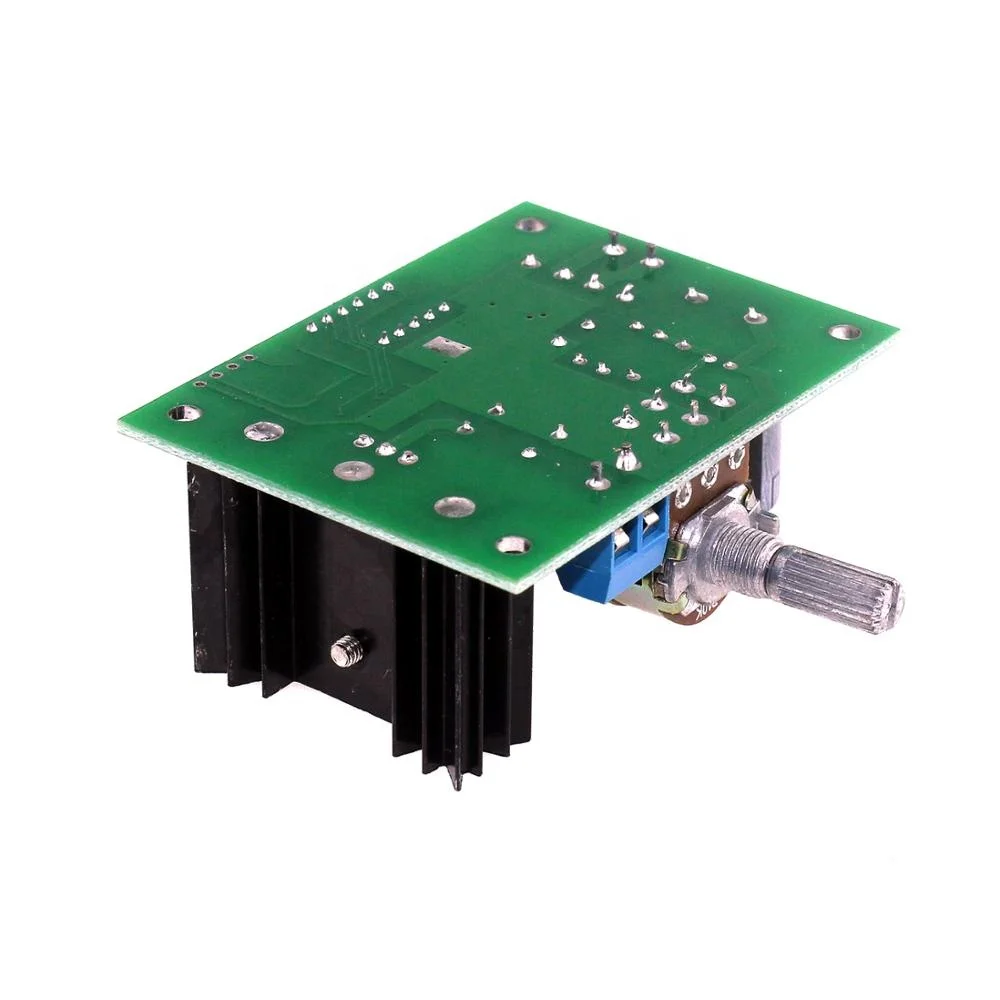

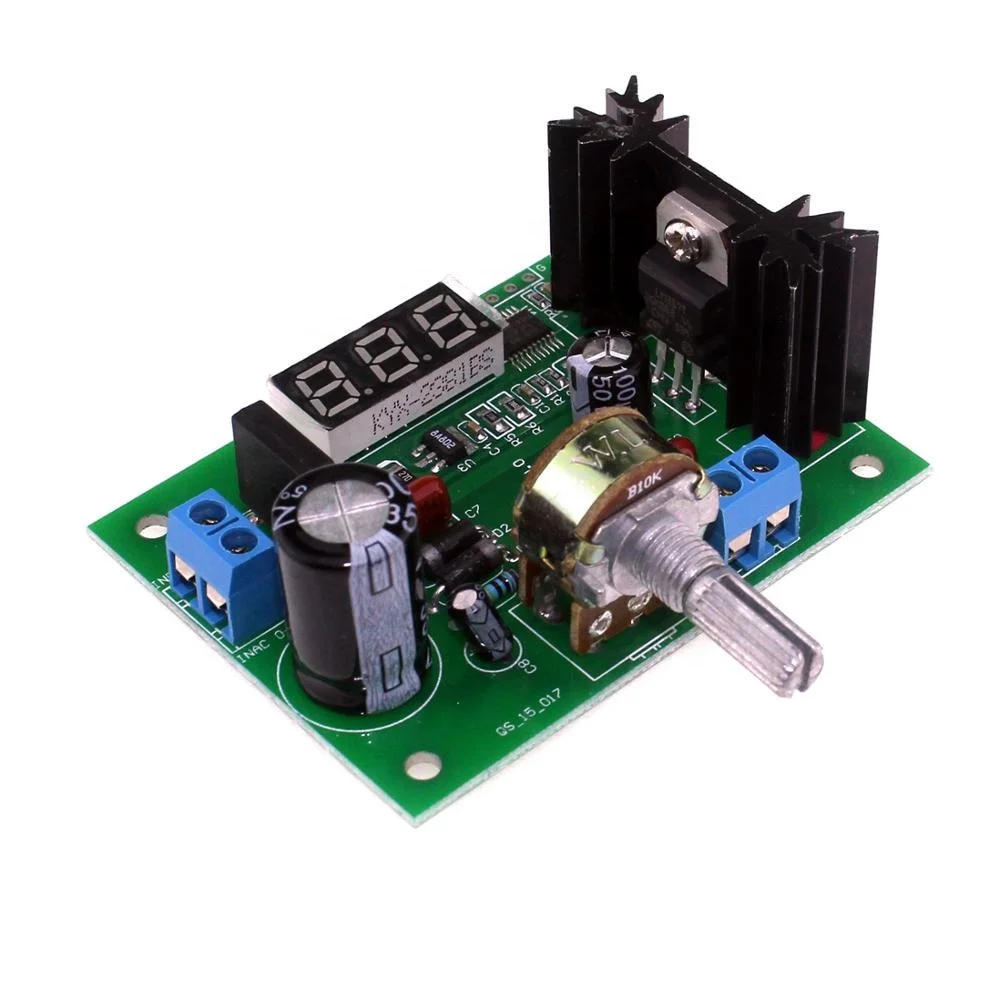

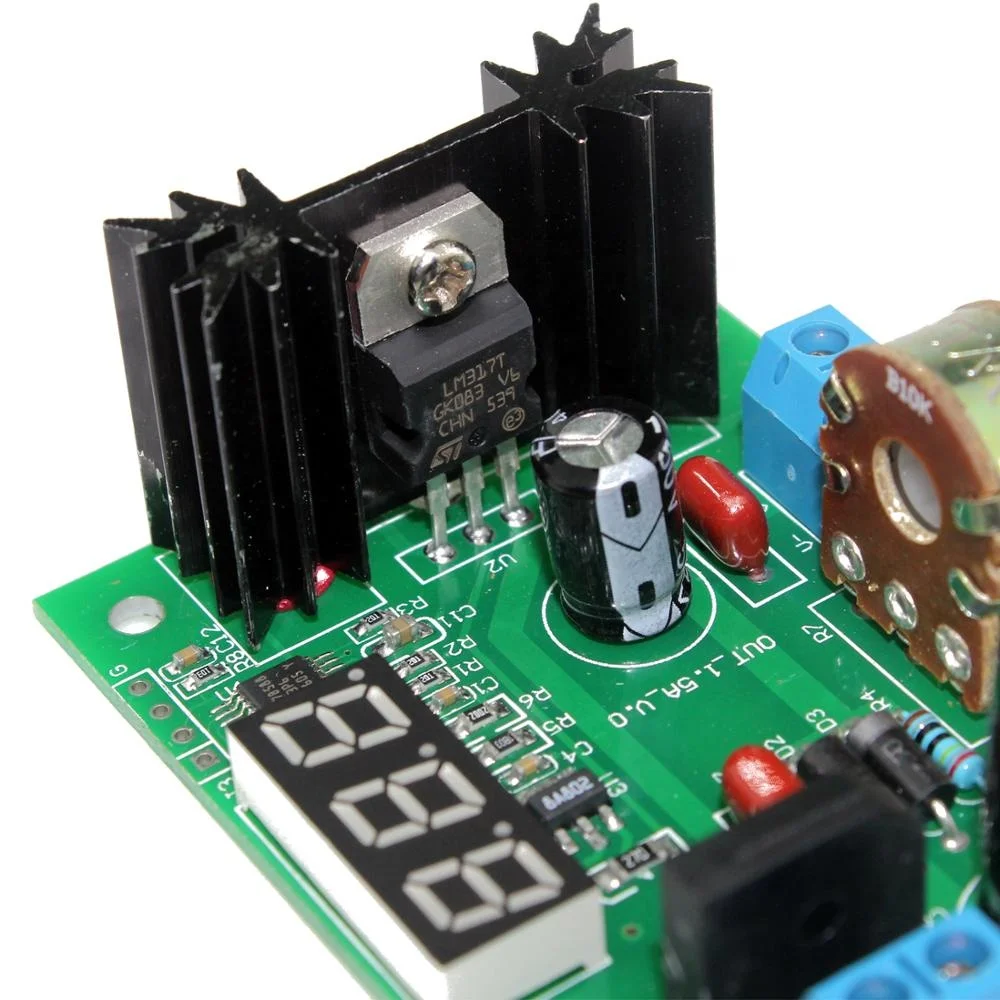

Regulator Step-down Power Supply Module with LED Display 1.25V-28V DC LM317 AC/DC Continuously Adjustable Voltage
Regulator Step-down Power Supply Module with LED Display 1.25V-28V DC LM317 AC/DC Continuously Adjustable Voltage
Regulator Step-down Power Supply Module with LED Display 1.25V-28V DC LM317 AC/DC Continuously Adjustable Voltage
Regulator Step-down Power Supply Module with LED Display 1.25V-28V DC LM317 AC/DC Continuously Adjustable Voltage
Regulator Step-down Power Supply Module with LED Display 1.25V-28V DC LM317 AC/DC Continuously Adjustable Voltage

Regulator Step down Power Supply Module with LED Display 1.25V 28V DC LM317 AC/DC Continuously Adjustable Voltage

Share on (62012700130):


Price:

Quantity:


Product Overview

Description




  • This adjustable regulator module with AC or DC voltage input, the output voltage is 1.25V-28V DC continuously adjustable, versatile for DC board.

  • Features:

  • Adjustable regulator module with LED display.

  • 2A or less can be loaded, AC or DC voltage input.

  • The output voltage is 1.25V-28V DC continuously adjustable, versatile for DC board.

  • Using double adjustment potentiometer to ensure good contact, effectively protect the load.

  • Notice:

  • The minimum differential between input and output is 3V; the input must be higher than the output voltage above 3V to be regulated.

  • Buck, not boost, when input 5V output 1.25-2V, not 6V.

  • Specifications:

  • Input Voltage: DC: 0-30V; AC: 0-22V

  • Output Voltage: DC 1.25-28V

  • Output Current: 2A(Max.)

  • Size: 62 * 59 * 27mm / 2.44 * 2.32 * 1.06in (L * W * H)

  • Weight: 42g / 1.5oz

  • Package Weight: 47g / 1.66ozLM317.jpgLM317435345.jpgLM31753245435.jpgLM3173456436.jpgLM317535467.jpg
