hot air circulating type food drying machine and food drying oven
Description: CT-C series hot air circulation oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can be up to 50%. The successful design of CT-C hot air circulation oven makes that the hot air circulation drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benefit. In1990,the medical management bureau of the State issued the industry standard and the uniform type is RXH. Applications: This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc. Features: 1,Most of hot air is circled inside the oven. The hot efficiency is high, The energy source can be saved. 2,Enhanced ventilation is used and it is equipped with adjustable air divider plate inside the oven. Raw materials can be dried evenly. The hot sources can be steam, hot water, electricity of far infrared. 3,The machine has low noise and stable operation. The temperature can be controlled automatically. The installation and maintenance are very convenient. 4,The applied fields are wide and can be suitable for all kinds of raw materials, lt is a comprehensive dry.
typical technical data
Model
Drying
capacity (kg/batch)
Power (kw)
Steam
Consumption (kg/h)
Heat exchanger area (m2)
Fan volume (m3/h)
Temperature difference (℃)

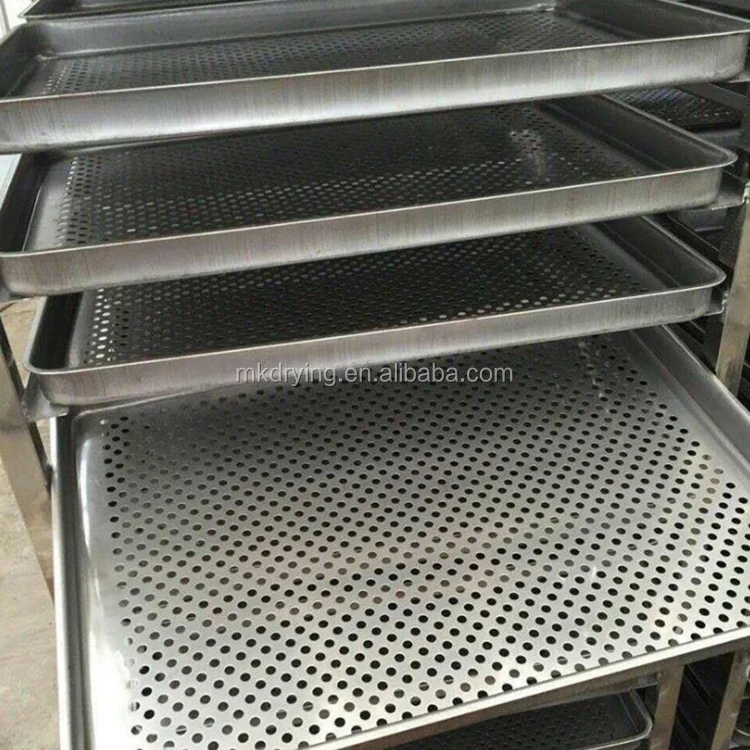

Tray (pcs)
Overall Size(mm)
Trolley (pcs)
CT-C-O
25
0.45
5
5
3400
±2
16
1550×1000×2044
0
CT-C-IA
50
0.45
10
10
3450
±2
24
1400×1200×2000
1
CT-C-I
100
0.45
18
20
3450
±2
48
2300×1200×2000
2
CT-C-II
200
0.9
36
40
6900
±2
96
2300×2200×2000
4
CT-C-III
300
1.35
54
80
10350
±2
144
2300×3220×2000
6

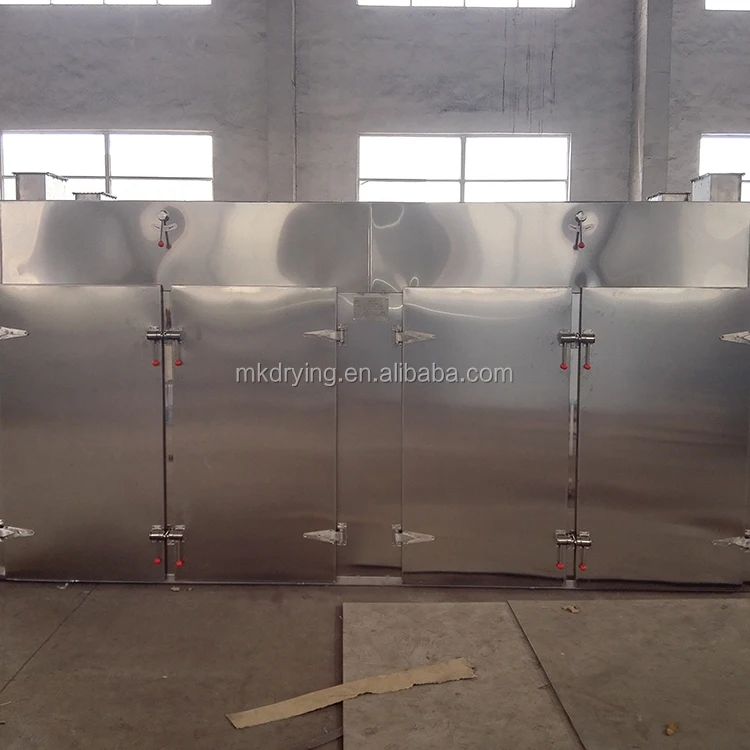

CT-C-IV
400
1.8
72
100
13800
±2
192
4460×2200×2290
8
Pre-service: 1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
Sale service : 1. Ensure product with high quality and pre-commissioning before delivery; provide each manufacturing step photo for customer checking on time.
2.Testing the machine and making video for customer’s checking. 3. Delivery on time; 4.Provide full sets of documents as customer’s requirements.
After-sale service : 1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customer's question on technology in time.
