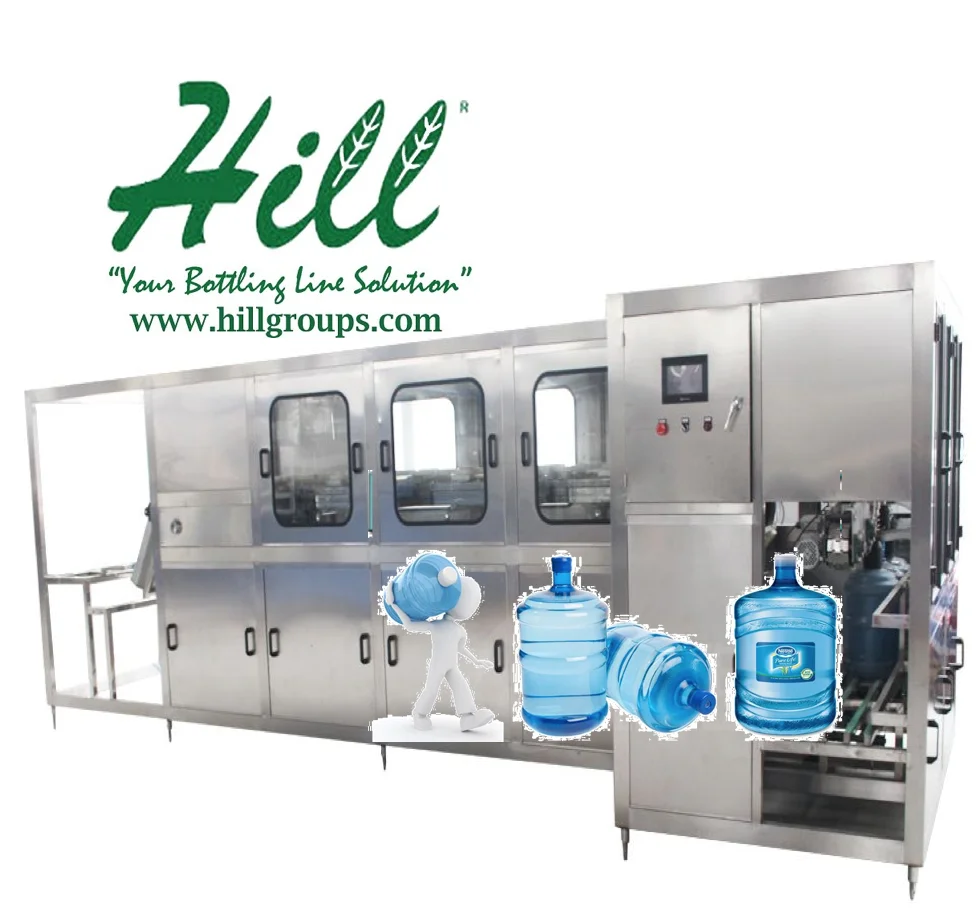

Automatic Barrel Gallon Filling Machine For Water Filling Line/ Water Filling Station 5 Gallons/ 20 Litters Filling/
- Category: >>>
- Supplier: HILL MACHINERY SDN. BHD.
Share on (62012723192):
Product Overview
Description
Product Description
Basis Data
Item Name: 5 Gallon Water Production Line
Production Capacity: 900barrels per hour
Filling Products: Pure Water
Filling temperature: Room Temperature filling
Packing standard :
Maximum Capacity: 950BPH(18.9L)
Rated Capacity: 900BPH(18.9L)
Require For Bottle Shape: 5 gallon
Require For Bottle Volume: 18.9L
Filling Temperature: Room Filling
Filling Temperature Precision: ±1℃
A/\tOverview:

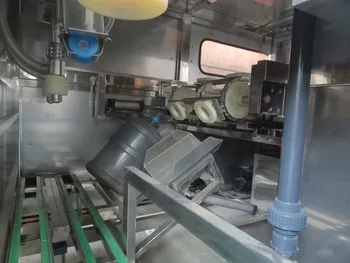

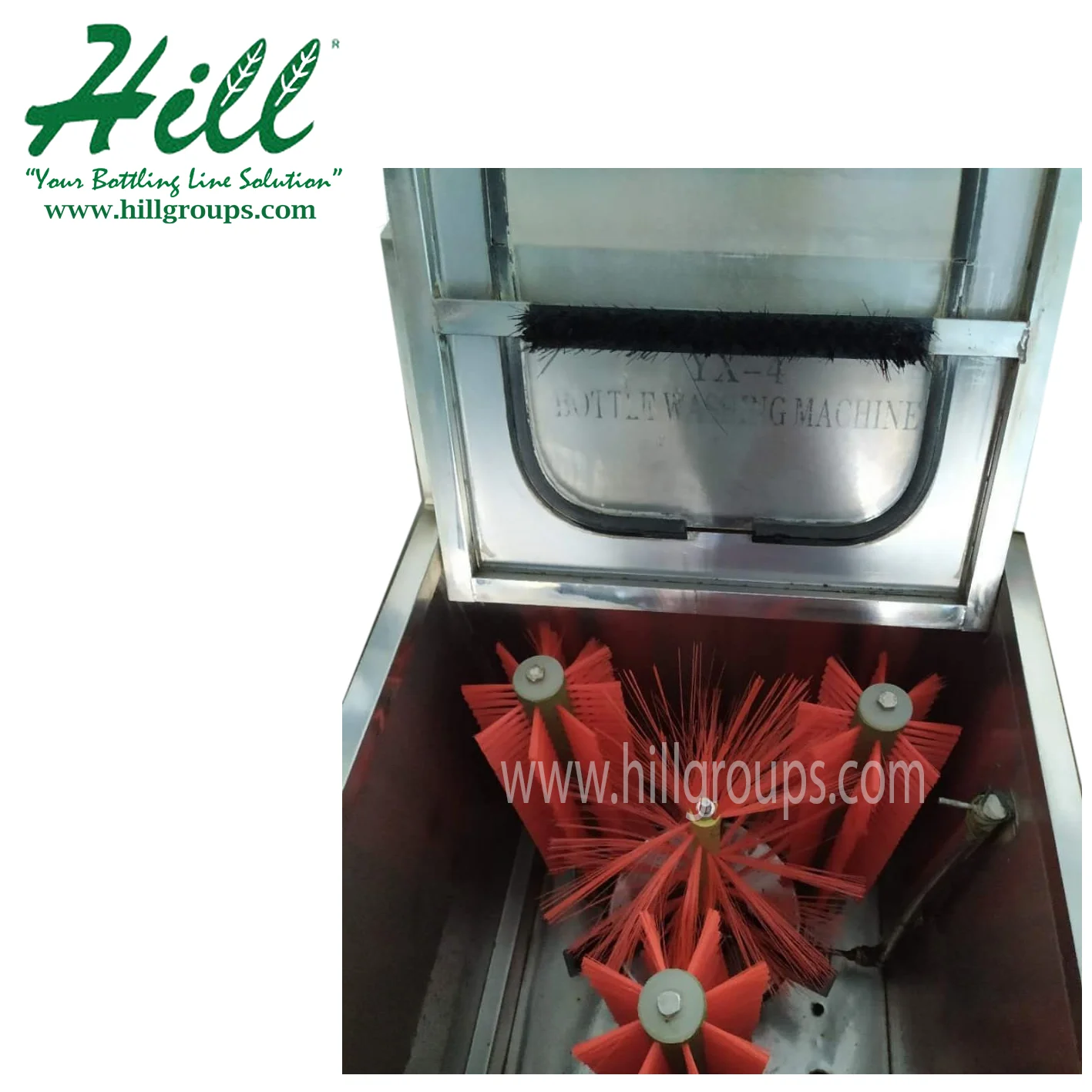

The whole machine is relatively closed to prevent water leakage. When the bottle is sent to the bottle washing position by conveyor belt, the manipulator sends the barrel to the bottle washing position. The lifting device lifts the bottle to the bottle washing position. The bottom brush rises and the manipulator clamps the bottle. At the same time, the copying brush and the high-pressure pump startup. The bottle sprays continuously on the barrel body and rotates with the brush. In this way, the bottle body, bottleneck, bottle bottom, and bottle interior are thoroughly cleaned by the action of brush and water. After cleaning, the lifting device and the manipulator deliver the bottle to the conveyor belt, and the bottle is sent to the next process by the conveyor belt. The whole machine is controlled by PLC. Equipped with independent control box.
B/\tMain Features:
1/\tThe rack, baffle and control box are made of 304 stainless steel, which can wash the neck, body, and bottom of the inner and outer barrels, double cleaning inside and outside to achieve full cleaning in all directions.
2/\tAfter washing, clean the dirty water again and wash the dirty water clean. It is equipped with a circulating water tank, circulating water pump, double-layer filter screen, plexiglass cover, etc.
3/\thas the remarkable advantages of fast brushing speed, better brushing effect, and strong stability. Whenever blockage occurs on the conveyor belt at the outlet of the barrel, the initiative slips instead of stopping, and the machine restores itself after the blockage is discharged.
4/\tfully embodies the humanized design and is the preferred product of many large and medium-sized drinking water production enterprises.
2.Data
Model QGF900
Production Capacity UP 900BPH( 18.9L )
Filling Valve 6
Water pump 0.55kw
Pure water pump 0.55kw
Filling pump 1.0kw
Conveyor motor power 0.37kw
Bottle standard Φ56×Φ270×490mm
air pressure 0.6-0.8MPa
Gas consumption\t1.2m3/min
Barrel washing Water consumption 3.5T/H
Cap sorting Power 60kw
Heating power 18kw
Electric Configuration:
No.\t(Item name) ( Supplier)
1\tMain motor LICHAO
2\tCap Sorting device motor\tLICHAO
3\tFrequency converter\tMitsubishi
4\tPLC control system Mitsubishi
5\tWashing pump Nanafang
6\tFilling pump\tNanafang
7\tContactor\tSIMENS
8\tSolenoid valve\tAIRTAC
9\tAir cylinder AIRTAC
10\tAir source AIRTAC
11\tPhotoelectricity\tAUTONICS
12\tSpray nozzle American spray technology
13\tProximity switch\tSchneider
14\tPLC control system Mitsubishi
Product Name | HILL-900 5 Gallon Filling Machine |
Material | stainless steel |
Color | nickel white |
Filling Heads | 6 heads |
Total Power (KW) | 5 |
Brade | Malaysian |
Voltage | 380V / 50 Hz |
Used | Water filling |
