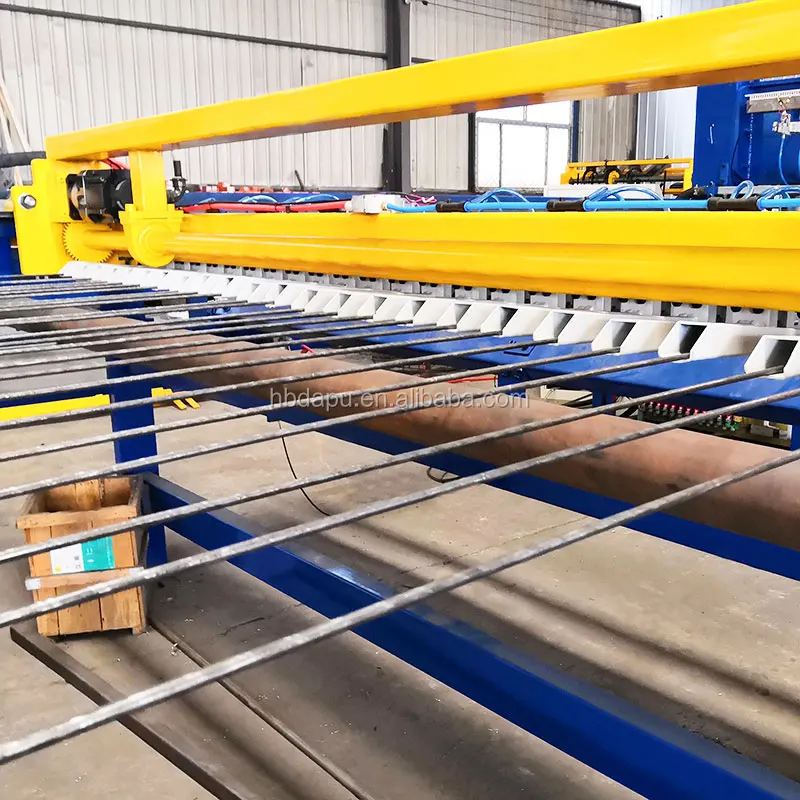

This is our new type wire mesh welding machine DP-GW-2500B, which adopts SMC bally air cylinders to control welding, the welding speed can be up to max.80-100 times/min. We can also supply other types of wire mesh welding machines5-12mm and 3-8mm.
Technical Parameters
Technical Parameters
Model
DP-FM-2500A+
DP-FM-3000A+
DP-GW-2500B
DP-GW-3000B
Air cylinder type
SMC 80 double acting air cylinder
SMC 90 single acting bally air cylinder
Wire diameter
3-8mm
5-12mm
Longitude wire space
100-300mm
100-300mm
Cross wire space
Min.50mm
Min.50mm
Mesh length
Max.12m
Max.12m
Mesh width
Max.2500mm
Max.3000mm
Max.2500mm
Max.3000mm

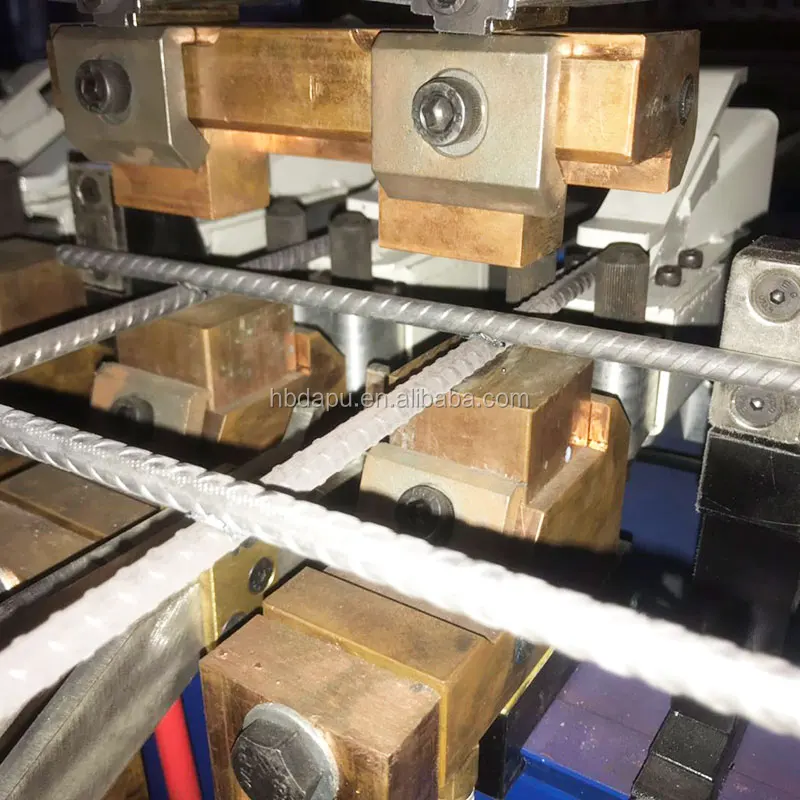

Welding electrode
Max.24pcs
Max.31pcs
Max.24pcs
Max.31pcs
Welding transformer
150kva*6pcs
150kva*8pcs
150kva*12pcs
150kva*16pcs
Welding speed
Max.100 times/min
Max.80-100 times/min
Weight
5.2T
7T
8.5T
9.8T
Main machine size
12.12*5.4*2.1m
12.13*6*2.1m
12.13*5.4*2.1m
12.13*6*2.1m
Machine Advantages
Machine Advantages

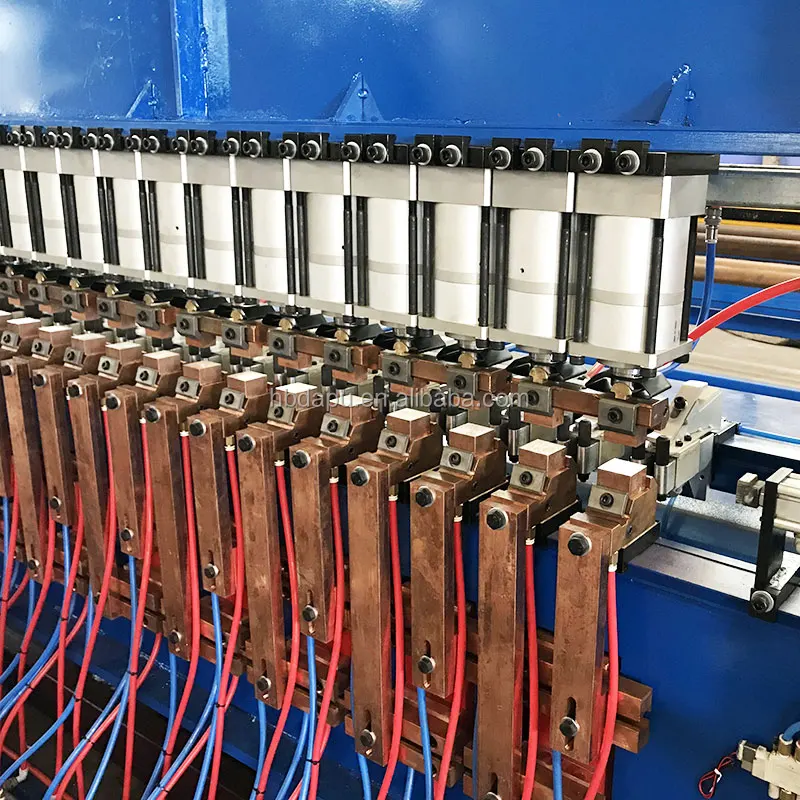

SMC (Japan) custom-made 90 bally air cylinders
1. Output power increase 20%.
2. Air consumption save 30%.
3. Air cylinder length reduce 60%, short stroke.
4. Welding pressure: 570KG.
5. Piston rod don't rotate.
6. Single-acting cylinder, connect with electromagnetic valve by one air pipe.
7. Compared with old type machine, total power consumption saves 50%.
8. The welding speed can be up to max.80-100 times/min.
