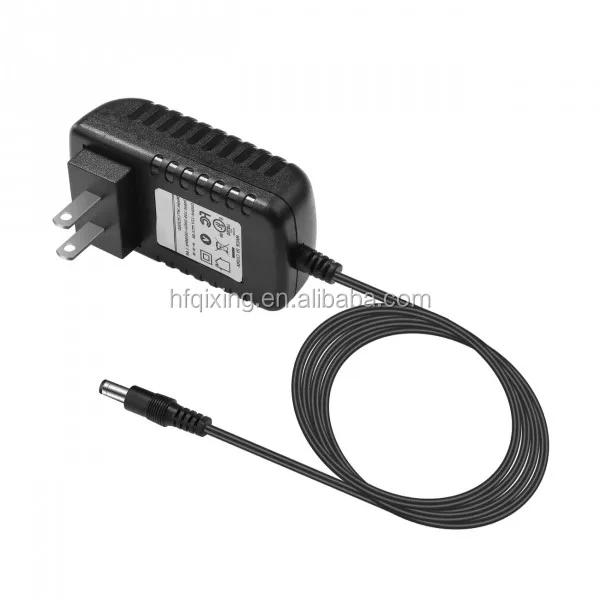

AC/DC power adapter 12v 5a power supply 60W For LED LCD CCTV

 What is the Specifications of our power supply cable?

Features:

• Input	Input voltage	AC 100~240V
  	Variation Frequency	50-60Hz
  	Input frequence	50~60Hz
  Output	Output voltage	12v
  	Output current	2A
  	Output power	24W

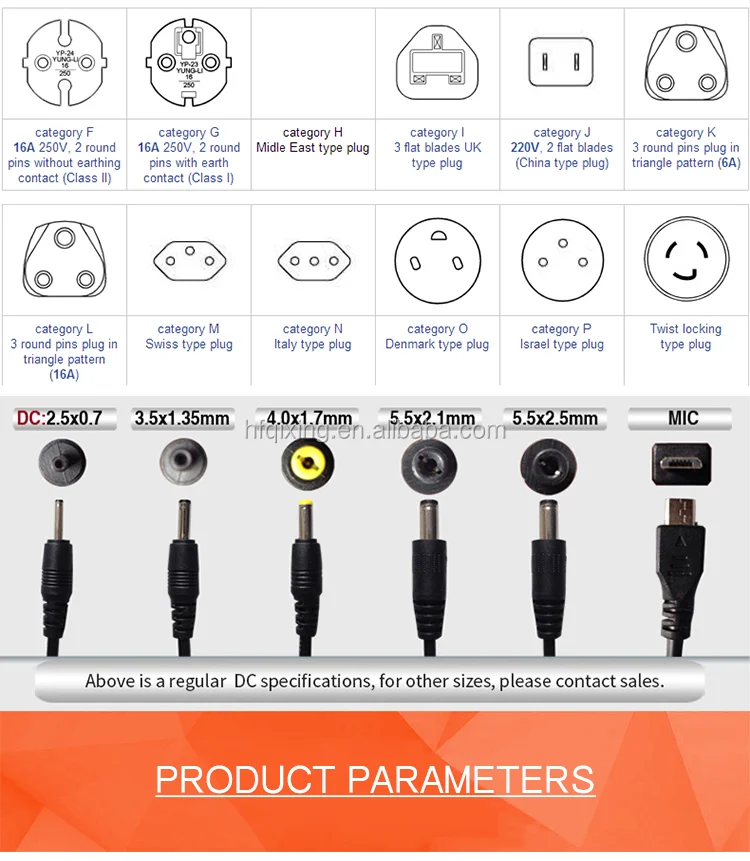

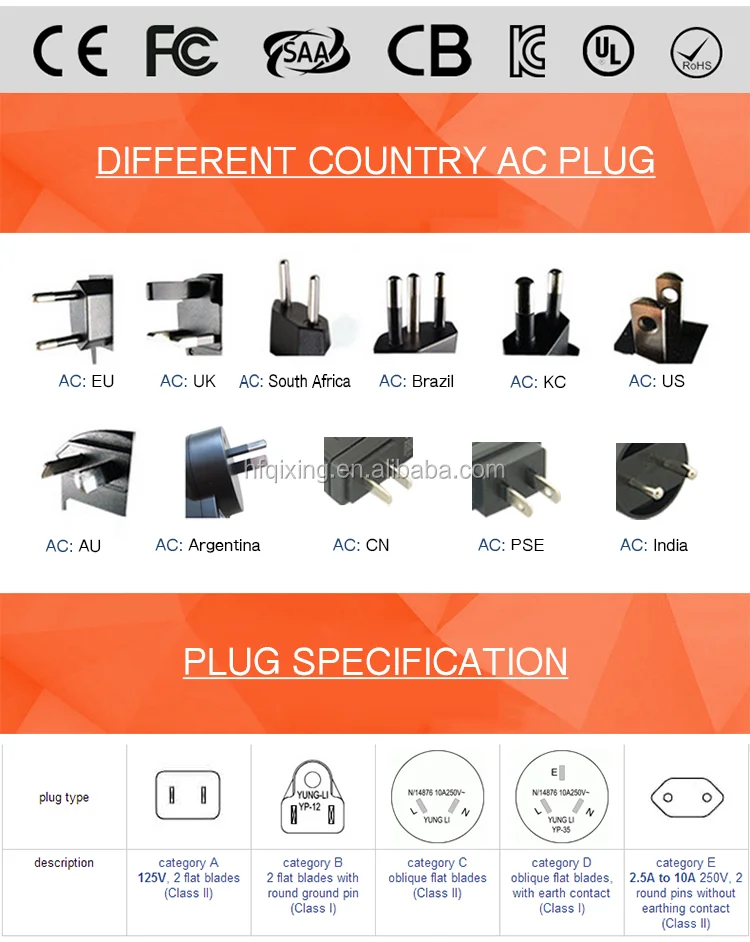

  Input plug types	EU/ US /UK /AUS /South Korea /South African Plugs
  Out plug types	DC jack, XLR, JST, Cigar Lighter, Alligator Clips,Viation Plug, Din Plug.etc
  DC jack size	5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm, 3.5*1.0mm, 4.0*1.7mm, 2.5*0.7mm .etc
  Safety protection	Over voltage protection	120% min
  	Over current protection	120% min
  	Short circuit protection	auto recovery
  	Over hot protection	auto recovery
  Electronic characteristics	Operating Temperature	-40~50°C
  	Storage Temperature	-40 to +85 °C
  	Humidity	10%~95%RH
  	Efficiency	80%
  	Ripple And Noise	Output voltage 1%, Ripple&Noise≤120mv
  	Turn-on Delay Time	3 second max
  	Overshoot at Turn-on	10% max when turn on or off
  	AC leakage Current	0.25mA max at AC 240V voltage
  	Load Regulation	±5%
  	Line Regulation	±5%
  	High-Voltage test	Primary to secondary: 3 kV / 5mA 60S
  	Drop Test	0.75m drop test, 6 times
  	Burn-In Test	100% load, 5hours
  Application	CD/DVD,MP3/MP4,Digital camera,Comunication Terminals Etc
  Safe Certificate	CE ROHS FCC UL CB BS SAA C-tick PSE KC



Packaging & Shipping



advantage

1.UL/CUL, PSE, GS, BS, CE, CB, FCC
2.Low price and reliability
3.High efficiency and low operation temperature
4. AC input power suitable for the world
5. Soft-start current can reduce the AC input impact efficiency
6. With short-circuit and overload protection
7. Compact size ,light weight
8. 100%full-load burning test
9. Installed with EMI filter ,minimum wave
