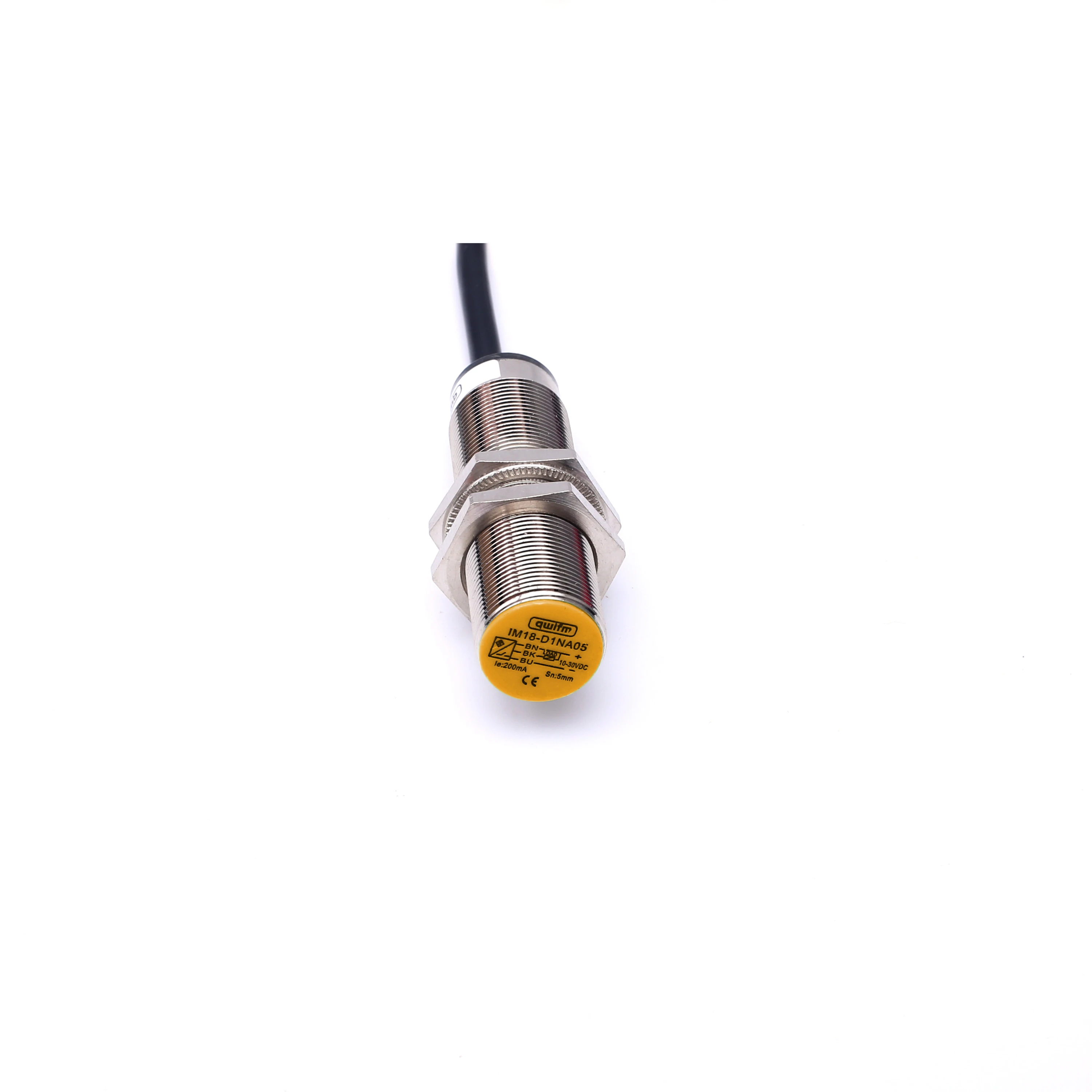

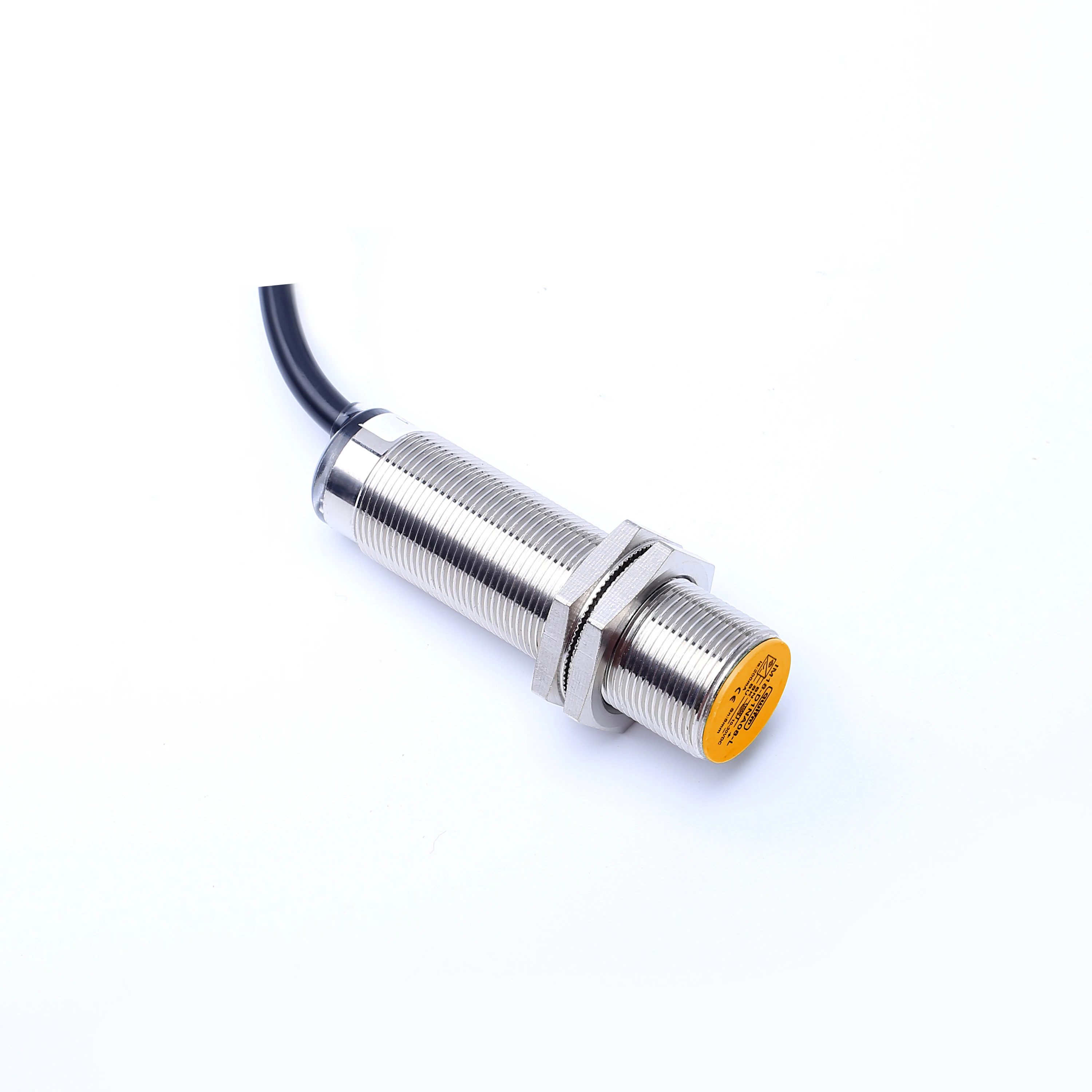

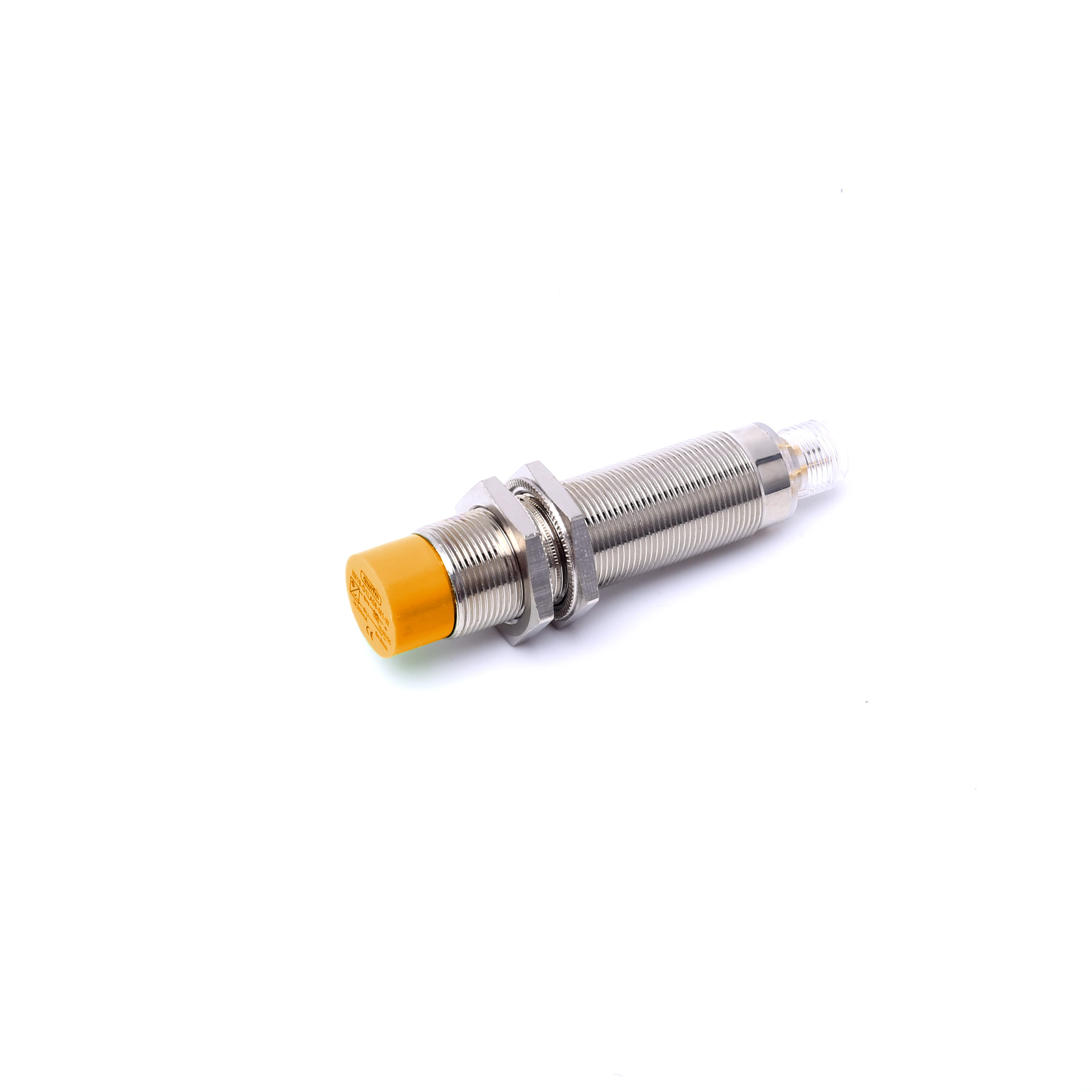

IP69 Waterproof M18 Inductive Proximity Sensor
- Category: >>>
- Supplier: Shanghai Nature Beyond Electric Technology Co. Ltd.
Share on (62012796110):
Product Overview
Description
Product Description
- Long sensing distance and excellent noise immunity.
- Simple operation, reliable performance, and high durability.
- IP68 protection structure(IEC Standard)
| Product model | IM18-D1NA08 |
| Sensing distance | 8mm |
| Control output | NPN/PNP; NO/NC |
| Output current | DC ≤200mA; Relay ≤300mA |
| Output voltage drop DC/AC | DC<3V; AC<10V |
| Consumption current | DC<15mA; AC<10mA |
| Standard sensing object | 18*18*1(A3 Iron) |
| Repeated precision | 0.02 |
| Response frequency | 500Hz/20Hz |
| Working Ambient temperature | `-25℃ ~ +70℃ |
| Insulation resistance | ≥50M Ω |
| Housing Material | Metal |
| Protection grade | IP67 |
| Current short-circuit protection | 220mA(Excluding AC output product) |
