SPLITTER S 1200 New Hydraulic Rock Splitter for Excavator Efficient

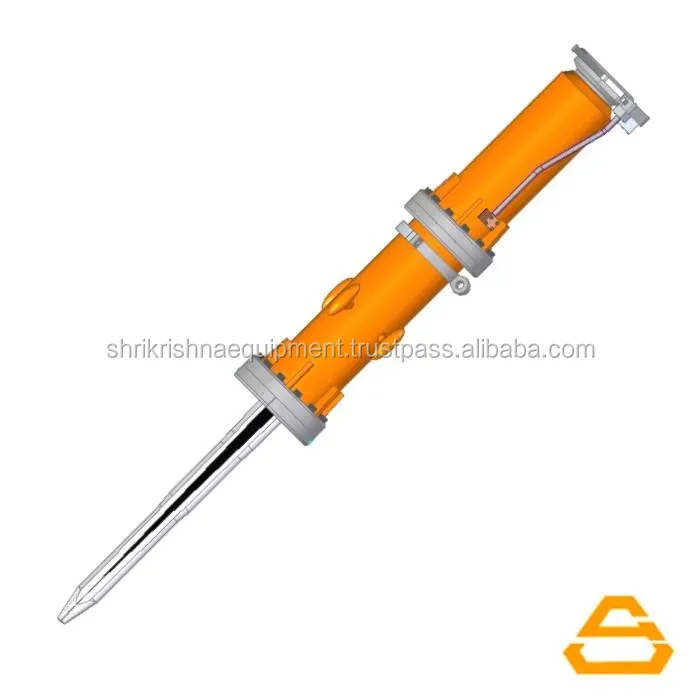

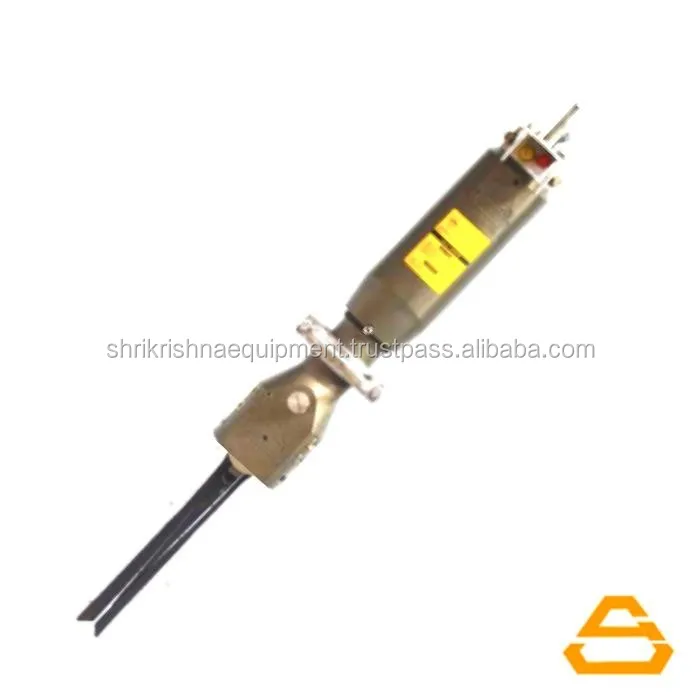

Smart Ultra Large Rock Splitter S-1200

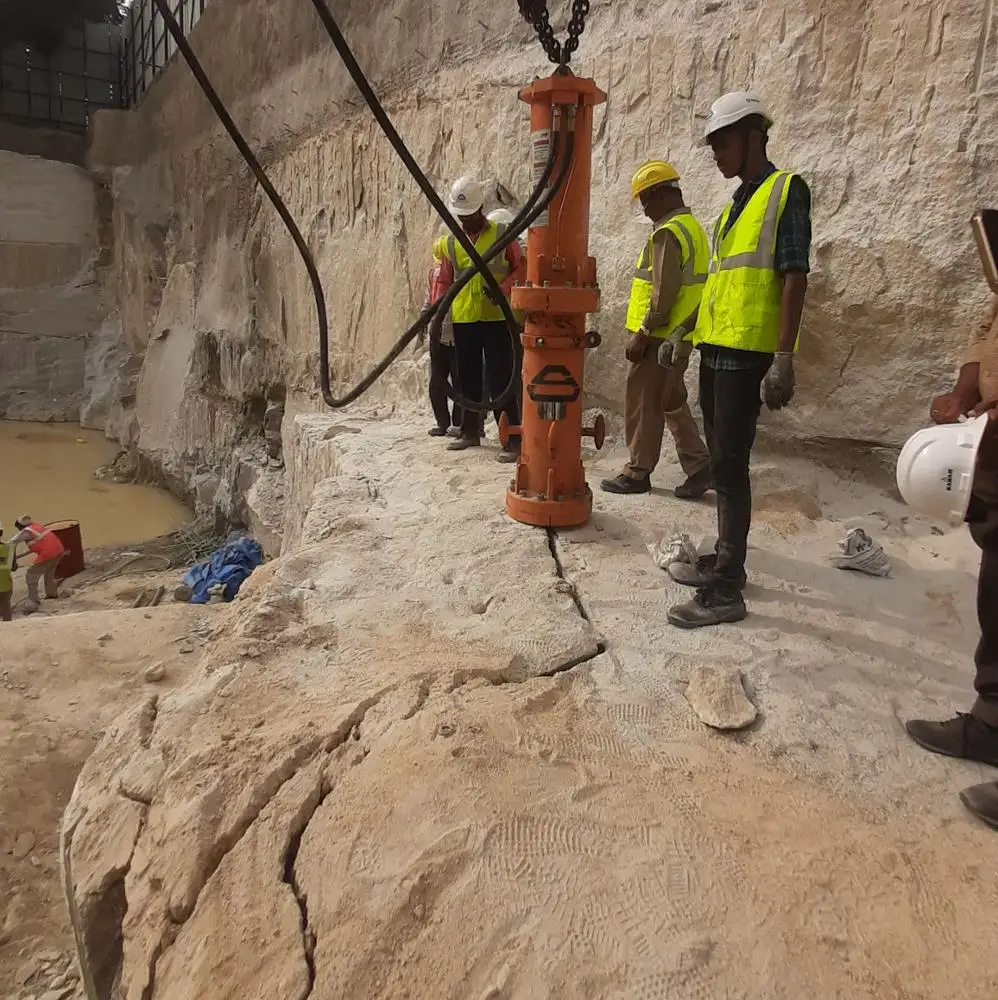

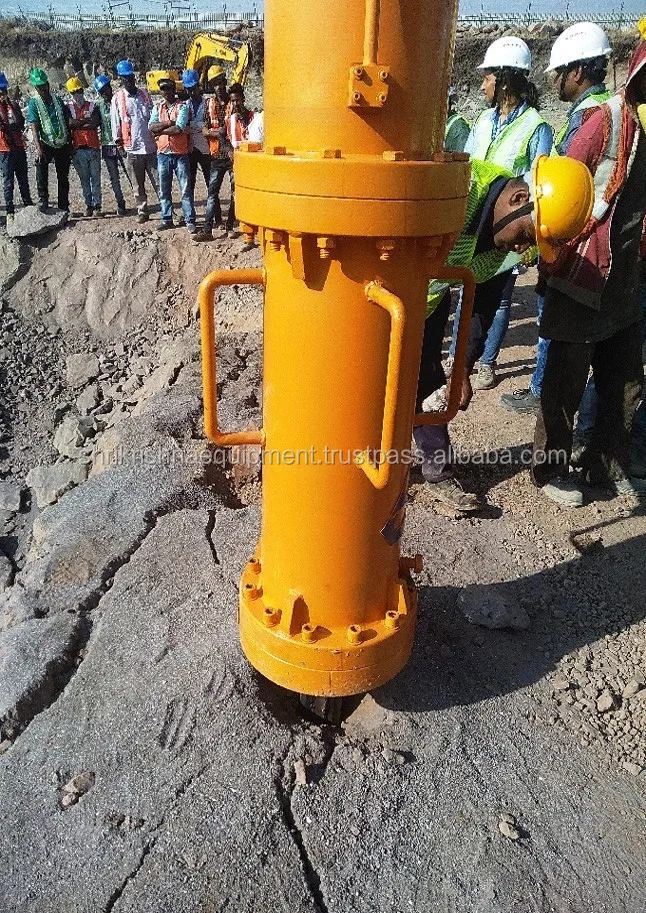

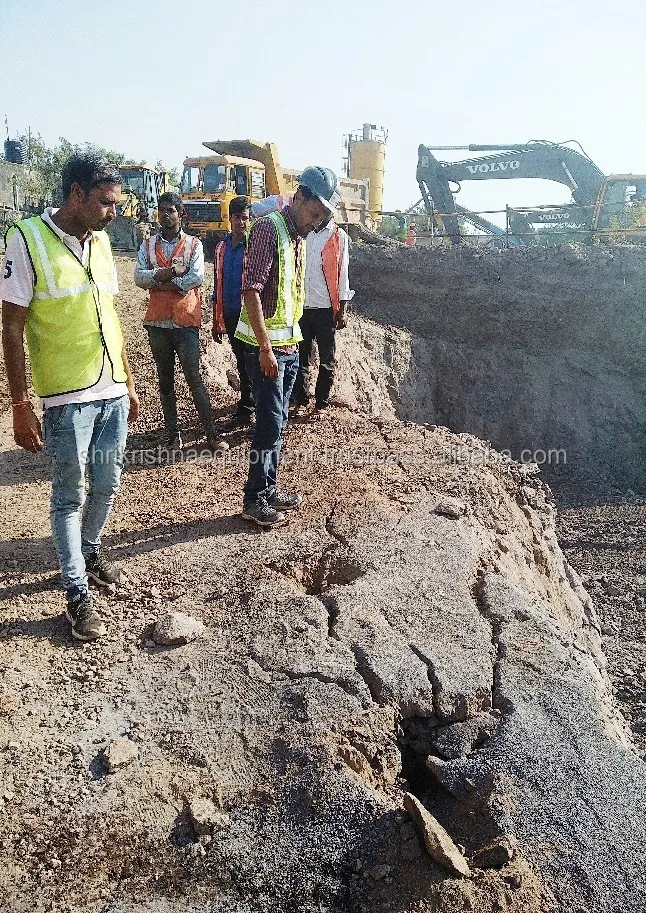

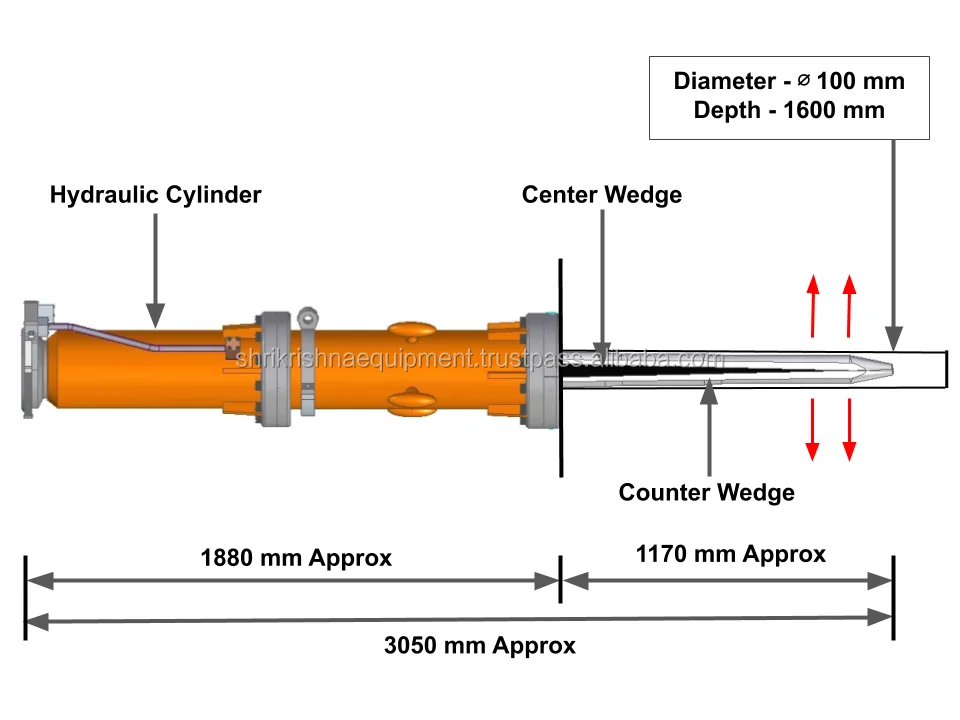

Working of S-1200 Rock Splitter - Wedge set inserted in pre-drilled hole of 100 -102 mm diameter and 1800 mm deep. S-1200 cylinder pushes center wedge between two counter wedges. Which applies a 2500 ton splitting force on side wall of rock hole, resulting in splitting of rock without any noise and vibration. The output of the S-1200 will be @ 250 to 300 m³ per day.

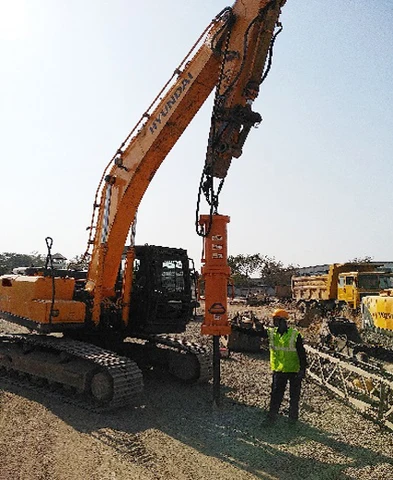

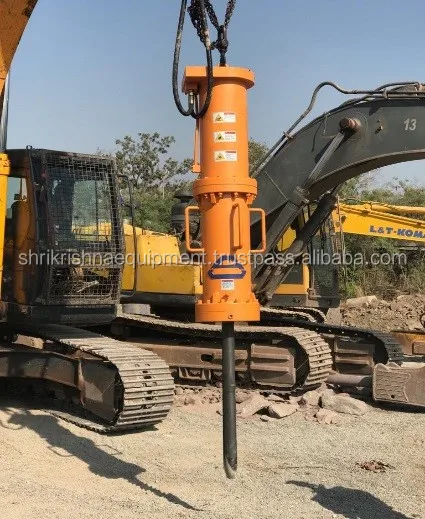

S-1200 can be used for open trenching, foundation blocks, Tunnel excavations. The splitter can be mounted on crane & normal excavate open pits, shafts, micro tunneling, etc.

Main Features

1) Hydraulic Rock Splitter produces force of 415 Tons.
2) Powerful on all types of ground strata.

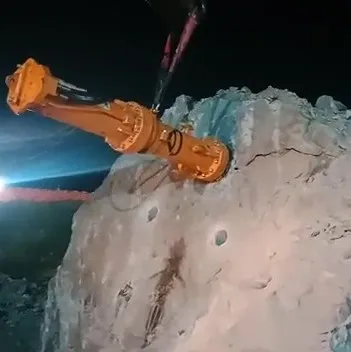

3) It can be used vertical and horizontal direction.
4) Performs smooth splitting operation.
4) Noiseless, environment – friendly and dust free operation.
5) Operator can easily learn to operate the splitter within a short time.

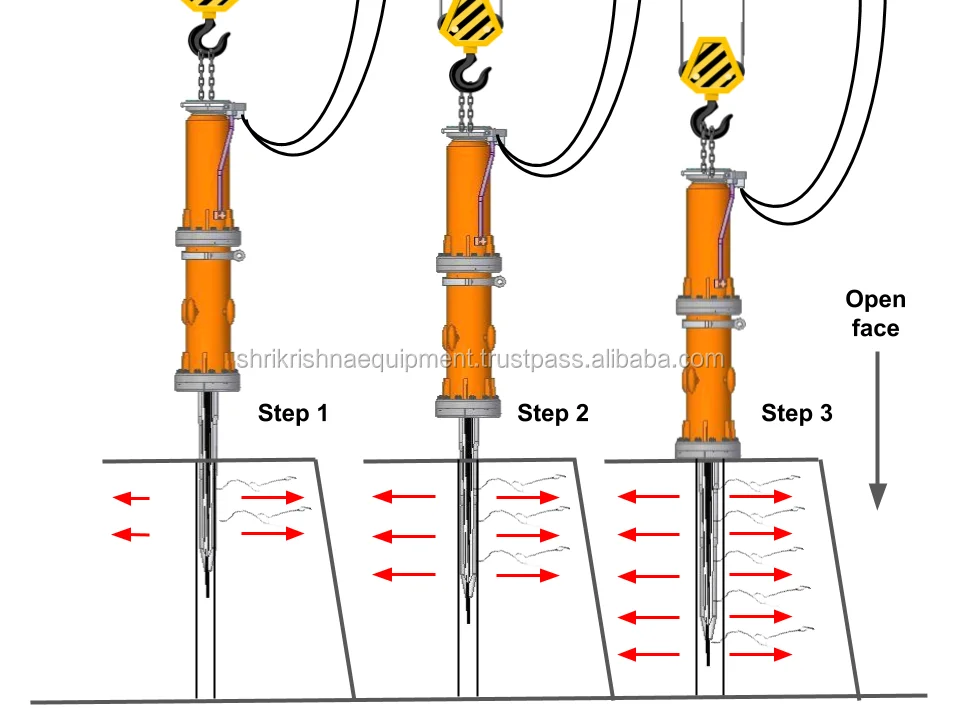

TO OBTAIN MAXIMUM OUTPUT FOLLOWING STEPS RECOMMENDED:

Step 1: Insert half of the total length of wedge and operate the splitter.
Step 2: Insert about 3/4th of the total length of wedge to split again.
Step 3: Finally insert the total length of wedge and split to complete.

About Us

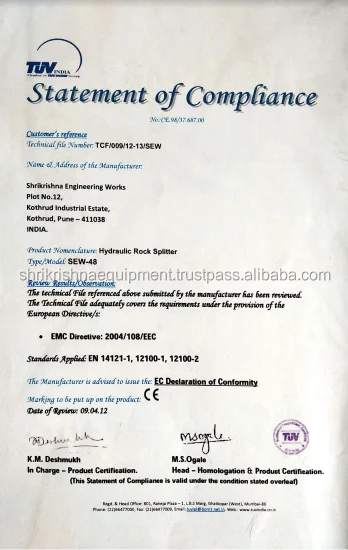

Shrikrishna Agro Equipment Pvt. Ltd is another part of Shrikrishna Group founded in 1996 in Pune. The company aims to concentrate on manufacturing of unique and specialized hydraulic equipment with its machining and fabrication set up, testing facilities and R & D department in-house. Today Shrikrishna Agro Equipment Pvt. Ltd has a range of high performance and unique equipment by the brand name "SMART" Hydraulic equipment, and the range of products comprises of Hydraulic Rock and Concrete Splitters, Hydraulic power packs, Portable high-volume air blowers, hydraulic rescue equipment & Hydraulic concrete crushers etc. Our Hydraulic Rock & Concrete Splitters are "CE" MARKED which means that the product is absolutely safe to use.
