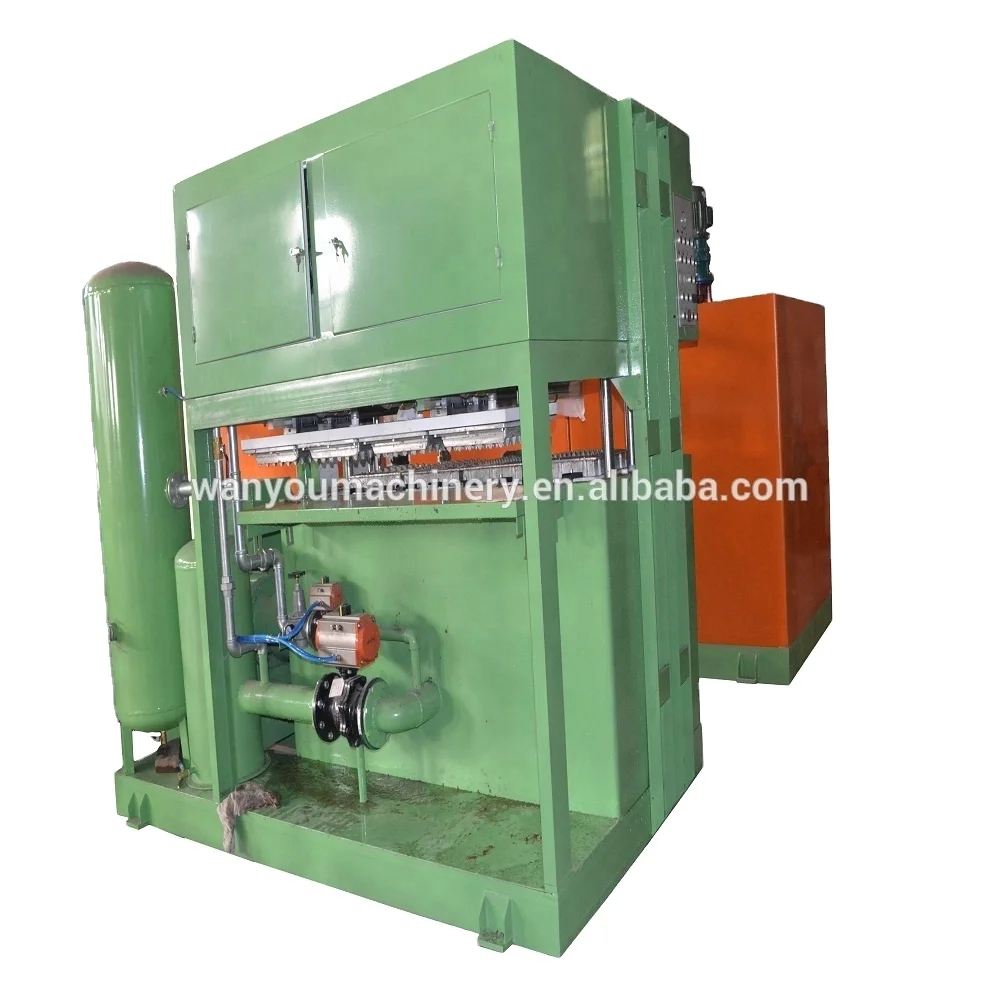

Waste Paper Recycling Pulp Molding Egg Tray Carton Box Making Production Line Machine for Farm Machinery
- Category: >>>
- Supplier: Jinan Wanyou Packing Machinery Factory
Share on (62012834672):
Product Overview
Description
Product Description
high

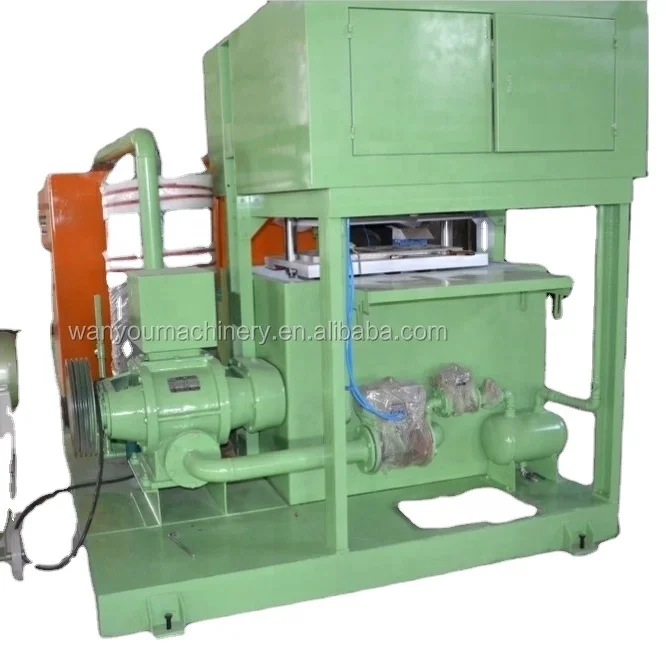

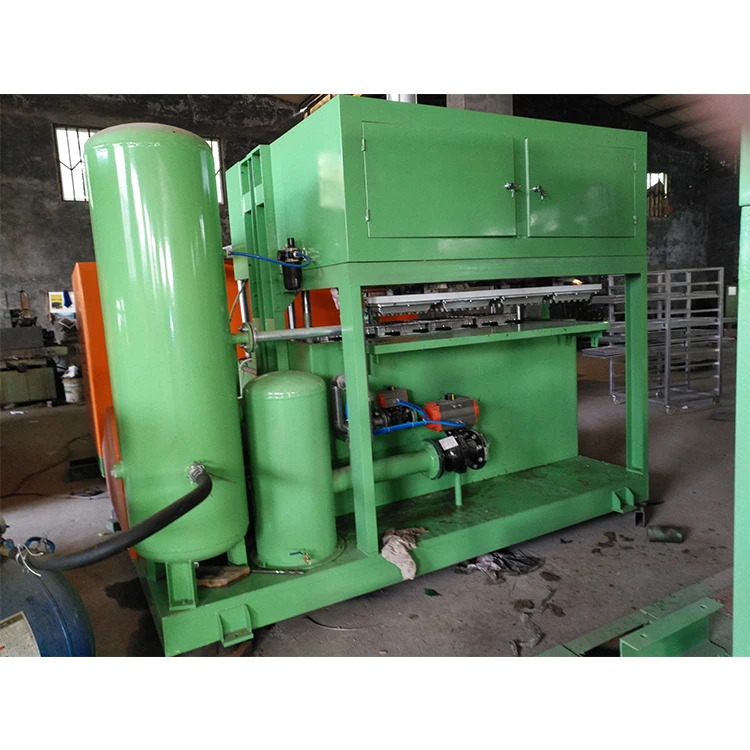

Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production.
Our forming machines adopts advanced PLC programmable controller; selecting of high quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.

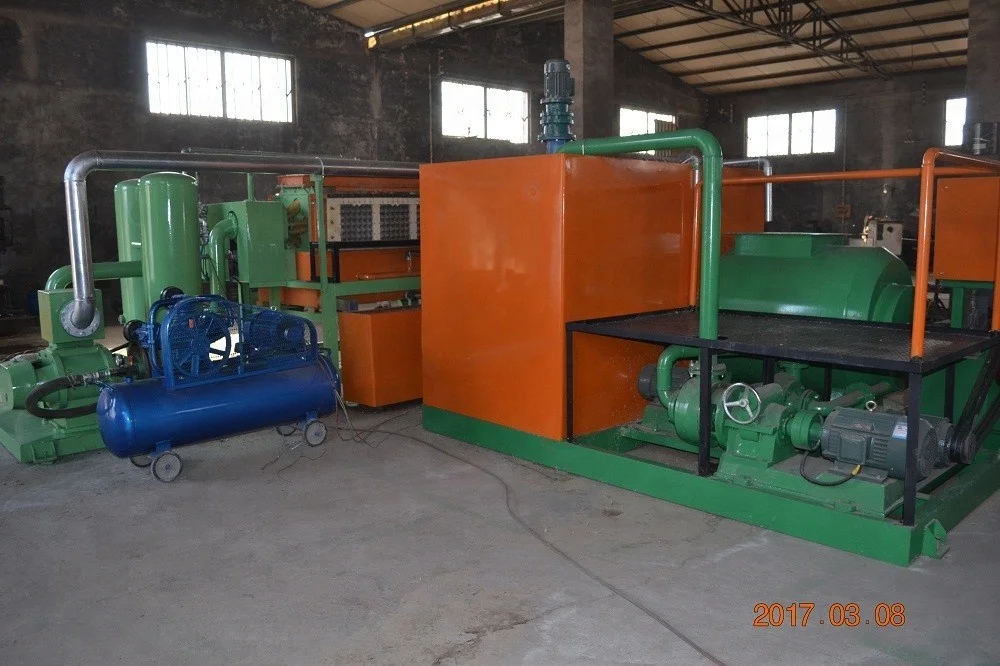

Our Egg Tray Machine production line has Fully Automatic and Semi Automatic two types , both have computer control system. If you don't want this drying system, it is also OK. Then you will have to do the work of drying up the product trays manually.

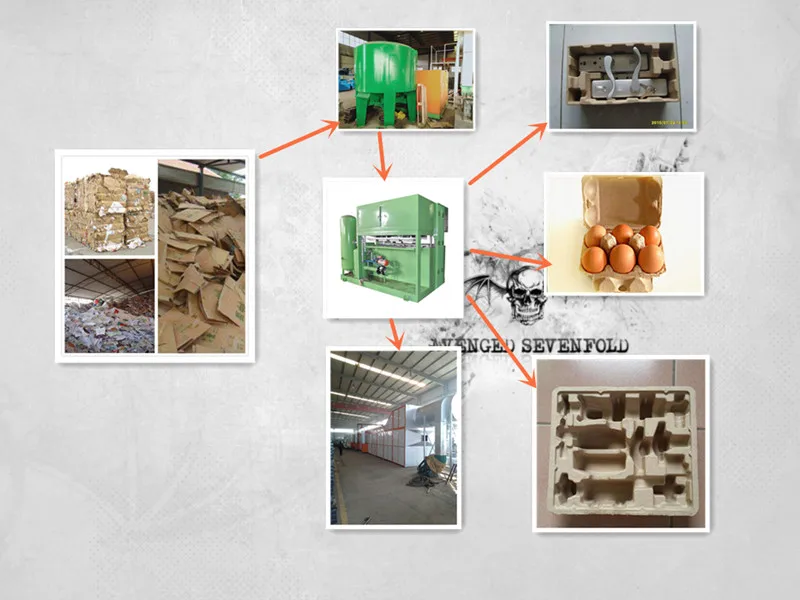

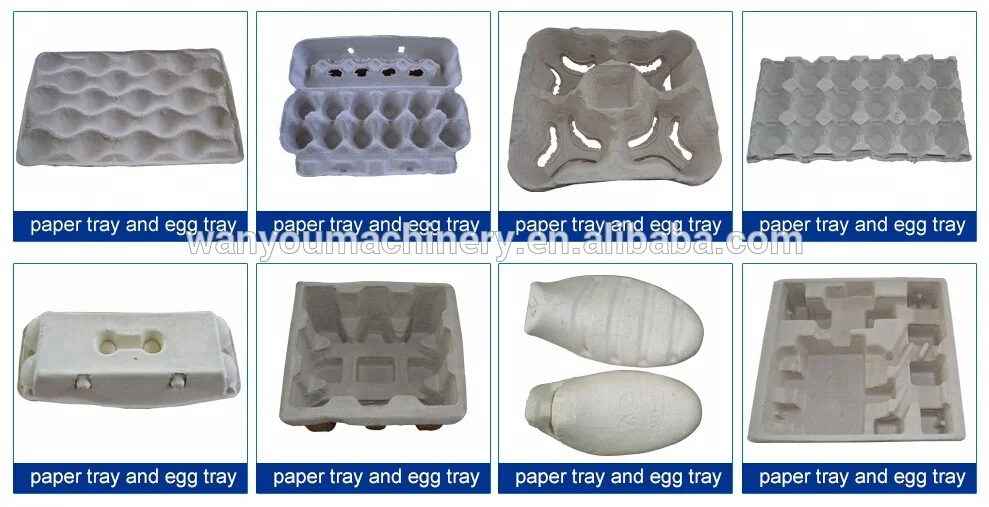

Pulp tray molding machine now is widely used in pulp molding products manufacturing, the raw material is waste paper like Newspaper, Carton, Paper box, Books, Corrugated paper etc.
Technical specification of egg tray machine
spe
Egg Tray Mold Quantity | 2pcs | 3pcs | 4pcs | 12pcs(3pcs*4) | 16pcs(4pcs*4) | 24pcs(3pcs*8) | 32pcs(4pcs*8) | |
Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | |
Egg tray Capacity(pcs/hour) | 700 | 1000 | 1300 | 2000 | 2500 | 3000 | 4000 | |
Net weight per piece (gram) | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | |
Waste paper consumption | 0.06ton / h | 0.1ton / h | 0.13ton / h | 150kg/ h | 150kg/h | 188kg/h | 225kg / hour | |
Water Consumption | 0.15ton/h | 0.22ton / h | 0.3ton / h | 0.45ton / h | 0.6ton/h | 0.68ton/h | 0.9ton / h | |
Natural Gas Consumption of Dryer | 25cbm/h | 45cbm/h | 60cbm/h | 75cbm/h | 90cbm/h | 110cbm/h | 120cbm/h | |
Boiler model (natural gas fuel Kcal) | 300*103 | 450* | 600*103 | 800*103 | 1000*103 | 1200*103 | 1500*103 | |
Worker requirement | 3-4workers | 4-6workers | 4-6workers | 5-7workers | 5-7workers | 8-10workers | 8-10workers | |
Power Requirement | Without dryer | 30KW | 40KW | 45KW | 70KW | 80KW | 100KW | 100KW |
With dryer | 45KW | 60KW | 65KW | 100KW | 120KW | 130KW | 150KW | |
Area of workshop | Without dryer | More than 100 M² | More than 120 M² | More than 150 M² | More than | More than 200 M² | More than 250 M² | More than 250 M² |
With dryer | More than 240M² | More than300M² | More than 320 M² | More than 400M² | More than 400M² | More than 520M² dryer30M | More than 520M² | |
Container Requirement | Without dryer | 20ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 |
With dryer | 40ft*2+20ft*1 | 40ft*3 | 40ft*3 | 40ft*4 | 40ft*4 | 40ft*5 | 40ft*5 | |
Remarks: | ||||||||
ed corrugated cardboard production line used
Company Information
Packaging & Shipping
Our Services
1. Service phone line keep 24 hours unlocked
2. All emails will get response within 24 hours
3. Any needed machine parts can be supplied with professional guiding and ordinary price.
4. Engineer can be dispatched abroad for installation and maintenance.
5. Collect after-sale-service feedback from customer, keep improving.
FAQ
Our production line has Fully Automatic and Semi Automatic two types , both have computer control system .
1. What is Semi Automatic type ?
If only order The 1st and 2nd compulsory parts , that's Semi Automatic because you'll have to do the work of drying up egg tray manually;
2. What is Fully Automat type ?
Meaning: the production line includes the Drying system and the whole procedure can be done Automatically .
Of course, the price and the required work space would have big difference from the semi-automatic type.
3. Quality
--- Our machines use UK Technical and part of the components are Germany-made (ex: Ball valve) .
-- Our machine is made by Tooling NOT by Welding , insuring a minimum of 10 years’ lifespan .

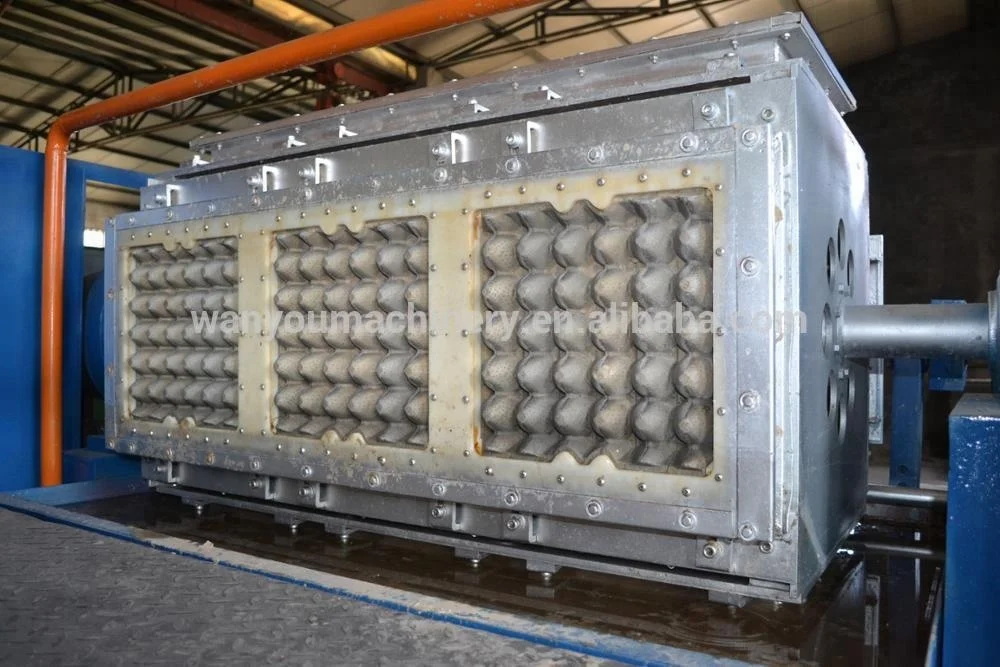

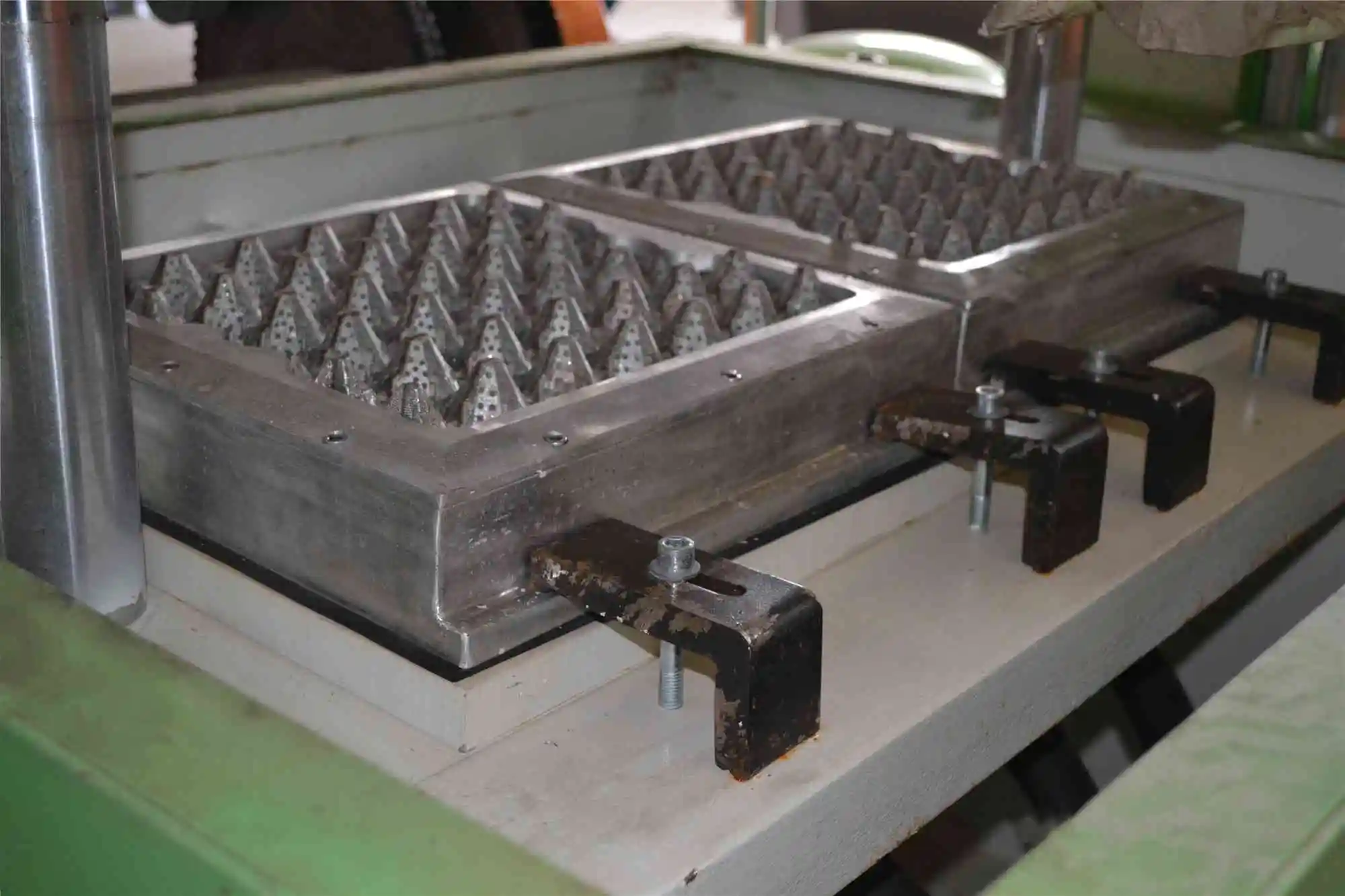

-- The Egg tray moulds material is Aluminium which can keep the fixed shape much better than that made of rubber material.
--- 99.9% of Success rate: Even if there is a failed egg tray , just throw it back to Pulping area and it can be re-used avoiding waste ;
--- Our machine has been sold to worldwide for over 10 years with continued re-order by some customers with their business grow .
4 .What capacity per hour do you offer ?
Our machines’ capacity is from 350pcs/hr to 5000pcs/hr.
5.Do your products come with a warranty ?
Yes , we have 2 years warranty according the international practice.
6.Can I customize this kind of machine from your factory?
Yes ,we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc.
