Product Overview

Description

 Green tea/black tea/lavender/flower tea automatic vertical packing machine

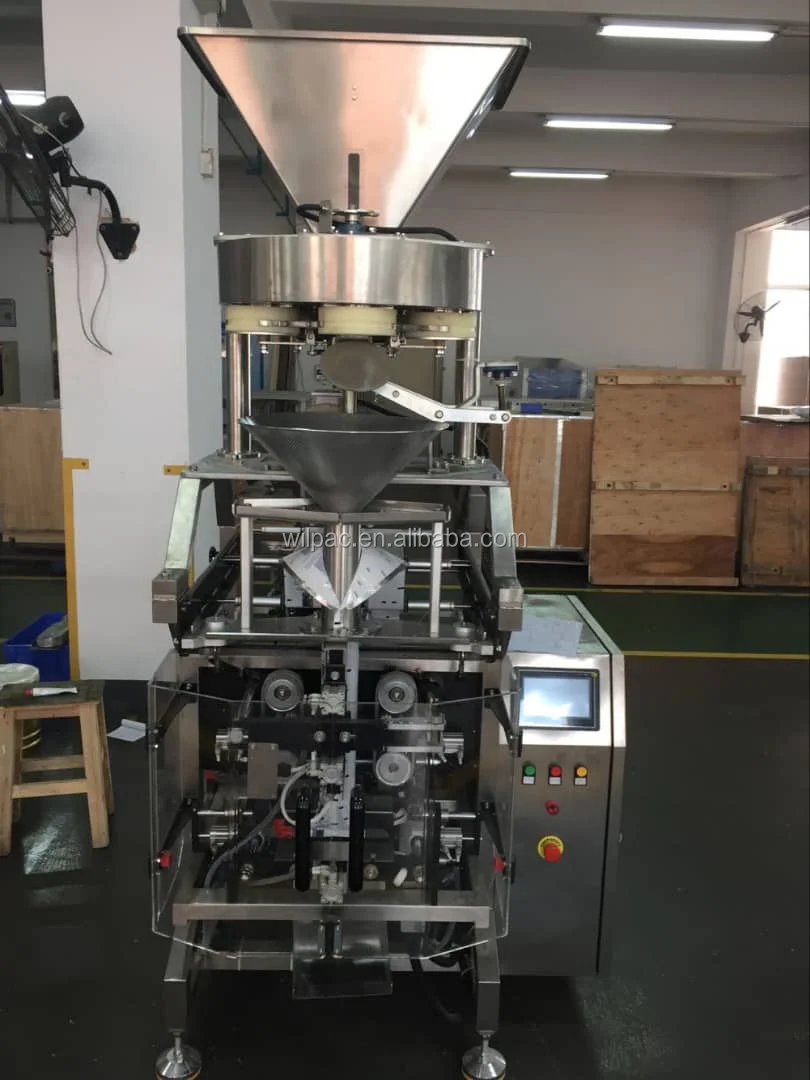

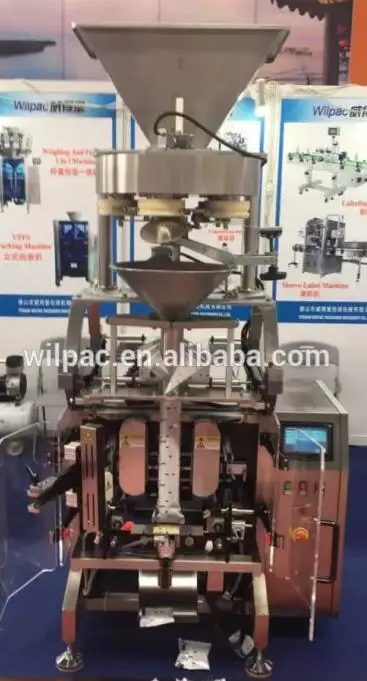

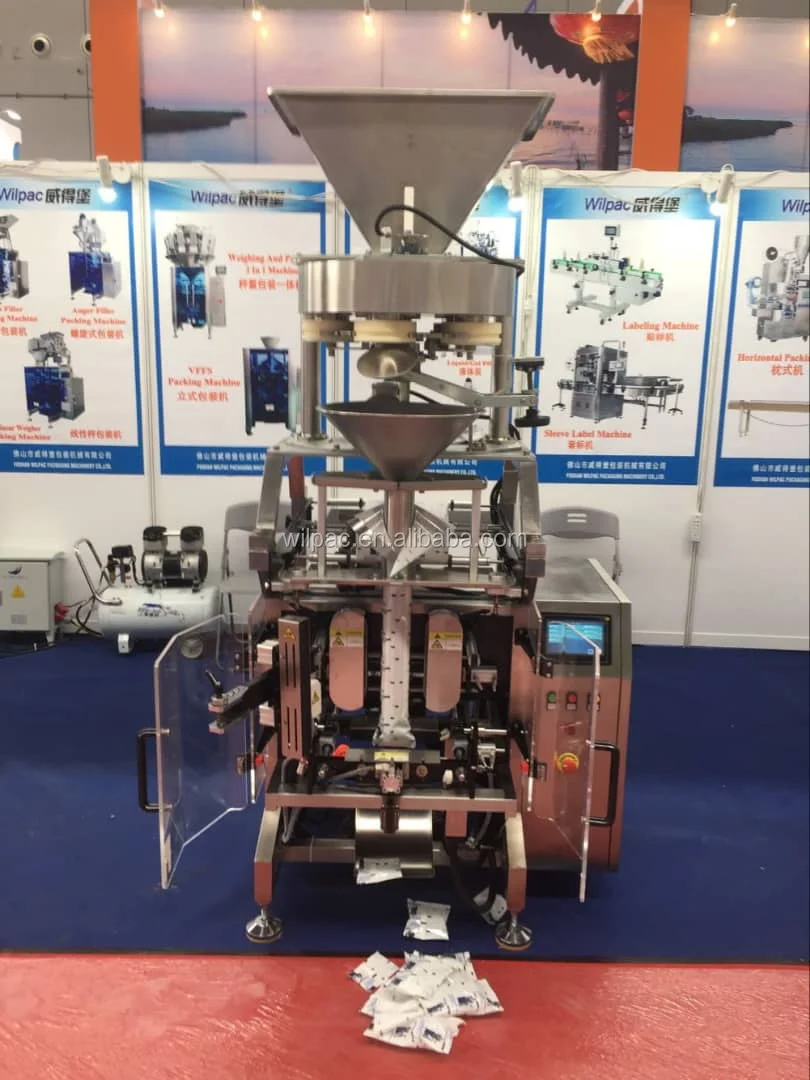

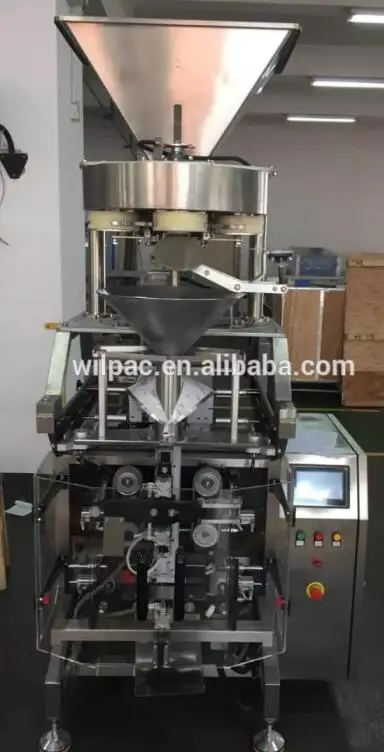

Product Photos:









Features and Specifications:



1.PLC control, man-machine interface, easy to operate and maintain.



2.Equip with double servo motor, and tracking device to keep accuracy.



3.Automatic multihead weighing and vertical packing 2 in 1 machine.





Applicable packing materials: A variety of recreation food, frozen food, coffee beans                                                oatmeal, sugar, salt, rice, pet food, small hardware ect.







Model	WP-ED4230
Required film material	Laminated film, single-layer PE film

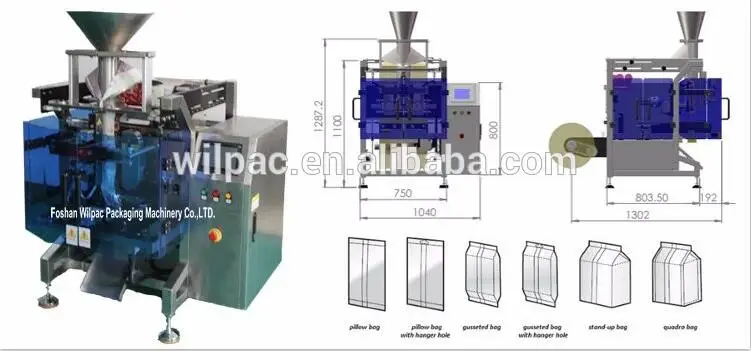

Applicable bag shape	Pillow bag, gusset bag, seal type bag
Adaptable film width	160-420mm
Bag size	L*W(60~300)mm*         (70~200)mm
Maximum production speed (for empty material)	65 bags / minute (for laminated film)
Film pulling driven system	Servo motor
Horizontal sealing driven system	Cylinder
Compressed air comsumption	0.6m³/min, 0.6Mbra
Voltage (Power & Frequency)	3.4KW / 220V / 50 (60) Hz

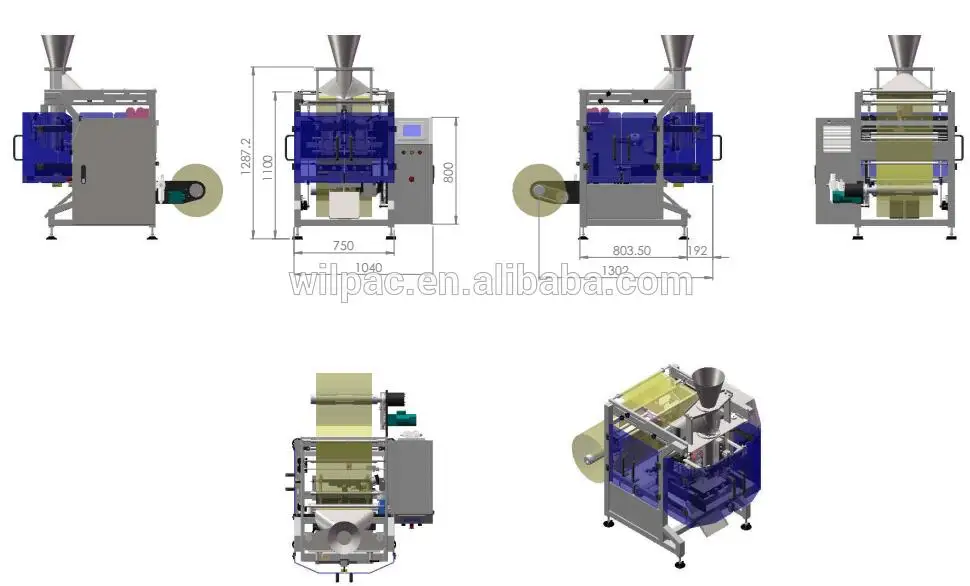

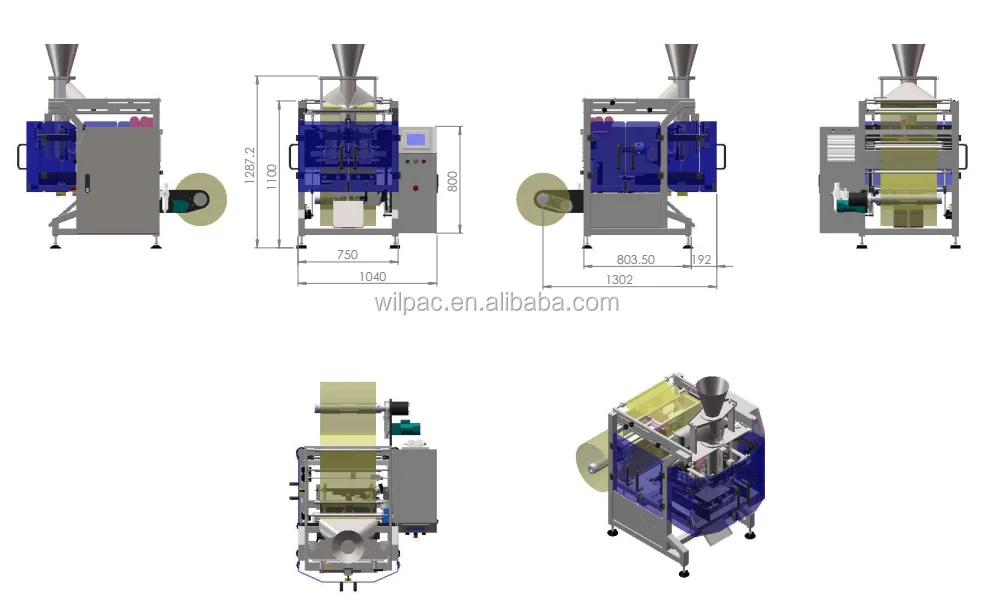

Estimated machine size	1040*1278*1677mm



Volumetric cup filler technical information



Specifications





Model	WP-LB400	WP-LB1000
Power	180W/220V/50(60Hz)	250W/220V/50(60Hz)
Rotate speed	0-20 rotatry/min	0-16 rotatry/min
Cup number	4	5
Output way:	Opening and closing door	Opening and closing door
Diameter	External diameter 380mm	external diameter 560mm
Hopper volume	60L	100L
Metering scale	10-800ml	30-2000ml
Accuracy	<±0.4%	<±0.5%
Metering speed	80 bags/min	70 bags/min
Volume times	1.65 times	1.65 times
Machine weight	estimated 70KG	estimated 110KG
Estimated machine dimension	670*570*850mm	847*690*944mm



Video links:



Peanut Weighing and Operation Video with Volumetric Cup Filler from Wilpac

https://www.youtube.com/watch?v=q57JbLNkitU&t=15s



Puffy Food Packing with Volumetric Cup Filler Large Scale Production Line from Wilpac
https://www.youtube.com/edit?o=U&video_id=sC8O1yyg7_Q



Salt Weighing and Operation Video with Volumetric Cup Filler from Wilpac
https://www.youtube.com/watch?v=Uu0R64mHwaQ



Rice Weighing and Operation Video with Volumetric Cup Filler from Wilpac
https://www.youtube.com/watch?v=zsqKN5QLyMQ&feature=youtu.be



400g Edible Salt Full Automatic Packing Solution Operation Video from Wilpac
https://www.youtube.com/watch?v=isgA-_GfhJQ&feature=youtu.be



Volumetric cup filler for white granulated sugar package operation video from Wilpac
https://www.youtube.com/watch?v=Fyb2le3qHTQ&feature=youtu.be



Payment Term: 40% T/T as deposit, 60% T/T balance paying off before shipment



Lead Time: about 10-30 days from the day of receiving deposit and confirmation of all details (Production period: 5-20 days ; Trial testing: 5-10 days)



Vertical Packing Machine Body Package: assembly package with stretch film and exporting standard plywood crate



Volumetric cup filler package: disassembly package with stretch film and exporting standard plywood crate



Warranty: 1 year for manufacturing defect, excluding the easily damaged (quick-wear) parts and man-made sabotage



Similar Products:





Company Introduction:

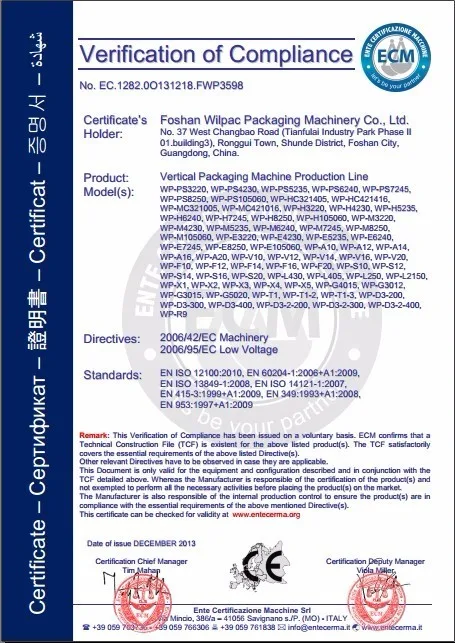

Certification:
