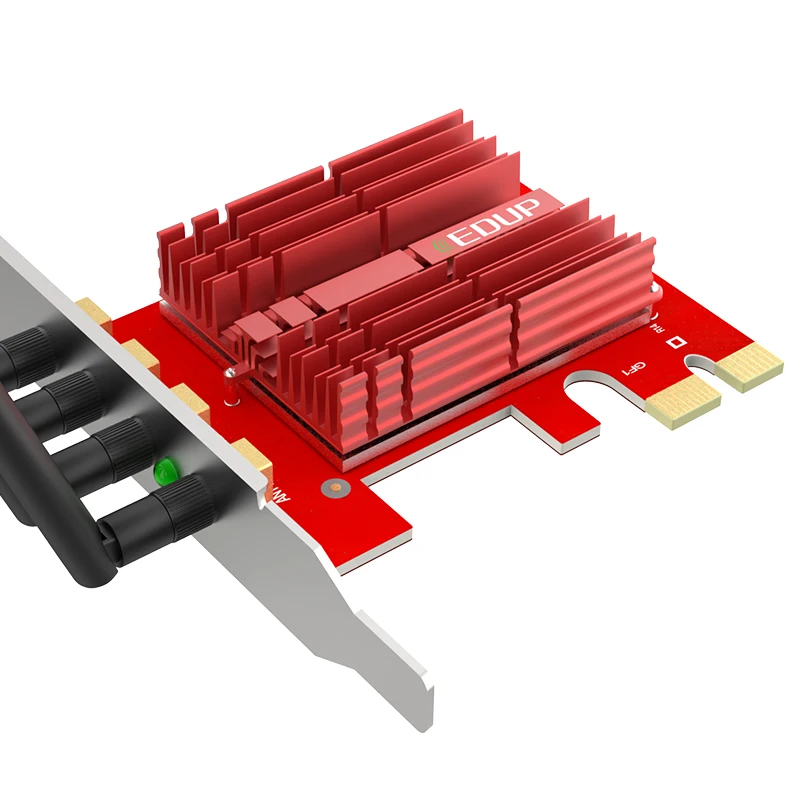

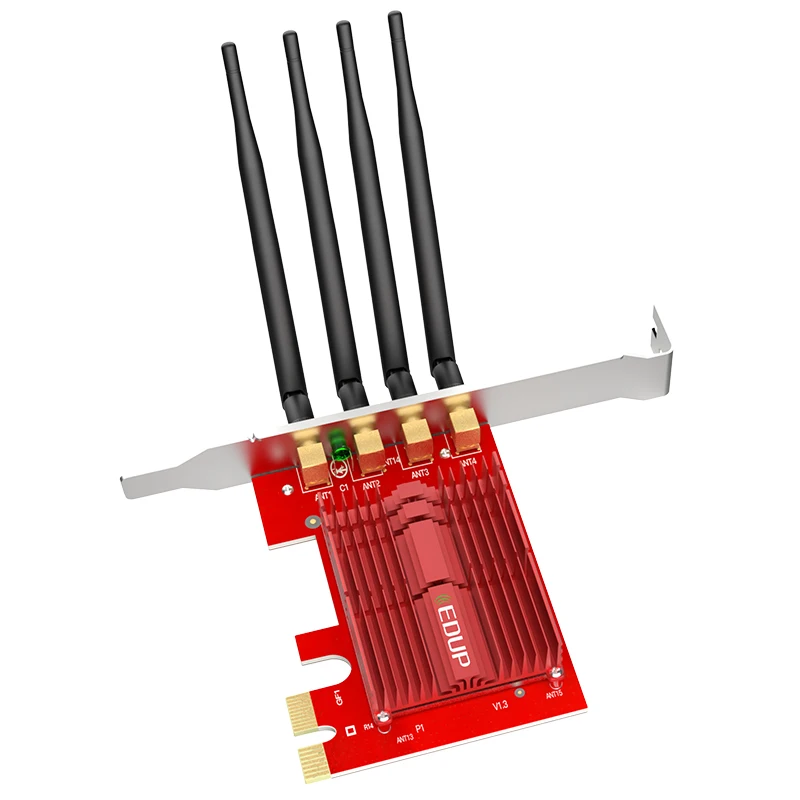

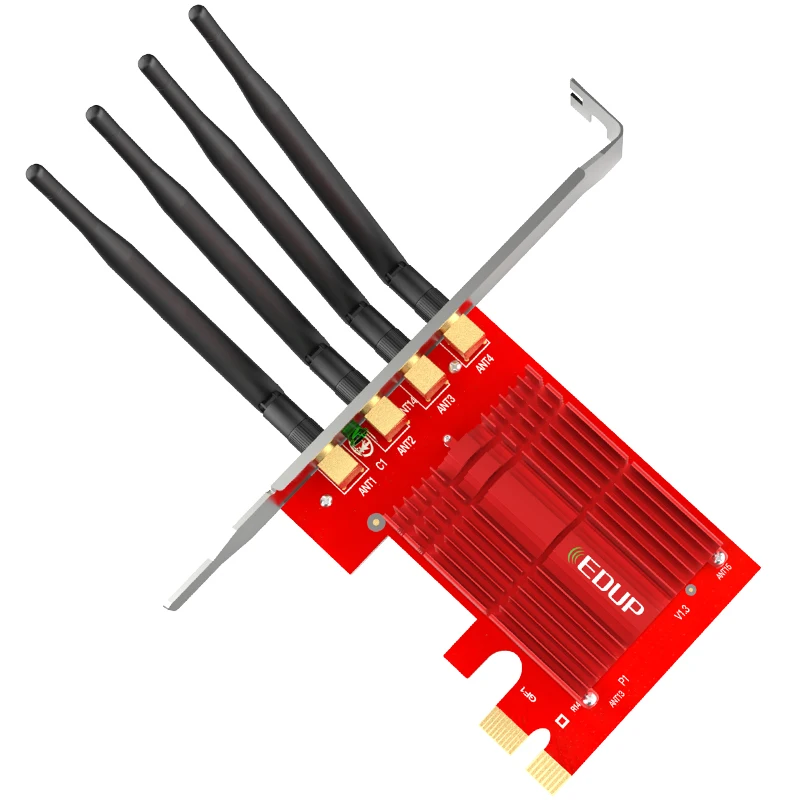

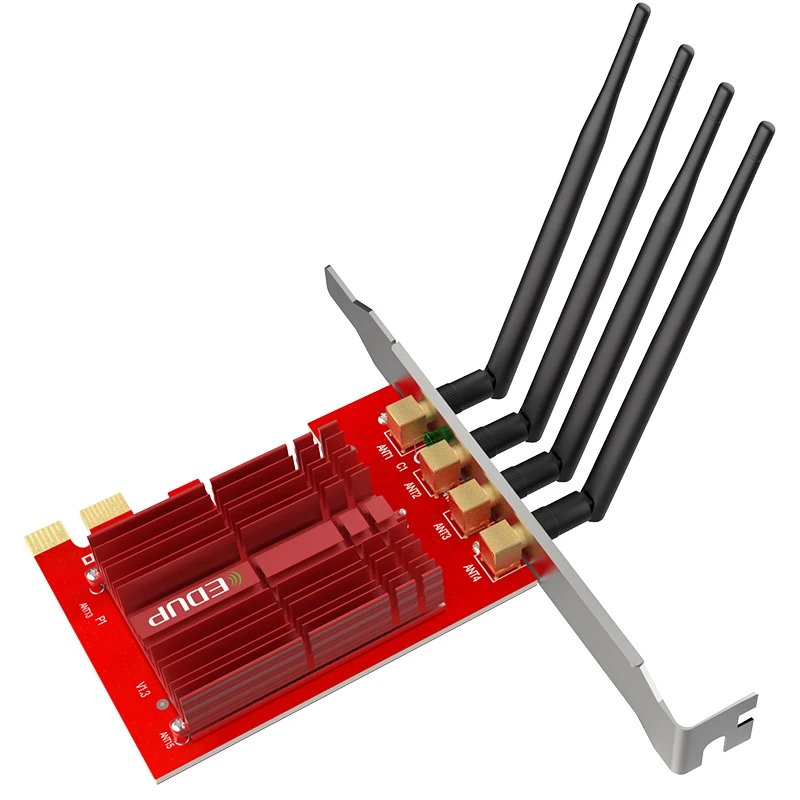

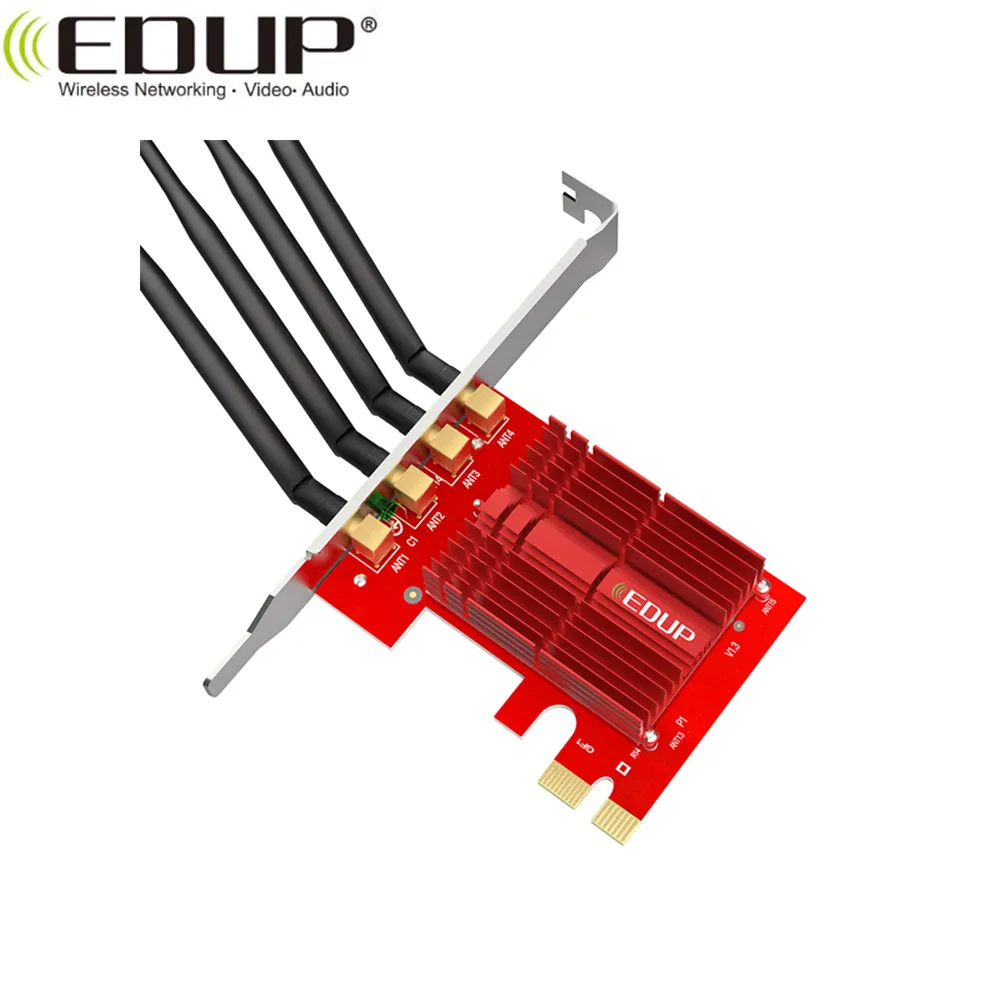

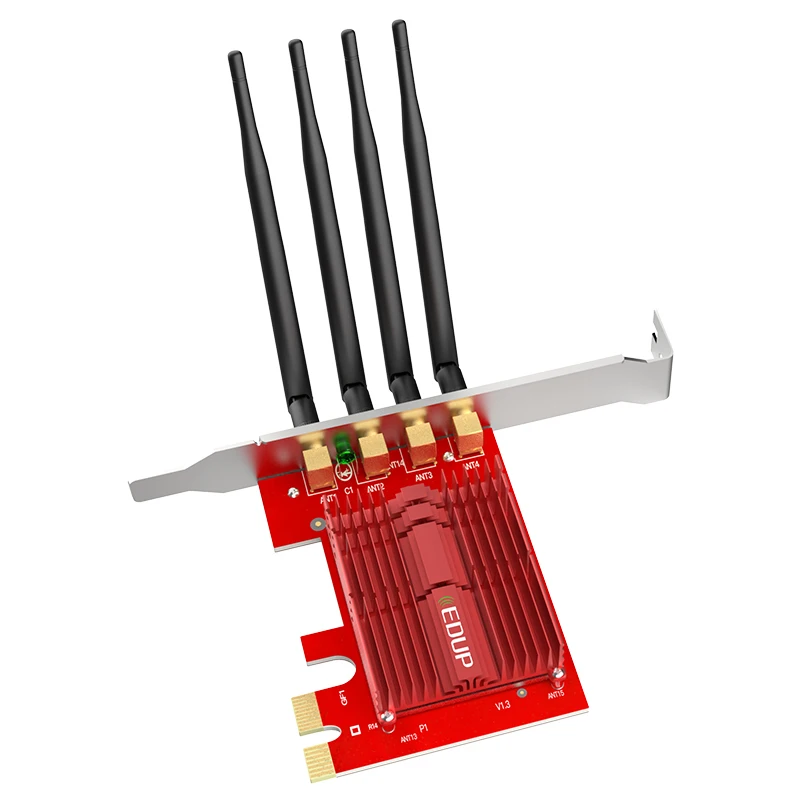

EDUP 1900Mbps Wireless PCI/PCI-E Networking Adapter PCI-E wifi adapter

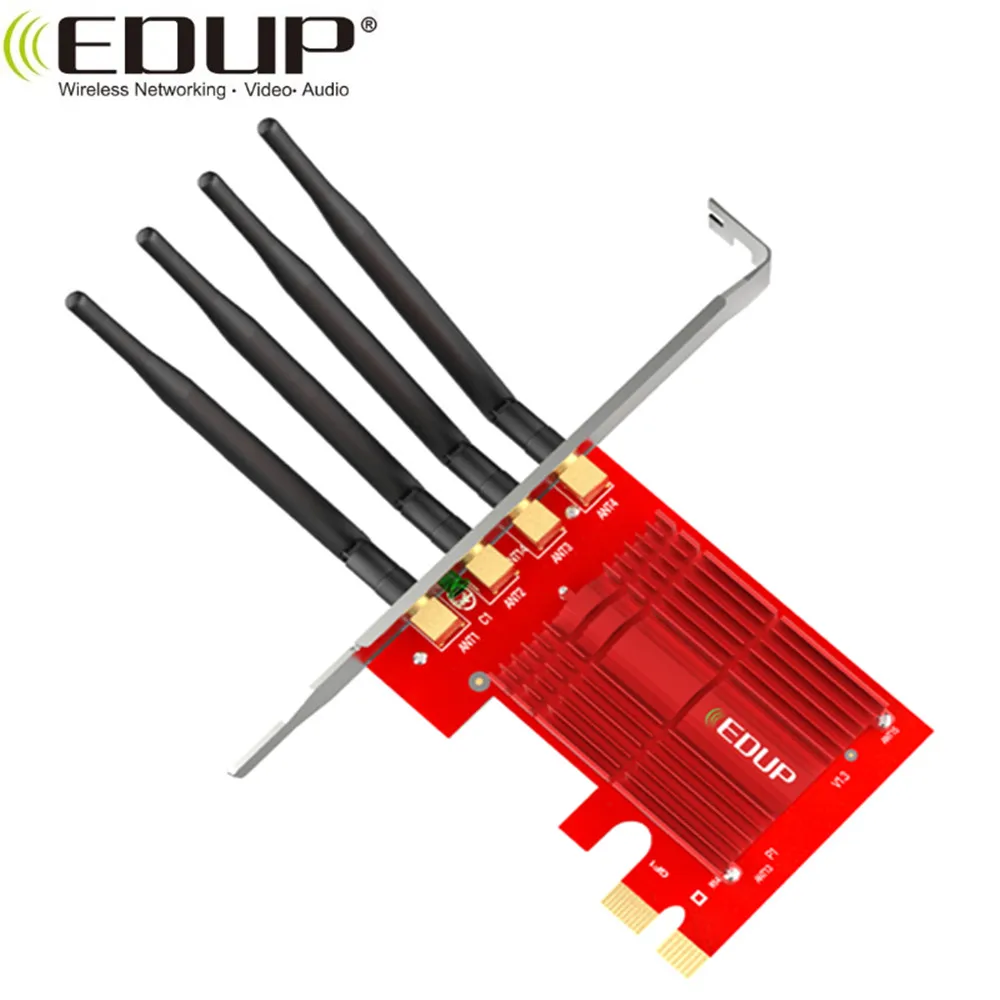

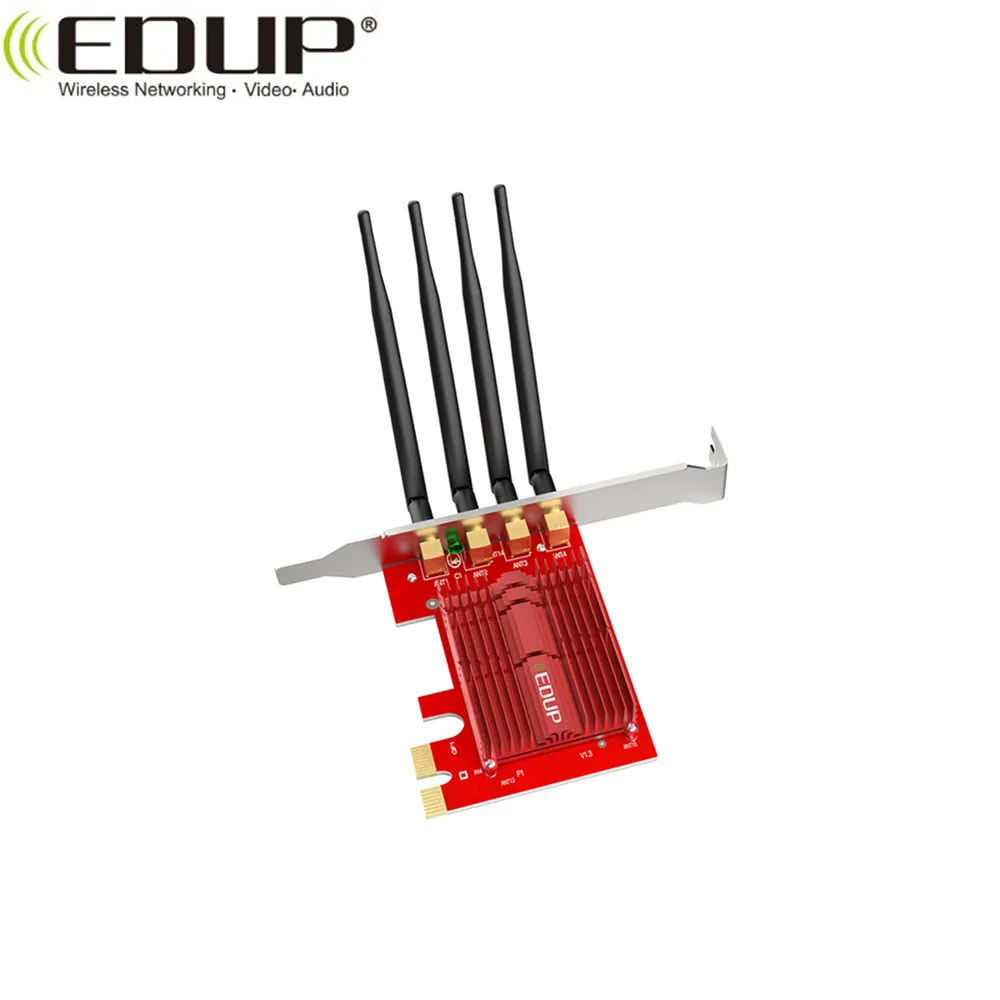

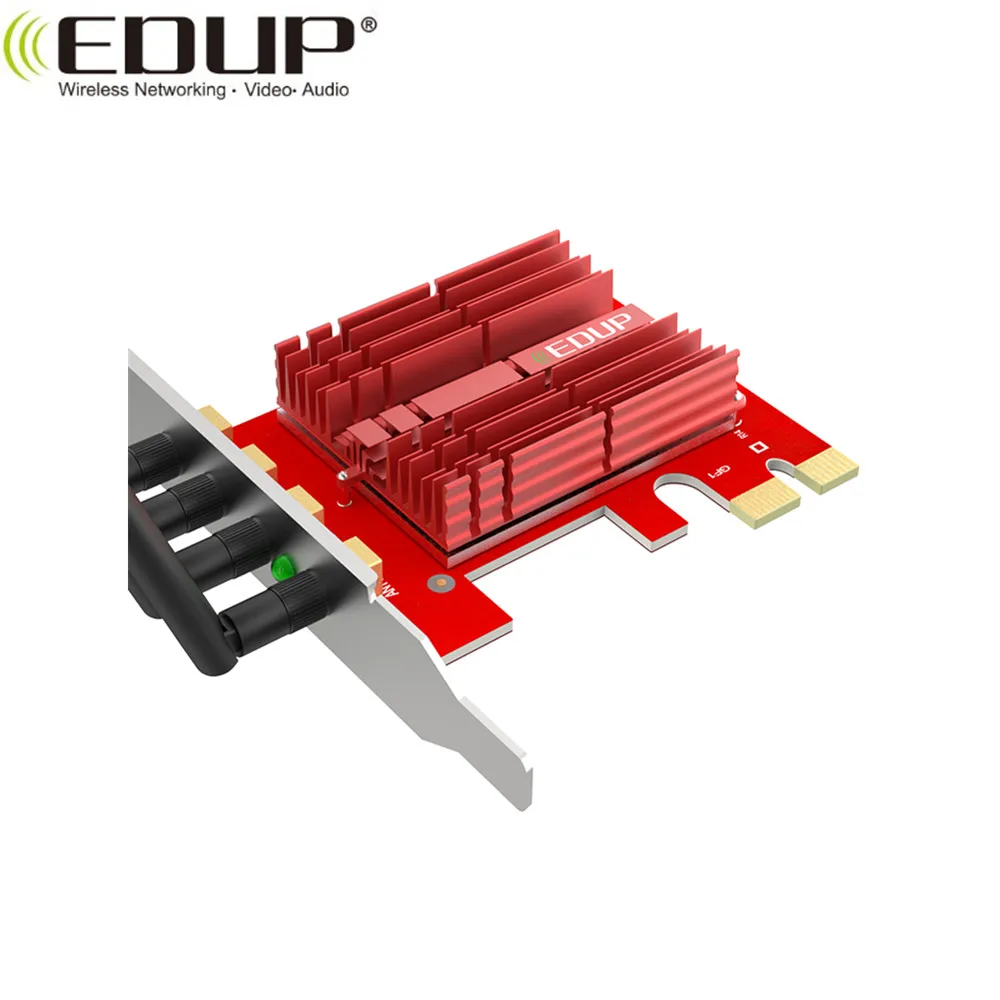

EDUP hot selling 1900Mbps wifi PCI/PCI-E wireless Adapter EP-9609
Description |
The EP-9609 is a highly integrated and cost-effective Wireless Adapter that provides PCI Express interface, and full compliance with IEEE802.11ac and IEEE802.11a/b/g/n standards. Wireless transmission rates can reach up to 1900Mbps. Using the EP-9609 Wireless Desktop PCI-E Adapter not only can you connect your desktop computer to a high-speed Wi-Fi network and experience faster files transmission and high-speed Internet browsing from further distances across your home than that in previous-generation Wireless n technology, but also you can enjoy high performance wireless viewing HD multimedia and real-time online war game when the PCI-E Adapter work in 11ac 5G mode. This Desktop PCI-E Adapter is the best choice for the desktop computer users who want to enjoy a better wireless performance and high-speed Wi-Fi network.
Features |
Ø Complies with IEEE 802.11ac ,IEEE 802.11n/a/b/g standards
Ø Supports PCI-E 1.1 X1 bus
Ø 2.4G/5G dual frequency optional, 5GHz band rate up to 1300Mbps, 2.4GHz band rate up to 600Mbps
Ø Supports Cisco CCX
Ø Supports multiple BSSID
Specifications |
Model | EP-9609 |
Chipset | RTL8814AE |
Standards | IEEE802.11ac,IEEE802.11n,IEEE802.11b,IEEE802.11g,IEEE802.11a |
PCI Bus | PCI EXPRESS X1 |
Sensitivity @PER | 5G 11ac VHT80M MCS9:-55dBm @10% PER HT40M MCS7: -65dBm @10% PER HT20M MCS7: -68dBm @10% PER 2.4G 11N HT40M MCS7: -65dBm @10% PER HT20M MCS7: -68dBm @10% PER OFDM 54M:-70dBm@10% PER 11b 11M:-81dBm@8% PER |
Transmit Power | 20dBm(Max.) |
Antenna | 4*3dBi dual band removable omnidirectional antennas |
Transmission Rate | 2.4G up to 600Mbps 5G up to 1300Mbps |
Operating System | Microsoft Windows 7 32/64, Windows 10 32/64 |
LED | Link/Act |
Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~95% non-condensing |






What is the packaging for option?
1.Blister package or color gift package
2.Standard Carton:K=K
What is the shipping way?
UPS/DHL/TNT/EMS/FedEx and any other shipping way as you prefered.
Pls contact us directly and we will use your preferred ways.
What are the payment terms ?
We accept T/T, Western Union, Paypal,L/C if over 100000$ and so on.
Over 1000pcs,we can do OEM and accept 30% deposit in advance .
What is the warranty?
1. Warranty:12 months.
2. comprehensive after-sales service, including quality service, guidance services,We focus on customer needs in every detail.Please contact us if you need our detail warranty term.
Established in 2004, EDUP is the global brand name for Shenzhen EDUP Electronics Technology Co., Ltd. We are a professional company and exporter specialized in Wireless products. We are located in Shenzhen, with convenient transportation access. All of our products comply wtih international quality standards and are greatly apprecaiated in a variety of different markets throughout the world.
