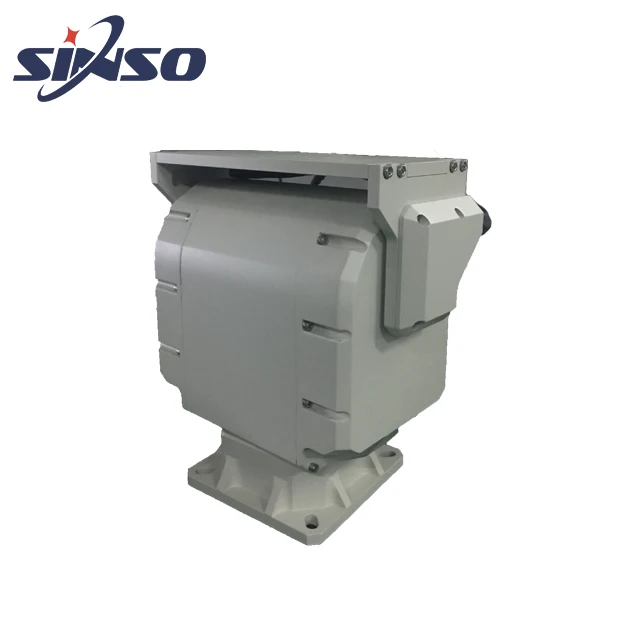

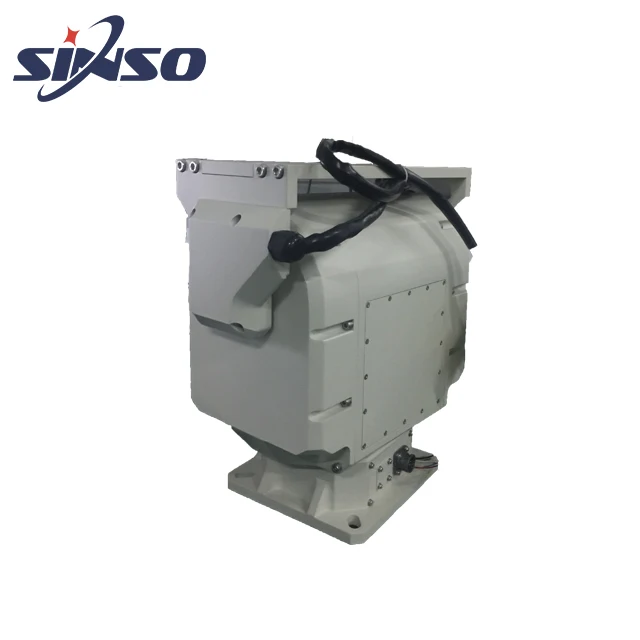

IP66 waterproof heavy duty CCTV camera pan tilt head 45Kg
- Category: >>>
- Supplier: Guangxi Sinso Lighting Co. Ltd.
Share on (62012922263):
Product Overview
Description
IP66 waterproof heavy duty CCTV camera pan tilt head 45Kg
Product Paramenters
Feature:
1) Adopt die-cast aluminum alloy material,Waterproof
2) Support kinds of Lens preset function
3) High-precision,run smoothly.there are no clearance even pan tilt run for a long time
4) Worm gear driven mixed with stepper motor driven
5) Aviation connector,it is easy to install and maintain
6) High temperature resistan,aging resistant,corrosion resistant function,waterproof,anti-strong winds ,anti-acid rain
2) Support kinds of Lens preset function
3) High-precision,run smoothly.there are no clearance even pan tilt run for a long time
4) Worm gear driven mixed with stepper motor driven
5) Aviation connector,it is easy to install and maintain
6) High temperature resistan,aging resistant,corrosion resistant function,waterproof,anti-strong winds ,anti-acid rain
Model | SN-3053 |
Rotation speed | pan :0.01°～20°/S , tilt:0.01°～10°/S |
Rotation angle | Pan:0º~360º continuous, Tilt: -60º~ +20º |
Preset position | 200 |
Preset position precision | ±0.1° |
Lens preset position | Support (FUJINON、COMPUTAR、KOWA and so on) |
Control lens speed | Zoom, focus speed adjustable |
Auxiliary Switch | 2 groups,passive,normal open |
Automatic cruise | 8 cruises,each cruise can set 10 cruise points |
OSD menu | not available |
Homing | It can be set up within the scope of 1~60 min |
Auto scan | 1 |
Protocol | PELCO_D,PELCO_P ,defined protocol,baud rate optional |
Baud rate | 9600bps |
Communication interface | RS485 |
Network interface | optional |
Heater function | optional |
Voltage | DC/AC24V±20%,50/60Hz |
Power | ≤70W |
Work temperature | -25°C~+55°C,90%±3%,no condensation |
Storage temperature | -40℃～+65℃ |
Load | ≤45KG |
Load style | Top/side |
Driven | Worm gear driven |
IP grade | IP66 |
Machine weight | 22Kg |

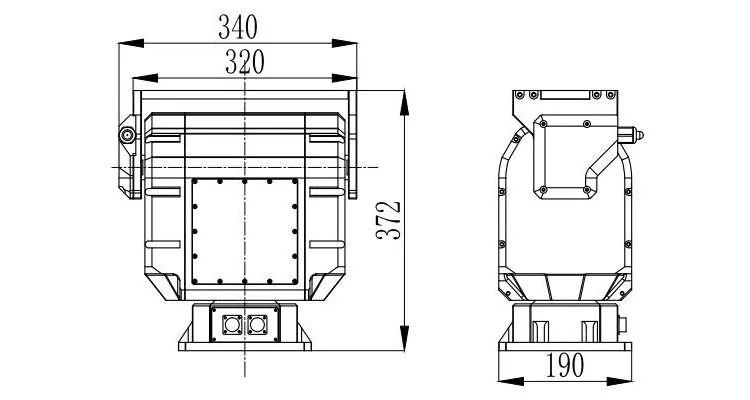

Dimension | 340mm×190mm×372mm（L×W×H） |
Recommend Products
SN-301 series pan tilt
Load:5kg
Voltage:12V/24VDC,220VAC
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
SN-303 series pan tilt
Load:5kg
Voltage:12V/24VDC,220VAC
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
SN-3025 series pan tilt
Load:8kg
Voltage:12V/24VDC,220VAC
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
Control modes:RS485,wireless remote,wireless keyboard,wired keyboard,network and so on
Our Company
A Partner You Can Trust For outdoor security lighting and CCTV pan tilt Fixtures!
Sinso Lighting ltd is a High-tech Enterprise, and has been a R&D and manufacturing leader in outdoor HID xenon lighting and CCTV pan tilt head since 2014. We pride ourselves on manufacturing high-end HID xenon lighting, including jail/border/guard tower lighting, high mast lighting, etc. Through the years, Sinso has won a good reputation with high-quality products and great customer service.
We have professional engineer team which are with long years of R&D experience in surveillance industry. They are always staying at the forefront of surveillance technology, and working closely with the customers throughout the design process to meet varying demands, with innovation and fast response speed. We will continue to excel in the development of innovative and energy saving solutions for our customers.
Sinso Lighting ltd is a High-tech Enterprise, and has been a R&D and manufacturing leader in outdoor HID xenon lighting and CCTV pan tilt head since 2014. We pride ourselves on manufacturing high-end HID xenon lighting, including jail/border/guard tower lighting, high mast lighting, etc. Through the years, Sinso has won a good reputation with high-quality products and great customer service.
We have professional engineer team which are with long years of R&D experience in surveillance industry. They are always staying at the forefront of surveillance technology, and working closely with the customers throughout the design process to meet varying demands, with innovation and fast response speed. We will continue to excel in the development of innovative and energy saving solutions for our customers.
Our Service
1) The product is based on Ex-works for 1-50pcs
2) Payment term:100% payment in advance before shipment (T/T, Western Union ,paypal,cash or any other means at your convenience)
3) Delivery Time:sample order: 1-5 working day, Normal order:longer than 5 working days according to the order quanity
4) All the above products have CE certificates
5) Welcome OEM & ODM order,MOQ for OEM is 50pcs/model
6) Price Validity: 30 days from issuing date.
7) Warranty: 1 years after receiving goods,unlimited lifetime Technique support.
8) If quanity more than 100pcs one model, we will free supply some pan tilt parts for spare
2) Payment term:100% payment in advance before shipment (T/T, Western Union ,paypal,cash or any other means at your convenience)
3) Delivery Time:sample order: 1-5 working day, Normal order:longer than 5 working days according to the order quanity
4) All the above products have CE certificates
5) Welcome OEM & ODM order,MOQ for OEM is 50pcs/model
6) Price Validity: 30 days from issuing date.
7) Warranty: 1 years after receiving goods,unlimited lifetime Technique support.
8) If quanity more than 100pcs one model, we will free supply some pan tilt parts for spare
FAQ
Q1. Can I have a sample order for pan tilt?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.But we don't bear the Express cost
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ of the order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for pan tilt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on pan tilt?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Send your Inquiry Details in the Below, Click "Send" Now!!!
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.But we don't bear the Express cost
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ of the order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for pan tilt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on pan tilt?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Send your Inquiry Details in the Below, Click "Send" Now!!!
