New design doypack automatic packing machine for wax flake/candle flakes/depilatory wax bagger with new status

Product Overview

Description

Wax flake/candle flakes/depilatory wax baggerdoypack pouch packing machine

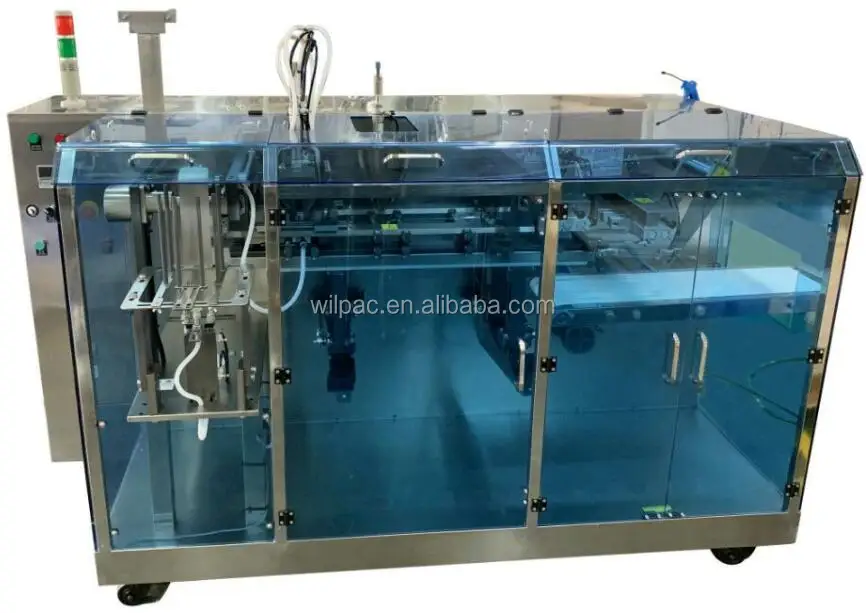

Product Photos:





Features and Specifications:

Features:

1,Small volume, light weight, there is no site restrictions.



2,Four procedures operation, low malfunction rate with high stable performance.



3,The production speed is fast, and it can be conveniently assembled. The production speed can reach up to 50 bags/min.



4,One-click operation, easy operation. No specialized persons are required.



5,It is not necessary to add accessories for bag type replacement, with good compatibility, suitable for all kinds of bag types.



Advantages:

1,Small volume, light weight, there is no site restrictions.



2,Four procedures operation, low malfunction rate with high stable performance.



3,The production speed is fast, and it can be conveniently assembled. The production speed can reach up to 50 bags/min.



4,One-click operation, easy operation. No specialized persons are required.



5,It is not necessary to add accessories for bag type replacement, with good compatibility, suitable for all kinds of bag types.



Mechanical Character:



1. Measuring and packaging system includes horizontal bag feeding and packaging machine, electronic combiantion weigher, working platform and Z shape elevator.

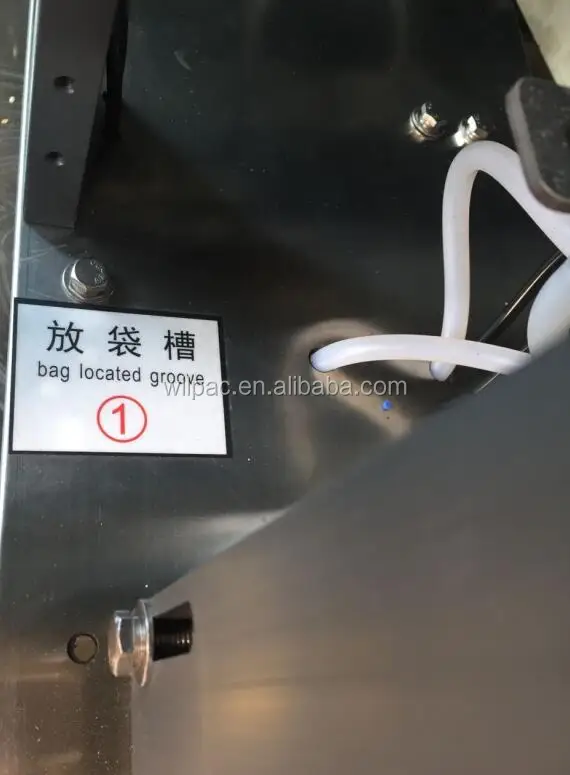

2. It is convenient and simple to put bags in bagging trough and equipped with automatic bag pressing device.



3. Equipped with imported pressure sensing device to achieve the effect of no sealing for non-material, saving packaging bags

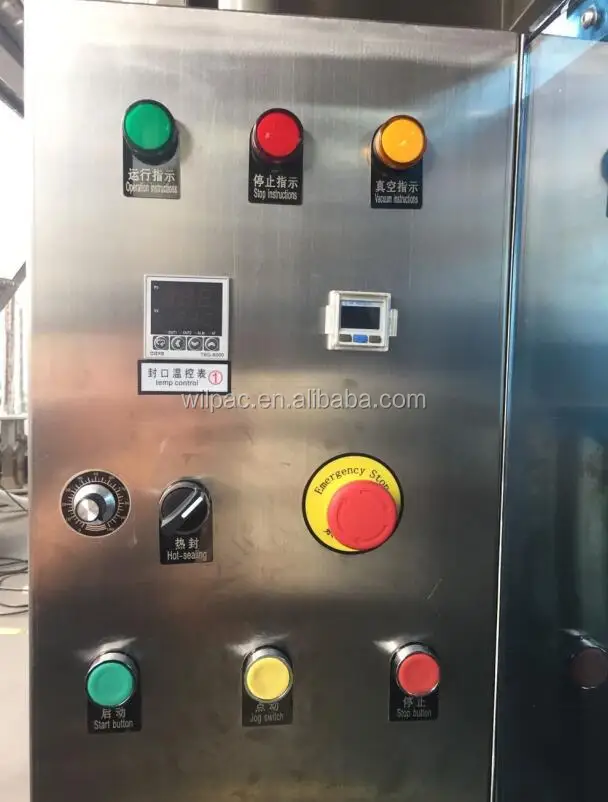

4. Using color touch screen, simple operation, with multi-functional design



5. The machine adopts stainless steel 304L appearance. Carbon steel frame parts and some parts are processed with acid and salt resistant anti-corrosion disposal layer.



6. Material selection requirements: Most of the accessories are moulded. The main materials are 304 stainless steel and alumina.



7. Various coding, spraying, exhaust and punching devices are optional.



Technical Information:

Technical Parameters for 210mm Bag Width Horizontal Type Five Working Station Bagging Machine
1	Machine metal material		304 stainless steel and aluminum oxide finish for major section
2	Applicable preformed bag types		Stand-up preformed bag, stand-up zipper preformed bag, three-side sealing preformed bag, four-side sealing preformed bag, paper-plastic lamination bag
3	Adjustable packing capacity		10-1000g
4	Preformed bag opening type		Mechanical hand + vacuum system bag opening device (suitable for various preformed bag types)
5	Preformed bag material		PET,CPP,BOPP and so on heat sealing films
6	Applicable bag size		Bag width: 100-210mm,  bag length: 110-320mm
7	Operation Speed		5~50 bags/min (based on material net weight and material property)
8	Power Requirement		2.5KW / 380V / 50(60)HZ,three phase
11	Compressed Gas Consumption		0.7m³/min
12	Working process		1. Pouch / bag laying structure 2. Automatic preformed bag delivery device 3. Automatic bagging device 4. Mechanical hand bag holder 5. Vacumm preformed bag opening  6. Automatic material filling 7. Automatic bag shaping process 8. Automatic bag sealing 9. finished product output
13	Major optional devices		Material metering filling machine (combination weigher / auger filler), working platform, weight checker, material Z shape elevator, finish product conveyor, metal detector
14	Material application		Lump material: candy, dry dates, oatmeal, chocolate, small biscuit, peanut, pistachio, nuts, crystal rock sugar, small cakes, photo chips, puffy food Granular material: crystalline monosodium glutamate,medicines and chemical reagents, capsule, seeds, chemical material, granulated sugar, chicken essence, sunflower seeds, chemicals, fertilizer, feedingstuff Powder material: seasoning, MSG, milk powder, glucose, detergent powder, white sugar, bleach powder, corn starch Liquid/paste material: washing agent, soy sauce, vinegar, fruit juice, soft drinks, tomato paste, peanut butter, fruit jam, chilli paste



Machine metal material: 304 stainless steel finish



Applicable preformed bag types: Stand-up preformed bag, stand-up zipper preformed bag, three-side sealing preformed bag, four-side sealing preformed bag, paper-plastic lamination bag



Adjustable packing capacity:10-1000g



Preformed bag opening type: Mechanical hand + vacuum system bag opening device
(suitable for various preformed bag types)



Preformed bag material:PET,CPP,BOPP and so on heat sealing films



Applicable bag size: Bag width: 100-210mm,  bag length: 110-320mm



Operation Speed: 5~50 bags/min (based on material net weight and material property )



Power Requirement: 2.5KW / 380V / 50(60)HZ/three phase voltage



Compressed Gas Consumption : 0.7m³/min



Working process: 1. Pouch / bag laying structure  2. Automatic preformed bag delivery device
3. Automatic bagging device 4. Mechanical hand bag holder  5. Vacumm preformed bag opening 6. Automatic material filling  7. Automatic bag shaping process 8. Automatic bag sealing
9. finished product output



Five working station bagging machine videl links:



Lead Time: about 50 days from the day of receiving deposit and confirmation of all details (Production period: 40 days ; Trial testing: 10 days)

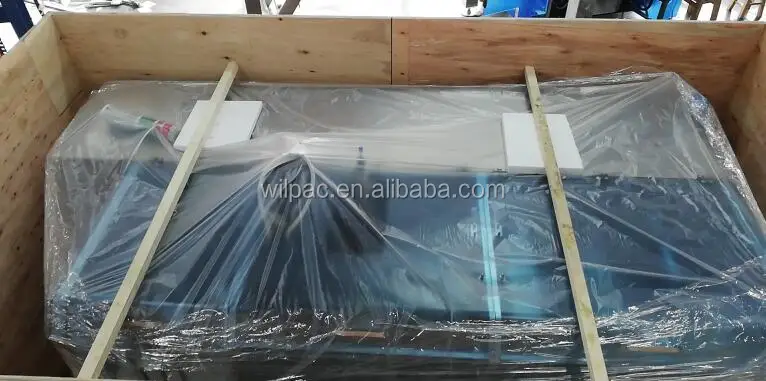

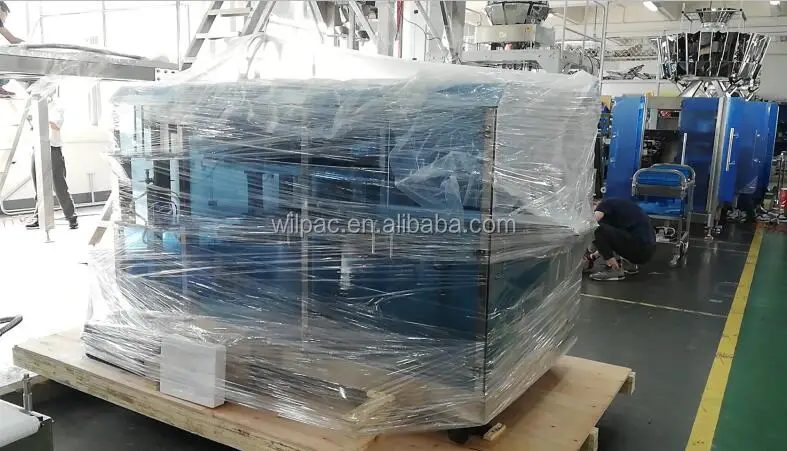

Machine Body Package: assembly package with stretch film and exporting standard plywood crate



Warranty: 1 year for manufacturing defect, excluding the easily damaged (quick-wear) parts and man-made sabotage

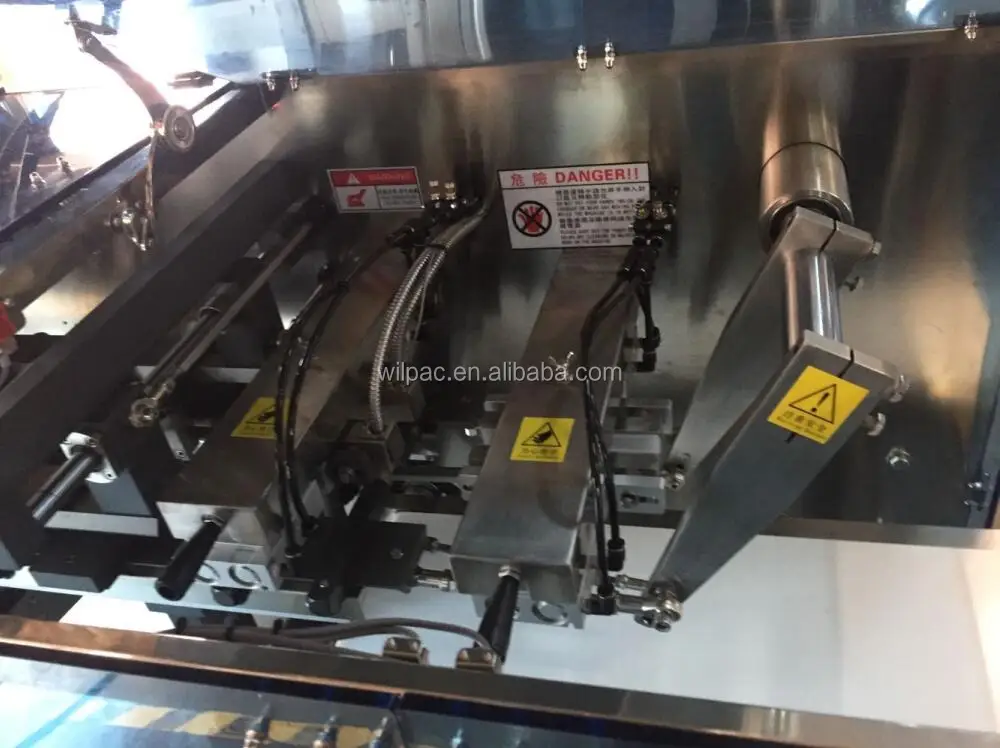

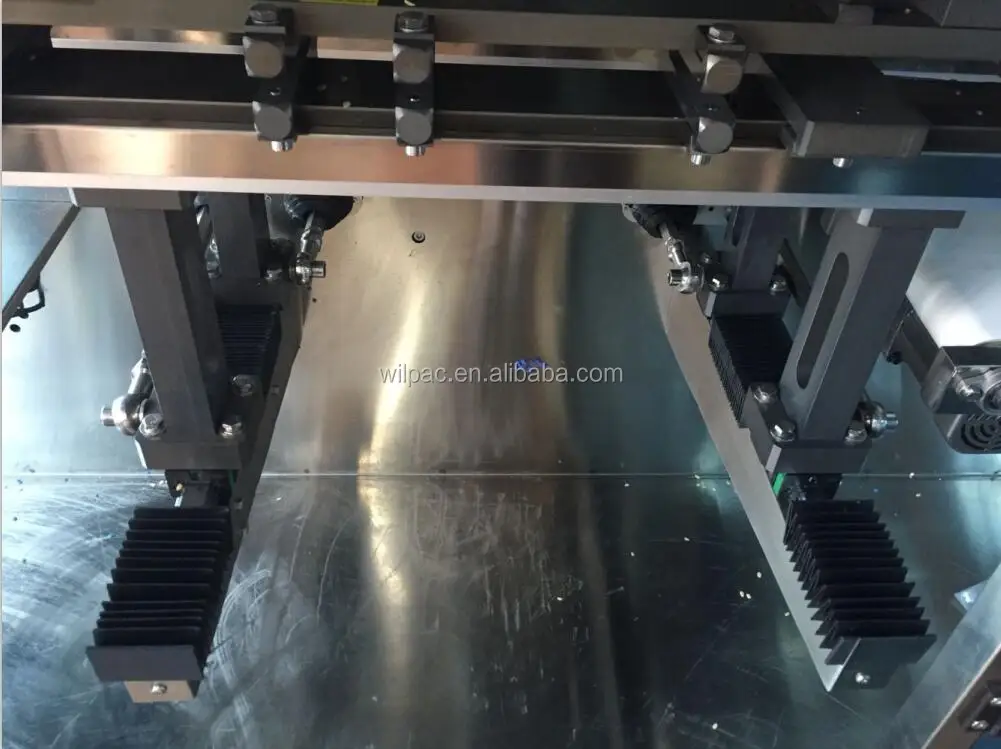

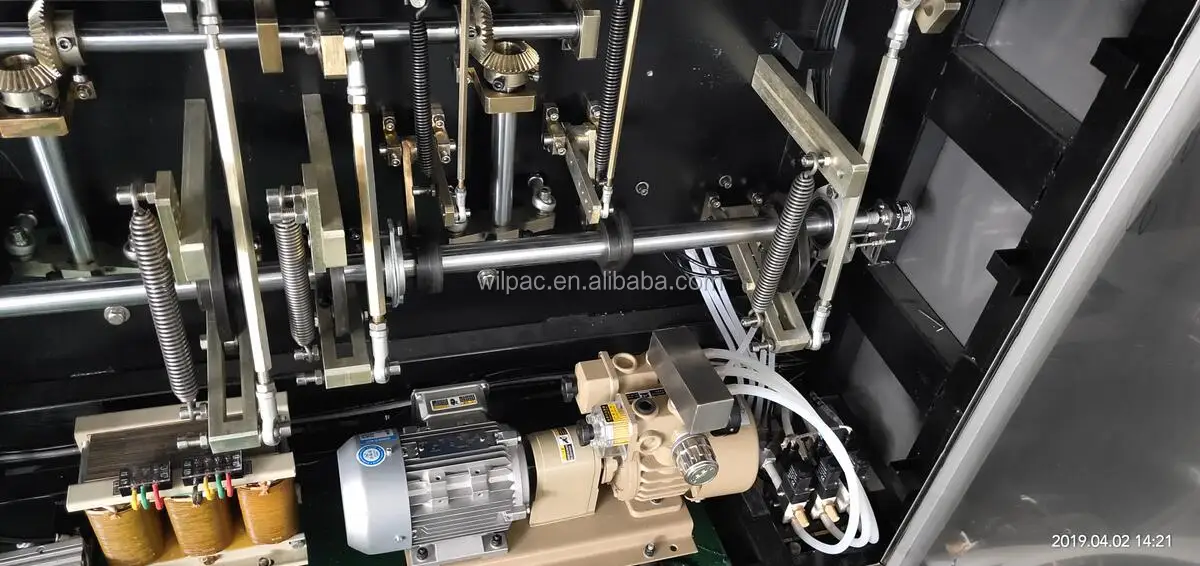

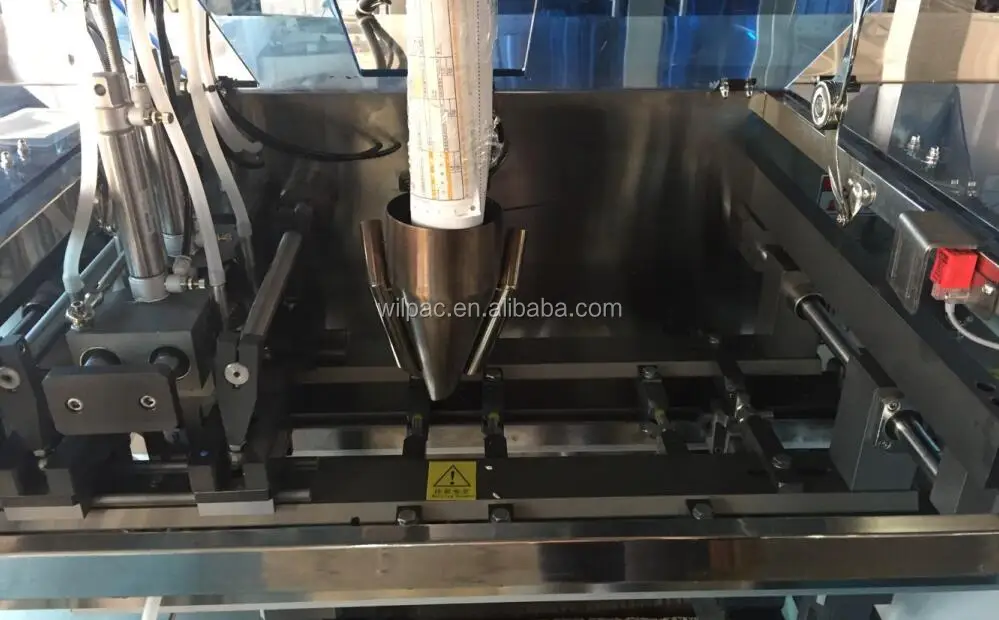

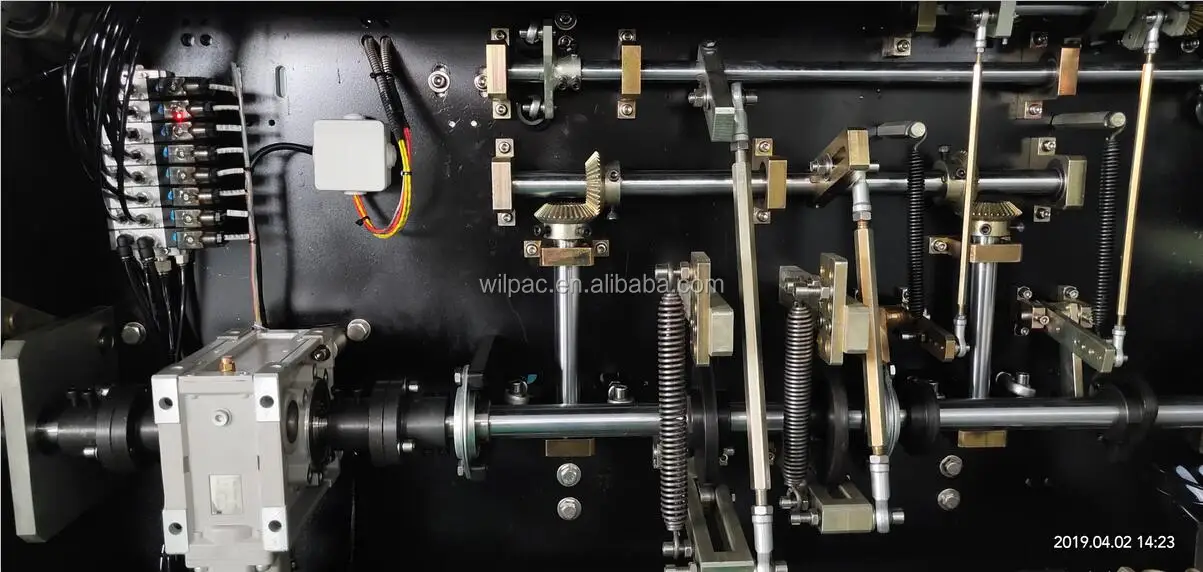

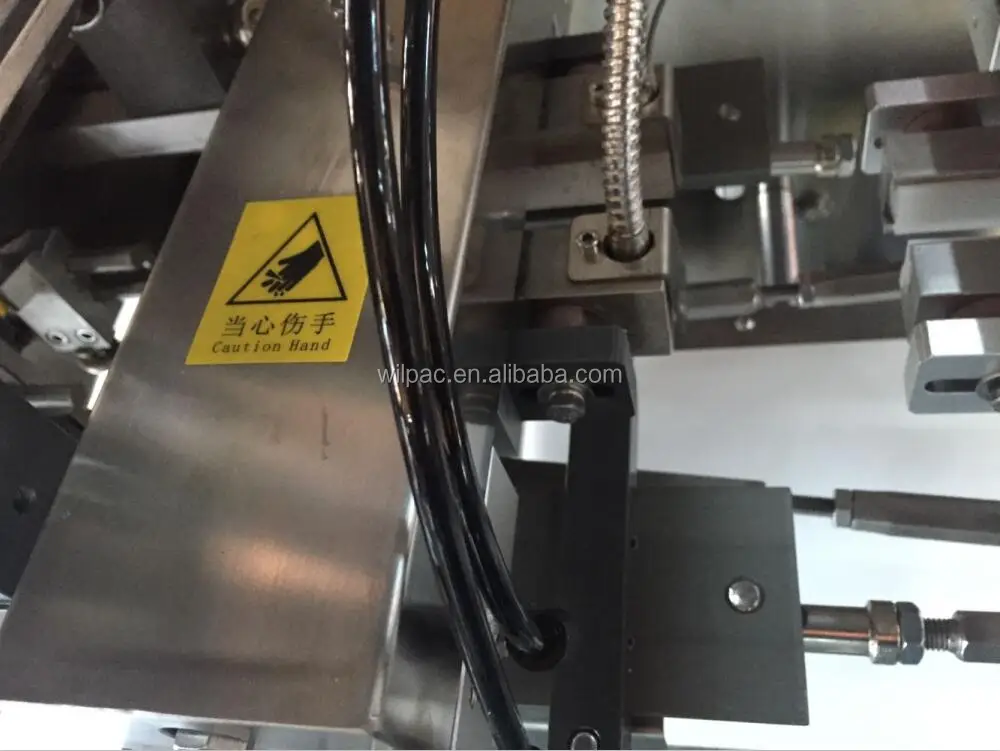

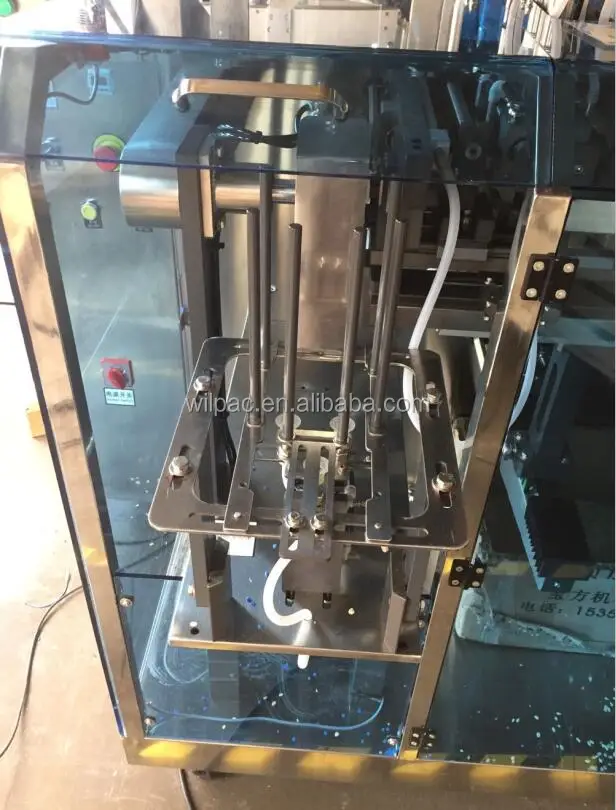

Machine details:
