Button ble 5.0 UUID Major Minor bluetooth beacon advertising

Product Overview

Description

----- D15N UFO Beacon -----

Button ble 5.0 UUID Major Minor bluetooth beacon advertising

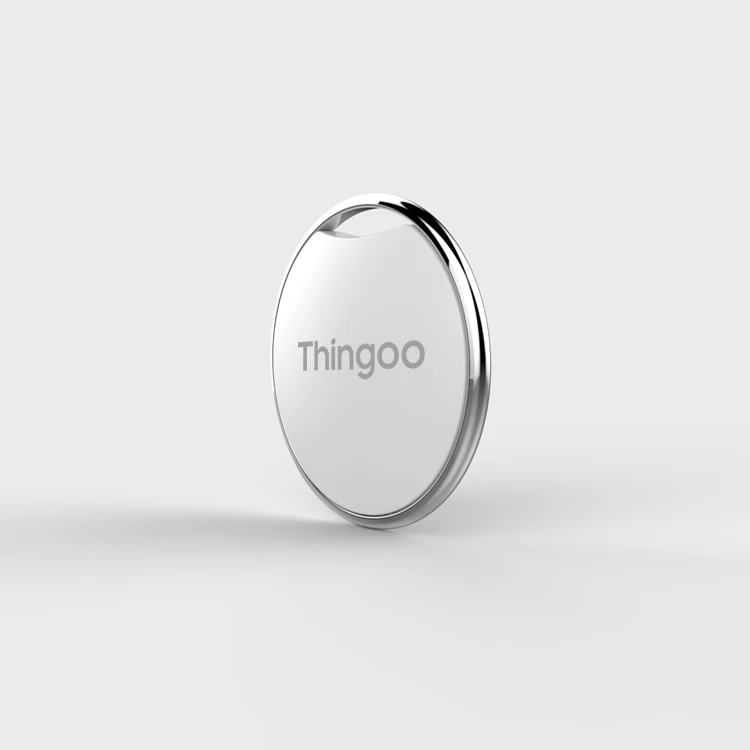

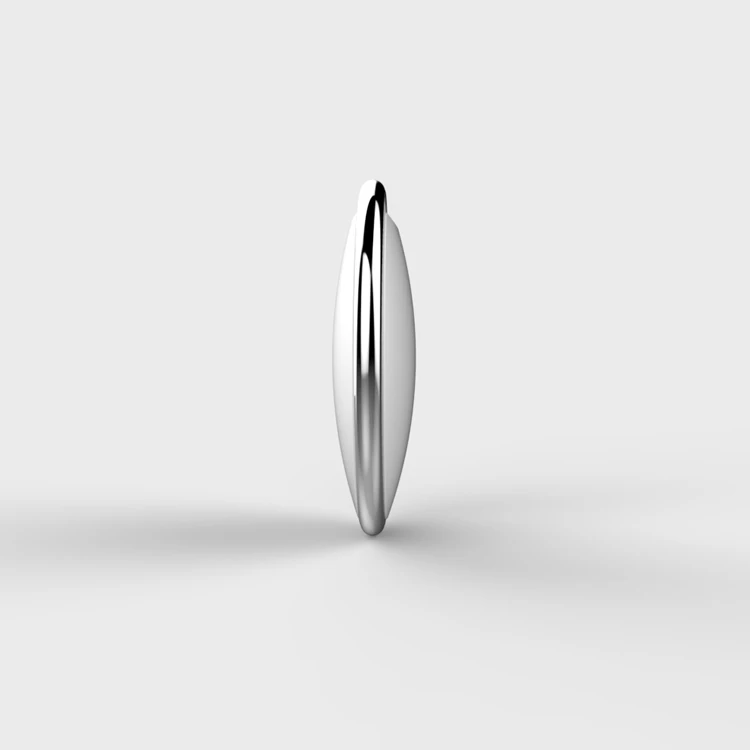

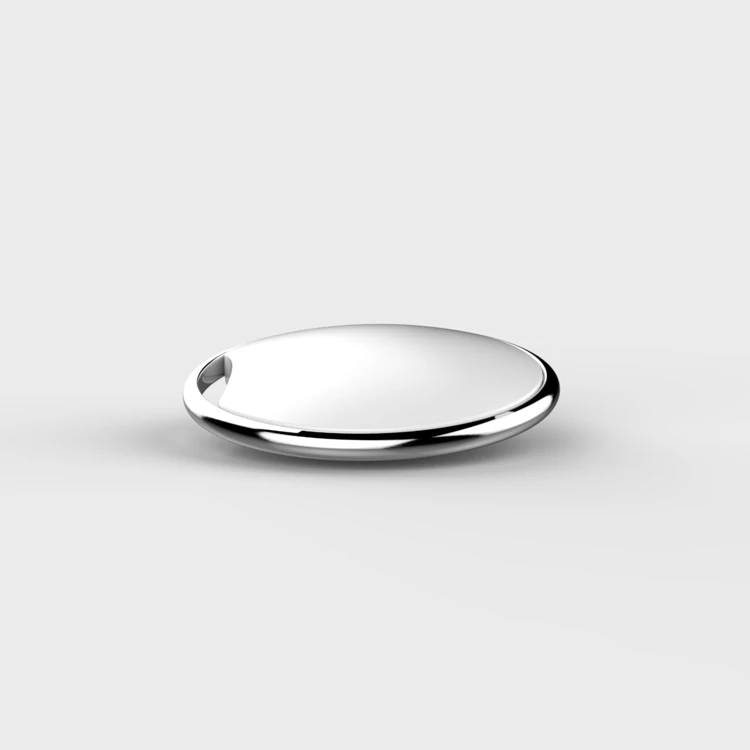

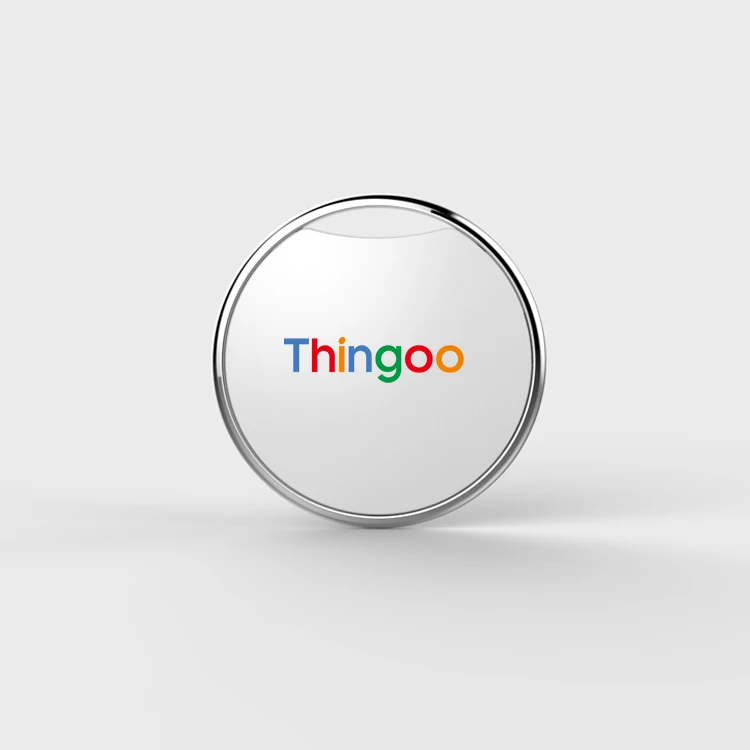

The UFO beacon D15N is a new generation beacon that loaded Bluetooth 5.0 hardware platform, hidden
push button and MiniBeacon Plus intelligence software.

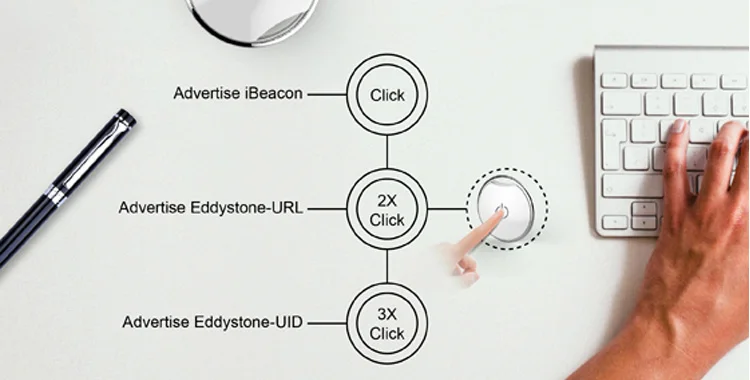

D15N UFO beacon advertises standard iBeacon and Eddystone (UID,URL,TLM) simultaneously. The user can configure D15N UFO beacon via configuration app BeaconSET+ as well.





Item	Value	Remarks
Case Color	white	Other colors can be customized
Battery Model	1 x CR2025	1pc CR2025 coin battery, 85mAh, 3.0V
Operation Voltage	1.8-3.9V	DC
Transmission Current	5.3mA (Max.)	Tested at 0dBm transmission power
Transmission Range	50 meters	Maximum
Antenna	50ohm	On board / PCB Antenna

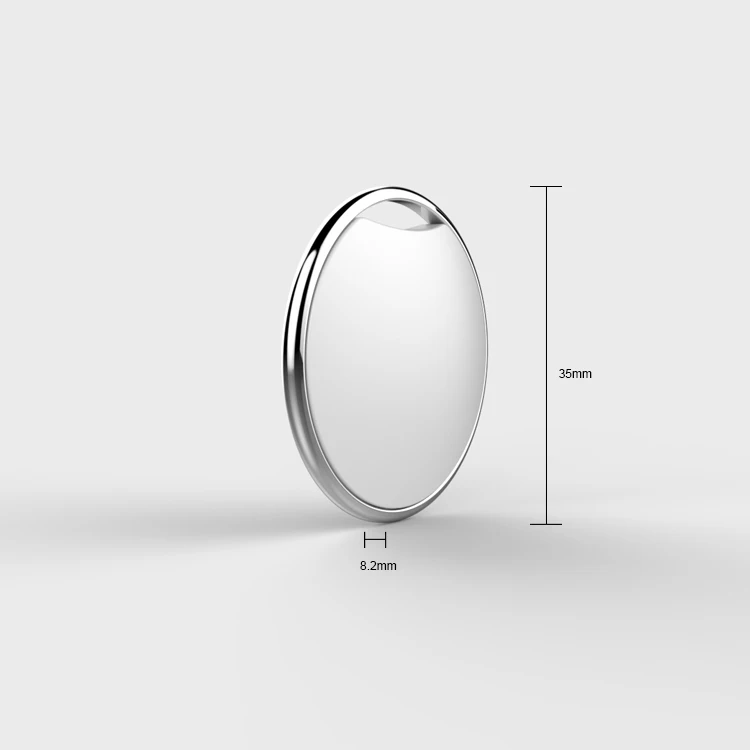

Size	Ø 35 x 8.2 mm	Null





Features

- Advertise iBeacon & Eddystone simultaneously
- Unique MAC address (ITU)
- Bluetooth 5.0 chipset nRF52 series
- The max. 50 meters advertising distance
- Weatherproof housing with key-chain hole
- Push button for emergency using





Hospitals: Stretchers, equipment (pumps, monitors..) – Track your confidential files

Warehouses: Manage the works in progress in real time – Optimize the flow of materials and supplies

Smart Offices: Furniture, Laptops

Smart Manufactoring: Work In Progress (locate part or manufacturing files), Tools, equipments.



Safety is the utmost concern of any hospital or medical facility — or at least it should be. It’s hard to maintain the maximum amount of security without the ability to track assets — staff members, patients and hardware — throughout the building.

It’s a task that’s easily achieved in smaller institutions, but what about larger facilities that feature multiple structures and campuses as well as thousands of patients and staff members?

Many are turning to the IoT and real-time location systems to facilitate asset tracking. Not only is it an inexpensive method of monitoring day-to-day activities in a hospital setting, but it’s unobtrusive, effective and cutting-edge





What is BLE communication? How does it work?



Bluetooth Low Energy (BLE) is a wireless personal area network technology for short distance data transmission. As the name hints, it’s designed for low energy consumption and cost, while possessing a communication range similar to that of the regular Bluetooth.



BLE communication consists of small packets of data and broadcasts at a regular interval by Beacons via radio waves. iBeacon standard calls for a broadcast interval of 100 ms.



Minor: a more detailed or minute information. For example, this beacon is located in aisle 2.

Tx Power: TX power refers to the strength of the signal that is exactly 1 meter from the device. TX is used to determine proximity of devices from the beacon.



 -You can contact us by sending an inquiry on Alibaba.



Thingoo,a trademark of Minew, is focused on the BLE technoloy for low-cost location tracking into an existing application. Founded in 2007, Minew was specialized in IoT field for more than a decade and keeping up with customer demands all the time,By providing smart devices and IoT solutions, we serve to optimize people's lives, works and businesses to make life easier. We have already served clients from more than 100 countries and regions with 12 million sales volume sold so far. Today, we have collaborated with a lot of top-class corporations including ARM, Ericsson, Google, Huawei, ect.

- iBeacon MFi License (iBC-14-00582)
- FCC Regulation (FCC Part 15.)

- CE Regulations (Included EN300328/301489/60950/6247

• By Express: DHL, UPS, Fedex.
• By Sea



  1.SDK     2. API    3. Demo APP     4. Configuration APP    5. Instructions

Can iBeacon be used with Android phones?

Yes, but they work in different ways. Only iOS devices regularly scan for BLE signals and wake up the corresponding apps when the devices are in proximity to the beacon. But for Android users need to have the app running on their device (at least in the background) to interact with beacons.

What is a BLE beacon?

It is important to understand the difference between classic Bluetooth and Bluetooth Low Energy to appreciate BLE beacons. Classic Bluetooth consumes high power and transmits to long ranges, which is suited for Bluetooth headsets and speakers.
